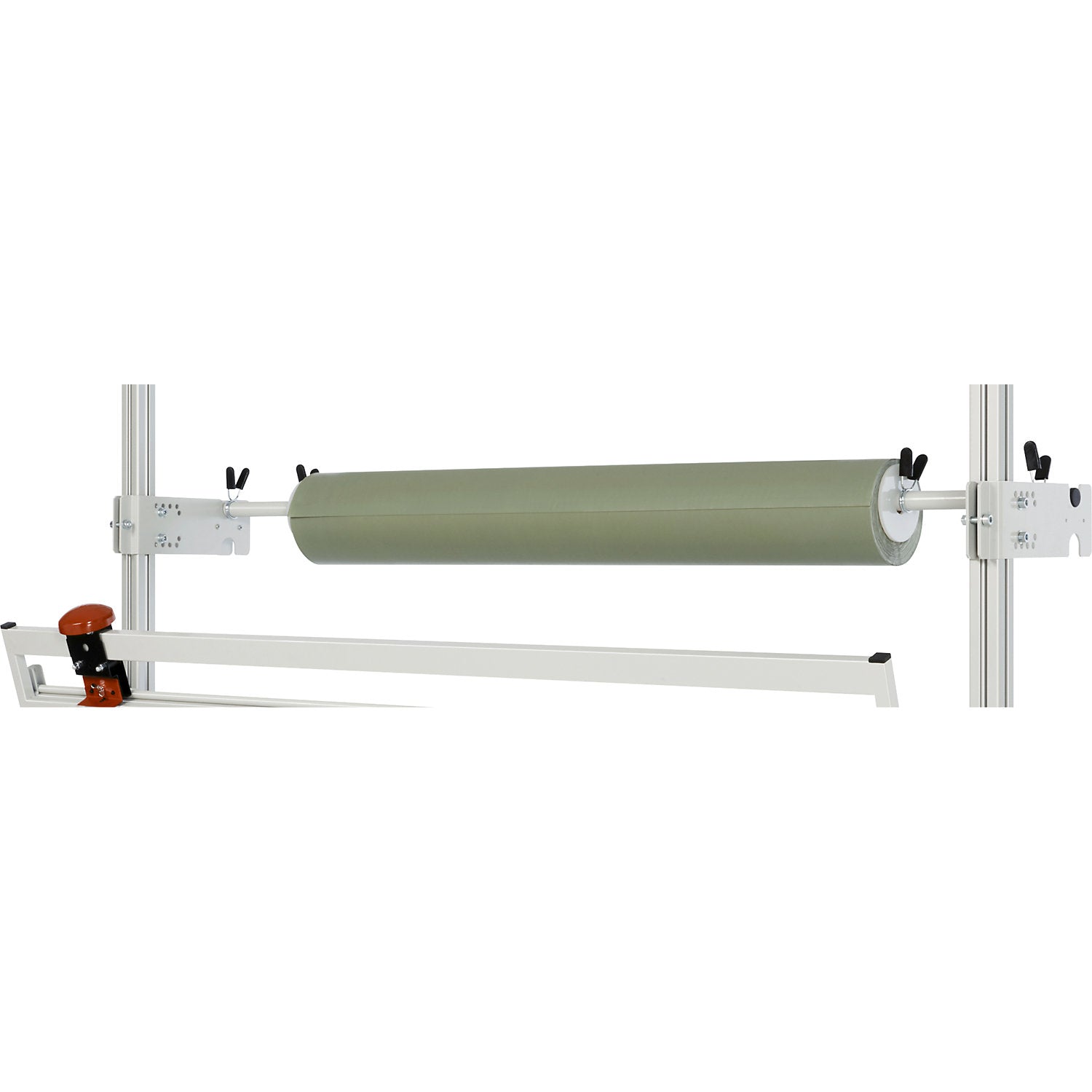

Unwind unit, for installation on modular supports, width 1250 mm.

Estimated delivery: 36 days

Unwind unit, for installation on modular supports, width 1250 mm

• Supplied = partially assembled
• Height = 90 mm
• Width = 1250 mm
• Depth = 270 mm
• Material = sheet steel
• Max. load = 30 kg
• Colour = light grey RAL 7035
• Product type = accessories for workplace systems
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 5 kg
• Weight = 4 kg
• Sustainability = Recyclable
• Suitable for all RAU modular add-on systems
• Variable installation height
• For paper and film rolls up to max. 850 mm diameter
• This retrofit turns your workstation into a packing station
• Optional extra for unwinding packaging material such as paper, film etc. up to a maximum roll width of 850 mm (depending on installation)
• Tube diameter 25 mm
• Incl. 2 mounting brackets, 4 spring locks, 2 spring clamps and 2 support plates
• For use of the unwind unit at a workstation, the clearance width, depth and height must be suitable for the width, depth and height of the unwind unit incl. roll
• Installation on: RAU modular supports (to the front or to the rear), on all products for which the RAU modular supports are suitable for unrestricted use
• The installation height is infinitely variable.
