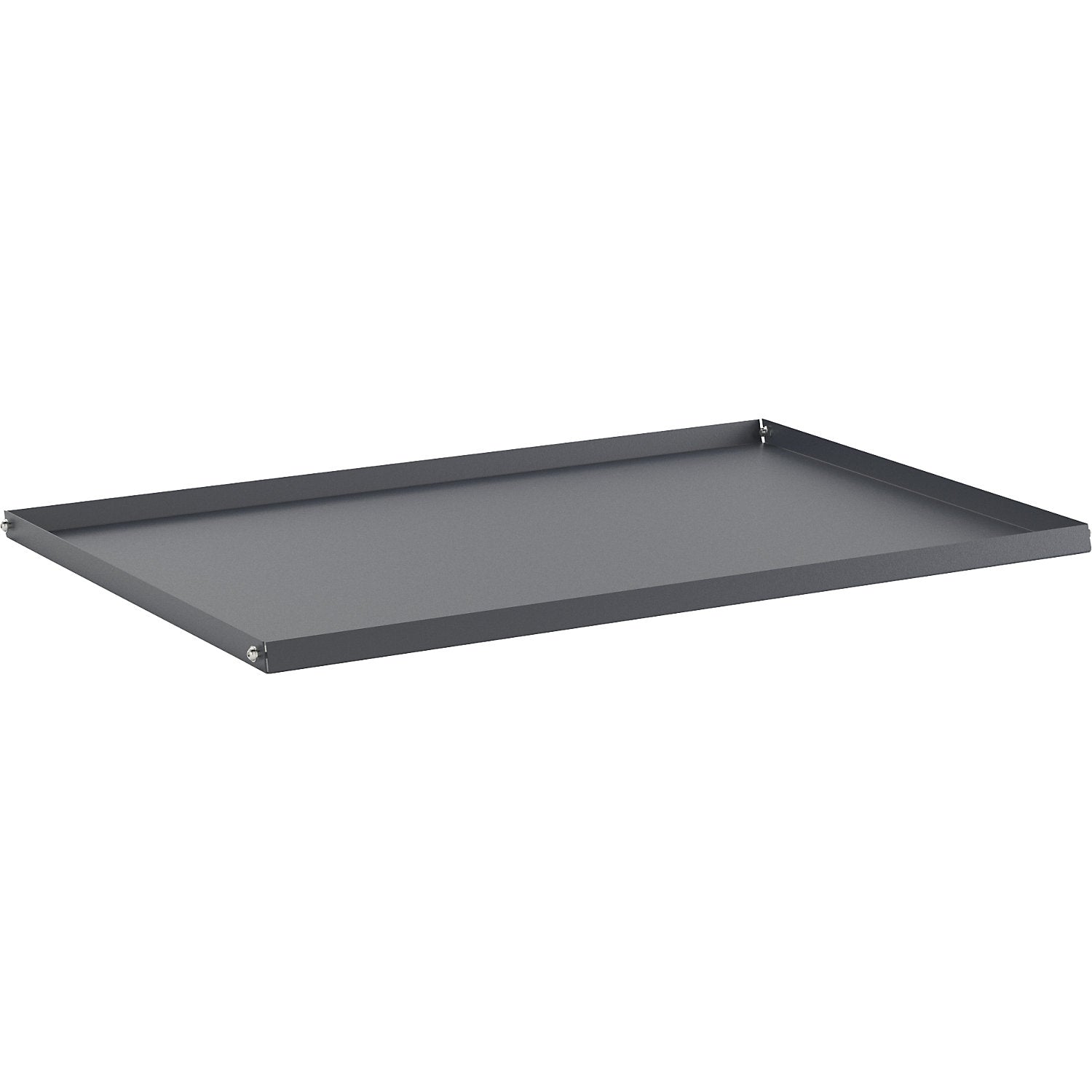

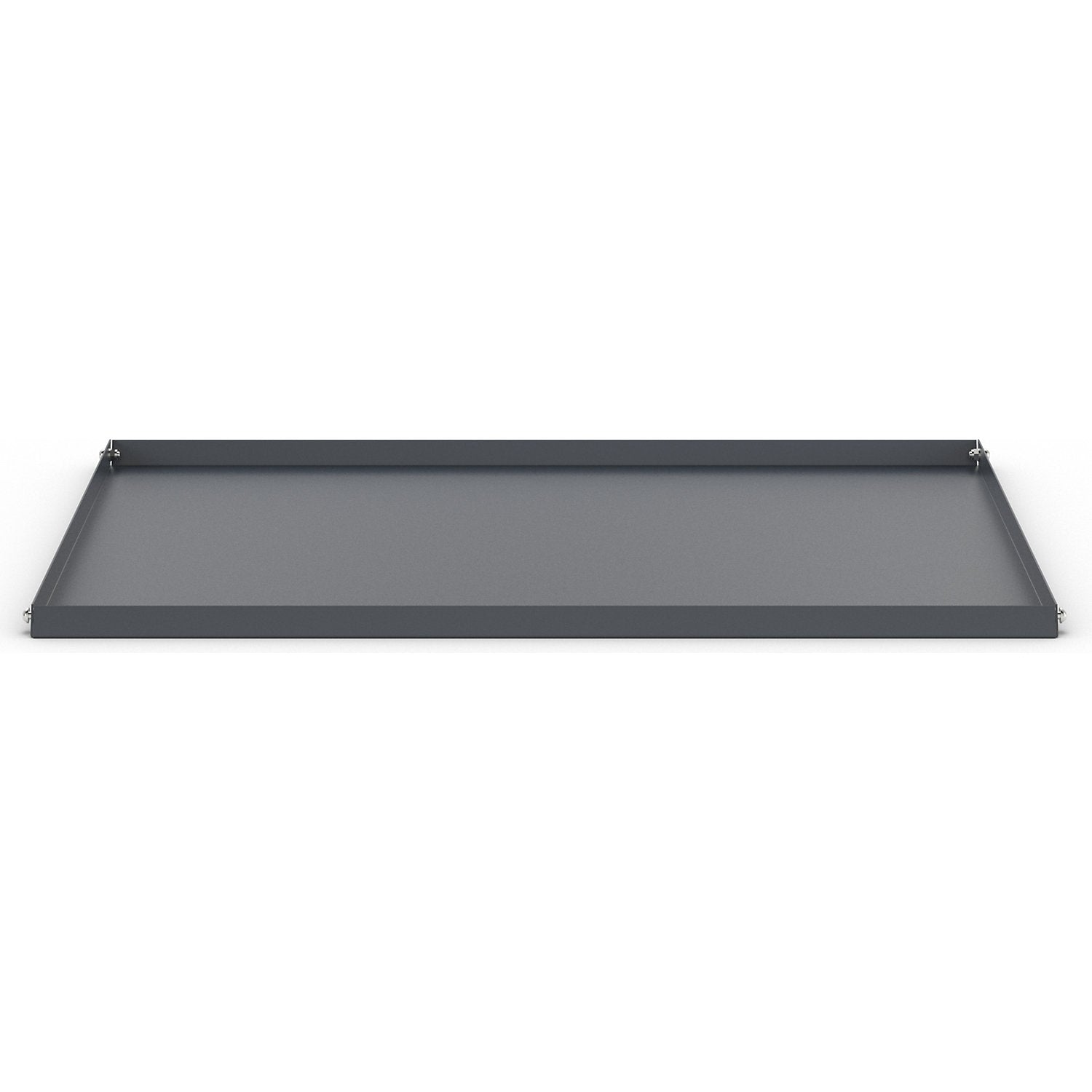

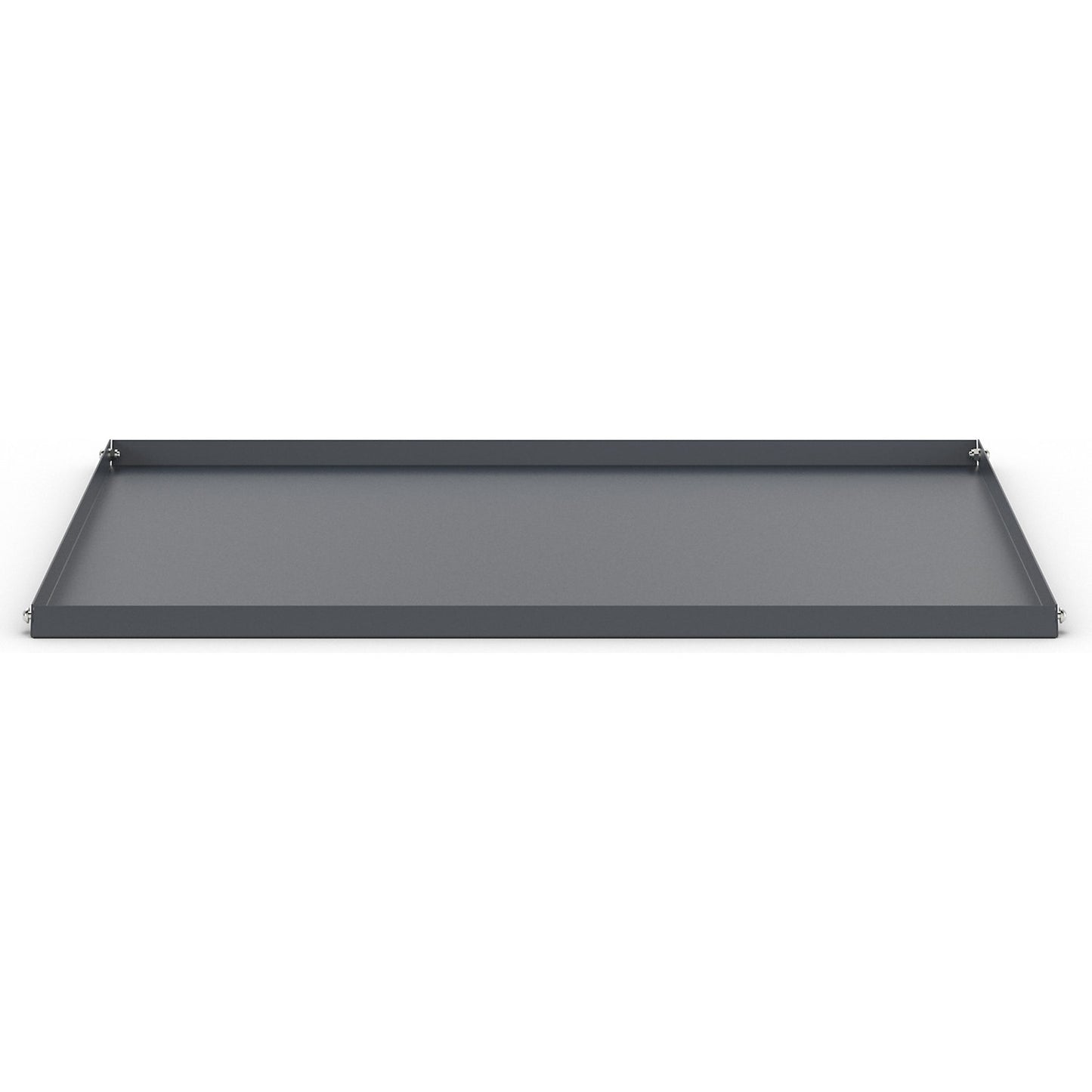

Inclined shelf CustomLine, for assembly and shelf trucks, charcoal RAL 7016.

Estimated delivery: 40 days

Inclined shelf CustomLine, for assembly and shelf trucks, charcoal RAL 7016

• Supplied = flat pack
• Material = steel
• Colour = charcoal RAL 7016
• Height = 32 mm
• Length = 1049 mm
• Width = 693 mm
• Max. load = 150 kg
• Product type = accessories for industrial shelf trucks
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 18.37 kg
• Weight = 18 kg
• Slanted platform with fixed mounting
• Accessories for the CustomLine assembly and shelf trolley
• Can be individually retrofitted
• Ergonomic Material Provisioning - Material slides forward
• Structured storage
• Structured Material Provision: The inclined CustomLine shelf enables efficient organization and targeted material supply

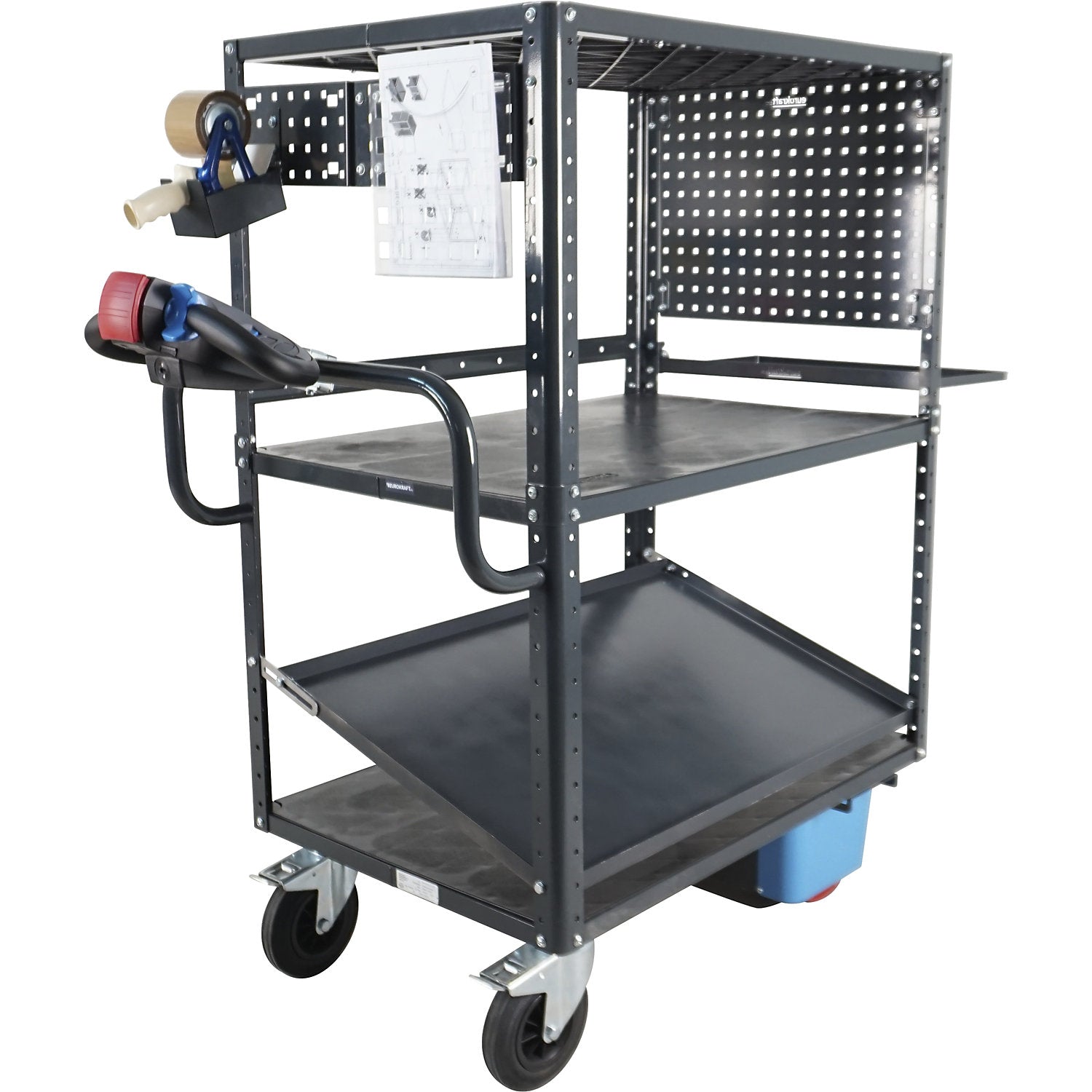

• As accessories for the CustomLine assembly or shelf truck, it can be easily attached to the corner posts of the truck and individually retrofitted
• Due to its inclined model, small parts or workpieces slide forward and offer ergonomic removal for gripping
• Two variants are available for selection: As an inclined shelf permanently integrated into the perforated grid or as an inclined and adjustable shelf
• With the adjustable shelf, the inclination is adjusted depending on the positioning in the perforated grid
• Both models can be easily retrofitted
• For stability, a middle, straight shelf is required with the CustomLine shelf truck
• Pack of 1: angled shelf incl. mounting hardware
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
