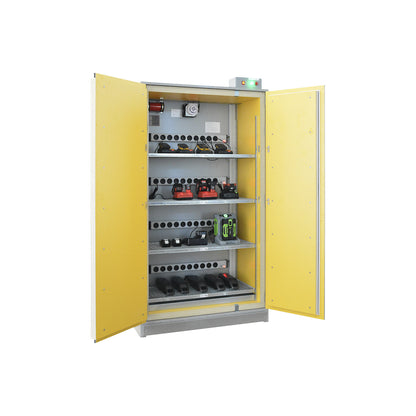

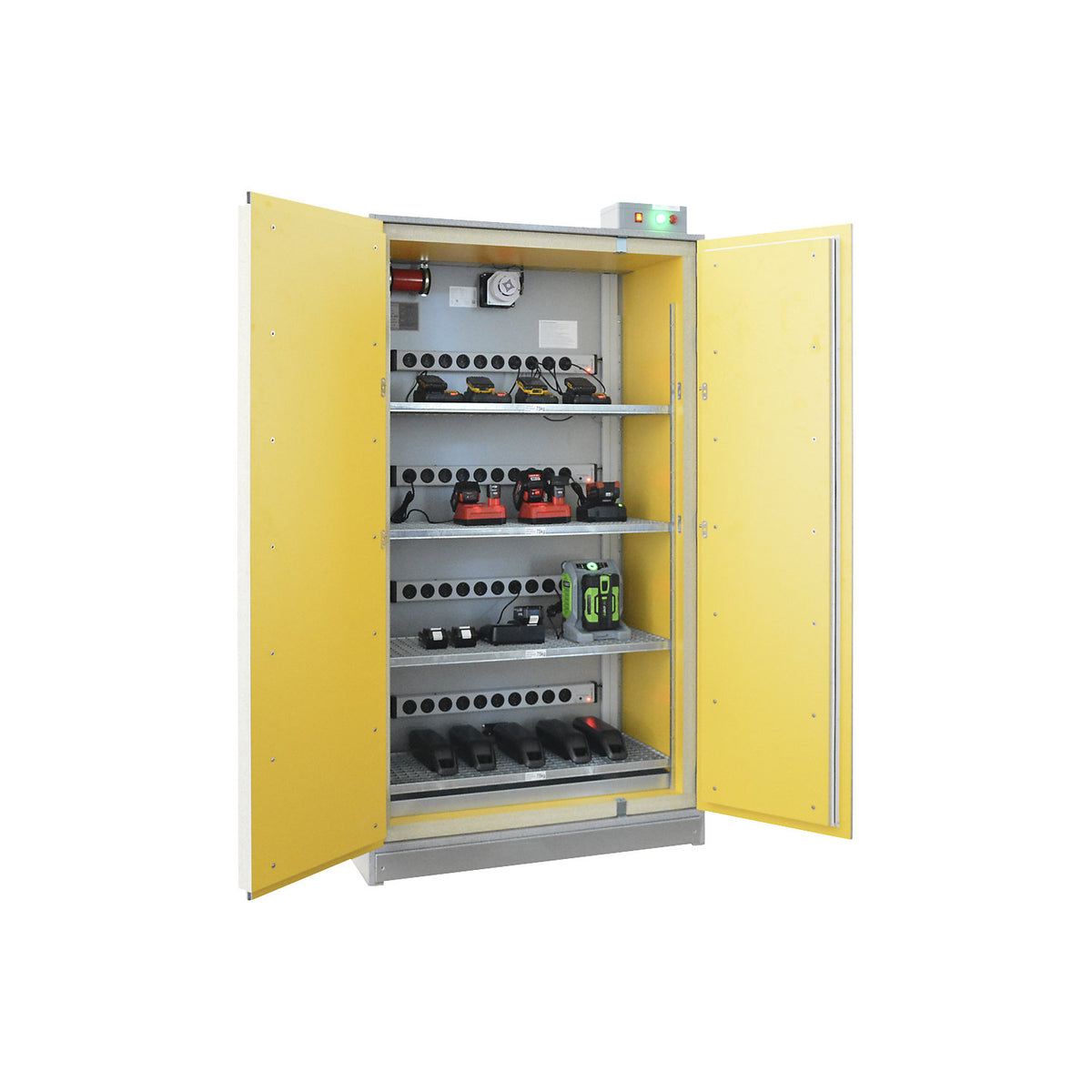

SiS Li-Ion Basic Charge EI 90 battery charging safety cabinet, with fire suppression system, HxW 2048 x 1148 mm, 4 socket strips.

Estimated delivery: 51 days

SiS Li-Ion Basic Charge EI 90 battery charging safety cabinet, with fire suppression system, HxW 2048 x 1148 mm, 4 socket strips

• Supplied = assembled
• Fittings = 4x10 fold trailing socket
• Height = 2048 mm
• Transfer height = 2300 mm
• Width = 1148 mm
• Depth = 591 mm
• Mains voltage = 230 V
• Internal height = 1804 mm
• Internal width = 1004 mm
• Internal depth = 440 mm
• Fire resistance = 90 minutes
• Internal fittings = with fire suppression system
• Material = gypsum fibreboards, sheet steel
• Number of shelves = 4 pcs
• Body colour = brushed aluminium
• Door colour = traffic yellow RAL 1023
• Lock type = security, dual bit lock with 2 keys
• Door type = hinged door
• For media = lithium-ion batteries/rechargeable batteries
• Product type = battery charging safety cabinets
• Customs tariff number = 94038900
• Country of origin = DEU
• Gross weight = 627.5 kg
• Weight = 600 kg
• Sustainability = CO 2 footprint calculated
• Safe charging and storage of multiple lithium ion batteries in the cabinet
• Fire resistant up to 90 min. from inside and outside (EI 90), type-approved in accordance with DIN EN 1363-1:2012-10
• Maximum battery output per cabinet 3.5 kWh
• Integrated ventilation system with smoke detector and control unit with fire detection
• All round fire protection seals that foam up automatically in the event of a fire
• Smooth running hinged doors, opening angle 180°, not self-closing
• Fire resistant cable inlets at the top and bottom

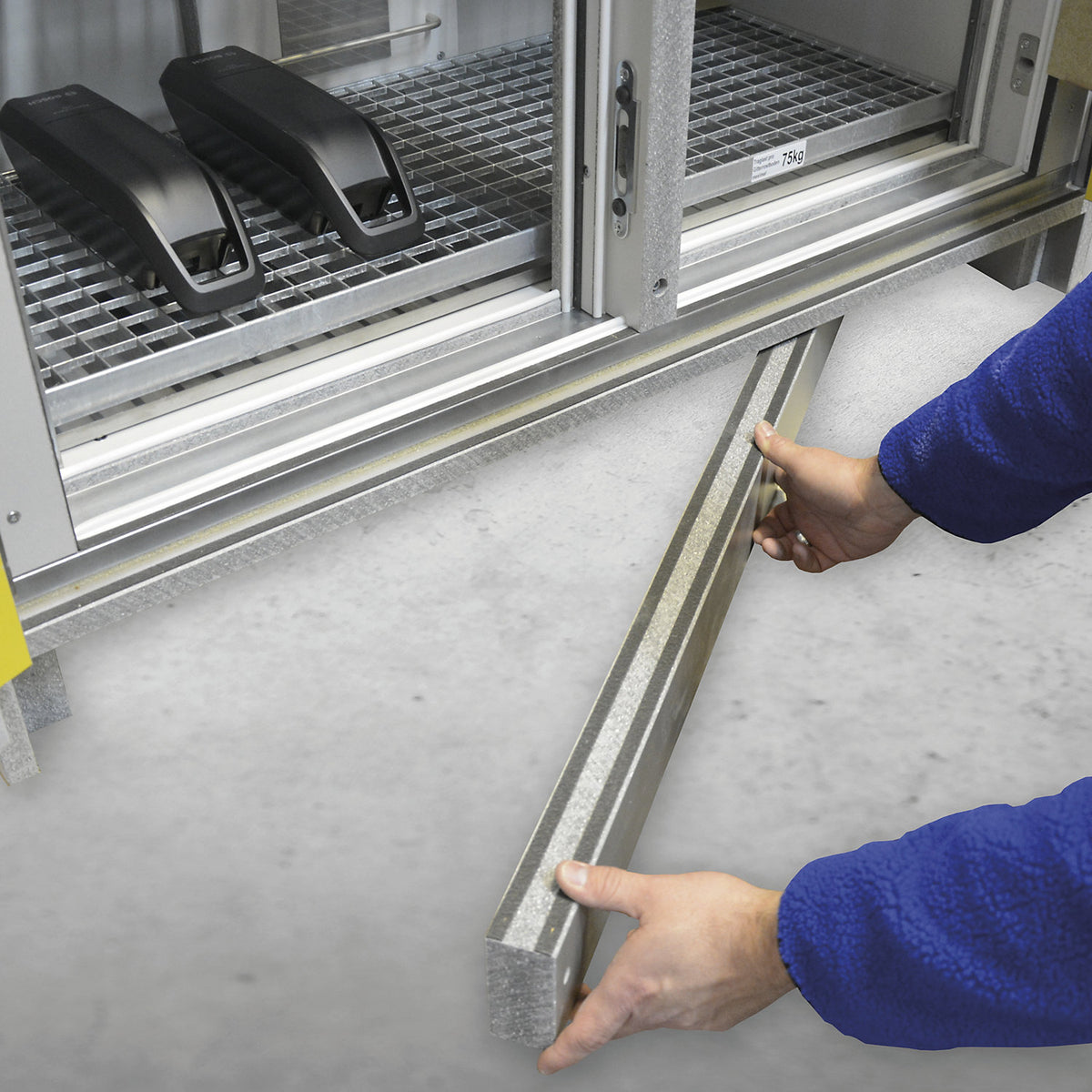

• Plinth that provides access from below, height 100 mm with removable plinth panel
• The LaCont LI-ION Basic Charge EI 90 battery cabinet is the ideal entry-level model for the active and passive storage of lithium-ion batteries, with a main focus on fire protection
• The robust overall construction, tested by the Material Testing Institute (MPA) Dresden, has a fire resistance of 90 minutes from inside and outside (EI90) according to DIN EN 1363-1
• Thanks to all-round, intumescent fire protection seals that automatically expand in the event of fire, the LaCont LI-ION Basic protects against fires inside the cabinet, whereby the emission of smoke and toxic fumes is minimised
• The aim here is to gain time for the evacuation of people in the vicinity and for the fire brigade to initiate extinguishing measures

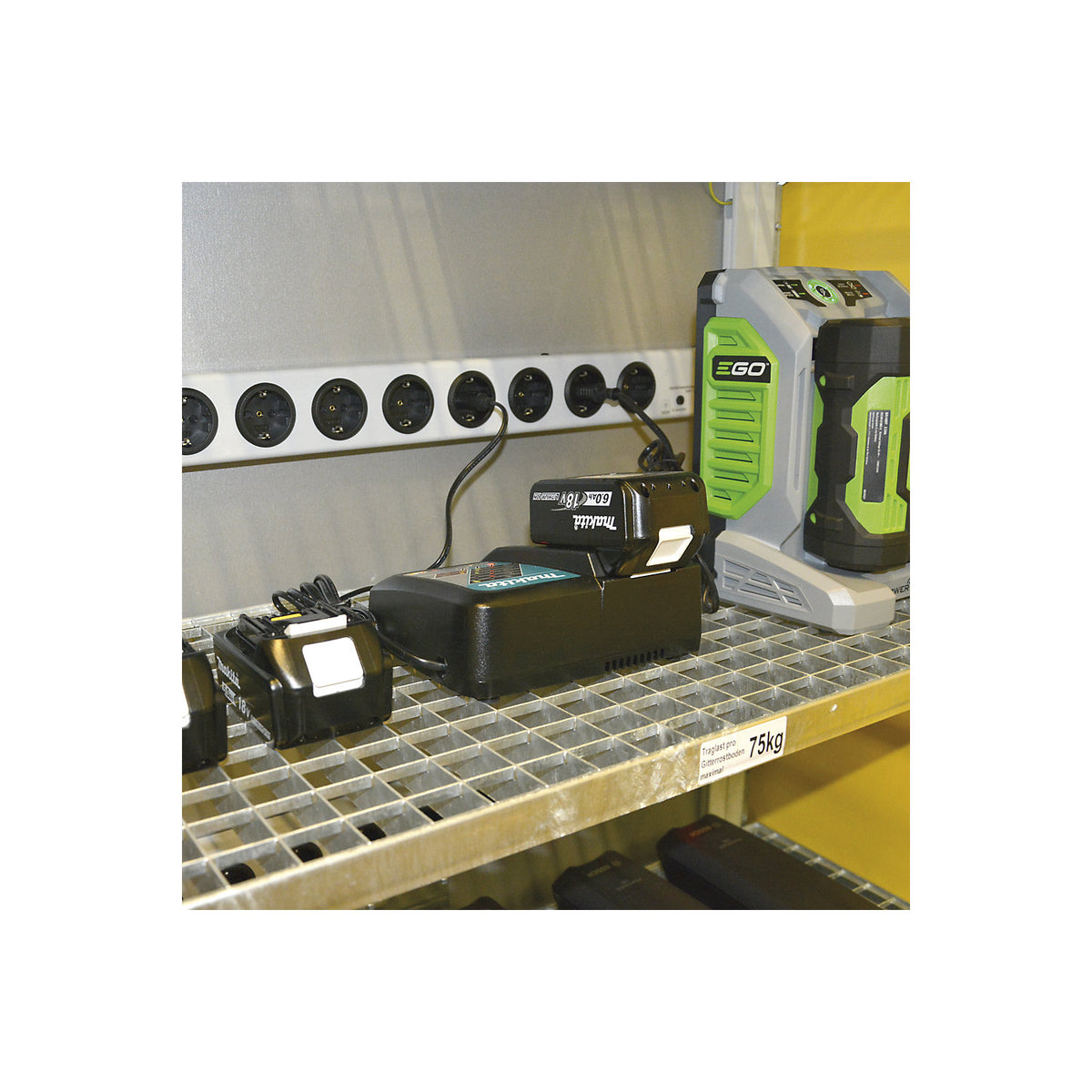

• Further standard equipment includes an integrated ventilation system with smoke detector and fan (for power supply shutdown), height-adjustable grid storage levels, each with a load capacity of 75 kg (with evenly distributed load), a plinth with a cover that can be accessed by a forklift for easy transport, as well as fire-resistant cable glands for customer-side installation of fire detectors or potential-free contacts
• Construction made of non-combustible building material (Class A2-s1, d0 according to DIN EN 13501-1) including coating (body aluminium-coloured / doors RAL 1023 - traffic yellow), galvanised sheet steel sump, 17 litre collection volume
• Control unit of the SiS Li-Ion Basic Charge EI 90: - Fault message via optical signal and shutdown of the ventilation system, as well as extinguishing generator with power-independent activation in case of fire and impermissible temperature increase - Automatic shutdown of the fan integrated in the cabinet upon smoke detection - Optical status display informs about the current status of the cabinet (fire detection, ventilation unit, power strips) - In the event of fire, the ventilation unit is automatically shut down to reduce air circulation - The power supply can be manually interrupted in the event of fire by pressing the mains switch on the control unit - No standard acoustic alarm in the event of fire - subsequent installation of fire detectors or potential-free contacts is possible on the customer side, thanks to fire-resistant cable entries present in the cabinet - Rated voltage 230 volts, 1-phase 16A fusing Functionality when equipped with a fire suppression system (aerosol extinguishing generator), with power-independent activation in case of fire or impermissible temperature increase from 180 °C: The activation of the solid material contained in the extinguishing generator creates an aerosol of solid and gaseous particles
• These spread throughout the cabinet in milliseconds, displacing oxygen, diluting flammable gases, and thereby initiating the extinguishing process
• Thus, the aerosol intervenes in the chemical chain reaction of the fire process, among other things by displacing oxygen, and interrupts it
• If the fire suppression system is not activated, the maintenance-free service life is 10 years
• NOTE: the safety storage cabinets must be serviced once a year
• LaCont recommends contacting your liability insurance company, the fire brigade or an expert before putting a cabinet into service
• A risk assessment and a comprehensive fire protection concept are mandatory!
