SiS Li-Ion 90 Safe Pro battery charging safety cabinet, with fire suppression system, HxW 2250 x 1212 mm, 2 trailing sockets.

Estimated delivery: 39 days

SiS Li-Ion 90 Safe Pro battery charging safety cabinet, with fire suppression system, HxW 2250 x 1212 mm, 2 trailing sockets

• Supplied = pre-assembled, final assembly by customer

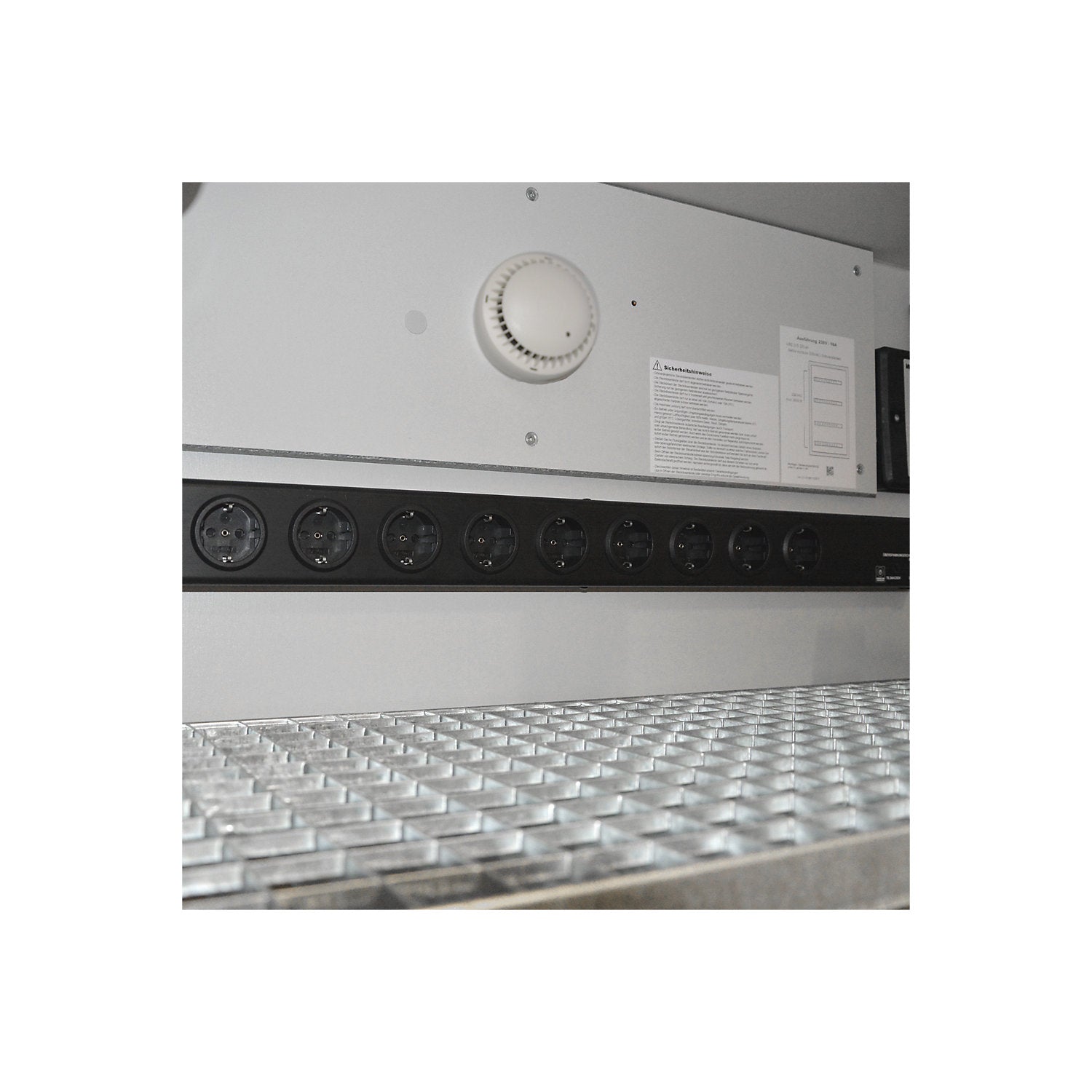

• Fittings = 2x10 fold trailing socket
• Height = 2250 mm
• Transfer height = 2200 mm
• Width = 1212 mm
• Depth = 664 mm
• Mains voltage = 230 V
• Internal height = 1687 mm
• Internal width = 1004 mm
• Internal depth = 453 mm
• Fire resistance = 90 minutes
• Internal fittings = with fire suppression system
• Material = gypsum fibreboards, sheet steel
• Number of shelves = 4 pcs
• Body colour = brushed aluminium
• Door colour = traffic yellow RAL 1023
• Lock type = profile cylinder lock
• Door type = hinged door
• For media = lithium-ion batteries/rechargeable batteries
• Max. battery power = 3.5 kWh
• Product type = battery charging safety cabinets
• Customs tariff number = 94038900
• Country of origin = DEU
• Gross weight = 733.5 kg
• Weight = 706 kg
• Sustainability = CO 2 footprint calculated
• Safe charging and storage of multiple lithium ion batteries in the cabinet
• Fire resistance of 90 minutes from inside and outside (EI 90) - GS symbol from MPA Dresden
• Maximum battery power per cabinet 3.5 kWh at 230 V and 10.5 kWh at 400 V
• With control unit for visual and acoustic status signalling, fire detection, smoke detector
• Including technical ventilation to prevent heat building up in the cabinet
• All round fire protection seals that foam up automatically in the event of a fire
• Complete disconnection of the power supply to the cabinet in the event of an incident
• Plinth that provides access from below, height 100 mm with removable plinth panel
• Tested smoke control
• Overvoltage protection
• The LaCont battery cabinet LI-ION SAFE PRO was specially developed for the active and passive storage of lithium batteries, with GS certification according to test principle EK5 / AK4 22-01 and a real fire test of the cabinet equipped with lithium batteries carried out at MPA Dresden
• Due to the increased requirements of the GS test, the LI-ION SAFE PRO has a tested fire resistance of 90 minutes according to DIN EN14470-1/-2 from outside to inside and 90 minutes according to DIN EN 1363-1/-2 from inside to outside
• The self-closing doors are additionally permanently function-tested according to DIN EN 16121 and DIN EN 16122
• By means of all-round, automatically expanding fire protection seals in case of fire and permanently self-closing doors, the LI-ION SAFE PRO not only protects against fires inside the cabinet, but also protects your stored goods from fires from outside
• The risk to persons from the possible release of explosively burning or toxic gases and smoke is to be minimised
• The aim here is to gain time for the evacuation of persons in the vicinity and for the initiation of extinguishing measures by the fire brigade
• Further standard equipment includes an integrated ventilation system to prevent heat build-up in the cabinet, a 5-litre collection tray made of steel sheet and manufactured according to AwSV, 4 height-adjustable grid shelf storage levels with a load capacity of 75 kg each (with evenly distributed load), as well as a plinth with a cover for easy transport
• The control unit included in the scope of delivery, with optical and acoustic status messages and fire detectors, monitors the storage process of the Li-ion batteries
• In case of fire detection inside the cabinet, the power supply and the integrated ventilation are completely shut down, and an optical and acoustic alarm is triggered
• A potential-free contact allows for signal forwarding to a control centre
• Construction from non-combustible material including coating (body in aluminium colour / doors RAL 1023 - traffic yellow), galvanised steel sheet base tray according to AwSV, 5 litres collection volume
• Automatically closing doors, permanently function-tested according to DIN EN 16121 and DIN EN 16122
• Double-leaf doors with central stile, lockable via profile cylinder lock
• Cabinet height without control unit and fan: 1950 mm Version with operating voltage 230 V, 1-phase 16 A fusing, maximum electrical power per cabinet 3.5 kWh (max. 2 kWh per power strip) Version with operating voltage 400 V, 3-phase 3 x 16 A fusing, maximum electrical power per cabinet 10.5 kWh (max. 3.5 kWh per power strip, for versions with 4 x power strips, the upper two power strips with 3.5 kWh each, the lower two with 1.75 kWh each) Control unit of the SiS Li-Ion 90 Safe Pro: - In case of smoke detection inside the cabinet, the power supply and the integrated ventilation are completely shut down - In case of fire detection, an optical and acoustic alarm is triggered - Optical status display informs about the current status of the cabinet (fire detection, ventilation unit, power strips) - Includes potential-free contact for signal forwarding (e.g. to a control centre) - Optional GSM module for remote monitoring and alarming available on request - Model specially developed for the active and passive storage of lithium batteries, with GS certification according to test principle EK5 / AK4 22-01 and a real fire test of the cabinet equipped with lithium batteries carried out at MPA Dresden
• Functionality of the version with fire suppression system (aerosol extinguishing generator), with power-independent activation in case of fire or impermissible temperature increase from 180 °C: The activation of the solid material contained in the extinguishing generator creates an aerosol of solid and gaseous particles
• These spread throughout the cabinet in milliseconds, displacing oxygen, diluting flammable gases, and thereby initiating the extinguishing process
• Thus, the aerosol intervenes in the chemical chain reaction of the fire process, among other things by displacing oxygen, and interrupts it
• If the fire suppression system is not activated, the maintenance-free service life is 10 years
• NOTE: the safety storage cabinets must be serviced once a year
• LaCont recommends contacting your liability insurance company, the fire brigade or an expert before putting a cabinet into service
• A risk assessment and a comprehensive fire protection concept are mandatory!
