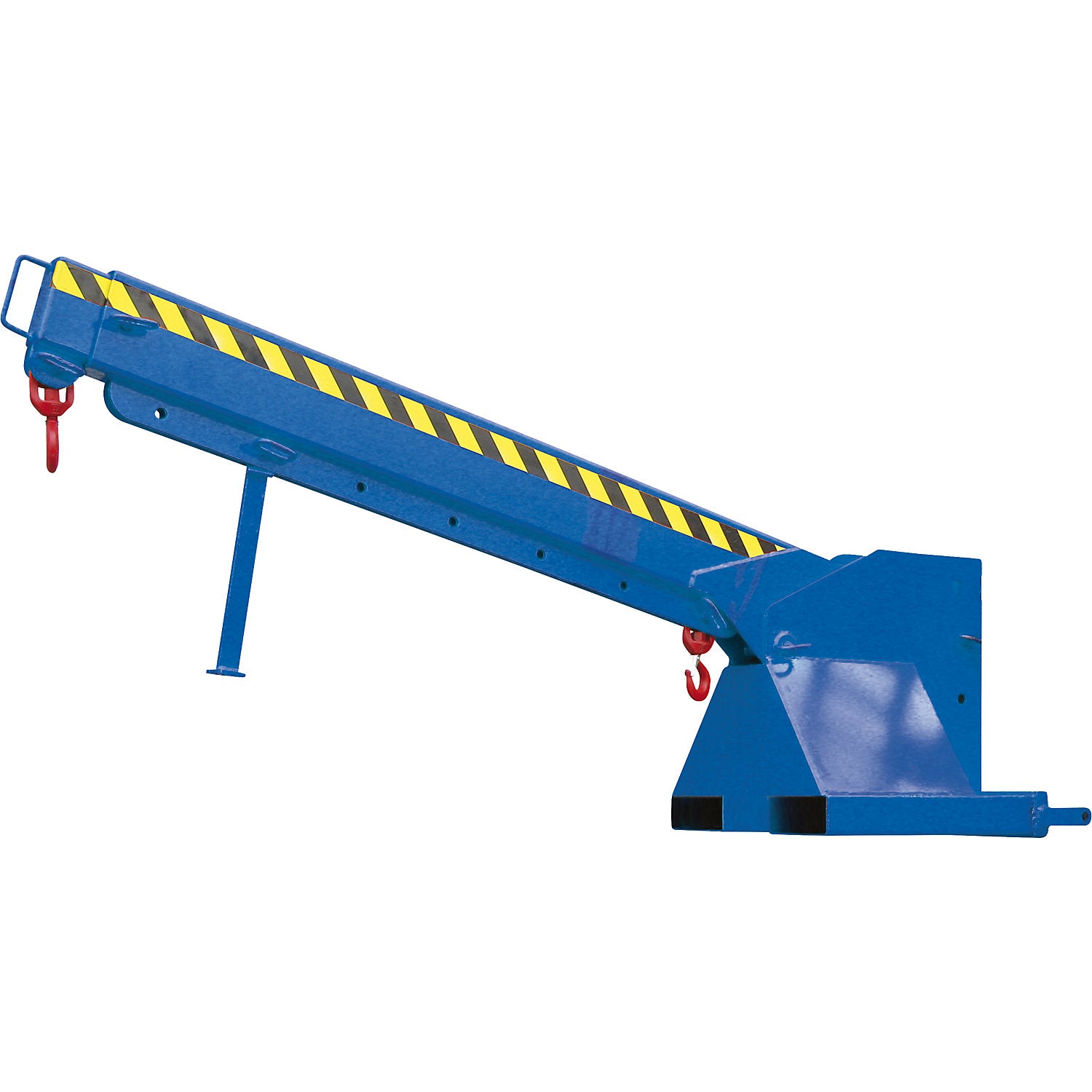

Crane arm, telescopic and height adjustable, 560 - 2500 kg, gentian blue.

Estimated delivery: 36 days

Crane arm, telescopic and height adjustable, 560 - 2500 kg, gentian blue

• Supplied = assembled
• Max. load from - to = 560 - 2500 kg
• Adjustable length = 740 - 3735 mm, 7 positions
• Width = 540 mm
• Height = 645 mm
• Length = 740 mm
• Finish = powder coated
• Colour = gentian blue RAL 5010
• Distance across forks = 130 mm
• Product type = load arms
• Fork pocket dimensions = 190x90 mm
• Material = steel
• Customs tariff number = 84312000
• Country of origin = DEU
• Gross weight = 220 kg
• Weight = 220 kg
• Sustainability = CO 2 footprint calculated
• Height adjustable in 3 steps up to 45°
• Telescopic in 7 steps

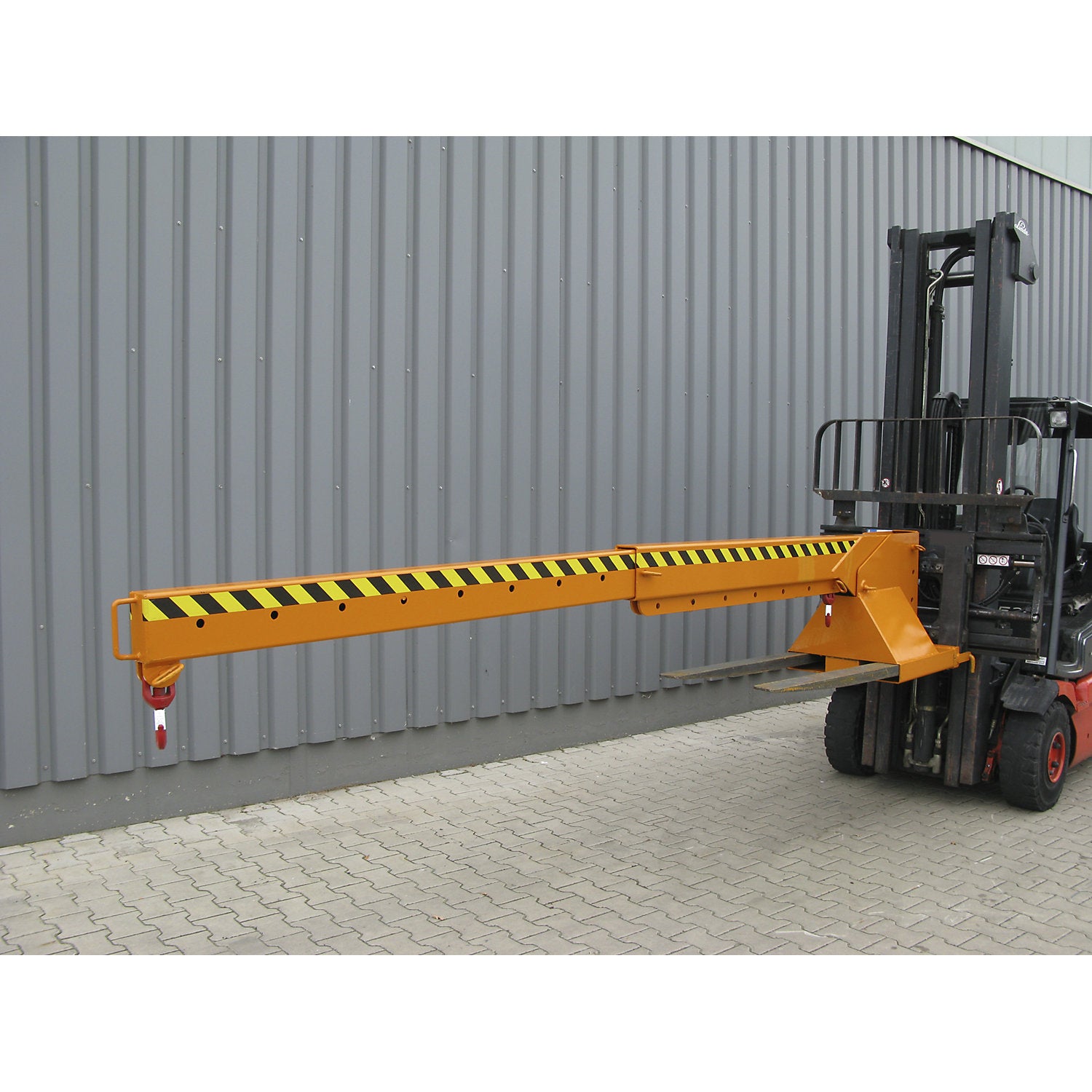

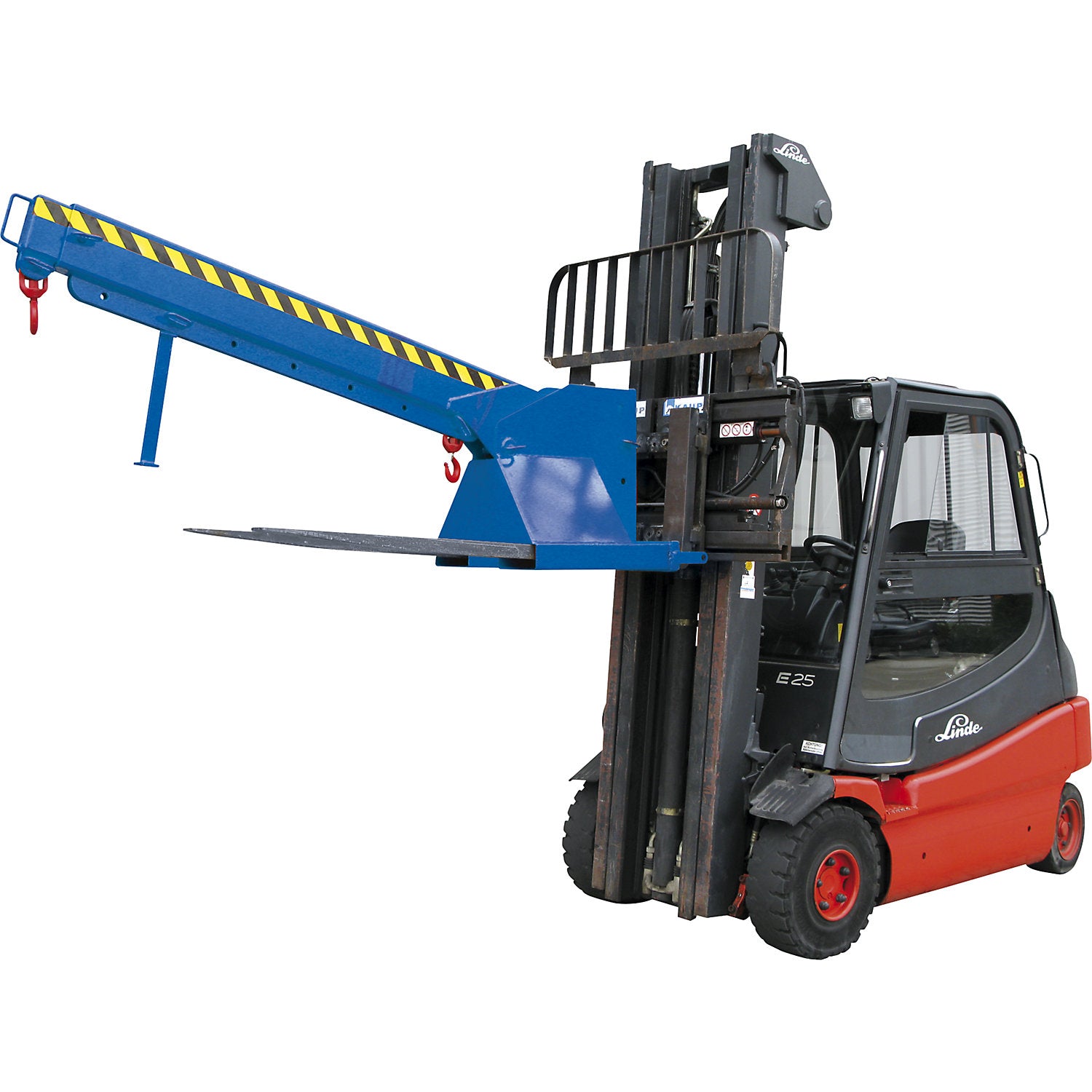

• Extends the reach of a forklift as a mobile crane
• Including 2 rotatable swivel hooks
• Bolt securing directly on the mast for the utilization of the stacker max. load
• Practical stand
• TÜV-certified (GS Mark)
• The crane arm is a robust attachment that transforms forklift trucks into versatile mobile cranes, thus significantly extending their reach
• This robust telescopic arm made of profile tubes enables the precise picking up, lifting, and transporting of hanging loads
• Its seven-stage telescopic length adjustment from 740 - 3735 mm offers high flexibility
• The flexible length adjustment enables loads to be precisely positioned even in hard-to-reach places and the reach of the forklift to be optimally adapted to the respective task
• Additionally, the crane arm can be height-adjusted by up to 45° in three stages, which ensures adaptability to different requirements
• This allows loads, for example, to be lifted over obstacles or positioned at different heights
• Two rotatable swivel hooks are included and facilitate working with lifting gear such as ropes or chains
• The integrated pin lock on the mast guarantees secure attachment and use of the stacker's max. load
• For easy pick-up on the forklift truck, the telescopic loader is equipped with a practical stand
• The TÜV certification with GS mark confirms the high quality and safety of this attachment.
