Lifting work table Supporter with multi-wall structure, beech multiplex board, WxD 1600 x 790 mm.

Estimated delivery: 61 days

Lifting work table Supporter with multi-wall structure, beech multiplex board, WxD 1600 x 790 mm

• Supplied = assembled
• Type of worktop = beech multiplex
• Worktop width = 1600 mm
• Worktop depth = 790 mm
• Static distributed load = 500 kg
• Height = 1125 mm
• Frame colour = light grey RAL 7035, violet blue RAL 5000
• Number of drawers = 3 pcs
• Panel thickness = 30 mm
• Frame design = 4 castors, with stops
• Frame material = steel
• Customs tariff number = 84279000
• Country of origin = DEU
• Gross weight = 257.4 kg
• Weight = 230 kg
• Height adjustable under load, even with eccentric loading
• Mobile with smooth-running castors
• Drawer cupboard adjusted to the height of the worktop
• The SUPPORTER assembly tables were specifically developed for manual workstations in production and assembly
• Strong physical strain on employees in these areas leads to an increase in illness-related absences due to musculoskeletal disorders
• Ergonomic workstation solutions therefore usually pay for themselves very quickly - and incidentally, employee satisfaction and well-being at their workstation increase
• Robust, durable sheet steel construction

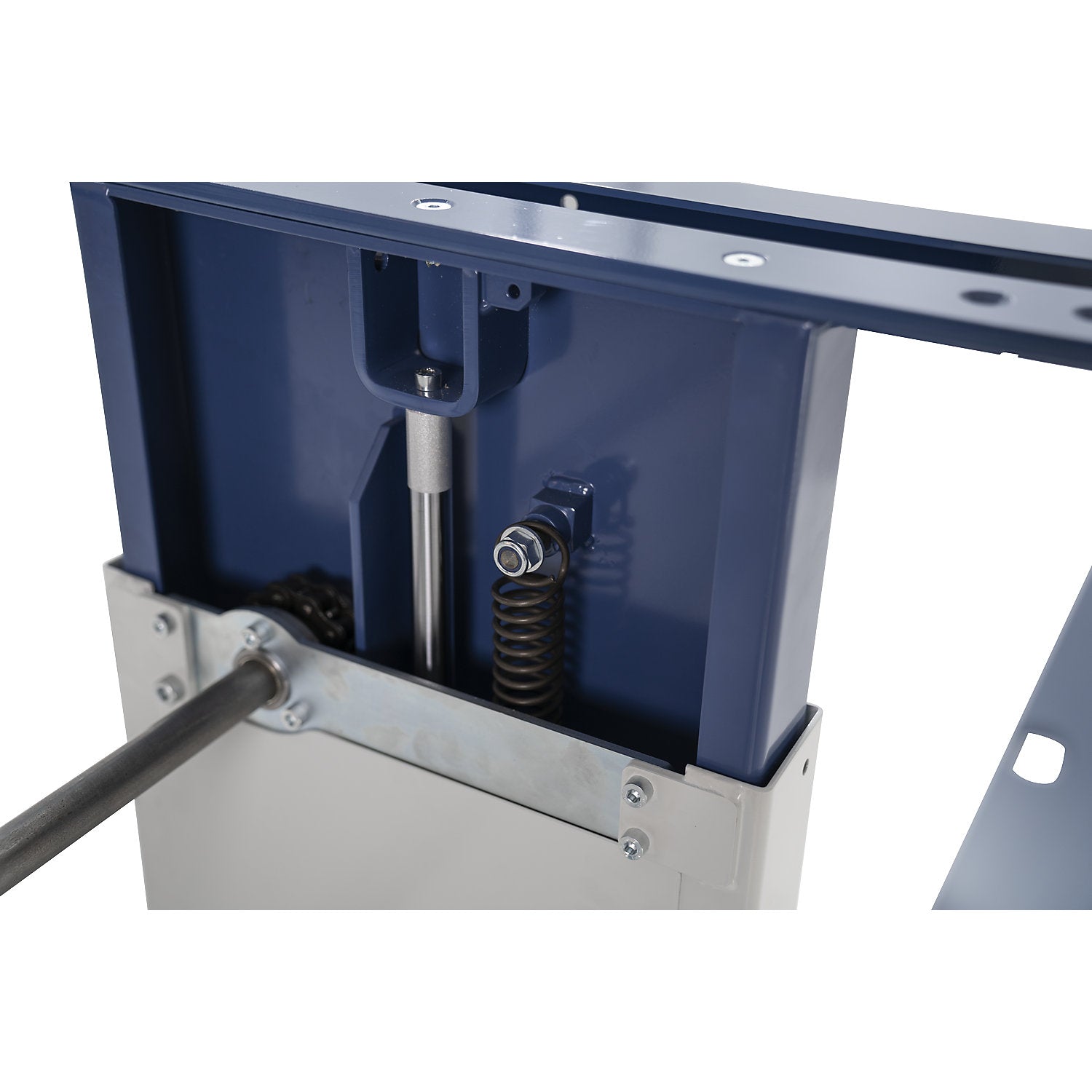

• The side panels ensure the necessary stability and at the same time protect the lifting and lowering mechanism inside them
• High-quality drives on both sides move the work table to the desired level
• Operation is manual via a foot pedal
• Power-independent use at changing locations is thus easily possible
• This is ensured by 4 heavy-duty castors, 2 of which have locking brakes
• Usable stroke 310 mm (working height continuously adjustable from 700 to 1000 mm)
• Construction height 815 mm
• Overall height 1125 mm
• Platform size 1460 x 740 mm
• The synchronizing shaft is located below the shelf
• The beech multiplex worktop is loadable, abrasion and impact resistant, and versatile for use in metal and wood processing or assembly
• Under-cabinet drawer cupboard: Cabinet housing 530 x 500 x 519 mm (width x depth x heigth), drawers with ball guides and full extension (100%)
• Load capacity 50 kg per drawer, lockable with central locking
• Drawer usable heights 2 x 85 mm, 1 x 185 mm
• Internal width x depth 450 x 400 mm
• Powder coated in light grey/gentian blue

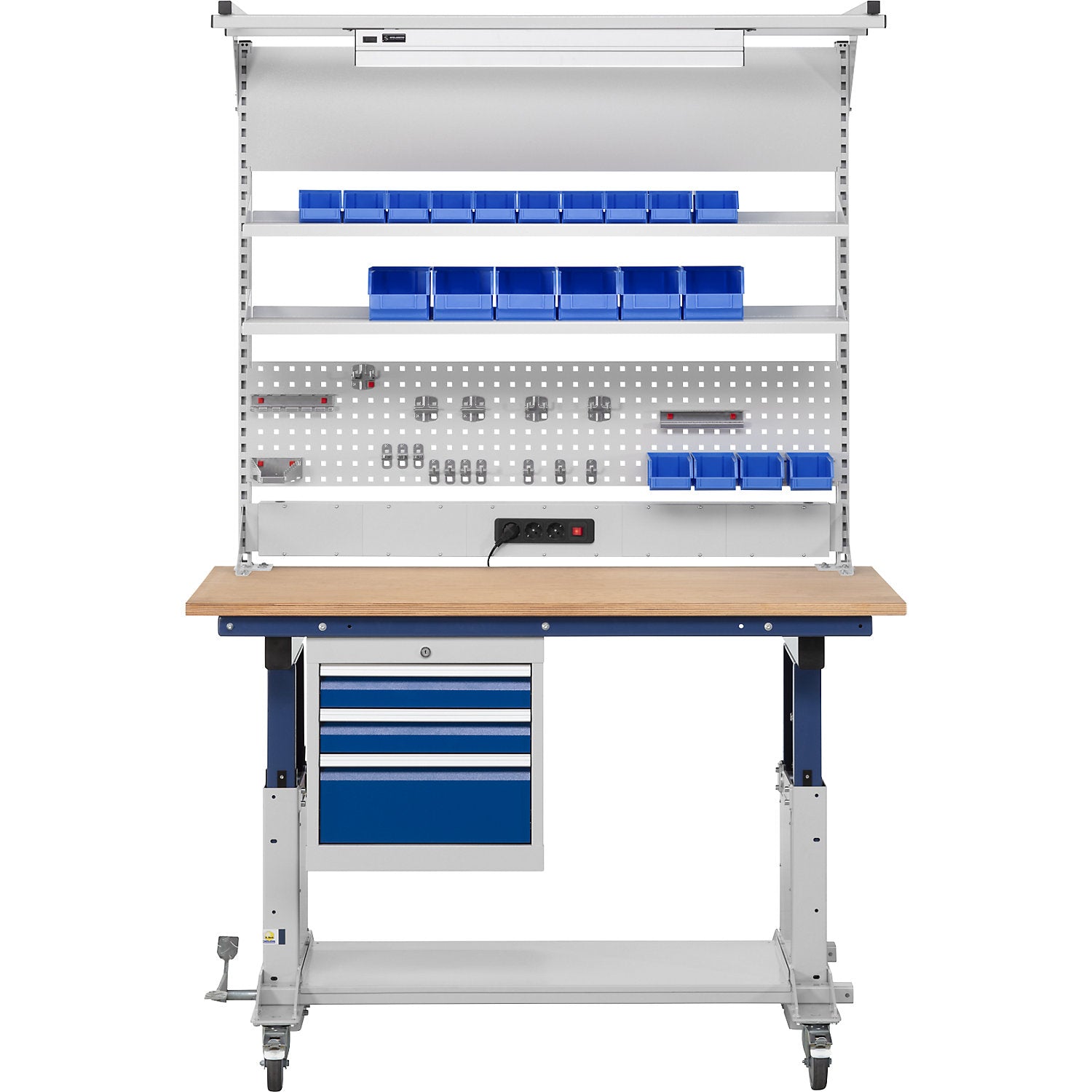

• Multifunction wall: 2 support columns (left/right) 1250 mm high 1 top section 1500mm wide with LED workstation light 900mm wide 28.9 W and 1290 lx 2 equipment rails 1500 mm wide 1 unperforated magnetic back panel at the top 1500 x 300 mm 1 system perforated panel 1500 x 320 mm 2 adjustable shelves 1500 x 320 mm 14 open-front storage bins 160 x 140 x 75 mm 6 open-front storage bins 230 x 140 x 130 mm 1 tool holder set, 18-piece for tools 1 power channel with Schuko sockets and On/Off switch Pre-assembled, final assembly by customer.
