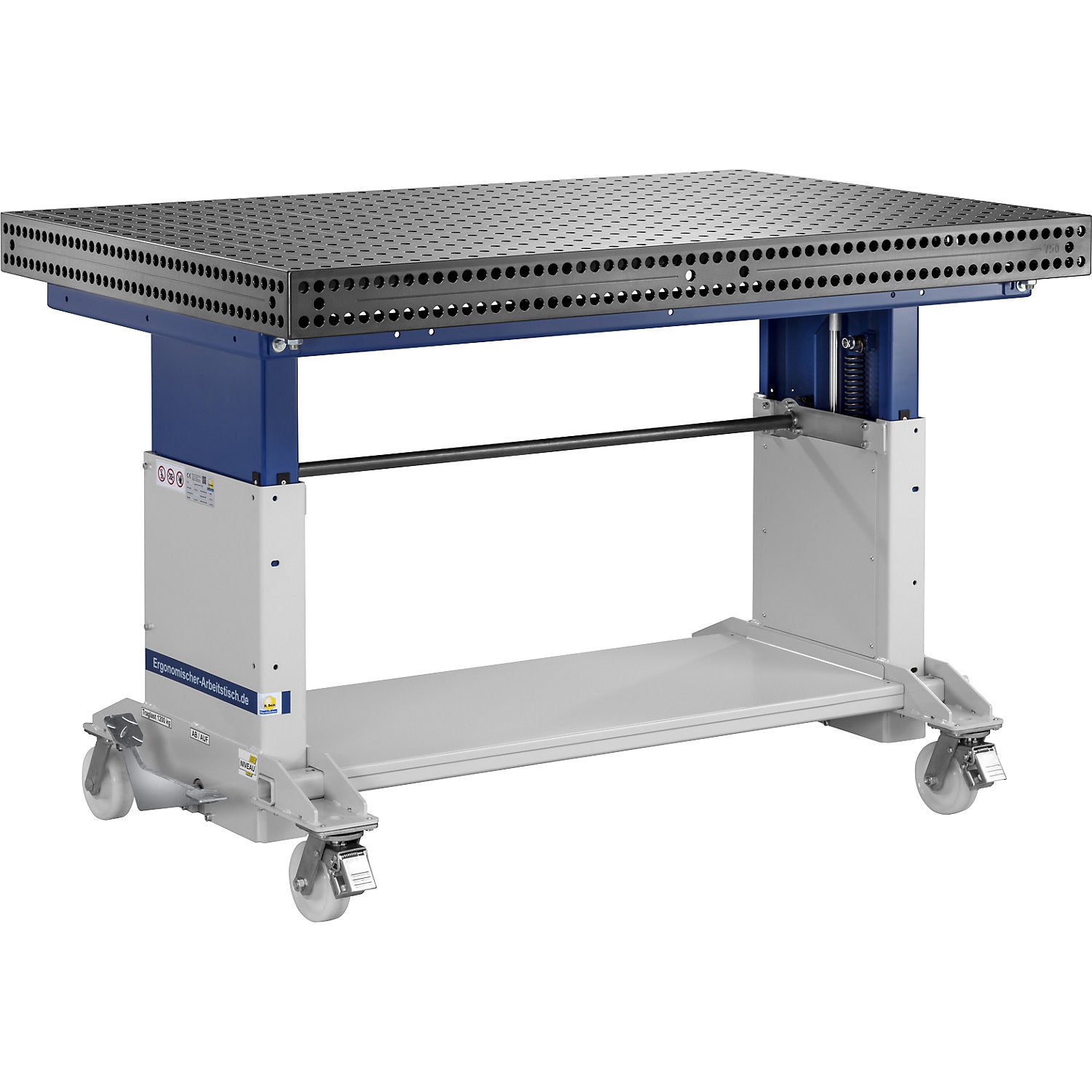

Welding table SUPPORTER, height adjustable, max. load 1200 kg, with steel pegboard.

Estimated delivery: 61 days

Welding table SUPPORTER, height adjustable, max. load 1200 kg, with steel pegboard

• Supplied = assembled
• Worktop width = 1500 mm
• Worktop depth = 1000 mm
• Height = 100 mm
• Frame colour = light grey RAL 7035, violet blue RAL 5000
• Type of worktop = sheet steel top, zinc plated
• Frame material = steel
• Bore hole diameter = 16 mm
• Static distributed load = 980 kg
• Product type = welders' benches
• Customs tariff number = 84279000
• Country of origin = DEU
• Gross weight = 387 kg
• Weight = 360 kg
• Height adjustable by foot hydraulics under load - also with eccentric loading
• Enables ergonomic working and thereby reduces posture-related back pain
• Higher employee satisfaction through upgrading the industrial workplace
• Usable independently of electricity and mobile
• Space for drawer under the welder's tabletop
• This mobile work and assembly table with an upper platform frame is ideally suited with its steel perforated tabletop for delicate welding work or other assembly work
• The tabletop is made of high-quality steel, corrosion-resistant and particularly durable thanks to its plasma-nitrided surface
• The tabletop construction is reinforced by cassette-shaped welded web plates

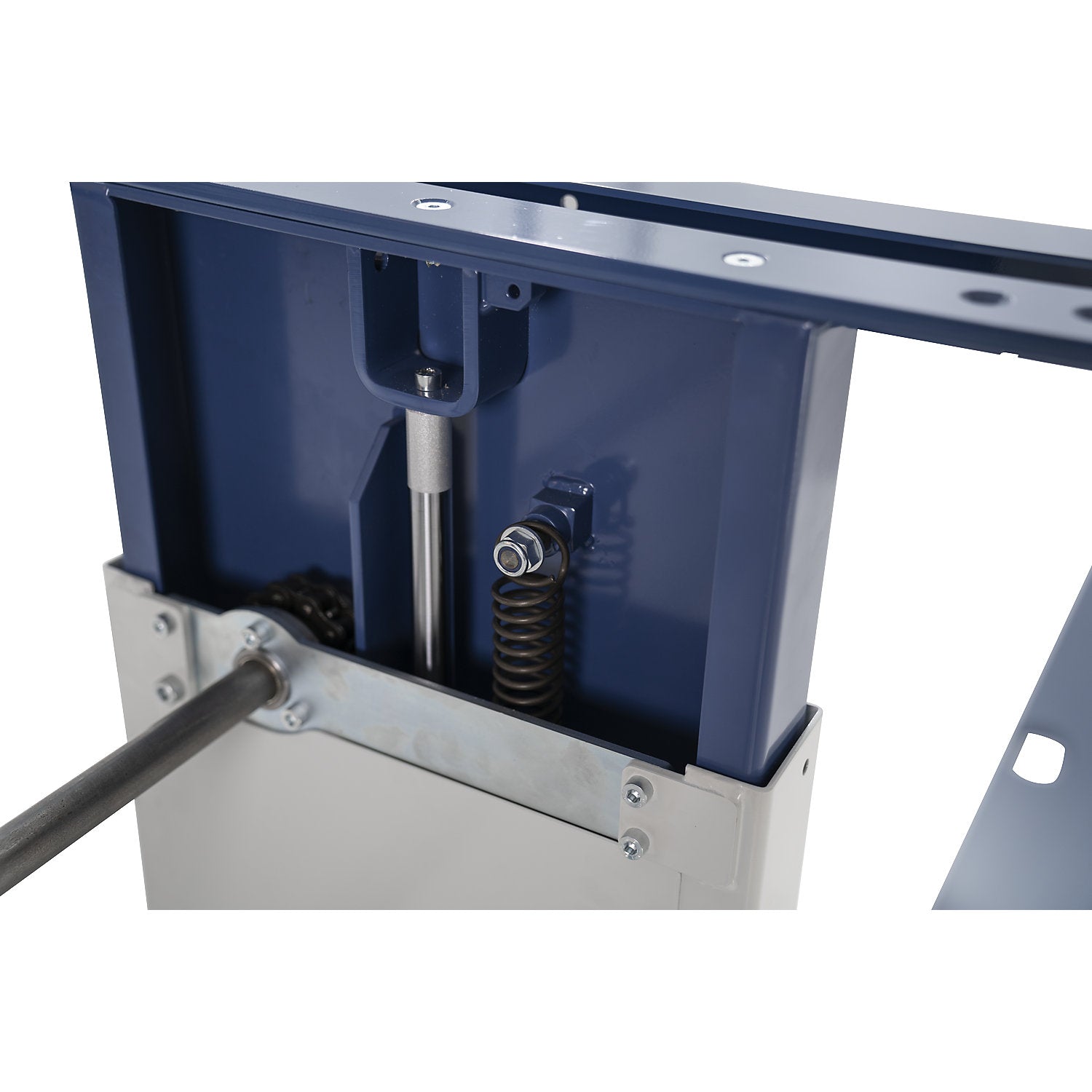

• The foot hydraulics enable a fast and easy, infinite height adjustment of the work surface even under load - thus ergonomic work is always guaranteed
• Including sheet steel shelf at the bottom. 4 swivel castors, 2 of which with locking brakes
• Wheel Ø 125 mm
• Operation by 1 lifting unit, lower parts RAL 7035 light grey, upper parts RAL 5000 violet blue
• Usable stroke 300 mm
• Platform size 1460 x 740 mm
• Synchronous shaft below the shelf
• Max. load 1200 kg
• With steel perforated grid plate, 100 mm thick, width x depth 1500 x 1000 mm
• Grid 50 x 50 mm, side panel 100 mm high, hole diameter 16 mm, hole spacing on side panel: 25 mm. overall height 770 mm
• Delivered assembled - ready for immediate use
• Available in many equipment variants, e.g. with vacuum clamping unit, overhead device, other worktops, etc
• We would be pleased to prepare a quote for your individual requirements.
