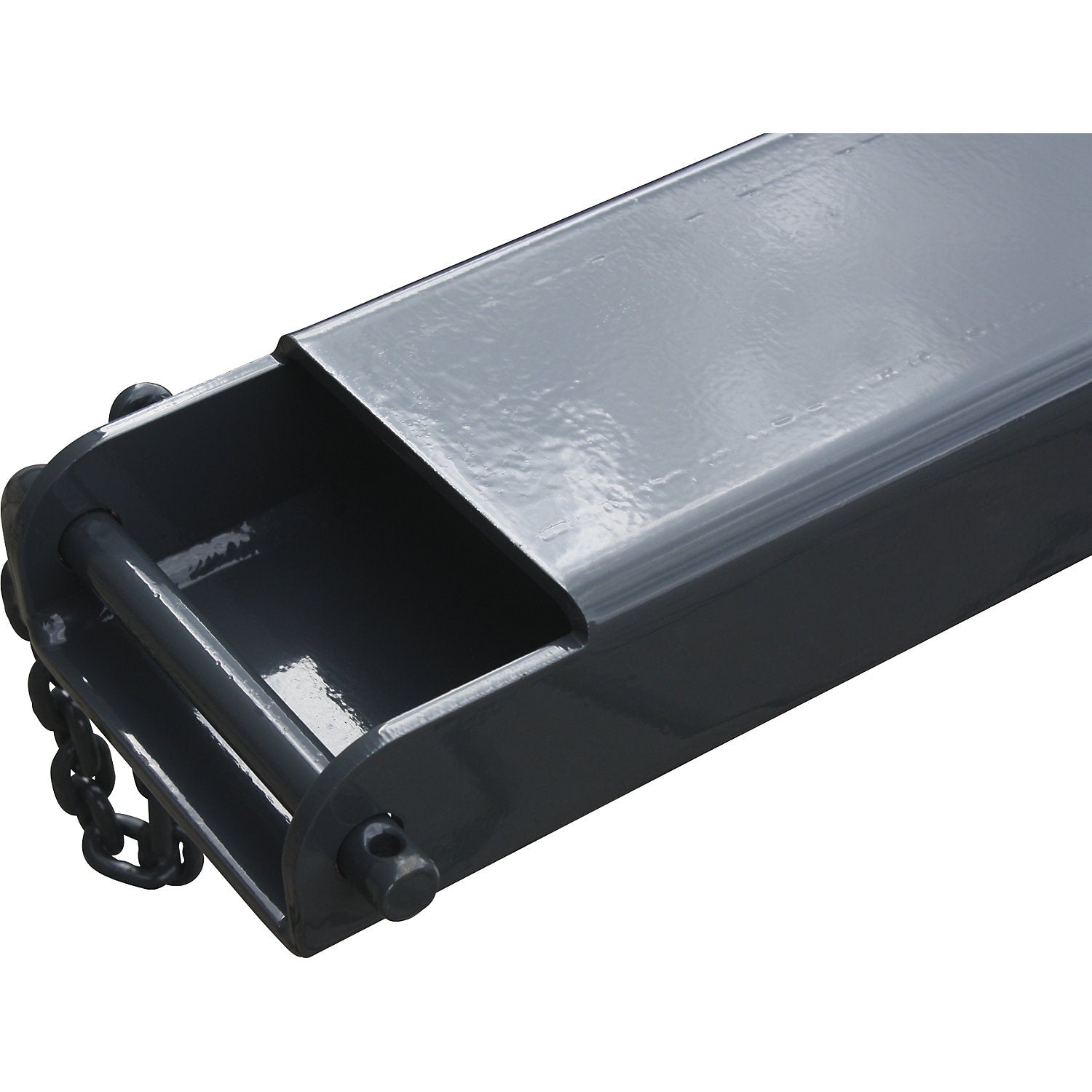

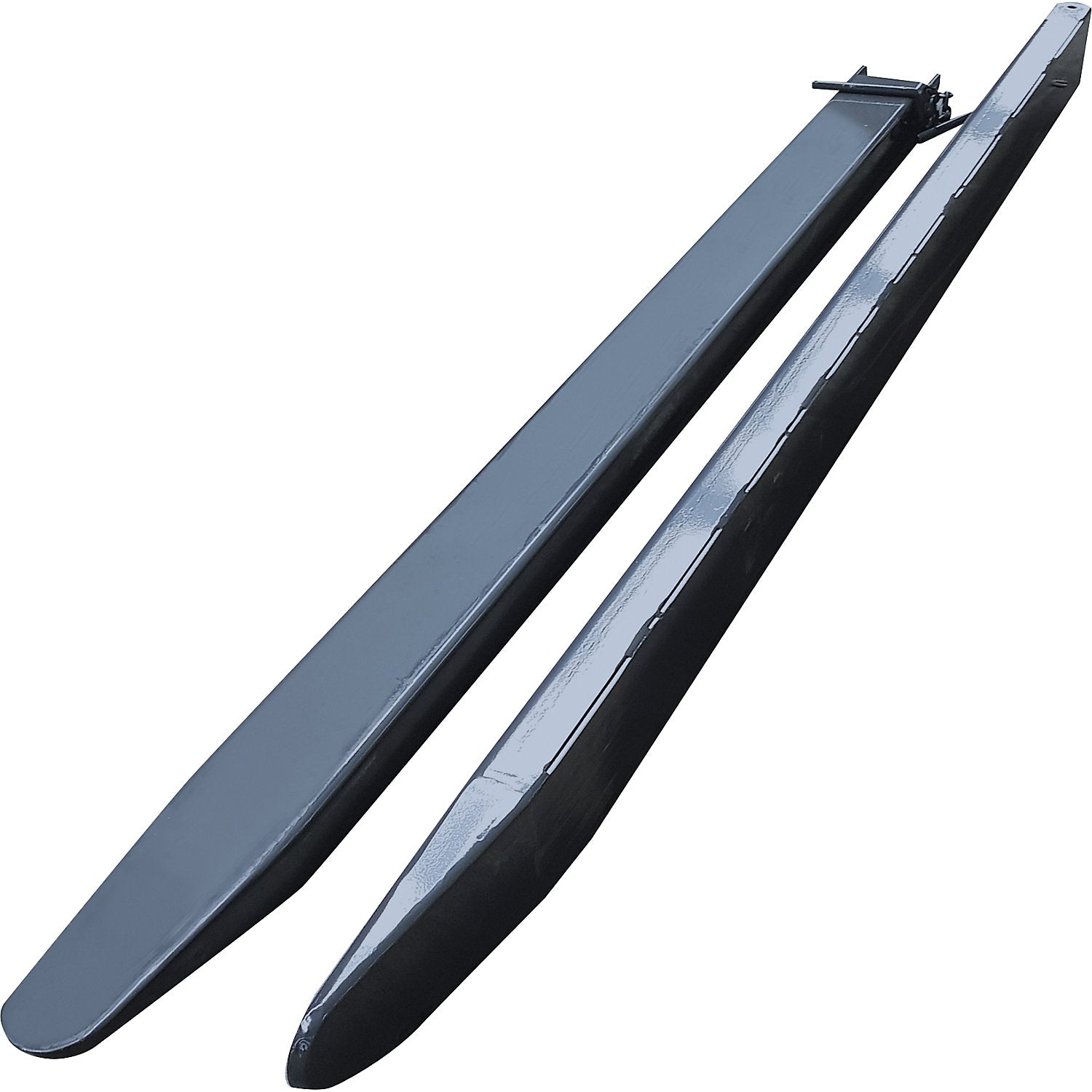

Fork extension closed, for fork WxH 125 x 45 mm, length 1800 mm.

Estimated delivery: 39 days

Fork extension closed, for fork WxH 125 x 45 mm, length 1800 mm

• Supplied = assembled
• Finish = coated
• Colour = charcoal RAL 7016
• Max. fork cross section = 125x45 mm
• Height = 45 mm
• Length = 1800 mm
• Width = 125 mm
• Max. load = 3500 kg
• Weight = 67 kg
• Weight per item = 33.5 kg
• Fork pocket dimensions = 135x55 mm
• Material = steel
• Product type = fork extensions
• Customs tariff number = 84314100
• Country of origin = DEU
• Gross weight = 67 kg
• Weight = 67 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• Beveled and rounded tip facilitates entry into pallets
• Pin bolt retainer secured with chain against loss
• No cantilevered flat bars on the back, as with conventional products
• For the safe transport of oversized or bulky loads with the forklift truck
• The closed fork extension impresses with its reliable construction and ensures safety when handling particularly long and bulky loads
• It increases the reach of the forklift truck forks, improves load distribution, and enables the safe transport of goods without the need for extensive conversion
• Thanks to the closed construction and the integrated locking pin safeguard, slipping off the forks is prevented
• The closed fork extension enables safe and precise entry into pallets without causing damage
• The tapering and additional rounding at the fork tip facilitate picking up the load
• For an indestructible construction, these models forgo cantilever elements compared to conventional fork extensions - no bending, no material breakage
• A permanently welded safety chain reliably protects the locking pin from loss
• The closed fork extension is suitable for intensive, daily use and contributes to trouble-free operation in the warehouse and logistics sector
• Good to know: Precision manufacturing with 5 mm oversize Example: Fork cross-section width x height 80 x 40 mm = Entry dimension width x height 90 x 50 mm
• The fork extension should rest 60% on the existing forks
• The calculation formula is: Fork length 1200 mm / 0.6 = max. 2000 mm length of the fork extension.
