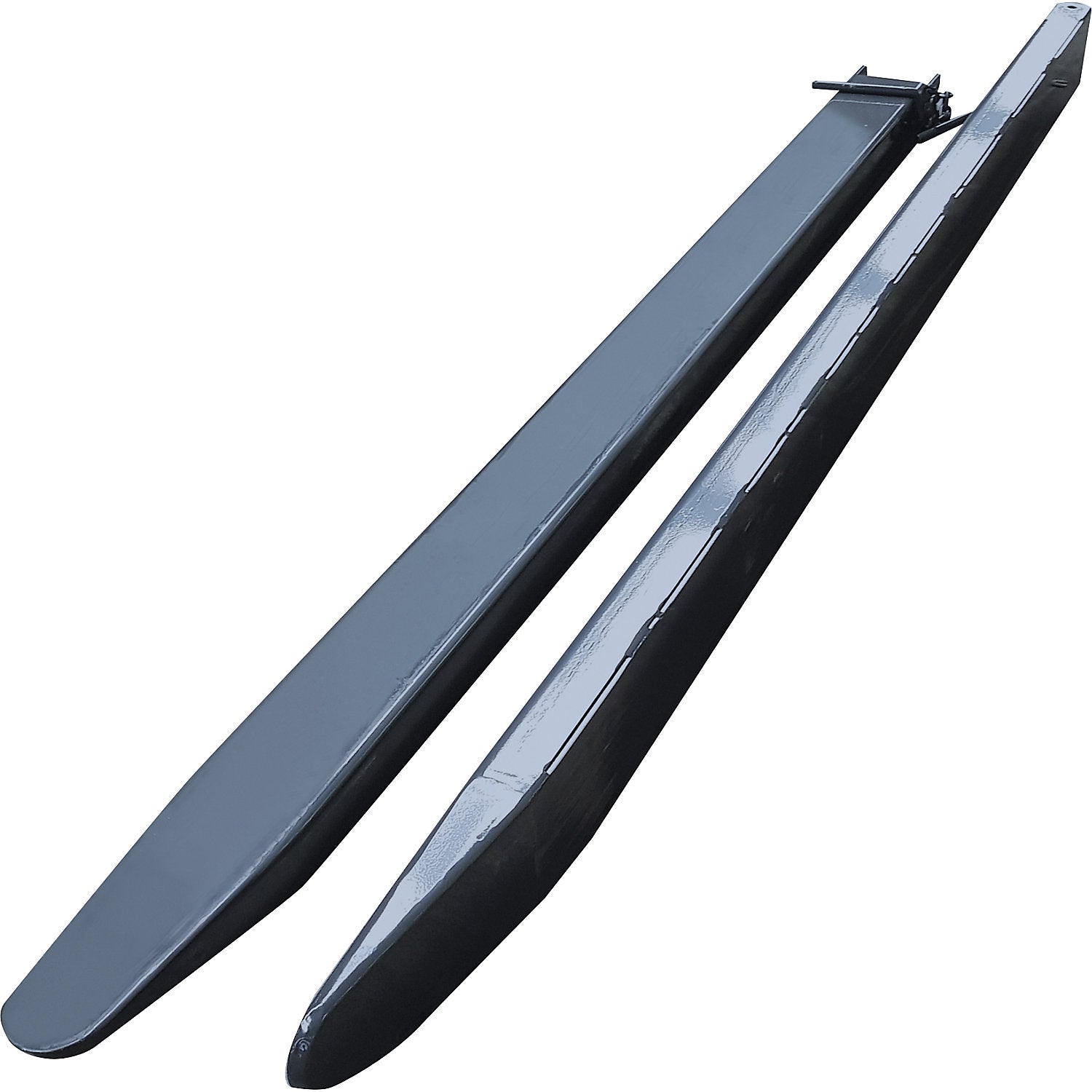

Fork extension closed, for fork WxH 150 x 70 mm, length 1600 mm.

Estimated delivery: 39 days

Fork extension closed, for fork WxH 150 x 70 mm, length 1600 mm

• Supplied = assembled
• Finish = coated
• Colour = charcoal RAL 7016
• Max. fork cross section = 150x70 mm
• Height = 70 mm
• Length = 1600 mm
• Width = 150 mm
• Max. load = 4500 kg
• Weight = 99 kg
• Weight per item = 49.5 kg
• Fork pocket dimensions = 160x80 mm
• Material = steel
• Product type = fork extensions
• Customs tariff number = 84314100
• Country of origin = DEU
• Gross weight = 99 kg
• Weight = 99 kg
• Sustainability = Recyclable, CO 2 footprint calculated
• Beveled and rounded tip facilitates entry into pallets

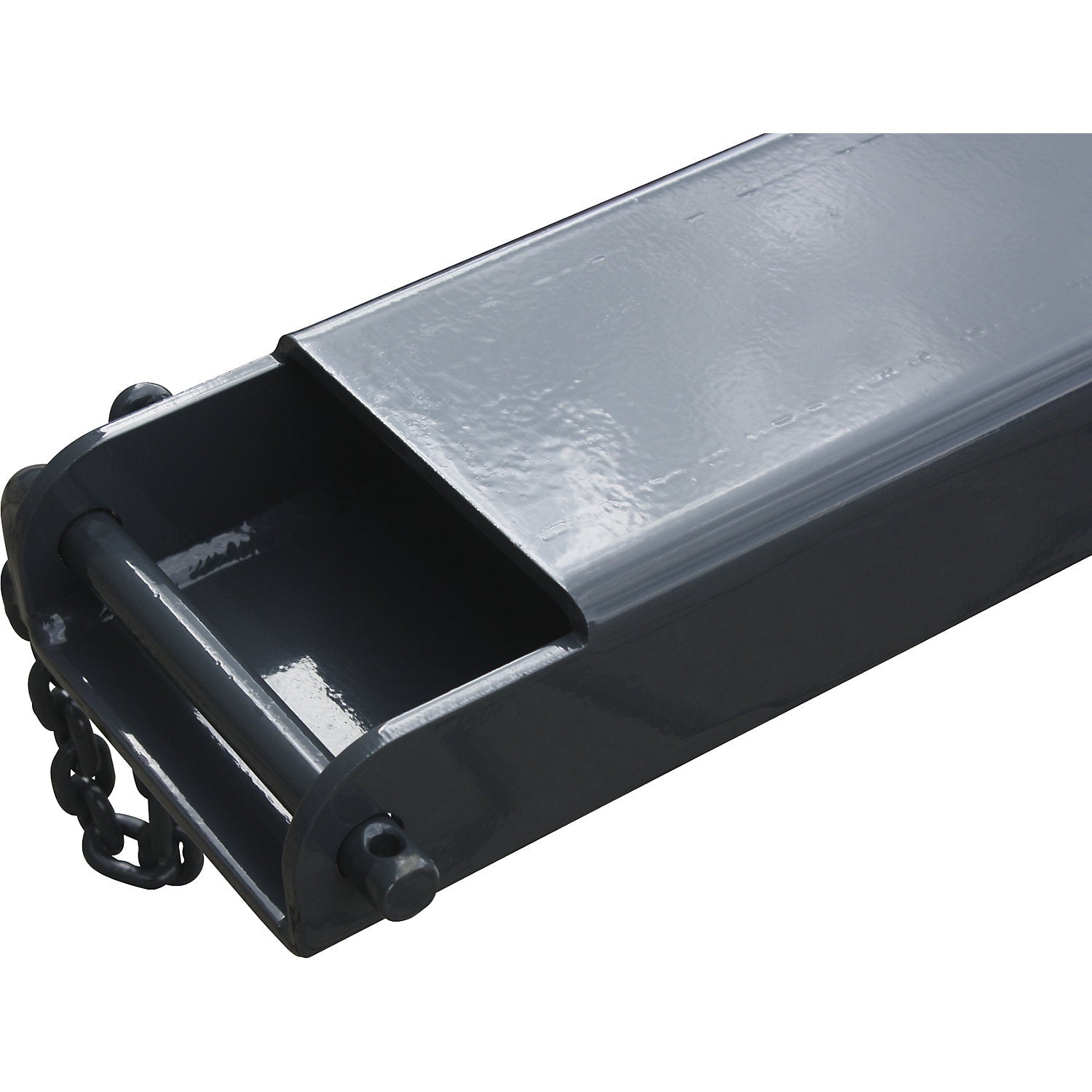

• Pin bolt retainer secured with chain against loss
• No cantilevered flat bars on the back, as with conventional products
• For the safe transport of oversized or bulky loads with the forklift truck
• The closed fork extension impresses with its reliable construction and ensures safety when handling particularly long and bulky loads
• It increases the reach of the forklift truck forks, improves load distribution, and enables the safe transport of goods without the need for extensive conversion
• Thanks to the closed construction and the integrated locking pin safeguard, slipping off the forks is prevented
• The closed fork extension enables safe and precise entry into pallets without causing damage
• The tapering and additional rounding at the fork tip facilitate picking up the load
• For an indestructible construction, these models forgo cantilever elements compared to conventional fork extensions - no bending, no material breakage
• A permanently welded safety chain reliably protects the locking pin from loss
• The closed fork extension is suitable for intensive, daily use and contributes to trouble-free operation in the warehouse and logistics sector
• Good to know: Precision manufacturing with 5 mm oversize Example: Fork cross-section width x height 80 x 40 mm = Entry dimension width x height 90 x 50 mm
• The fork extension should rest 60% on the existing forks
• The calculation formula is: Fork length 1200 mm / 0.6 = max. 2000 mm length of the fork extension.
