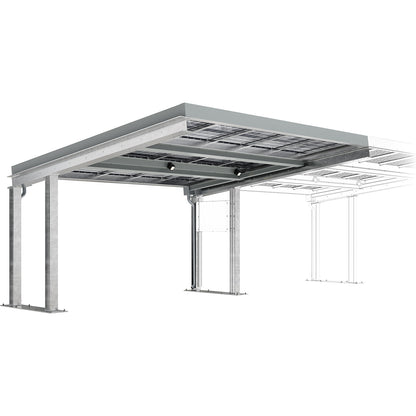

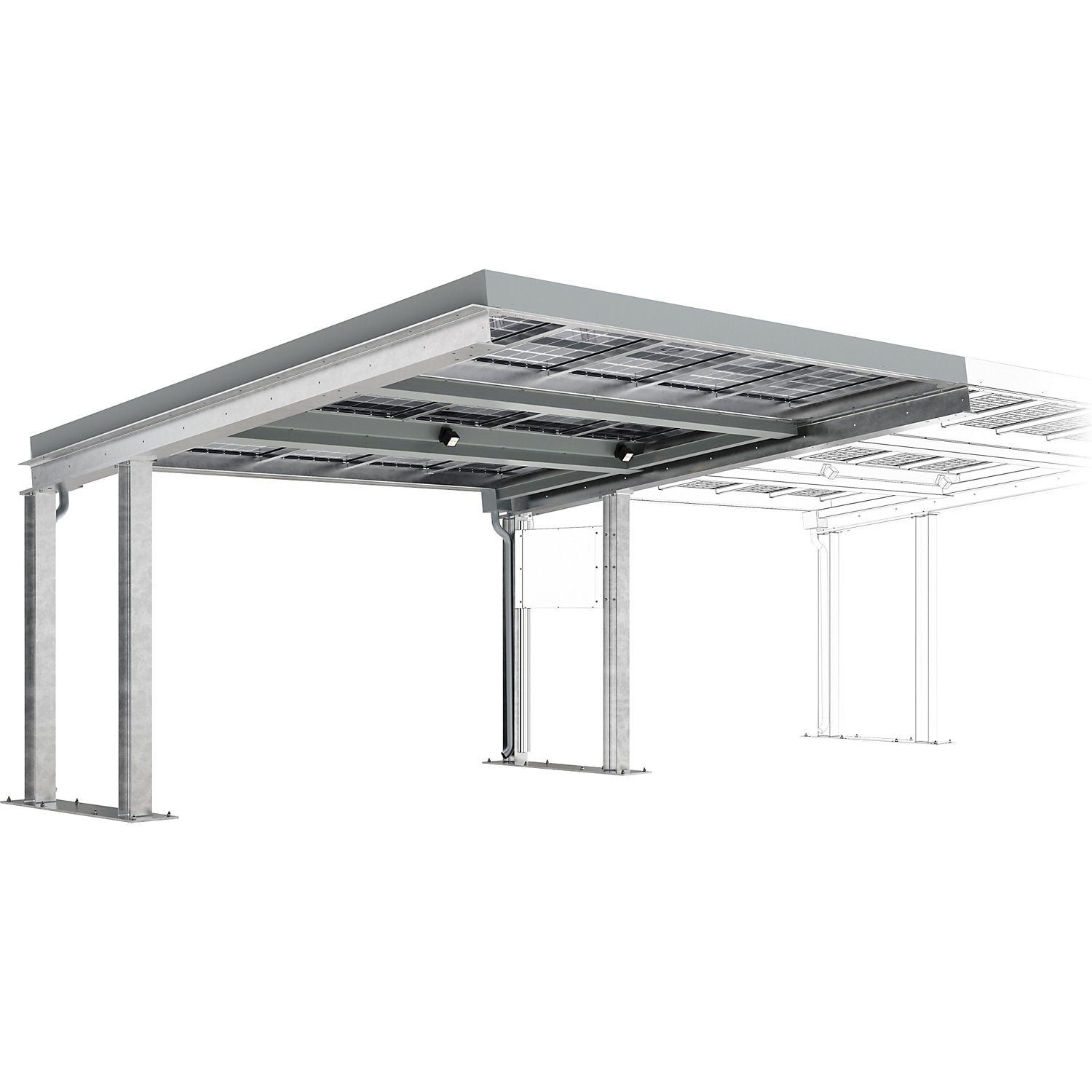

Carport SolarCover with PV modules and control cabinet, zinc plated, W 5370 mm, extension unit.

Estimated delivery: 66 days

Carport SolarCover with PV modules and control cabinet, zinc plated, W 5370 mm, extension unit

• Supplied = assembled
• Construction = self-assembly
• Height = 3260 mm
• Width = 5370 mm
• Depth = 5070 mm
• Finish = zinc plated
• Frame material = steel
• Frame colour = zinc plated
• Clear height = 2190 mm
• Product type = shelters
• Customs tariff number = 94069038
• Country of origin = DEU
• Gross weight = 2324.78 kg
• Weight = 2324.78 kg
• Galvanized steel construction with long-lasting glass-glass solar modules
• Tested safety thanks to overhead approval and system structural analysis
• Sustainable energy generation combined with optimal vehicle protection
• Including control cabinet

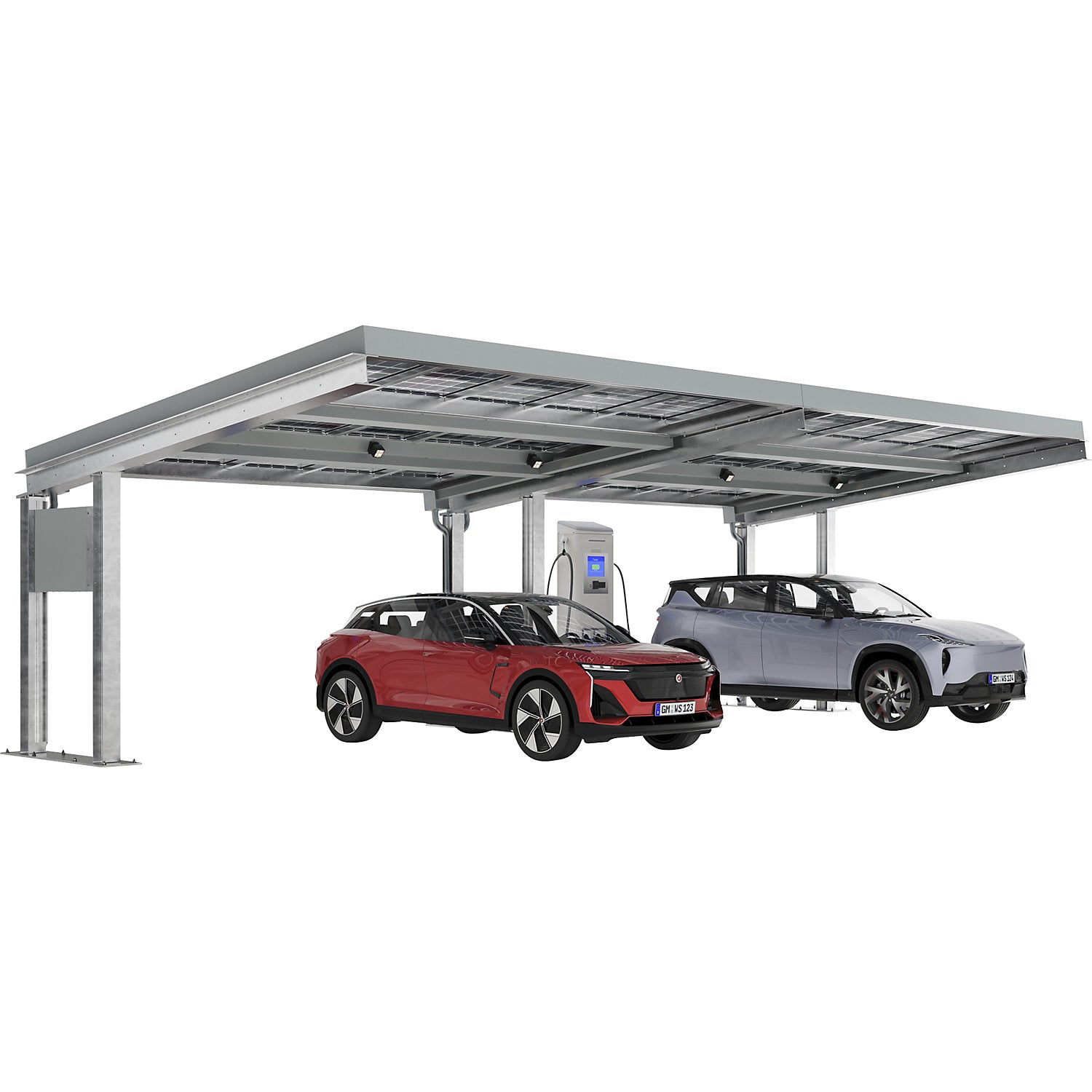

• The SolarCover base module with two parking spaces can be flexibly extended by add-on units to include additional parking spaces - perfect for large row parking facilities
• The frame consists of galvanized steel beams, the roof surface is manufactured from 15 robust glass-glass photovoltaic modules with 8 mm thickness
• Thanks to a nominal output of 210 W p per module, the SolarCover offers an economical solution especially for large parking areas
• The generated energy can be fed into the grid as desired or introduced into energy storage systems
• An intelligent drainage system discreetly channels rainwater away via the two supports
• This model is delivered including a control cabinet
• Whether a control cabinet at the carport is necessary or advisable depends on: System size Number of strings Cable lengths Accessibility Safety requirements Rule of thumb: The larger and more complex the system, the more sensible an external control cabinet is.
