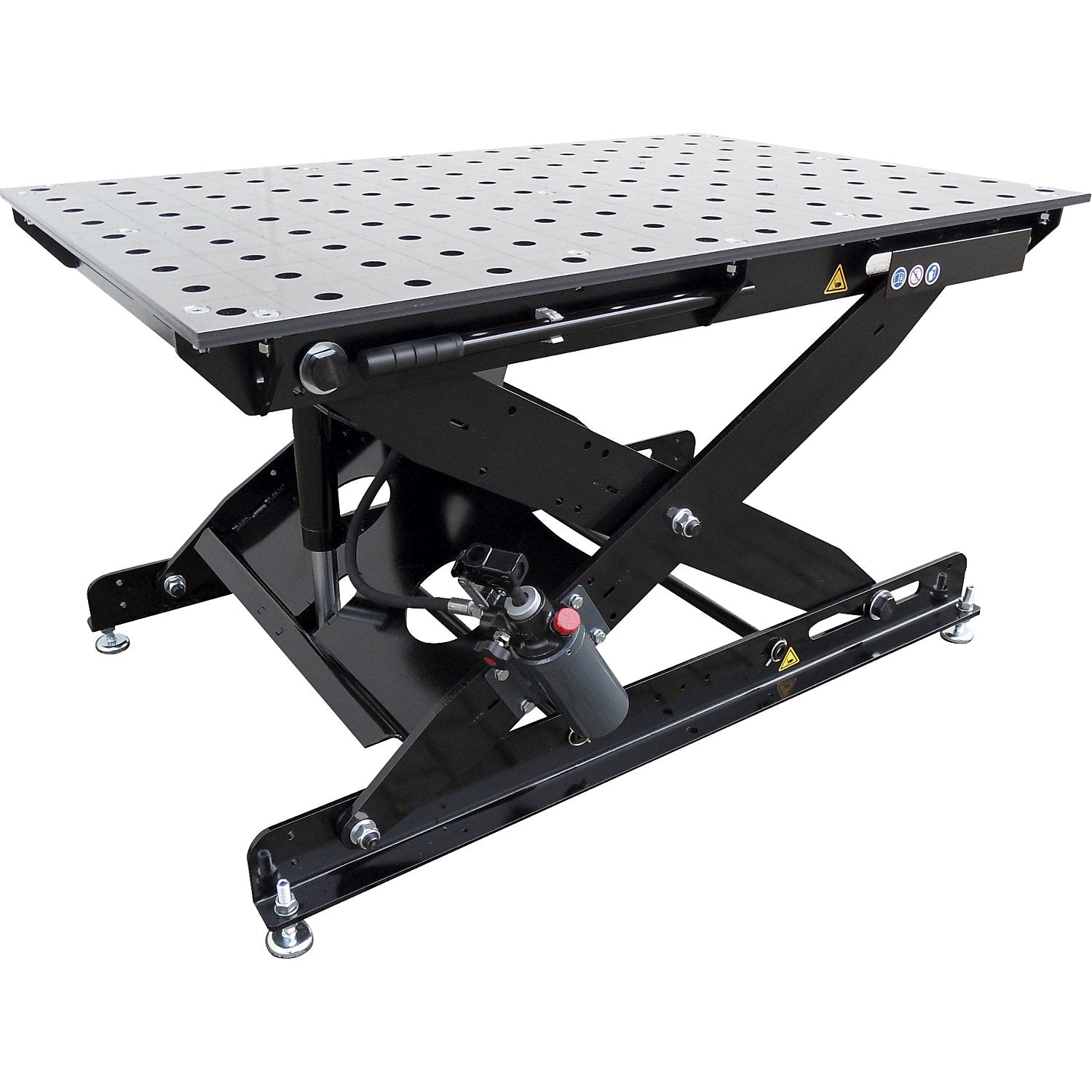

Height-adjustable welding table, Ø bores 28 mm, 2000 kg/m², HxWxD 1050 x 1400 x 900 mm.

Estimated delivery: 51 days

Height-adjustable welding table, Ø bores 28 mm, 2000 kg/m², HxWxD 1050 x 1400 x 900 mm

• Supplied = assembled
• Worktop width = 1400 mm
• Worktop depth = 900 mm
• Height = 1050 mm
• Frame colour = black
• Type of worktop = sheet steel top, zinc plated
• Frame material = steel
• Bore hole diameter = 28 mm
• Static distributed load = 2000 kg
• Panel thickness = 16 mm
• Product type = welders' benches
• Customs tariff number = 84662020
• Country of origin = DEU
• Gross weight = 355 kg
• Weight = 305 kg
• All-steel construction with hydraulic scissor lift frame
• Manual lifting mechanism
• For ergonomic and precise work
• Hole pattern Ø 28 mm for accommodating System-28 clamping tools
• The height-adjustable welding table offers a robust all-steel construction with a hydraulic scissor lift frame, which allows for precise adjustment of the working height
• This stable welding lift table supports precise and ergonomic working in a wide range of applications
• The welding lift table features a 28 mm hole grid for accommodating System 28 clamping tools
• This allows workpieces, constructions, as well as small machining devices to be securely fixed
• The versions with surrounding side panels are suitable for vertical clamping, stops and surface extension
• The line grid of 100 x 100 mm ensures flexible and precise positioning
• The manually operated hydraulics with single-acting cylinders allows for stepless height adjustment
• This makes the special work table optimally adaptable to individual working conditions and for use on machines
• The dual tabletop consists of an upper and lower plate, supported by a stable substructure made of two longitudinal beams and three cross beams
• The flatness meets the factory standard WN5110000 in accordance with DIN ISO 2768-2
• Mobility is provided by integrated transport bars , which allow for easy relocation
• The areas of application are diverse: in metal construction as a 3D welding table, in woodworking for clamping glued constructions or in mechanical engineering as a flexible assembly workstation
• In general industry, too, the height-adjustable welding table serves as a mobile maintenance workstation with a variable working height
• Accessories: Strapping tools are available separately as a set - with and without a trolley - in the professional or starter version
• On request: Do you need a customised solution for your welding workstation? We would be happy to provide you with an offer tailored to your needs.
