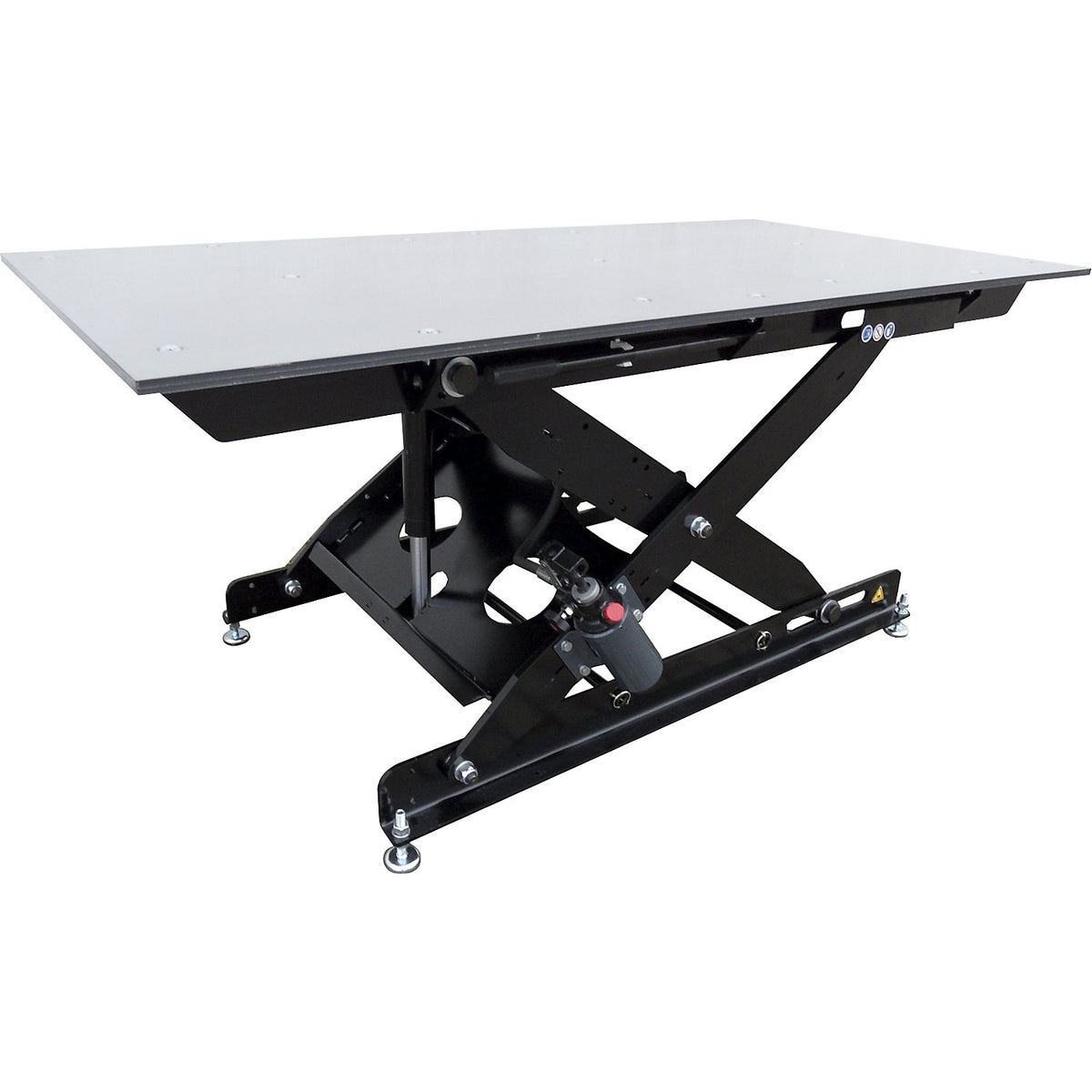

Universal lifting table, max. load 2000 kg, lifting capacity 250 kg, HxWxD 1050 x 1980 x 980 mm.

Estimated delivery: 58 days

Universal lifting table, max. load 2000 kg, lifting capacity 250 kg, HxWxD 1050 x 1980 x 980 mm

• Supplied = assembled
• Max. load = 2000 kg
• Lifting range = 1050 mm
• Platform design = rectangular
• Lift drive = manual hydraulics
• Platform colour = silver
• Material = steel
• Frame colour = black
• Platform width = 980 mm
• Platform length = 1980 mm
• Feature = stationary, manual
• Customs tariff number = 84662020
• Country of origin = DEU
• Gross weight = 500 kg
• Weight = 450 kg
• Use as assembly workstation, feed table, maintenance workstation and much more
• Ergonomic height adjustment perc hand pump / hydraulic cylinder
• Metal plate enables the drilling of holes for fixtures
• Scissor lift frame in robust solid steel construction
• Steel tabletop system made of top and bottom plate in S355
• The universal lifting desk combines robust construction with versatile application possibilities
• Its manually operated hydraulics perc hand pump enables precise adjustment of the ergonomic working height in a wide variety of industrial environments
• As a lifting workstation, feeding desk for machines or robust assembly workstation, it offers maximum flexibility in production, assembly and maintenance
• The metal plate also allows for the drilling of holes to securely fasten fixtures, devices or clamping systems
• This allows the desk to be seamlessly integrated into existing machine and manufacturing systems
• Thanks to laterally fitted transport bars , the universal lifting desk remains mobile and can be quickly moved to the desired location
• The scissor lift frame made of robust solid steel is durable even with intensive use
• The dual desk top construction consists of an 8 mm thick upper and lower plate for an optimal plate thickness of 16 mm with an integrated steel substructure made of longitudinal and cross beams
• The standard model in S355 (lower plate S235) ensures high resistance and flat work surfaces according to factory standard WN 5110000, based on DIN ISO 2768-2
• Alternatively, welding lifting desks with a 28 mm hole grid are available in our range of welding desks - also with side panels.
