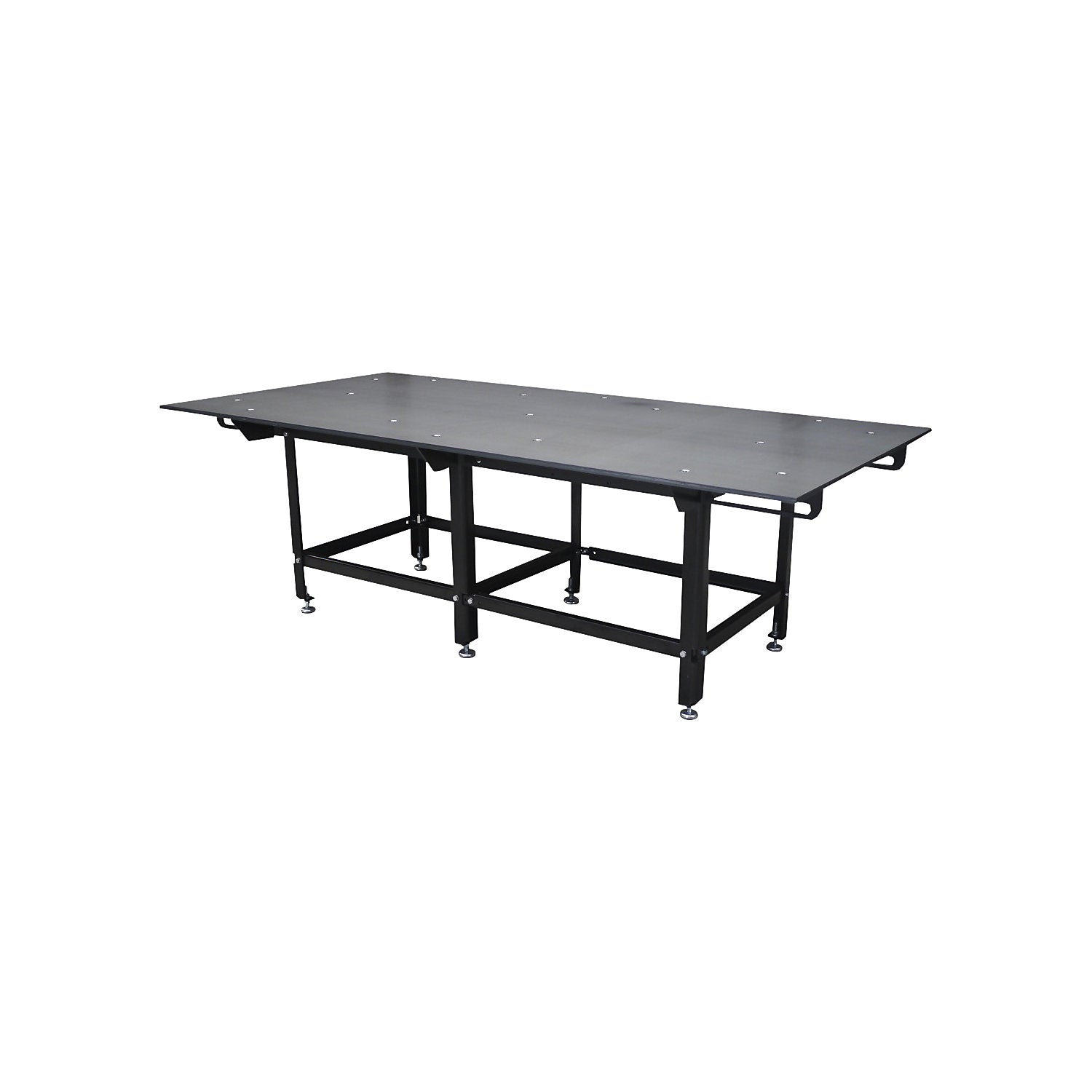

Assembly table, max. load 2000 kg, HxWxD 800 x 2480 x 1230 mm.

Estimated delivery: 51 days

Assembly table, max. load 2000 kg, HxWxD 800 x 2480 x 1230 mm

• Supplied = partially assembled
• Worktop width = 2480 mm
• Worktop depth = 1230 mm
• Height = 800 mm
• Frame colour = black
• Type of worktop = sheet steel top, zinc plated
• Frame material = steel
• Bore hole diameter = 28 mm
• Static distributed load = 2000 kg
• Panel thickness = 16 mm
• Product type = welders' benches
• Customs tariff number = 84662020
• Country of origin = DEU
• Gross weight = 520 kg
• Weight = 470 kg
• Versatile work and assembly table with metal worktop
• Used as a classic welding table, feed table or for maintenance work
• Metal plate allows holes to be created for fixtures
• Steel tabletop system made of top and bottom plates in S355
• Max. load 2000 kg
• The assembly table provides a robust work surface especially for assembly and welding work
• Its robust solid steel table frame guarantees maximum stability and durability
• The metal plate allows for the easy drilling of holes to securely fasten fixtures, devices or jigs
• The dual-layer tabletop system consists of an 8 mm thick top and bottom plate, a total of 16 mm thick, with an integrated substructure of two longitudinal beams and three cross beams
• The flatness of the work table corresponds to the factory standard WN 5110000, based on DIN ISO 2768-2
• As standard, the top plate is made of S355 and the bottom plate of S235, other versions are available on request
• The table frame has six legs made of 8 mm thick material
• Each foot is equipped with a levelling foot to compensate for uneven flooring of up to 5 cm
• Cross braces in the lower third of the legs give the work table high stability and offer the option to mount an intermediate shelf or attachments
• The outer leg spacing of 1740 x 740 mm ensures sufficient legroom while providing high stability
• All frame parts are powder coated for high durability
• The assembly table is ideally suited as a welding workstation, metal work table or assembly workstation in areas such as mechanical engineering, toolmaking, industry and steel construction
• Alternatively, welding tables with a 28 mm hole grid are available in our range - also with side panels and height adjustable.
