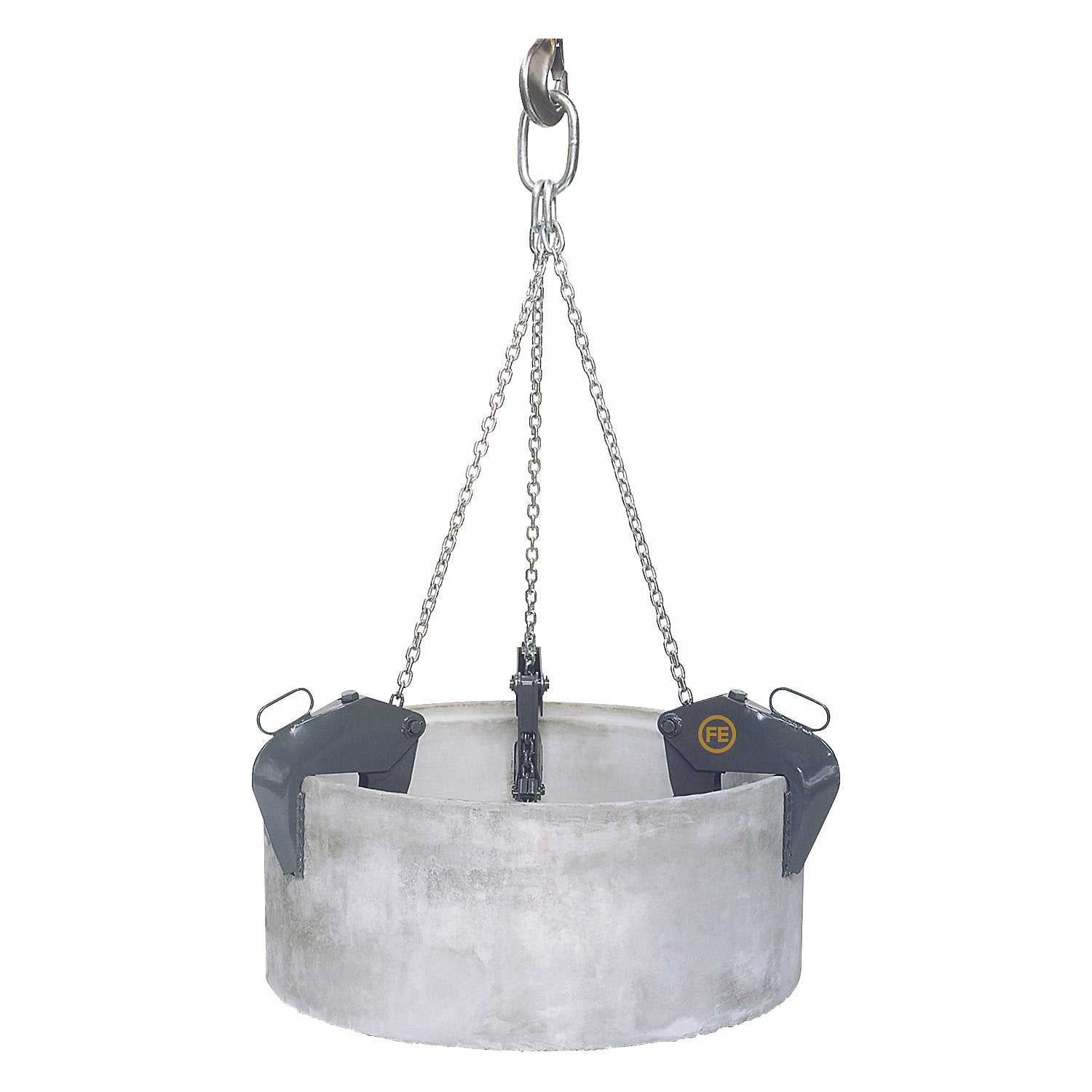

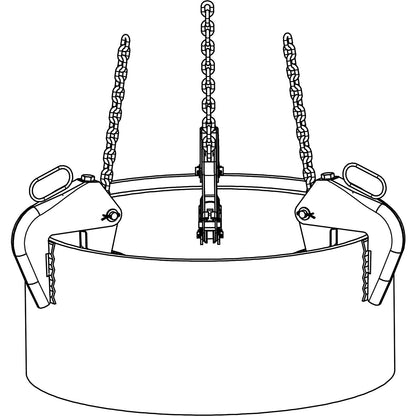

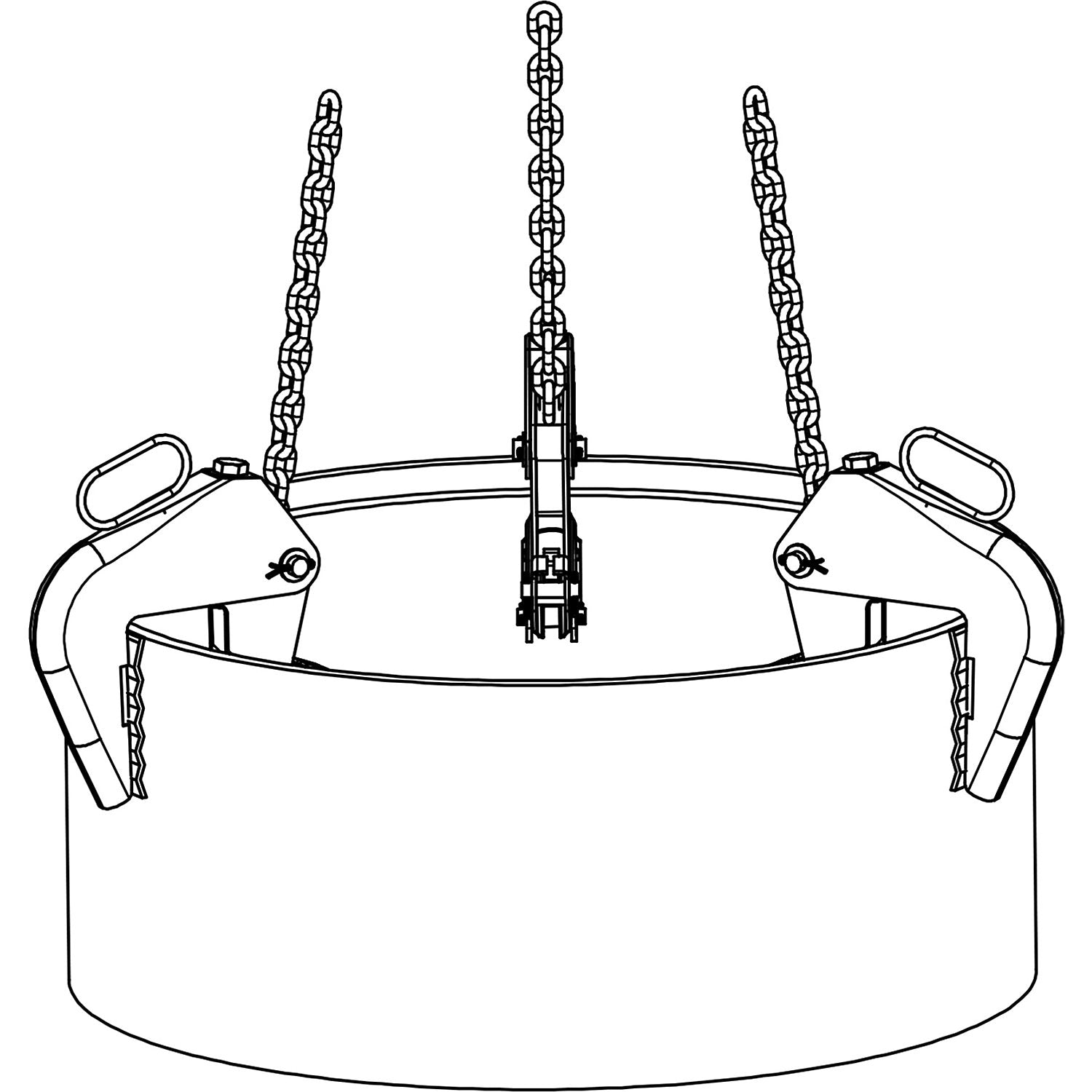

Pipe hanger, gripping range 90 - 230 mm, max. load 3000 kg, with 1.80 m chain.

Estimated delivery: 41 days

Pipe hanger, gripping range 90 - 230 mm, max. load 3000 kg, with 1.80 m chain

• Supplied = assembled
• Max. load = 3000 kg
• Gripping range = 240 mm
• Weight = 54 kg
• Material = steel
• Colour = charcoal
• Length = 1800 mm
• Product type = pipe hangers
• Customs tariff number = 84314980
• Country of origin = DEU
• Gross weight = 54 kg
• Weight = 54 kg
• Transport of vertical concrete pipes and shaft components
• High-strength, galvanised chains to DIN 5688.8
• Manually adjustable clamping range using special screw
• Torsion-resistant, lightweight steel construction

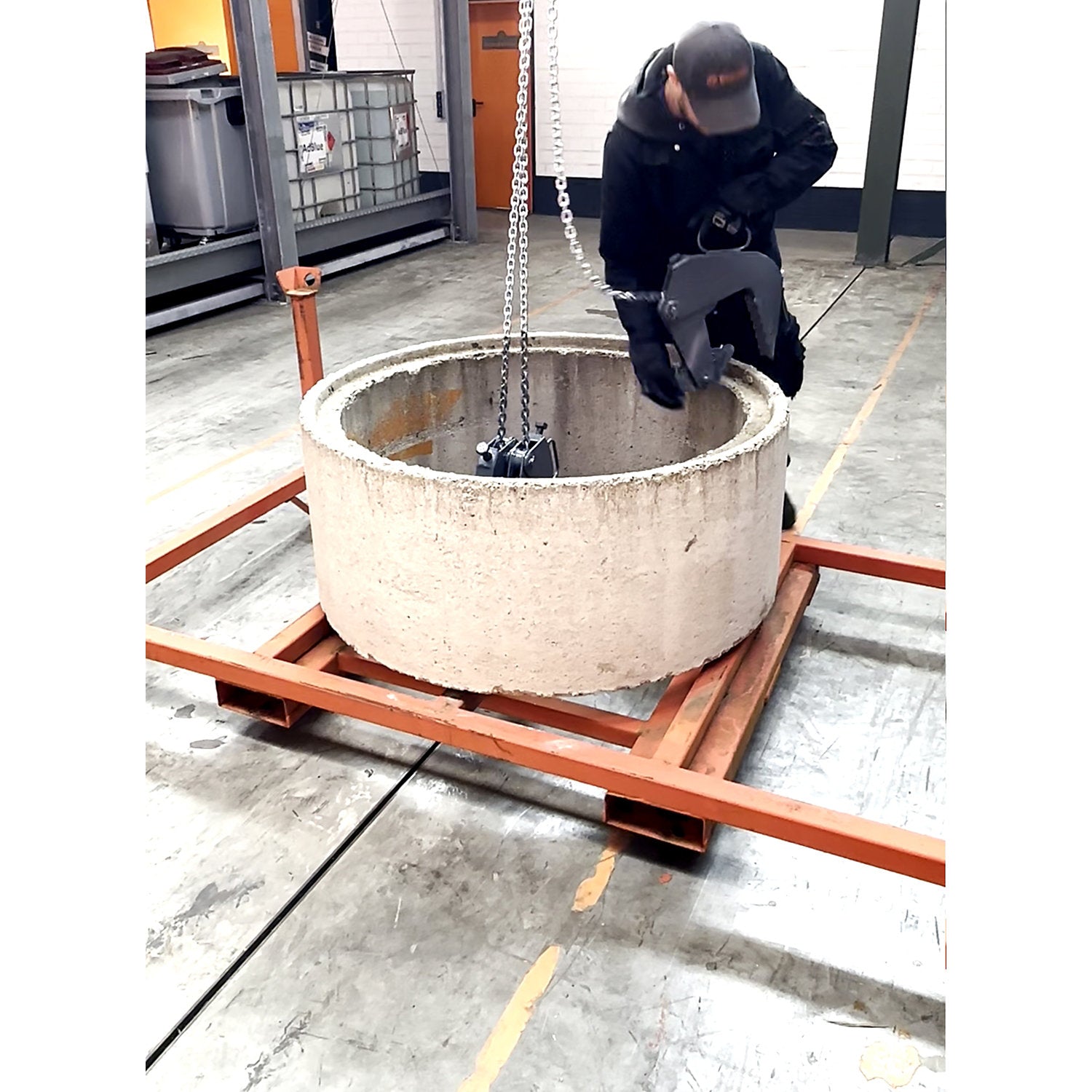

• The pipe suspension, made of torsion-resistant, lightweight hollow steel construction, enables the safe transport and precise positioning of vertically standing concrete pipes and shaft components on construction sites
• Using high-strength, galvanised chains according to DIN 5688.8, the pipe lifting tool is connected to the load hook of the crane
• A spring on each clamping bracket prevents unintentional release of the load from the claws
• The clamping range can be flexibly adjusted by hand using a special screw - for quick adjustment and safe working under changing conditions
• The lifting device is particularly suitable for civil engineering and municipal pipeline construction, where precise working under high load is required
• The pipe suspension complies with the occupational safety regulations of the Employers' Liability Insurance Association and is equipped with a safety lock.
