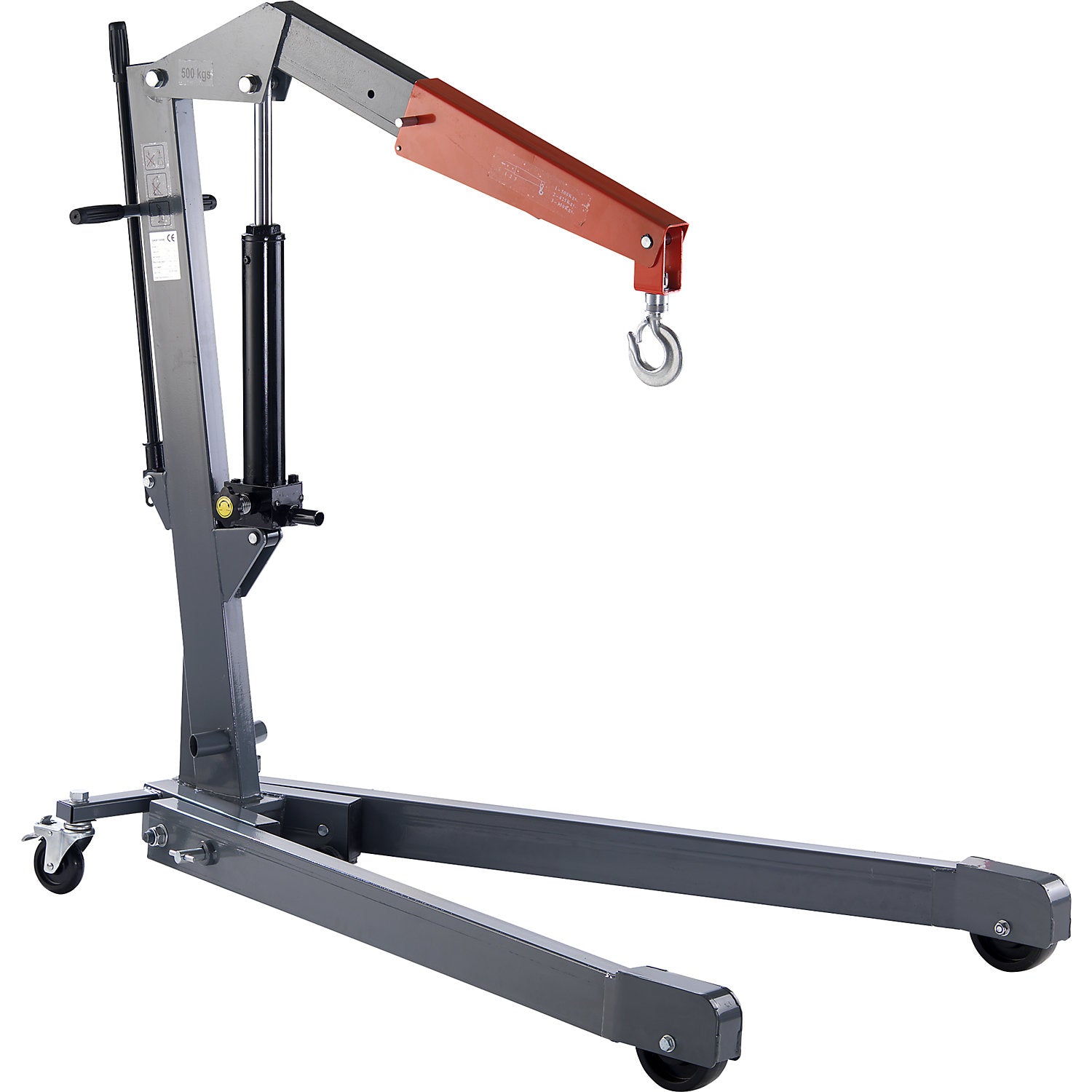

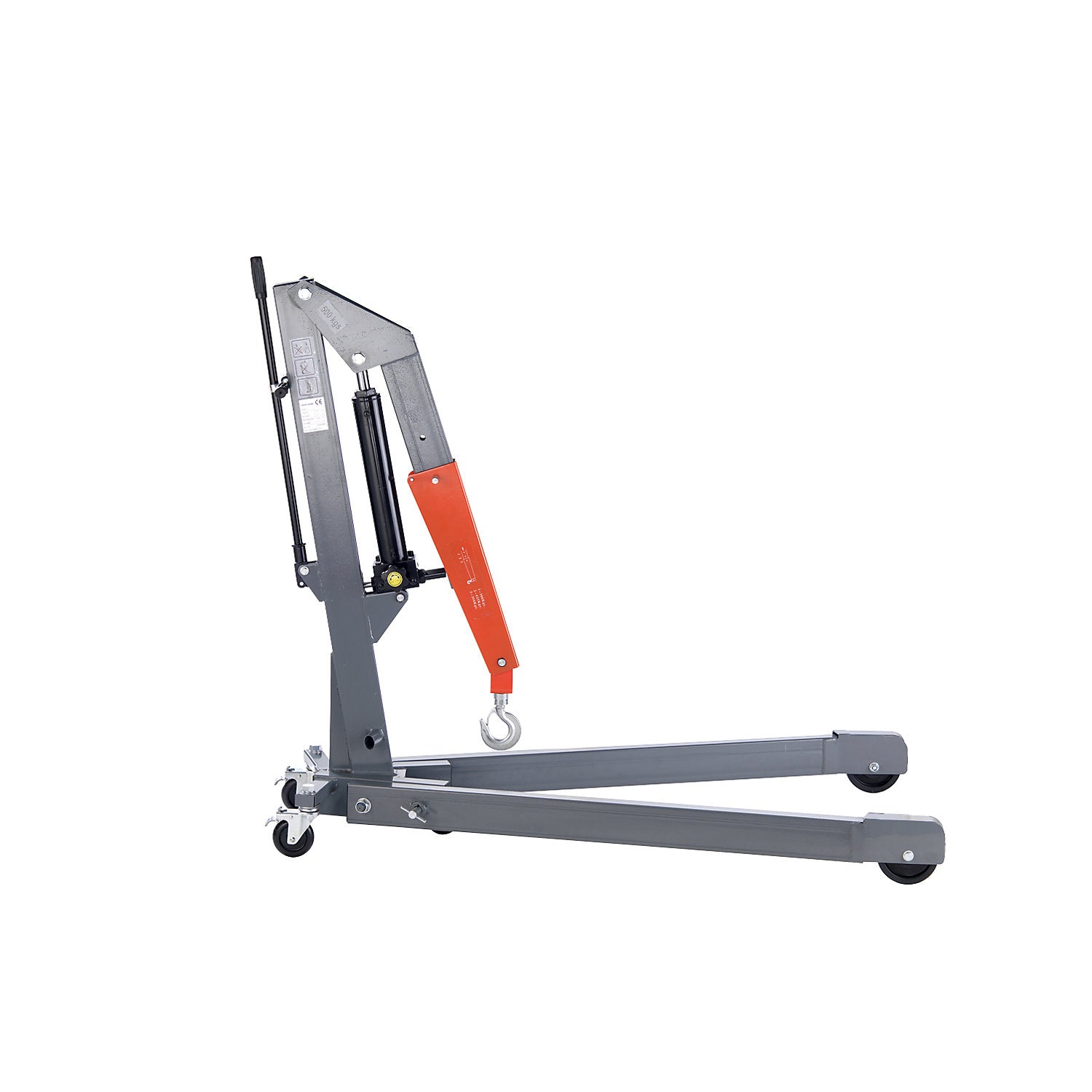

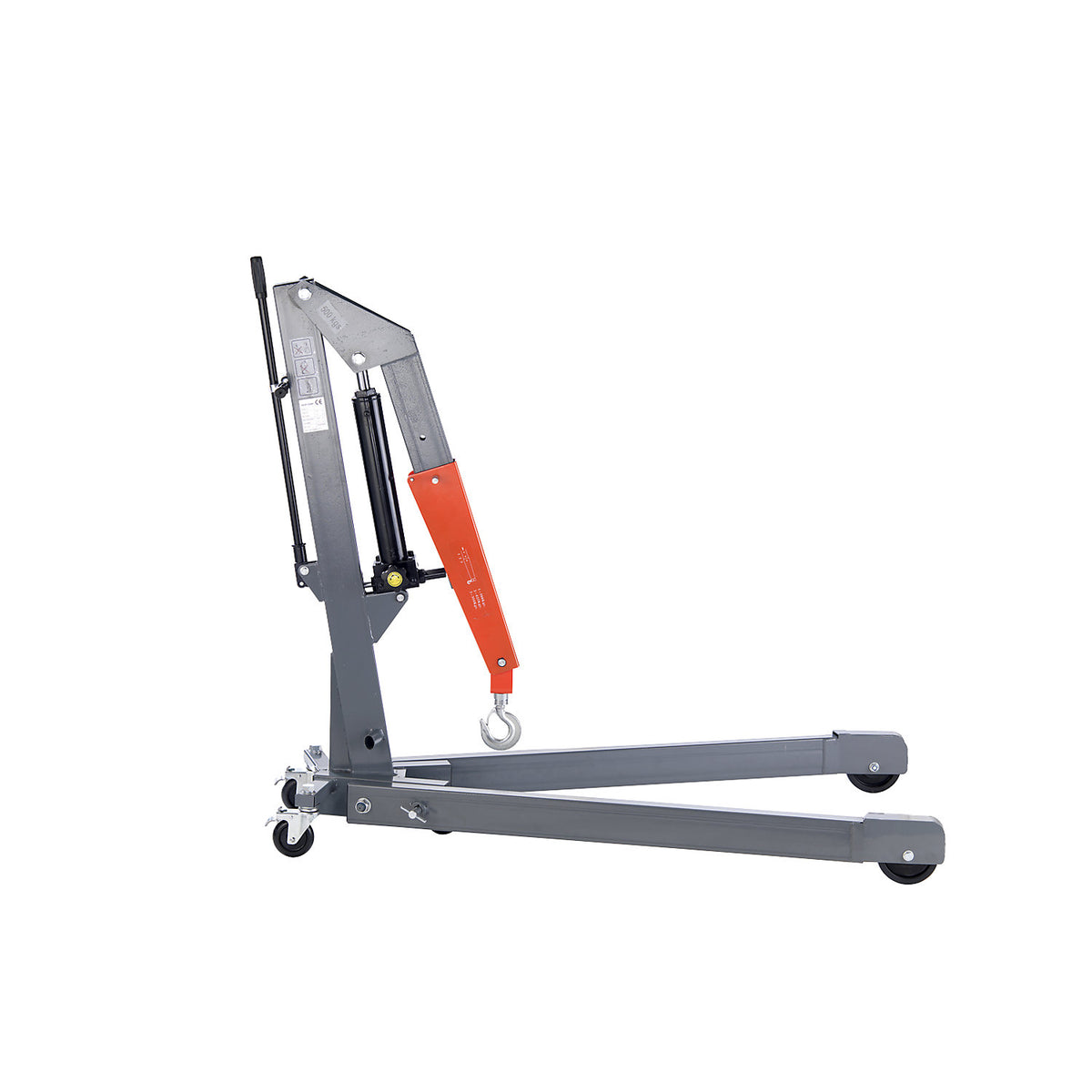

GREY workshop crane, angled chassis, max. load 2000 kg.

Estimated delivery: 31 days

GREY workshop crane, angled chassis, max. load 2000 kg

• Supplied = assembled
• Max. load = 2000 kg
• Max. load (at jib length mm) = 2000 (1293 mm) kg, 1700 (1443 mm) kg, 1500 (1593 mm) kg
• Colour = basalt grey RAL 7012
• Width = 1165 mm
• Height = 1635 mm
• Length = 1980 mm
• Lifting height max. cantilever arm extended = 2520 mm
• Hydraulic pump = double action
• Max. crane arm length = 1593 mm
• Min. crane arm length = 1293 mm
• Wheel type = nylon
• Wheel bearing = ball bearing
• Fixed wheel diameter = 200 mm
• Steering wheel diameter = 125 mm
• Design of crane = angled chassis
• Chassis height = 165 mm
• Lifting height max. cantilever arm retracted = 2351 mm
• Finish = powder coated
• Max. hook height with max. crane arm angle = 2520 mm
• Max. hook height with min. crane arm angle = 286 mm
• Weight = 165 kg
• Material = steel
• Product type = workshop cranes with angled chassis
• Customs tariff number = 84269900
• Country of origin = CHN
• Gross weight = 200 kg
• Weight = 165 kg
• Sustainability = CO 2 footprint calculated
• Provide support when handling heavy goods
• High quality hydraulics
• Ready for use in no time
• Thanks to its 4-way adjustable crane jib, the GREY workshop crane makes your daily operations easier when lifting and lowering heavy loads
• The double-acting hydraulics features two directions of movement, allowing for faster lifting
• The safety crane hook can be rotated 360°, and thanks to the finely adjustable valve, even heavy loads can be precisely lowered
• The necessary stability is ensured by a durable steel construction with 2 swivel and 2 fixed castors
• Parallel chassis: With the parallel chassis, Euro pallets can be manoeuvred around sideways to process them faster
• The workshop crane can also be dismantled and thus stored in a space-saving manner
• Spread chassis: The spread chassis is particularly manoeuvrable and can be driven close to the goods to process them
• The foldable design allows for quick assembly and disassembly and can therefore be stored in a space-saving manner.
