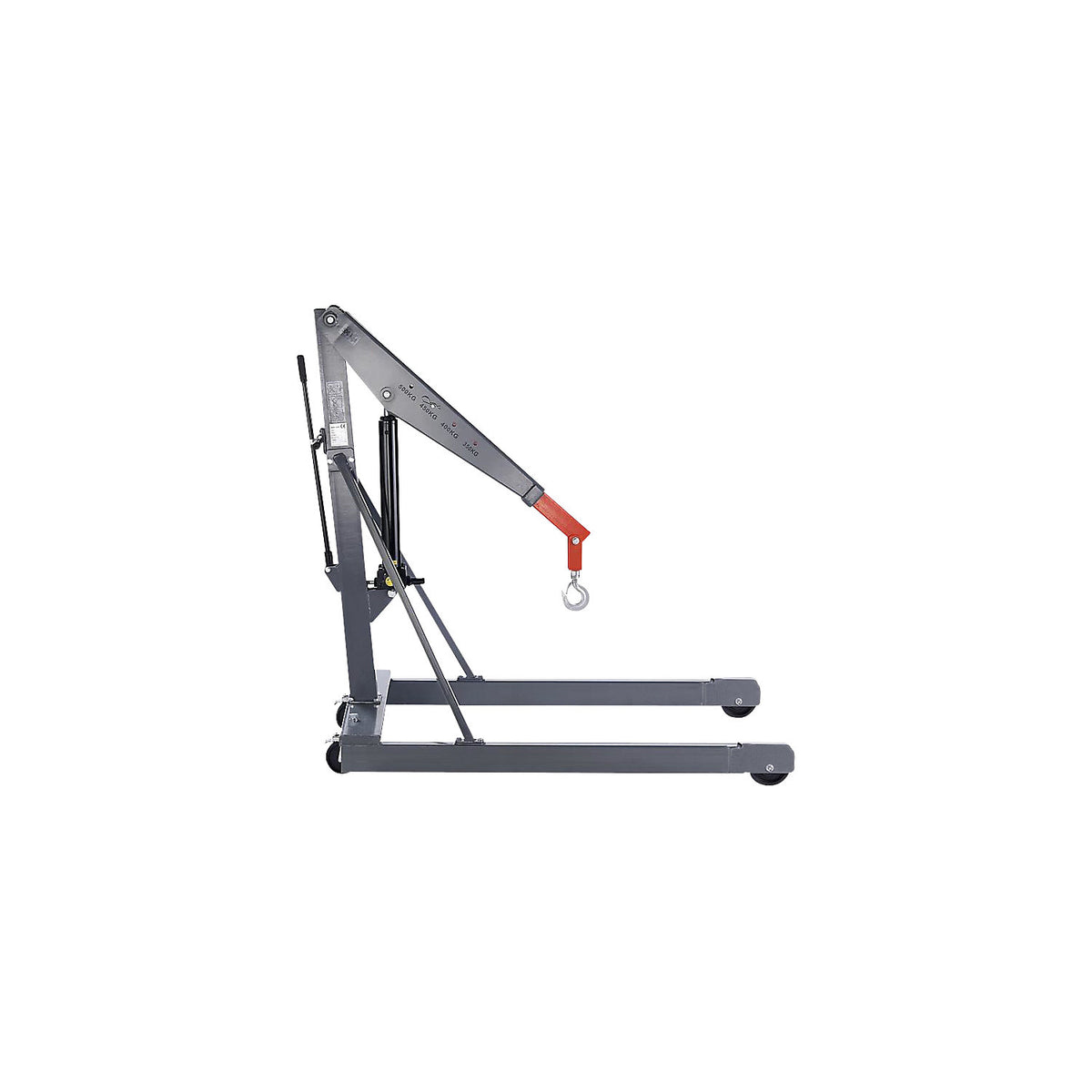

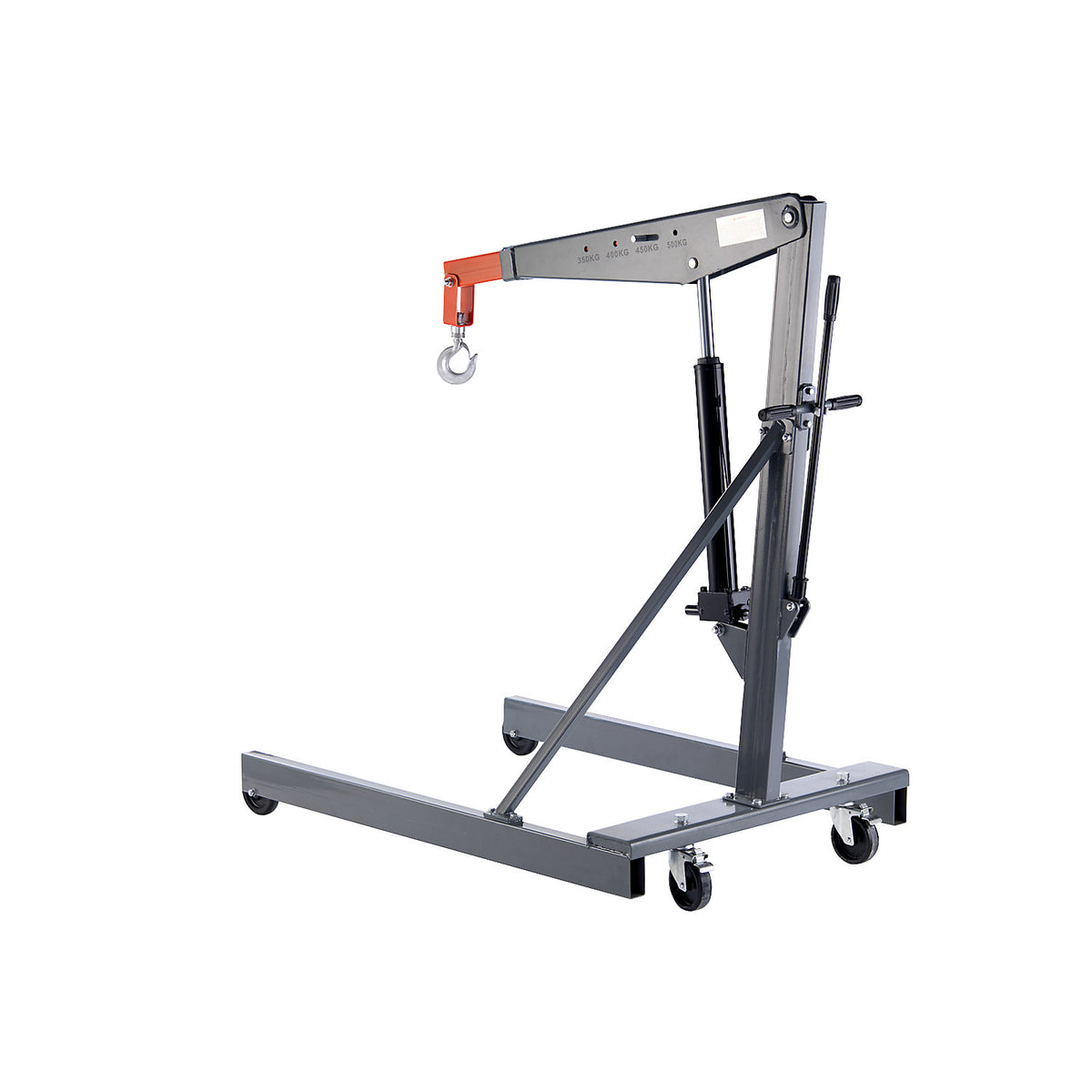

GREY workshop crane, parallel chassis, max. load 1000 kg.

Estimated delivery: 69 days

GREY workshop crane, parallel chassis, max. load 1000 kg

• Supplied = flat pack
• Max. load = 1000 kg
• Max. load (at jib length mm) = 1000 (1060 mm) kg, 900 (1160 mm) kg, 800 (1260 mm) kg, 700 kg (1360 mm) kg
• Colour = basalt grey RAL 7012
• Width = 985 mm
• Height = 1596 mm
• Length = 1395 mm
• Lifting height max. cantilever arm extended = 2475 mm
• Hydraulic pump = double action
• Max. crane arm length = 1360 mm
• Min. crane arm length = 1060 mm
• Wheel type = polyurethane
• Wheel bearing = ball bearing
• Fixed wheel diameter = 125 mm
• Steering wheel diameter = 125 mm
• Design of crane = parallel chassis
• Chassis height = 157 mm
• Lifting height max. cantilever arm retracted = 2225 mm
• Finish = powder coated
• Max. hook height with max. crane arm angle = 2475 mm
• Max. hook height with min. crane arm angle = 643 mm
• Weight = 115 kg
• Material = steel
• Product type = workshop cranes with parallel chassis
• Customs tariff number = 84269900
• Country of origin = CHN
• Gross weight = 140 kg
• Weight = 115 kg
• Sustainability = CO 2 footprint calculated
• Provide support when handling heavy goods
• High quality hydraulics
• Ready for use in no time
• Thanks to its 4-way adjustable crane jib, the GREY workshop crane makes your daily operations easier when lifting and lowering heavy loads
• The double-acting hydraulics features two directions of movement, allowing for faster lifting
• The safety crane hook can be rotated 360°, and thanks to the finely adjustable valve, even heavy loads can be precisely lowered
• The necessary stability is ensured by a durable steel construction with 2 swivel and 2 fixed castors
• Parallel chassis: With the parallel chassis, Euro pallets can be manoeuvred around sideways to process them faster
• The workshop crane can also be dismantled and thus stored in a space-saving manner
• Spread chassis: The spread chassis is particularly manoeuvrable and can be driven close to the goods to process them
• The foldable design allows for quick assembly and disassembly and can therefore be stored in a space-saving manner.
