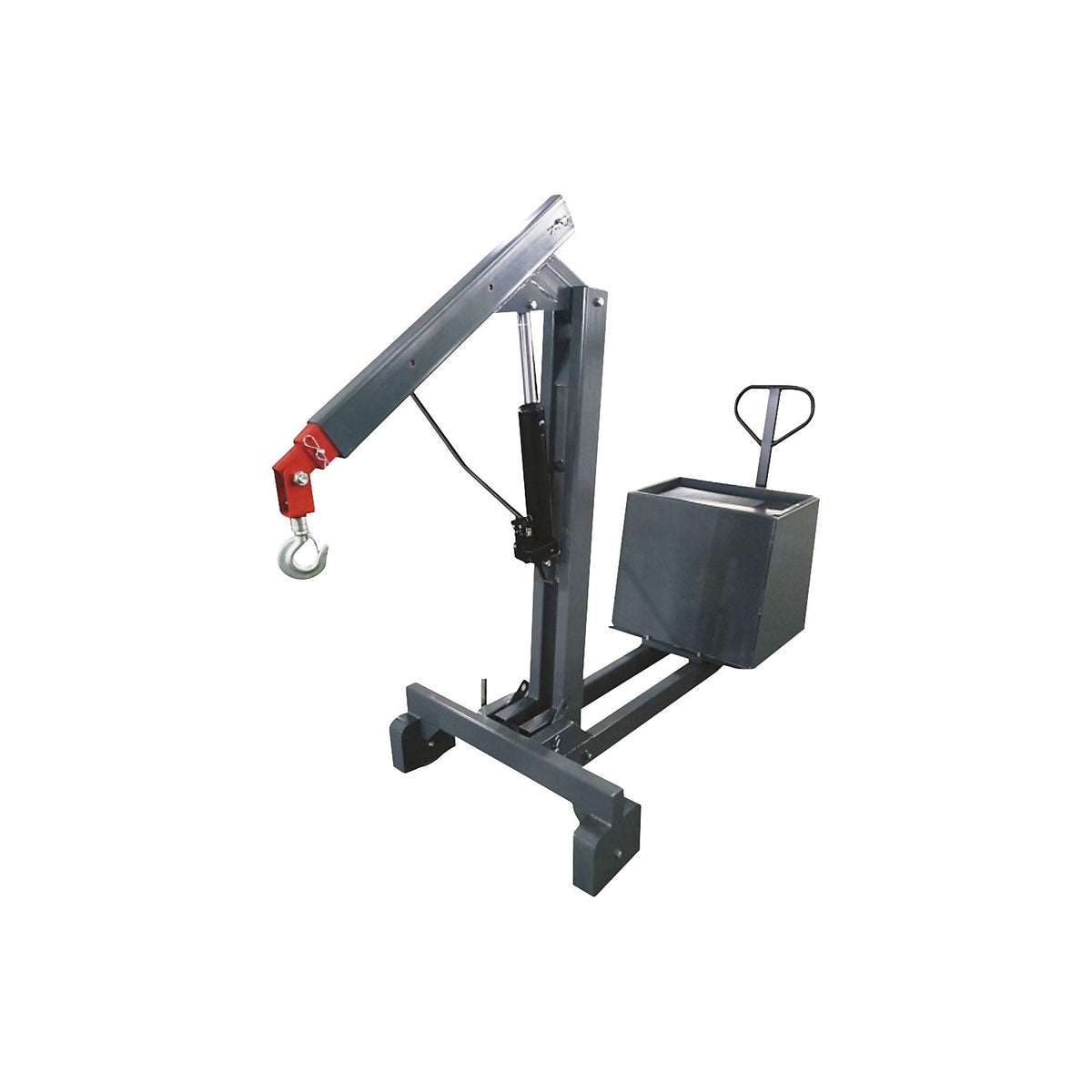

Counterbalance crane, manual, max. load 550 kg.

Estimated delivery: 137 days

Counterbalance crane, manual, max. load 550 kg

• Supplied = assembled
• Max. load = 550 kg
• Max. load (at jib length mm) = 550 (460 mm) kg, 400 (750 mm) kg, 300 (1040 mm) kg, 220 (1340 mm) kg, 150 (1640 mm) kg kg
• Colour = basalt grey RAL 7012
• Width = 905 mm
• Height = 1505 mm
• Length = 1870 mm
• Lifting height max. cantilever arm extended = 2600 mm
• Hydraulic pump = double action
• Max. crane arm length = 1640 mm
• Min. crane arm length = 460 mm
• Wheel type = rubber tyres
• Wheel bearing = plain bearing
• Fixed wheel diameter = 180 mm
• Steering wheel diameter = 180 mm
• Design of crane = folding crane column
• Lifting height max. cantilever arm retracted = 1950 mm
• Finish = powder coated
• Max. hook height with max. crane arm angle = 2600 mm
• Max. hook height with min. crane arm angle = 460 mm
• Weight = 445 kg
• Material = steel
• Product type = counterbalance cranes
• Customs tariff number = 84269900
• Country of origin = CHN
• Gross weight = 458 kg
• Weight = 445 kg
• Eases daily operations through high mobility and easy manoeuvrability
• Uncomplicated approaching and picking up of loads
• Fast lifting by double-acting hydraulics
• The crane boom can be extended in five positions to accommodate various lifting positions and different lifting weights
• The counterweight design can be moved closer to the goods to handle them
• Equipped with a double-acting hydraulic pump, which enables both directions of movement for quick lifting

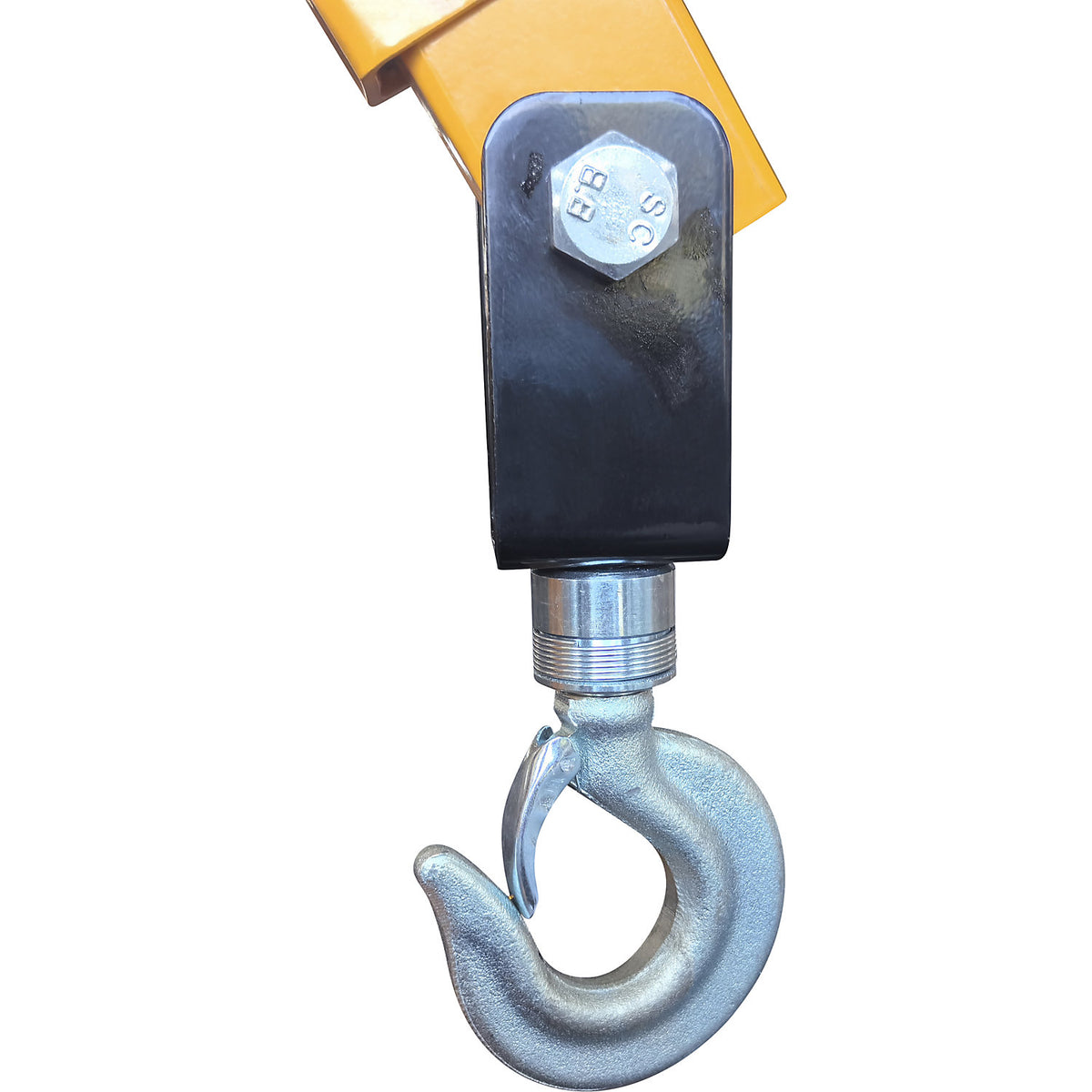

• The safety crane hook can be rotated 360°
• A finely adjustable lowering valve enables precise lowering of the loads
• Stable structure with 2 swivel castors and 2 fixed castors (with foot protection)
• The spindle attachment serves as a brake.
