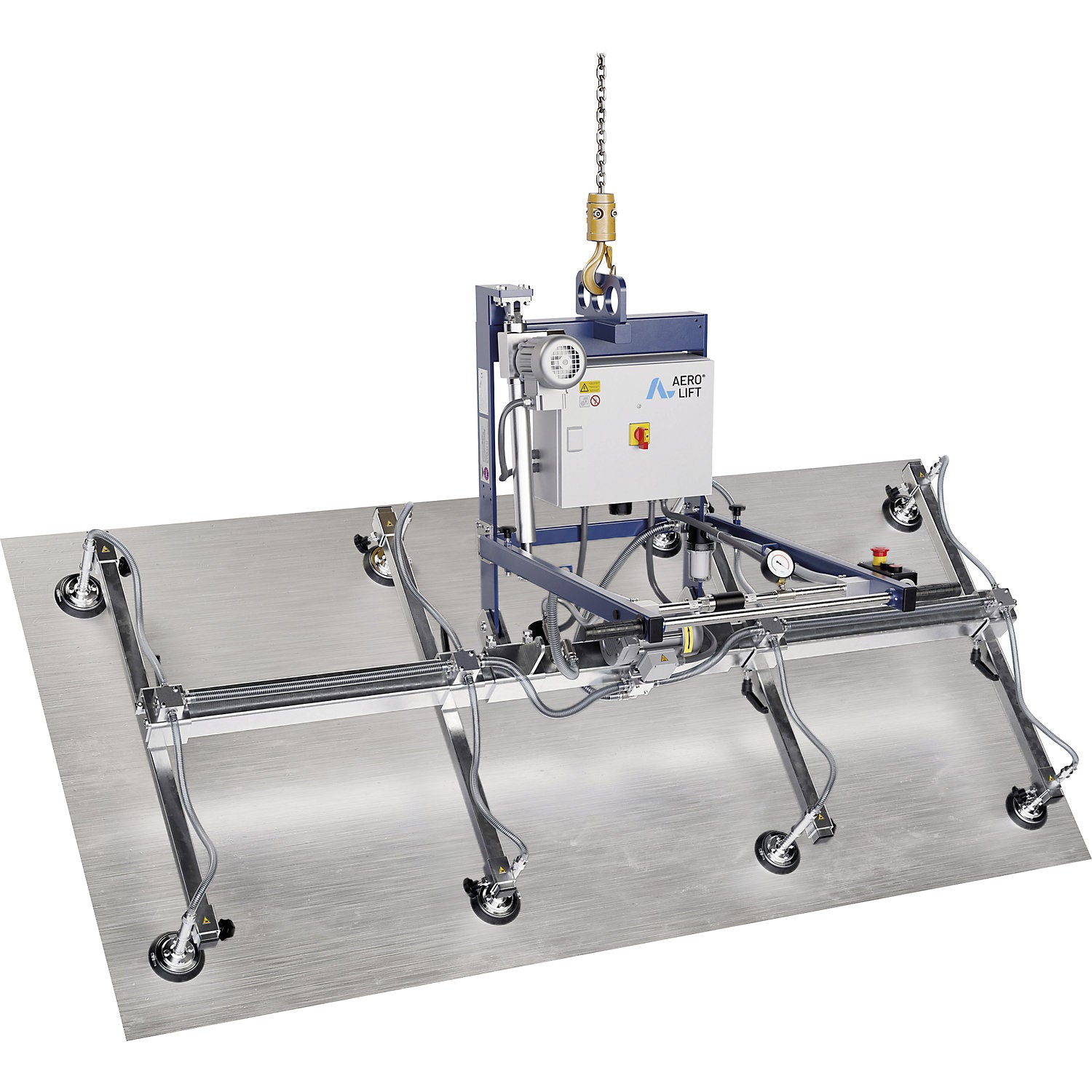

AERO-90° vacuum lifter, max. load 500 kg, disc Ø 270 mm, 8 discs.

Estimated delivery: 51 days

AERO-90° vacuum lifter, max. load 500 kg, disc Ø 270 mm, 8 discs

• Supplied = assembled
• Head diameter = 270 mm
• Max. load = 500 kg
• Number of heads = 8 pcs
• Material = steel
• Colour = sapphire blue
• Model = swivelling
• Suitable for = sheet metal, plastics, panels
• Product type = suction lifters
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 345 kg
• Weight = 175 kg
• Stepless, jerk-free swivelling from 0° - 90°
• Transport of panels, sheet metal and plastics
• Shorter set up times
• Robust welded steel construction for highest process reliability
• Low operating costs
• No downtime or idle time
• The vacuum lifter AERO-90° enables jerk-free pivoting from 0° to 90° by an electric linear drive
• Heavy sheet materials such as metal sheets or plastic are thus moved safely, precisely and gently
• The robust steel welded construction of the frame and crossbeams ensures maximum process reliability
• High-quality full elastomer seals reliably protect the transported goods from damage and provide durable
• Individually lockable suction plates with manual slide valves significantly reduce set-up times, even with changing workpiece dimensions
• A generously dimensioned vacuum reservoir with a warning device offers high safety for the operator and the work processes
• The integrated motor protection switch reliably protects the vacuum generator from winding damage and prevents downtime
• Thanks to the modular basic system, the vacuum lifter is flexibly expandable through additional options
• The energy-efficient vacuum generator has low operating costs
• The intelligent suction plate concept also enables the quick, almost tool-free replacement of suction seals within a few seconds
• Optionally, a pump control module is available, which can perfectly regulate the activity of the vacuum generator
• The vacuum lifter AERO-90° is suitable for industrial businesses such as metal construction and plastics processing companies that move large-format panels
• This reliably avoids long set-up times, downtime risks and transport damage.
