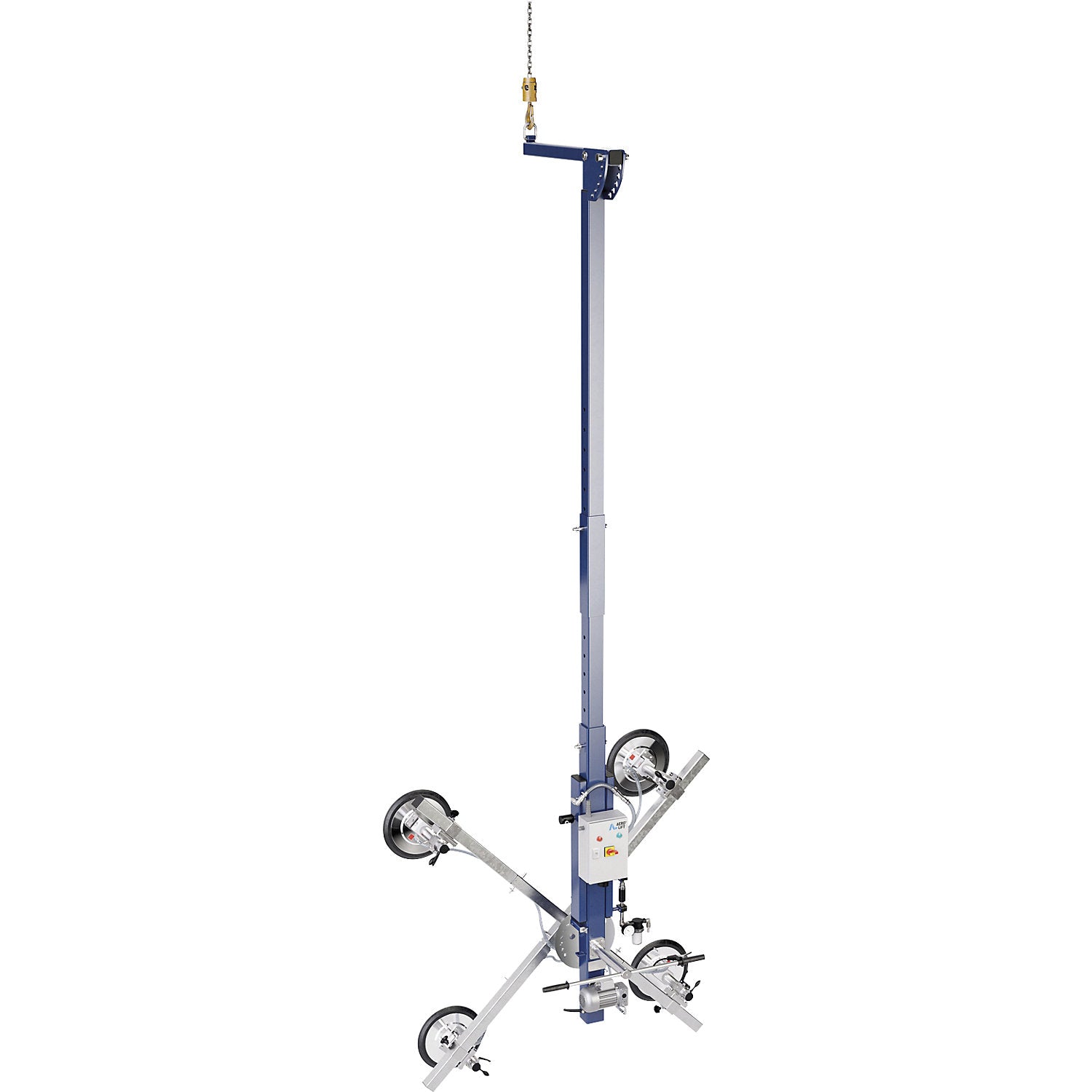

AERO-VARIOWIN vacuum lifter, swivelling, load capacity 500 kg, 4 discs.

Estimated delivery: 61 days

AERO-VARIOWIN vacuum lifter, swivelling, load capacity 500 kg, 4 discs

• Supplied = assembled
• Head diameter = 360 mm
• Max. load = 500 kg
• Number of heads = 4 pcs
• Material = steel
• Colour = sapphire blue
• Model = swivelling
• Suitable for = glass
• Load bearing direction = vertical
• Product type = suction lifters
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 300 kg
• Weight = 140 kg
• Precise glass handling in prefabricated house construction
• Bypassing interfering contours such as reveals or frames is possible
• Rotating the workpiece vertically by ±90°, and fixing it in place every 15°
• Precise glass handling in prefabricated house construction: The AERO-VARIOWIN vacuum lifter impresses with its supreme functionality when handling large and heavy glass elements
• Its excellent suction properties and the increased coefficient of friction in a vertical position are achieved through special AERO-LIFT glass suction pads with low inherent volume and a special structural design
• Handling of workpieces with web offset up to max. 13 cm is possible thanks to depth-adjustable suction pads

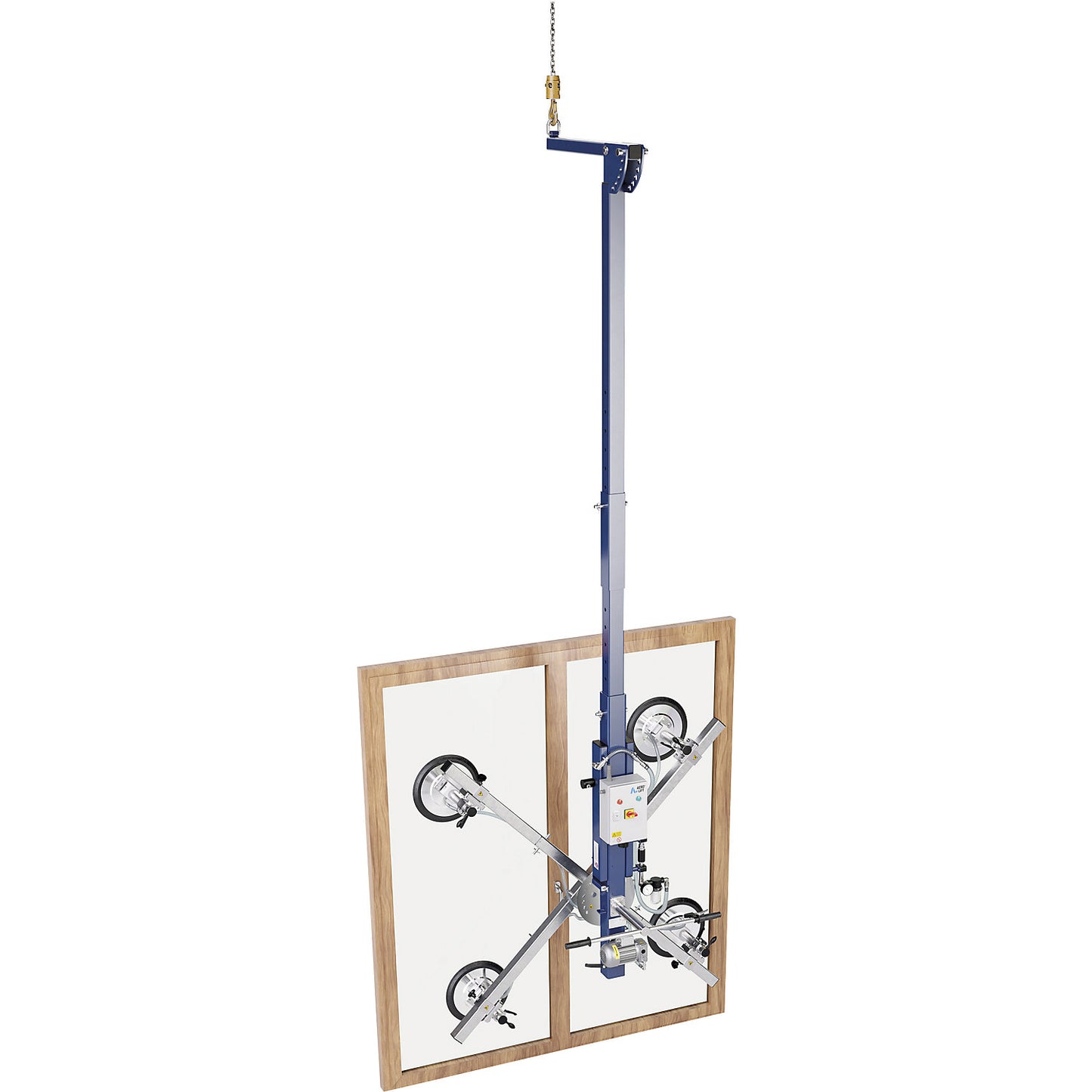

• Bypassing interfering contours such as reveals or frames is possible thanks to height-adjustable suspension points
• Trouble-free transport of tall workpieces in an upright position thanks to an extra-long suspension frame
• Balanced load distribution due to adjustable centre of gravity compensation on the suspension frame
• Secure storage option for vacuum lifter and attachments thanks to the transport frame included in the scope of delivery
• Option for handling smaller formats thanks to an additional shorter crane suspension
• Highest safety standards thanks to the integrated tandem vacuum reservoir, which is mounted on both sides of the frame, as well as the additional acoustic and visual warning signals
• Rotation of the workpiece in a vertical direction by ±90°, as well as fixation every 15° by means of a Bowden cable
• Fast and tool-free conversion is guaranteed thanks to plug connections that allow a configuration with fewer or more suction pads
• Includes frame for safe transport
• No downtime or idle periods thanks to an integrated motor protection switch that protects the vacuum generator from winding damage
• Simple and fast maintenance: The intelligent suction pad concept enables tool-free replacement of worn suction seals within seconds
• The AERO-VARIOWIN vacuum lifter facilitates the safe, precise, and ergonomic handling of large-format or heavy glass elements
• It is particularly suitable for prefabricated house builders, glaziers, window and facade manufacturers, as well as for all businesses to move glass and building elements with the highest safety and accuracy.
