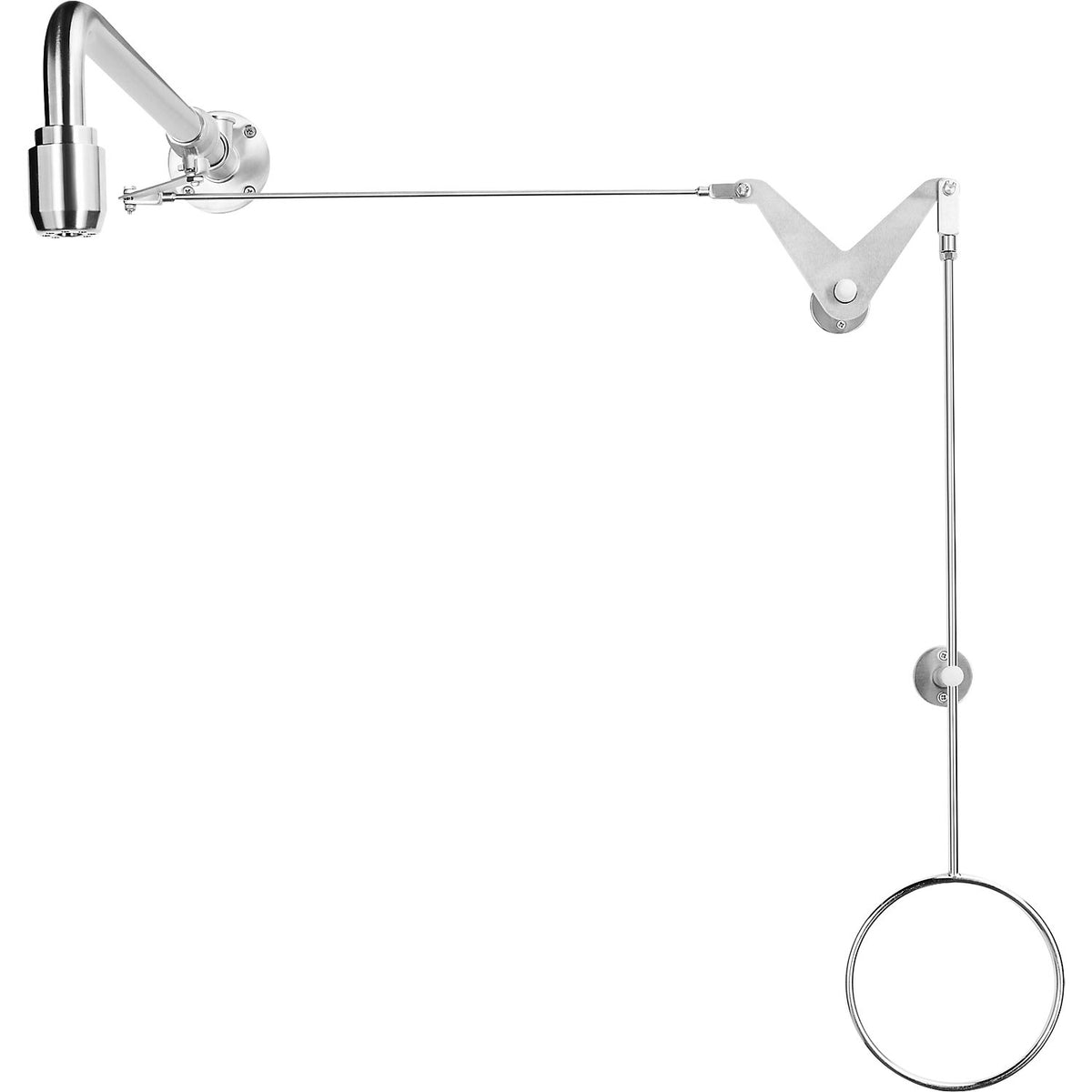

Body emergency shower PremiumLine, with pull rod linkage, above-door mounting, stainless steel.

Estimated delivery: 34 days

Body emergency shower PremiumLine, with pull rod linkage, above-door mounting, stainless steel

• Supplied = flat pack
• Max. pressure up to = 3 bar
• Thread = 3/4 inch
• Height = 790 mm
• Depth = 640 mm
• Water flow = 50 l/min
• Colour = stainless steel
• Material = stainless steel
• Type of mounting = wall mounting
• Min. pressure = 1.5 bar
• Product type = emergency showers
• Customs tariff number = 84818099
• Country of origin = DEU
• Gross weight = 4.6 kg
• Weight = 4 kg
• Sustainability = Recyclable
• High-performance shower head for a limited, even and soft jet of water
• Optimised for rinsing chemicals off the skin
• Robust and corrosion-resistant construction made of stainless steel
• Self-emptying, largely limescale- and maintenance-free
• The B-SAFETY body safety showers of the PremiumLine series are manufactured from stainless steel and are just as suitable for use in laboratories and research as for harsh use in industry
• The polished stainless steel surface is not only resistant to many chemicals but also offers a modern design for laboratories and cleanrooms
• The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free from calcification and maintenance-free, as well as being very robust and corrosion-resistant
• The limited, uniform and, above all, soft water jet is optimised for rinsing chemicals from the skin
• The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the on-site water pressure
• With the enclosed safety sign according to DIN EN ISO 7010 and ASR A1.3, the B-SAFETY safety shower is identified and its visibility is improved
• The recognition distance is 15 metres. - Wall flange with 4 mounting holes made of stainless steel, polished, mounting height 2345 mm (±100 mm) - Stainless steel ball valve, with pull rod diverter via angle bracket with wall mount, length 500 mm, can be mounted either to the right or left of the door - Pull rod with ring handle made of stainless steel, polished, length 700 mm, wall shower arm 3/4-inch made of stainless steel, polished, projection 630 mm - Connecting pipe 3/4-inch made of stainless steel, polished, length 75 mm, guide bracket for pull rod made of stainless steel, polished - Integrated automatic flow regulator 50 litres/minute for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure, water connection 3/4-inch female thread - According to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717, ANSI Z358.1-2014, DIN EN 15154-1:2006 and DIN EN 15154-5:2019
• DIN-DVGW tested and certified.
