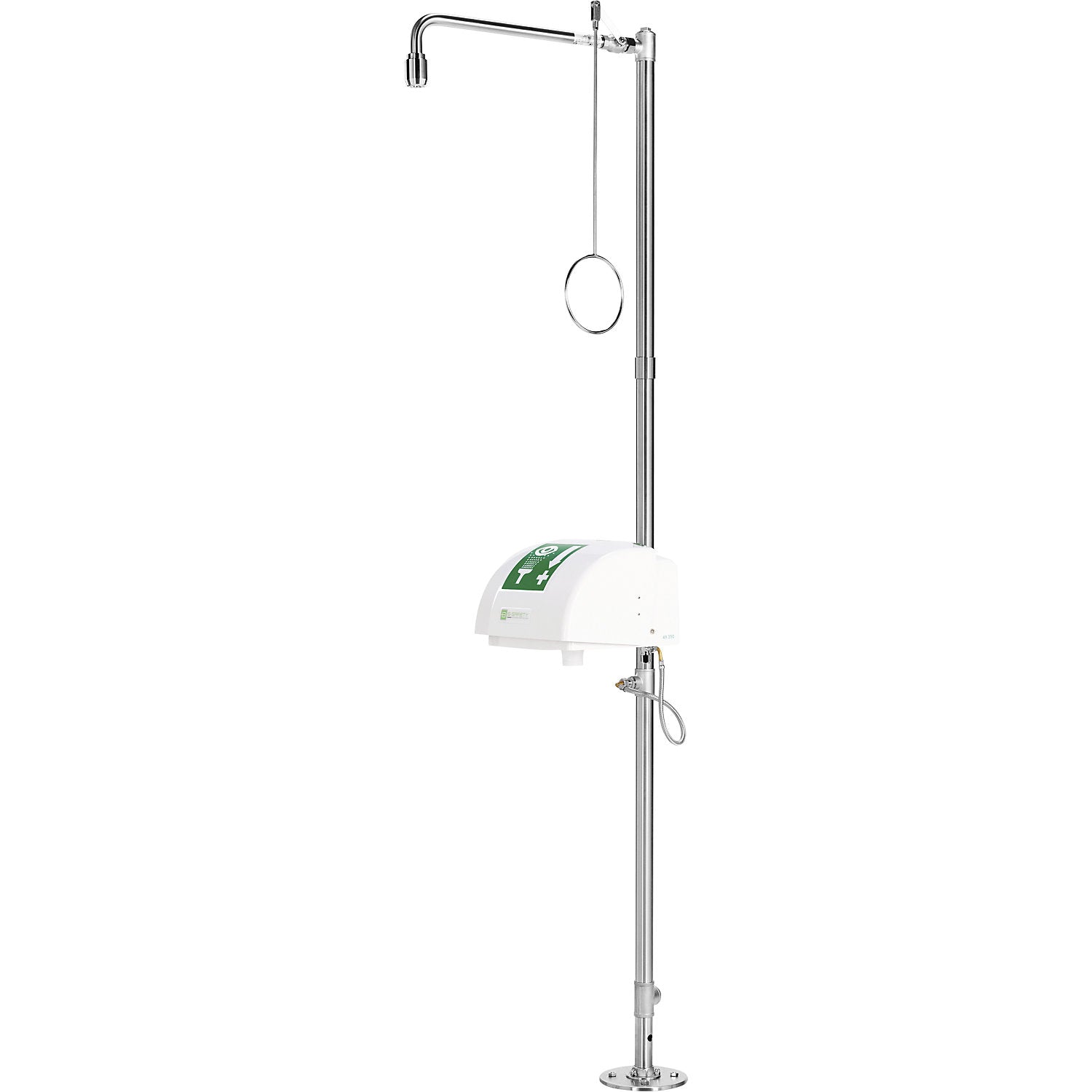

PremiumLine full body emergency shower, with eye/face shower, collection basin and cover, for floor mounting, stainless steel.

Estimated delivery: 34 days

PremiumLine full body emergency shower, with eye/face shower, collection basin and cover, for floor mounting, stainless steel

• Supplied = flat pack
• Max. pressure up to = 3 bar
• Thread = 1 1/4 inch
• Height = 2300 mm
• Depth = 630 mm
• Water flow = 50 l/min
• Colour = stainless steel
• Material = stainless steel
• Type of mounting = floor attachment
• Min. pressure = 1.5 bar
• Product type = emergency showers
• Customs tariff number = 84818099
• Country of origin = DEU
• Gross weight = 17.75 kg
• Weight = 16.8 kg
• Sustainability = Recyclable
• High-output shower head for a limited, steady and soft jet of water
• Optimised for rinsing chemicals off the skin
• Robust and corrosion-resistant stainless steel construction
• Self emptying, largely limescale-free and maintenance free
• The free-standing industrial emergency showers are always used when wall-mounting the shower is not possible or when a central point of contact for first aid is to be created
• Their use is also sensible in large halls and production facilities
• A major advantage is the good visibility of the shower from all sides
• The free-standing emergency showers can be adapted to the on-site requirements as required with a large selection of options
• The B-SAFETY body emergency showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for harsh use in industry
• The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and cleanrooms
• The body emergency showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free of calcification and maintenance-free, as well as being very robust and corrosion-resistant
• The limited, uniform and, above all, soft water jet is optimised for rinsing chemicals from the skin
• With the enclosed safety sign according to DIN EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is identified and its visibility is improved
• The recognition distance is 15 metres. - Integrated PremiumLine eye/face wash with bowl and cover, for mounting on the standpipe, position and alignment freely selectable - 1 1/4-inch standpipe made of stainless steel in three parts, polished, with top and bottom water connection 1 1/4-inch female thread, total height 2300 mm - Base with 4 mounting holes, made of stainless steel, polished, diameter 200 mm - Housing, cover and bowl made of impact-resistant and UV-resistant ABS plastic, drain connection 1 1/2-inch male thread, flow regulator made of brass with a very limited spray pattern, chrome-plated, 3/8-inch ball valve made of brass, with lever operation via hinged protective cover, activation by swinging down the cover - 3/4-inch ball valve made of stainless steel, with quick-connect system and pull rod actuation, pull rod with ring handle made of stainless steel, polished, length 700 mm - 3/4-inch wall shower arm made of stainless steel, polished, projection 630 mm - Including top and bottom water connection 1 1/4-inch female thread for installation in circulation pipes, 1 1/4-inch plug made of stainless steel - Connector made of stainless steel, for quick on-site assembly and easy alignment of the shower arm - Integrated automatic flow regulator 50 litres/minute for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure - With integrated 3/8-inch flow regulating valve for adjusting the desired spray height and flow rate - According to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717, ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 and DIN EN 15154-5:2019
• DIN-DVGW tested and certified
