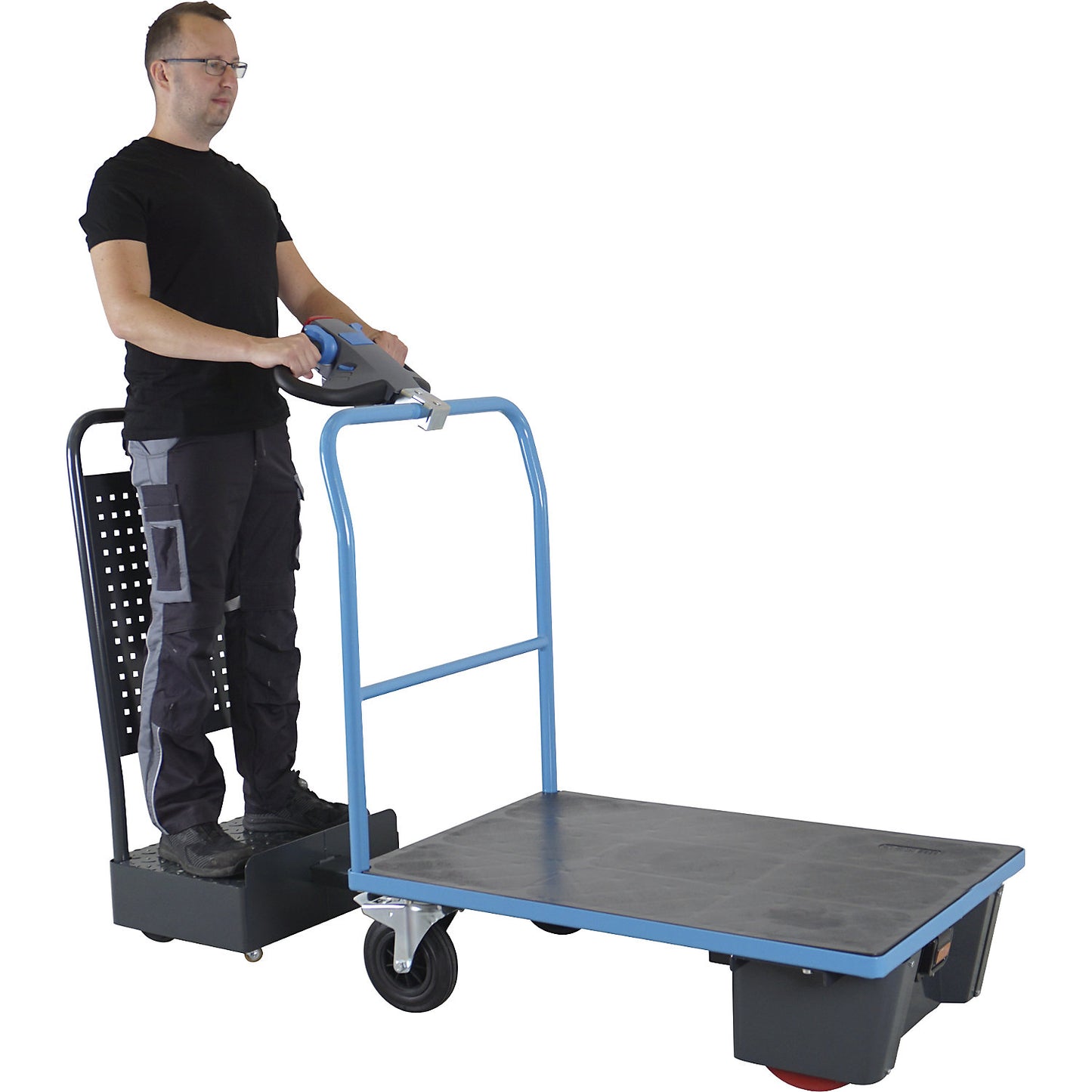

Platform truck with electric drive, with driver's platform, LxW 1795 x 700 x 1320 mm.

Estimated delivery: 41 days

Platform truck with electric drive, with driver's platform, LxW 1795 x 700 x 1320 mm

• Supplied = pre-assembled, final assembly by customer
• Wheel type = solid rubber / polyurethane
• Platform length = 1050 mm
• Platform width = 700 mm
• Loading height = 285 mm
• Length = 1850 mm
• Width = 700 mm
• Height = 1300 mm
• Frame colour = light blue RAL 5012
• Wheel diameter = 200 / 230 mm
• Wheel fittings = 2 swivel castors with brakes, 2 drive wheels
• Platform colour = black
• Weight = 87.2 kg
• Platform material = plastic
• Frame material = steel
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 105.1 kg
• Weight = 87.2 kg
• Saves walking distances and takes the strain off employees for more efficiency
• Highly versatile due to modular design
• The replaceable battery system allows unlimited operating time
• Intuitive operation, perfect steering control
• Drawbar head with precise speed controller, creep speed button, belly switch and horn
• Integrated foot protection on the e-module
• The platform trolley with electric drive and operator platform, complete with powerful lithium-ion battery and charger
• Wireless - the drive is controlled via Bluetooth via the tiller head
• Promote ergonomic workflows in the workplace for the well-being of your employees, as heavy loads can be transported easily, ergonomically, and efficiently
• Particularly suitable for industry, manufacturing companies, and warehouses
• Operator Platform The operator platform is designed for the E-module series and allows a person to drive with a transport trolley and electric drive, on which the goods are transported
• The operator stands securely on the platform, controls the electric drive directly via the tiller head, and thus moves effortlessly with the trolley
• This reduces walking distances, minimises physical strain, and makes workflows in warehouses and production significantly more efficient
• The operator platform is connected to the transport trolley via an angle ball joint and can be easily assembled or disassembled if required - use without the operator platform is also possible
• The ergonomic control via the tiller head ensures easy steering behaviour: the system is very manoeuvrable, track-stable, and tip-proof
• The operator platform is equipped with non-slip checker plate, step-over protection, and all-round foot protection
• The tubular bar with perforated sheet metal back panel ensures safe driving
• The load capacity is a maximum of 500 kg for the transport trolley and 150 kg for the operator platform
• When using the operator platform, the load capacity of the trolley is reduced by the weight of the person to at least 350 kg
• The delivery is in a disassembled state, assembly is simple
• Only usable in combination with the designated eurokraft pro transport trolleys
• E-module The E-module features intuitive operation with perfect control to easily transport loads up to 500 kg

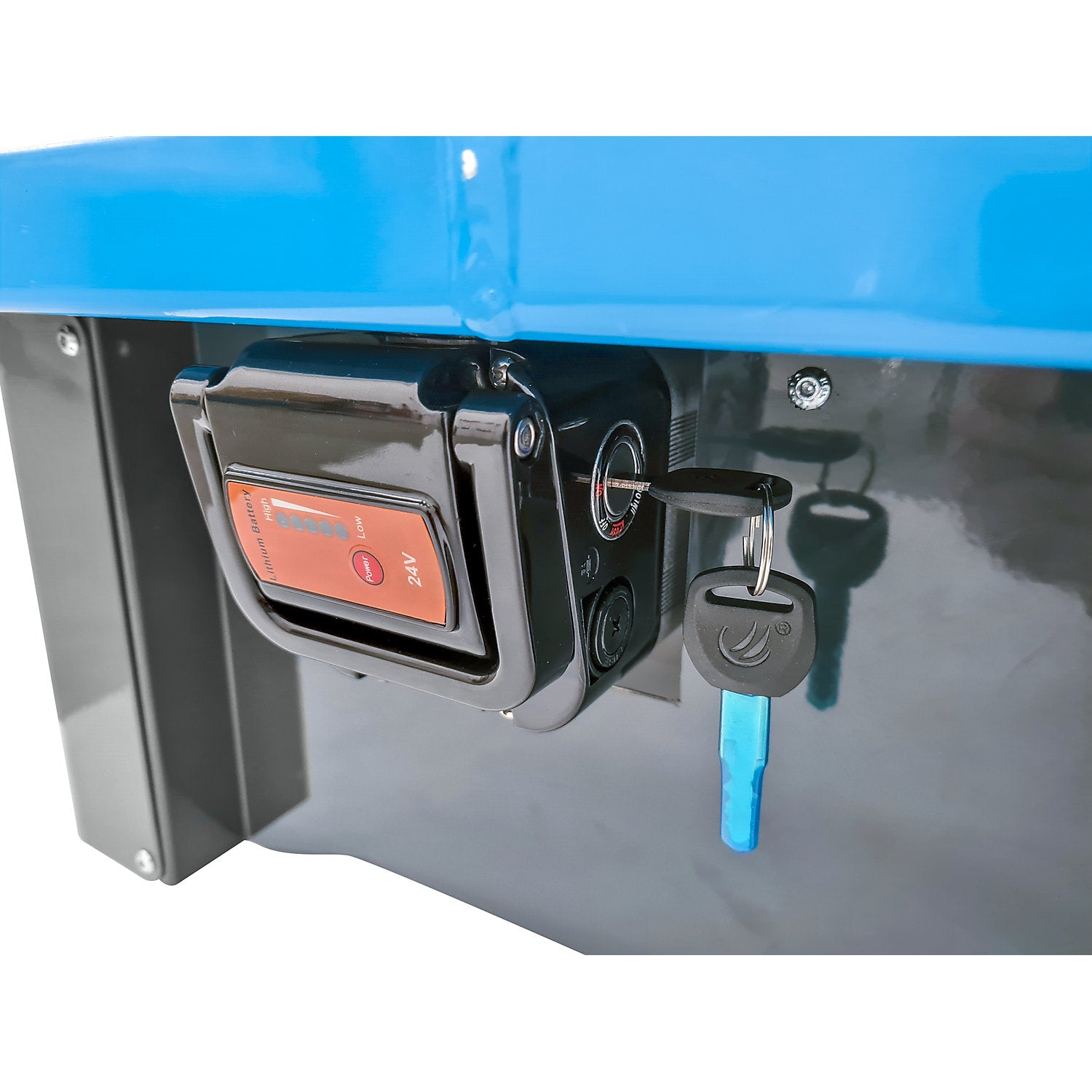

• The drive battery consists of a replaceable lithium-ion battery, whose charge status can be visually checked via a battery level indicator
• The operating time is up to 8 hours per battery charge with average use
• The replaceable battery system makes it possible to easily swap the empty battery for a full one to ensure uninterrupted operation
• The connection between the tiller head and the drive is wireless via Bluetooth, which also enables use in fleet operations
• The charging time is only 6 hours for a full charge
• The electric drive offers easy navigation, supported by fatigue-free operation thanks to the ergonomically shaped, multifunctional tiller head
• Light steering is ensured by stable tubular handles, and stepless speed control is carried out via two thumb buttons, with a maximum speed of 4 km/h
• If required, a creep speed can be activated, which allows for highly precise forward and reverse movement
• Additional safety features include a warning function in the form of a horn on the tiller head, as well as a belly button which prevents pinching when reversing
• The integrated foot protection ensures that there is no risk of pinching under the drive
• The E-module does not require proof of competence for operation and features anti-theft protection through access control via a lock on the drive battery
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return
• All specified max. loads apply with uniform load distribution.
