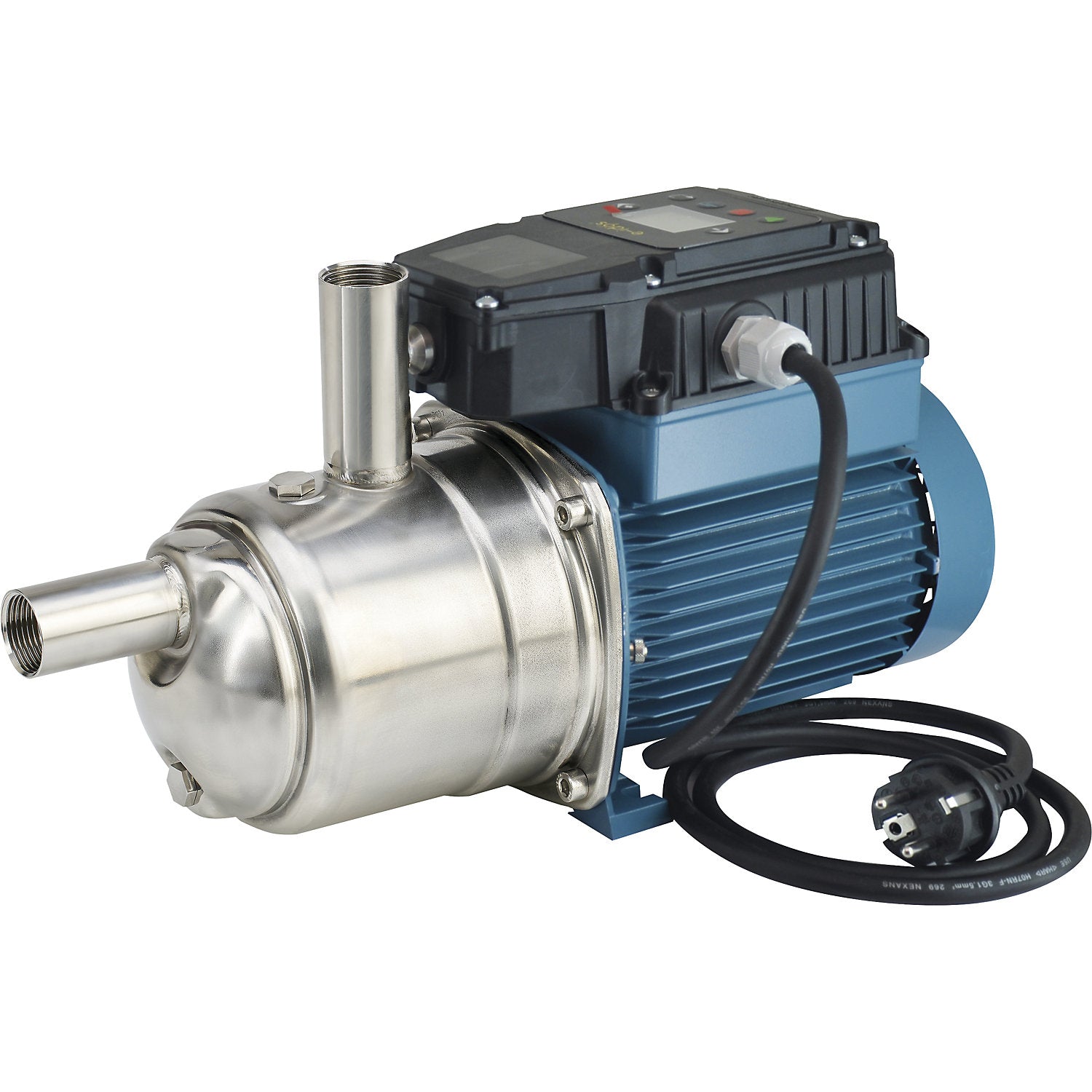

META speed-regulated pump, with integrated pressure control, max. 48 m, 1.35 kW.

Estimated delivery: 36 days

META speed-regulated pump, with integrated pressure control, max. 48 m, 1.35 kW

• Supplied = assembled
• Power = 1.35 kW
• Pump rate = max. 140 l/min
• Pumping height = 48 m wc
• Max. speed = 4500 rpm
• Voltage = 230 V
• Height = 235 mm
• Width = 161 mm
• Length = 440 mm
• For liquids = water
• Material of pump = stainless steel
• Material = stainless steel
• Cable length = 1500 mm
• Protection type = IPX4
• Colour = blue, silver, black
• Product type = water supply systems
• Customs tariff number = 84137089
• Country of origin = ITA
• Gross weight = 14 kg
• Weight = 13.5 kg
• For water supply, for the house, for gardens and for irrigation
• Integrated frequency converter and expansion tank
• Adjustable operating and switch-on pressure, motor monitoring
• Monitoring of voltage, motor current and the maximum starting current
• Direct control and full control via the integrated LCD display
• Maximum permissible pump end pressure: 8 bar
• Ambient temperature up to 40 °C
• Medium temperature: from 0 °C to +35 °C
• Speed-controlled pump MÉTA - water pump for a constant water supply The speed-controlled pump MÉTA, as a digital, self-priming water pump, ensures a reliable water supply with constant pressure
• The compact design, the intelligent control and the highly efficient IE4 motor enable high-performance operation in a wide variety of application areas
• The water pump is equipped with an integrated frequency inverter, pressure sensor, LCD display, non-return valve and an expansion vessel
• The frequency inverter automatically switches the system on and off when tapping points are opened and closed
• At the same time, it ensures a steady water supply with a constant operating pressure
• Operating and cut-in pressure can be adjusted individually and adapted to the respective requirements
• The water pump can be directly controlled and monitored via the integrated LCD display
• In addition, the system monitors voltage, motor current and the maximum starting current
• These functions support safe operation and facilitate the monitoring of the entire water supply
• With a maximum permissible final pump pressure of up to 8 bar, the system is suitable for demanding applications
• The water pump operates reliably at ambient temperatures up to 40 °C as well as medium temperatures from 0 °C to +35 °C
• Thanks to the simple installation, the system can be commissioned quickly
• The speed-controlled water pump is suitable for water supply in the house and garden as well as for irrigation systems where a steady pressure and demand-based water delivery are required.
