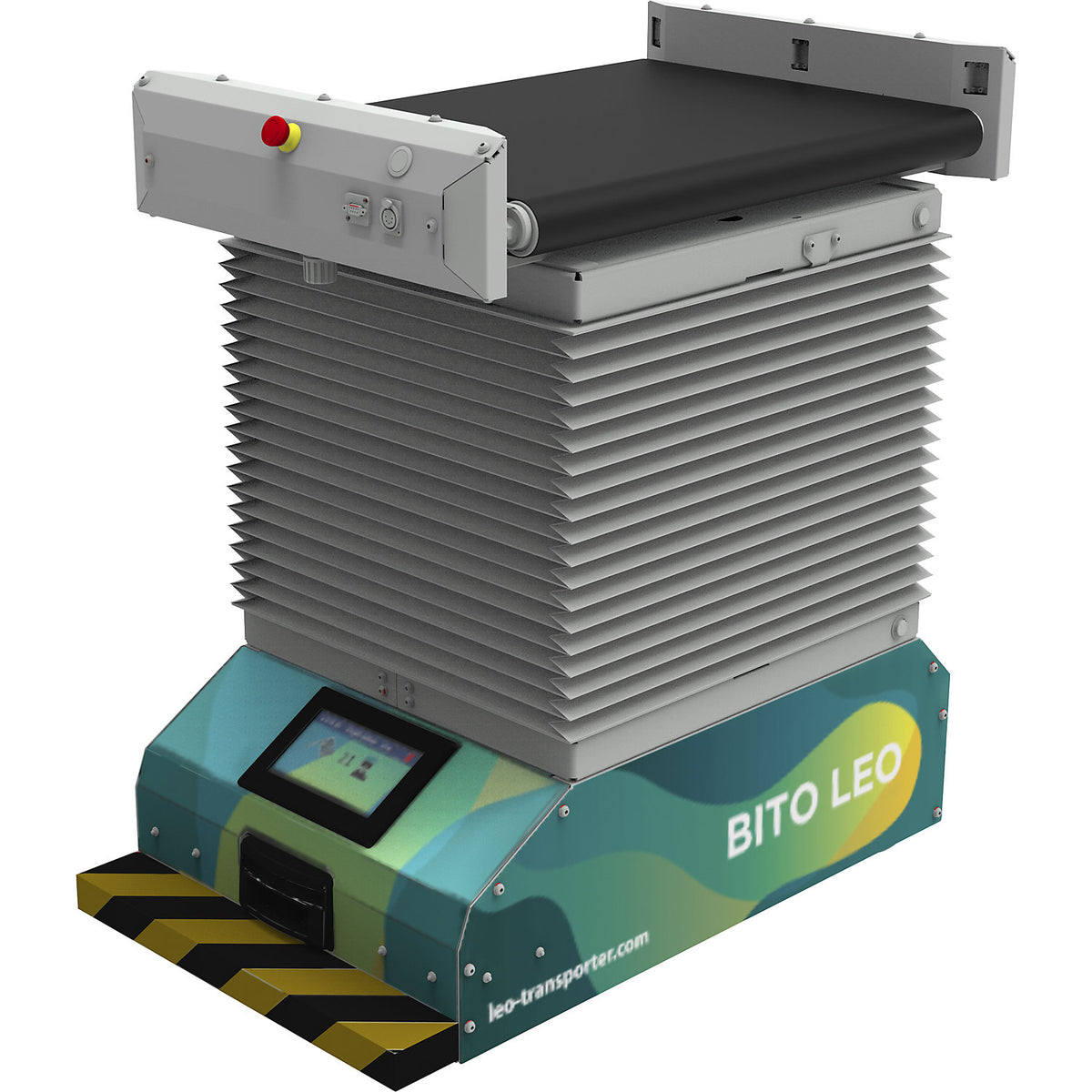

Driverless transport system LEO, Flow conveyor with scissor lift, platform LxW 600 x 400 mm, load capacity 50 kg.

Estimated delivery: 66 days

Driverless transport system LEO, Flow conveyor with scissor lift, platform LxW 600 x 400 mm, load capacity 50 kg

• Supplied = assembled
• Max. load = 50 kg
• Platform length = 600 mm
• Platform width = 400 mm
• Length = 830 mm
• Width = 50 mm
• Height = 1150 mm
• Material = plastic
• Battery capacity = 20 Ah
• Colour = light grey
• Product type = automated guided vehicle system (AGV)
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 80 kg
• Weight = 50 kg
• Precise and secure optical track guidance without complex IT integration
• Lower investment and operating costs due to easy handling
• Flexible route adjustment without structural alterations or software changes
• For fixed load carriers up to 50 kg
• Automates transport between conveyor lines of different heights
• Replaces static conveyor lines and expands existing systems
• The LEO driverless transport system from BITO automates the internal material flow - precisely, safely and cost-efficiently - without complex IT integration
• The AGV system navigates using line guidance via optical lines and markers, which enables maximum precision with minimal maintenance effort
• The autonomous transport robots move along fixed, defined paths, ensuring transport processes run transparently and safely
• Should paths change, they can be quickly and independently adapted by relaying or removing the guide tapes - completely without structural modifications or software adjustments
• The BITO LEO transport robots operate independently of a central IT system and ensure a constant, traceable material flow between goods-in, the warehouse, production and dispatch
• Thanks to the line-guided navigation and the clearly defined transfer points, transport processes are executed safely and without disruption
• The AGV transport system reduces travel distances, reduces the workload for employees and increases process reliability in intralogistics
• The line-guided navigation of the LEO driverless transport system significantly lowers investment and operating costs, also in comparison to free-navigating vehicles
• Due to its simple handling and low maintenance requirements, the system remains economical in the long term
• Fixed routes prevent collisions and increase safety for employees as well as reliability in daily operation
• The transport robots can turn 90° or 180° on the spot - controlled by markers that specify the desired direction of rotation
• This allows the vehicle to be moved precisely in narrow aisles and it can enter loading or transfer stations in a space-saving manner
• Reversing is also possible for short distances of up to 5 m
• On straight sections of up to 25 m, LEO can travel without a line
• This function reduces wear and tear on the floor markings, prevents damage to the line in areas with forklift traffic and saves material and effort in route layout
• LEO Flow with scissor lift - Flexible material flow at different heights The LEO Flow with scissor lift is equipped with an automatic lifting unit and enables the collection and deposit of containers at different heights
• The integrated belt conveyor adjusts its height via the scissor lift, thus compensating for height differences between conveyor systems, machines or workstations
• Containers, cardboard boxes or small parts are collected and deposited laterally to the direction of travel
• Thanks to the height adjustment, systems with different transfer heights can be efficiently connected without additional conveyor technology or manual intervention
• This increases process reliability, reduces physical strain and ensures a consistently stable process
• The driverless transport system with a scissor lift replaces rigid conveyor lines and can also reliably transport non-standardised goods
• This makes the transport robot particularly suitable for existing facilities where an expansion or adaptation of existing conveyor technology is desired
• The AGV transport system is primarily used in production and assembly areas where machines, workstations or storage zones are located on different levels
• The LEO Flow with scissor lift takes over the automatic loading and unloading of conveyor lines, shelving or workstations there, and ensures a uniform material flow across different levels.
