Operator platform with NEO e-module, for platform trucks, width 800 mm.

Estimated delivery: 41 days

Operator platform with NEO e-module, for platform trucks, width 800 mm

• Supplied = partially assembled
• Width = 785 mm
• Frame material = steel
• Frame colour = charcoal RAL 7016
• Overall max. load = 500 kg
• Wheel fittings = 2 fixed castors
• Steering wheel diameter = 125 mm
• Height = 1120 mm
• Max. driving speed = 5 km/h
• Travel motor = 0.25 kW
• Product type = e-scooters
• Customs tariff number = 87099000
• Country of origin = DEU
• Gross weight = 73.4 kg
• Weight = 57.2 kg
• Saves walking distances and takes the strain off employees for more efficiency
• Highly versatile due to its modular design
• Intuitive operation, perfect steering control
• Replaceable battery system allows unlimited operating time
• Drawbar head with precise speed controller, creep speed button, belly switch, horn
• The combination of operator platform and E-module extends existing eurokraft pro platform trolleys into comfortable, electrically powered work equipment for internal material flow
• The retrofit system enables energy-saving transport of goods over longer distances and ensures ergonomic, safe and efficient working in warehousing, production and logistics

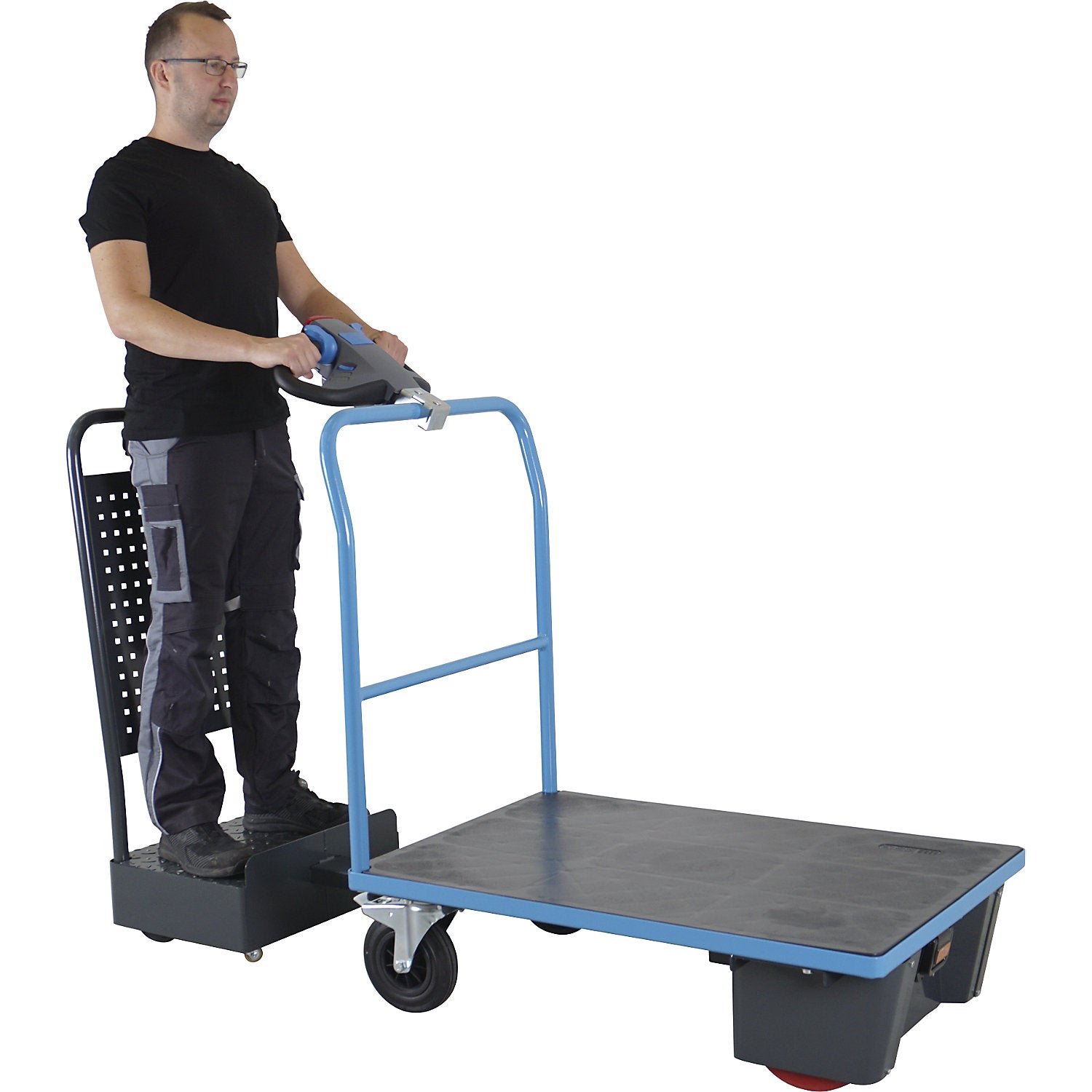

• Operator Platform The operator platform is designed for the E-module series and allows one person to drive with a platform trolley and electric drive, on which the goods are transported
• The operator stands securely on the platform, controls the electric drive directly via the drawbar head and thus moves effortlessly with the trolley
• This reduces walking distances, minimises physical strain and makes work processes in warehousing and production significantly more efficient

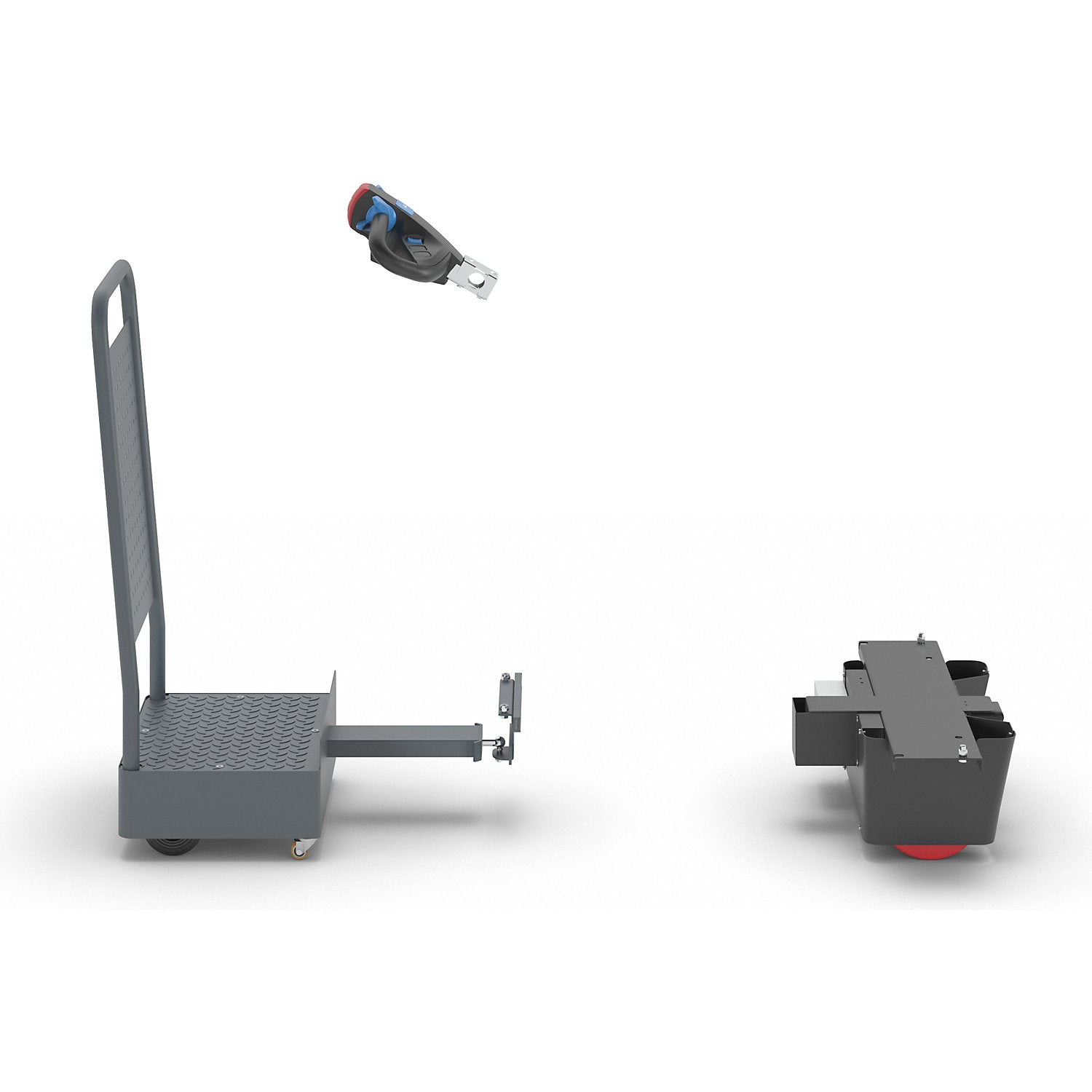

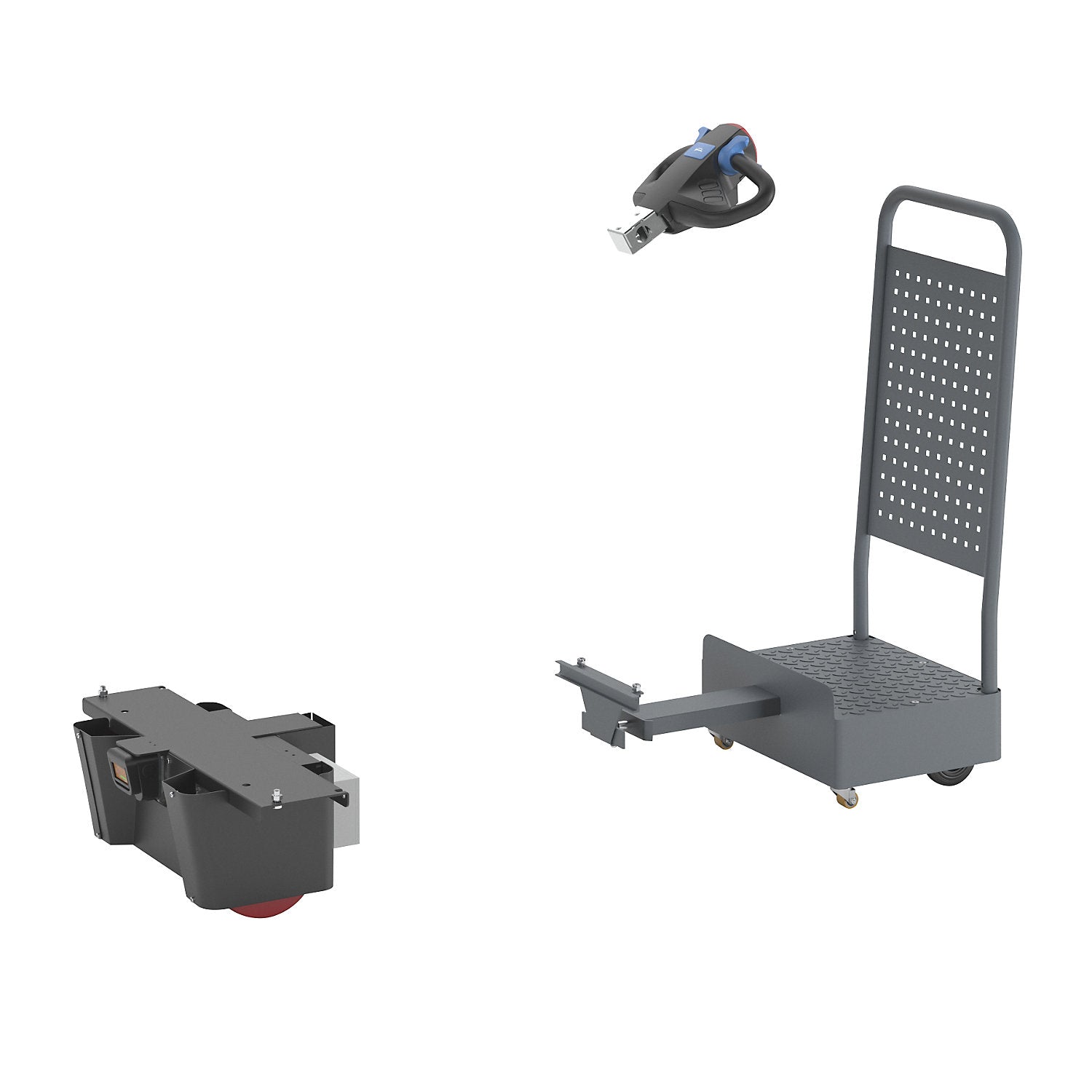

• The operator platform is connected to the platform trolley via an angled ball joint and can be easily assembled or disassembled if required
• This allows for straightforward retrofitting of an existing transport device with an E-module
• The ergonomic control via the drawbar head ensures easy steering: the system is very manoeuvrable, track-stable and tip-proof
• The operator platform is equipped with non-slip checker plate, step-over protection and all-round foot protection
• The tubular steel frame with perforated sheet metal back panel ensures safe driving
• The load capacity is a maximum of 500 kg for the platform trolley and 150 kg for the operator platform
• When using the operator platform, the load capacity of the trolley is reduced by the weight of the person to at least 350 kg
• Delivery is disassembled, assembly is simple
• Only usable in combination with the designated eurokraft pro platform trolleys
• E-Module The E-module is characterised by intuitive operation with perfect control, to transport loads easily

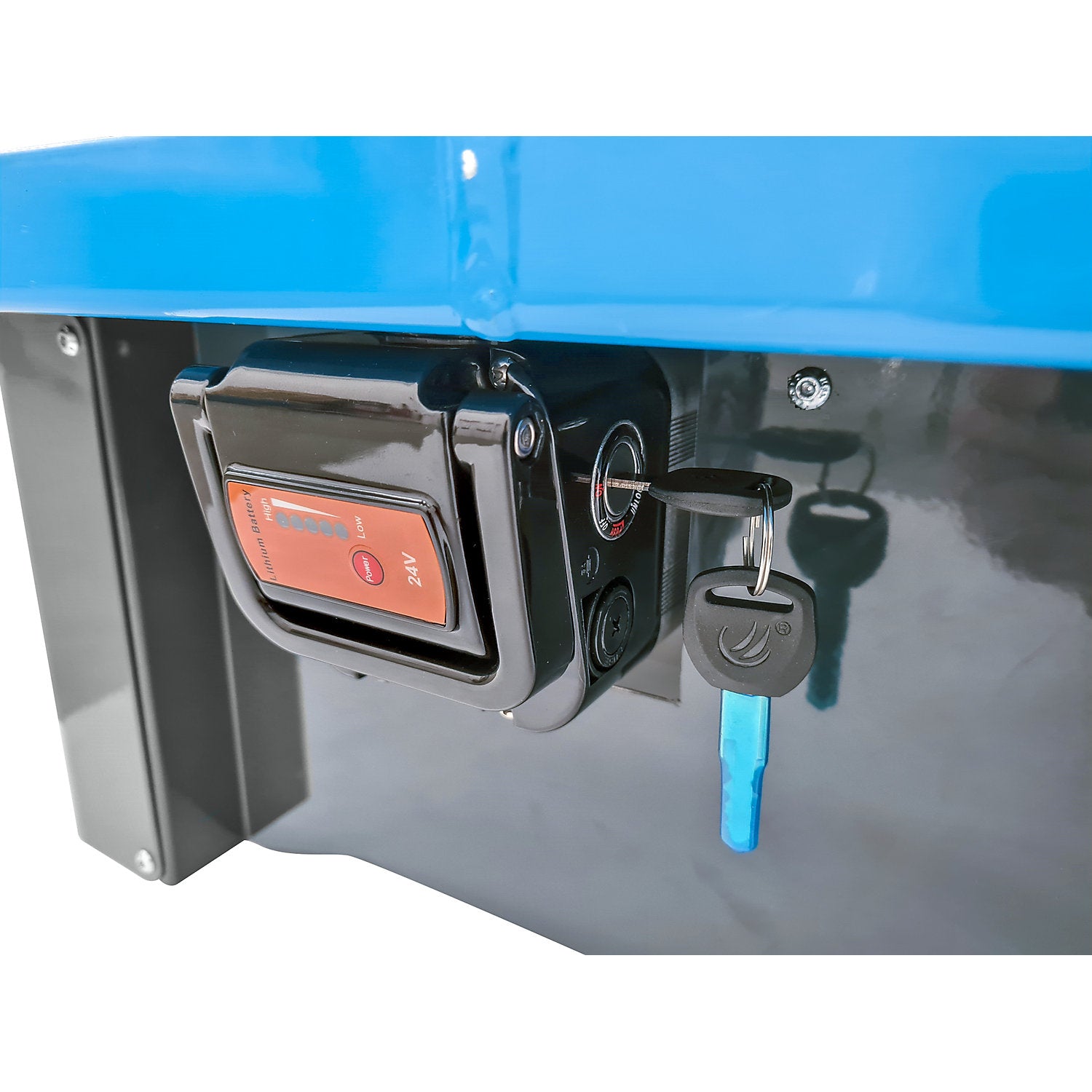

• The drive battery consists of a lithium-ion exchangeable battery, whose charge status can be visually checked via a battery level indicator
• The operating time is up to 8 hours per battery charge with average use
• The exchangeable battery system makes it easy to swap a flat battery for a full one, to ensure uninterrupted operation
• The connection between the drawbar head and the drive is wireless via Bluetooth, which also enables use in fleet operations
• The charging time is only 6 hours for a full charge
• The E-module offers easy navigation, supported by fatigue-free operation thanks to the ergonomically shaped, multifunctional drawbar head
• Light steering is ensured by sturdy tubular grips, and stepless speed control is achieved via two thumb buttons, with a maximum speed of 4 km/h
• If required, a creep speed can be activated, which enables highly precise forward and reverse driving
• Additional safety features include a warning function in the form of a horn on the drawbar head as well as an anti-crush button that prevents crushing when reversing
• The integrated foot protection ensures that there is no risk of crushing under the drive
• The E-module does not require a certificate of competence for operation and features anti-theft protection through access control via a lock on the drive battery
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
