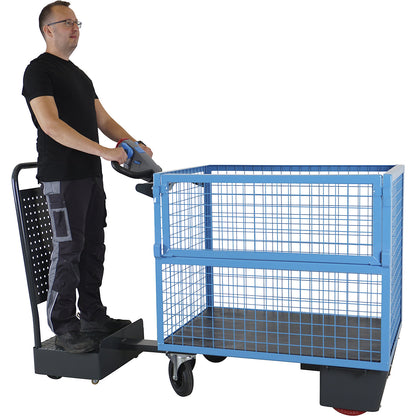

Box truck with electric drive, with driver's platform, LxWxH 1870 x 720 x 1240 mm.

Estimated delivery: 41 days

Box truck with electric drive, with driver's platform, LxWxH 1870 x 720 x 1240 mm

• Supplied = pre-assembled, final assembly by customer
• Model = angled steel construction, half drop gate on one long side
• Shelf material = recycled plastic
• Max. load = 500 kg
• Length = 1870 mm
• Width = 720 mm
• Height = 1240 mm
• Internal length = 1028 mm
• Internal width = 678 mm
• Internal height = 785 mm
• Filling height = 800 mm
• Capacity = 545 l
• Side panel material = steel mesh
• Finish = powder coated
• Colour = charcoal RAL 7016, light blue RAL 5012
• Wheel type = solid rubber / polyurethane
• Wheel fittings = 2 swivel castors with brakes, 2 drive wheels
• Wheel diameter = 200 / 230 mm
• Wheel bearing = roller bearing
• Battery capacity = 12 Ah
• Charging time = 6 hrs
• Power = 0,25 kW
• Voltage = 24 V
• Max. speed = 5 km/h
• Product type = box trolleys with electric drive
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 133.4 kg
• Weight = 116.5 kg
• Sustainability = CO 2 footprint calculated
• Saves walking distances and takes the strain off employees for more efficiency
• Highly versatile use due to modular design

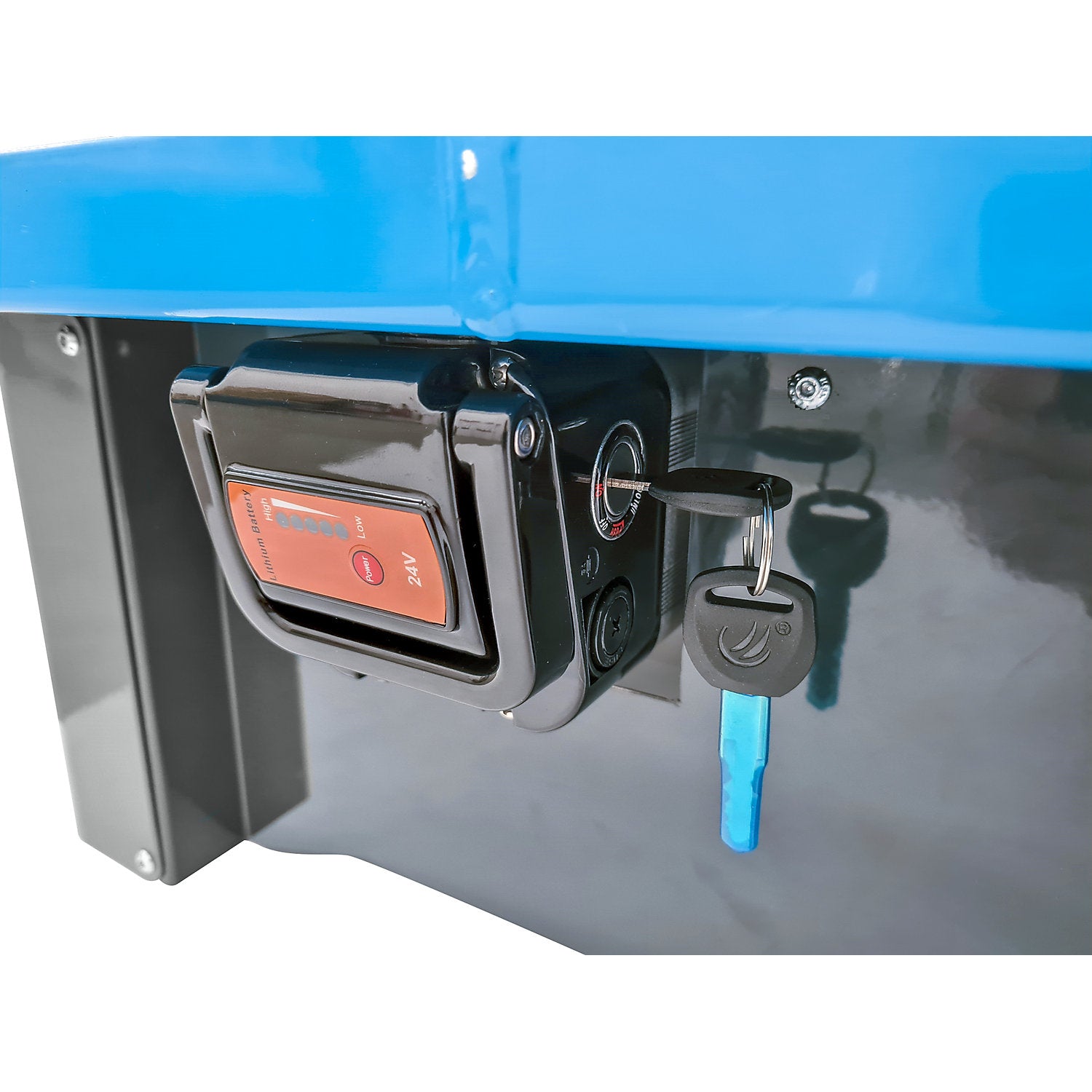

• The replaceable, rechargeable battery system allows unlimited operating time
• Intuitive operation, perfect steering control
• Drawbar head with precise speed control, creep speed button, belly switch and horn
• Integrated foot protection on the e-module
• The electric module is easy to retrofit to equip transport trolleys with an electric drive
• Complete with powerful lithium ion rechargeable battery and battery charger
• Wireless - the control panel controls the drive via Bluetooth
• Easy assembly: highly versatile modular design Drive battery: replaceable lithium-ion battery Charging status: indicated visually and acoustically by a battery level indicator Full mobility: up to 8 h of operation with one battery charge Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation Pairing: via Bluetooth, wireless, fleet operation possible Charging time: 6 h until fully charged Easy navigation Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head Easy steering: due to sturdy tubular handles Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h) Creep speed: can be activated as required, for high precision forward and reverse motion Warning function: horn on drawbar head Safety belly switch: prevents entrapment when reversing Integrated foot protection: prevents being caught under the drive unit For everyone: no certificate of competence (driver's licence) required Protection against theft: access control by means of lock Operator's Stand The operator's stand is designed for the E-module series and enables one person to operate a platform trolley with an electric drive, on which the goods are transported

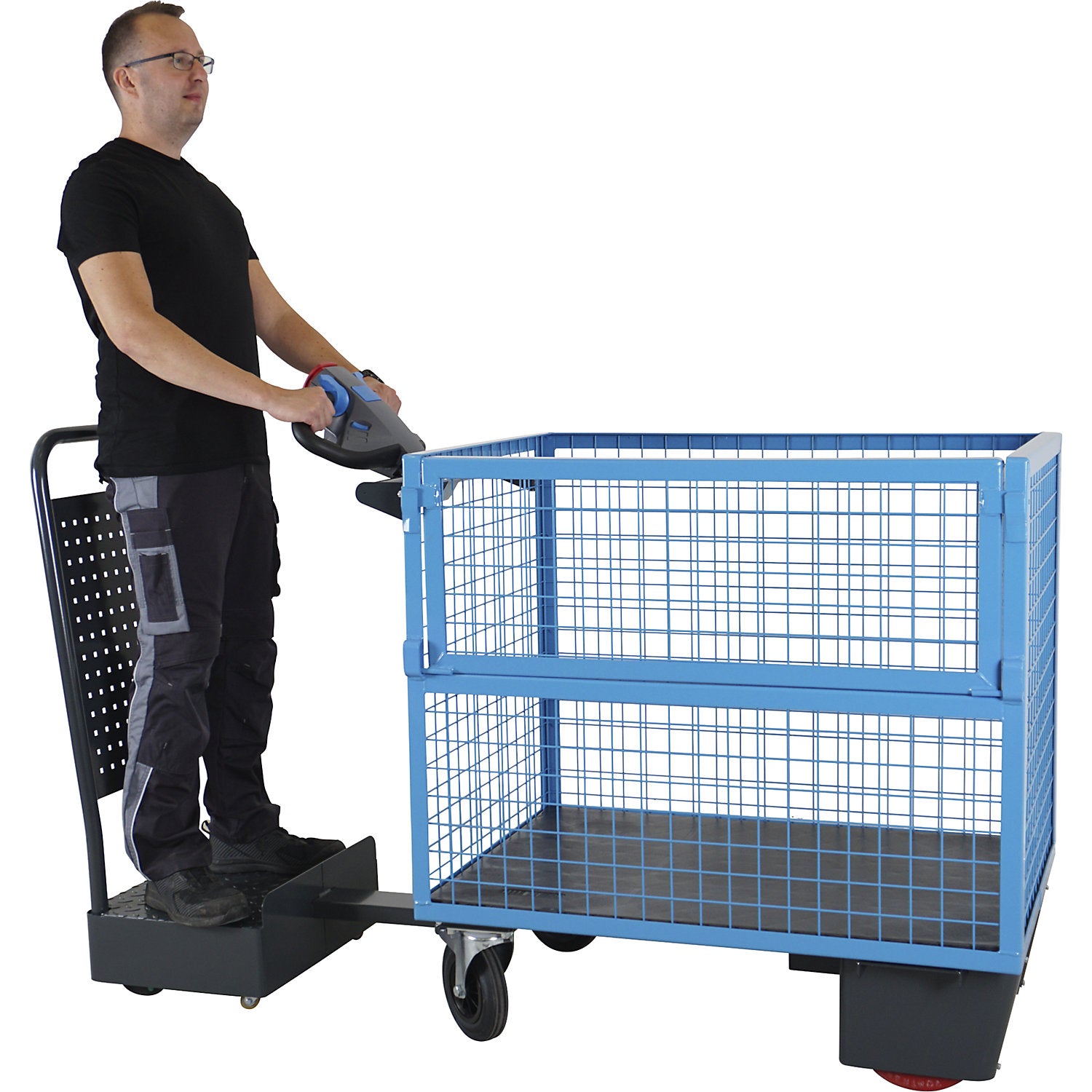

• The operator stands securely on the platform, controls the electric drive directly via the drawbar head, and thus moves effortlessly with the trolley
• This reduces walking distances, minimises physical strain, and significantly streamlines work processes in warehousing and production

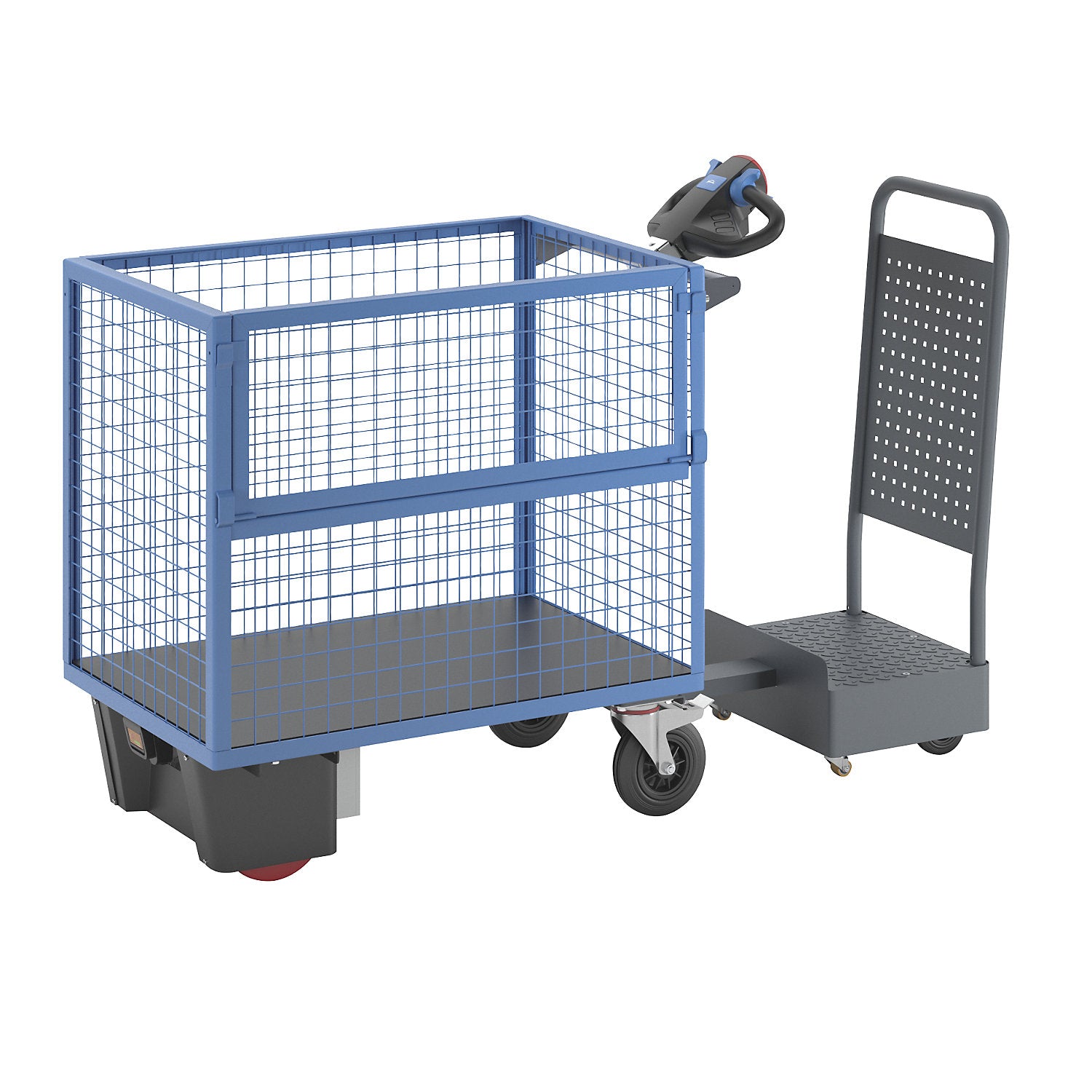

• The operator's stand is connected to the platform trolley via an angled ball joint and can be easily assembled or disassembled if required - use without the operator's stand is also possible
• The ergonomic control via the drawbar head ensures easy steering: the system is very agile, track-stable, and tip-proof
• The operator platform is equipped with non-slip checker plate, step-over protection, and all-round foot protection
• The tubular steel frame with a perforated sheet metal back panel ensures safe driving
• The load capacity is a maximum of 500 kg for the platform trolley and 150 kg for the operator's stand
• When using the operator's stand, the load capacity of the trolley is reduced by the weight of the person to at least 350 kg
• The product is delivered unassembled, assembly is simple
• Only usable in combination with the designated eurokraft pro platform trolleys
• Base plate Made of recycled plastic
• Non-slip and hardwearing surface
• Weather resistant
• Oil resistant and largely acid-proof
• Recyclable
• German registered design
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return
• All specified max. loads apply with uniform load distribution.
