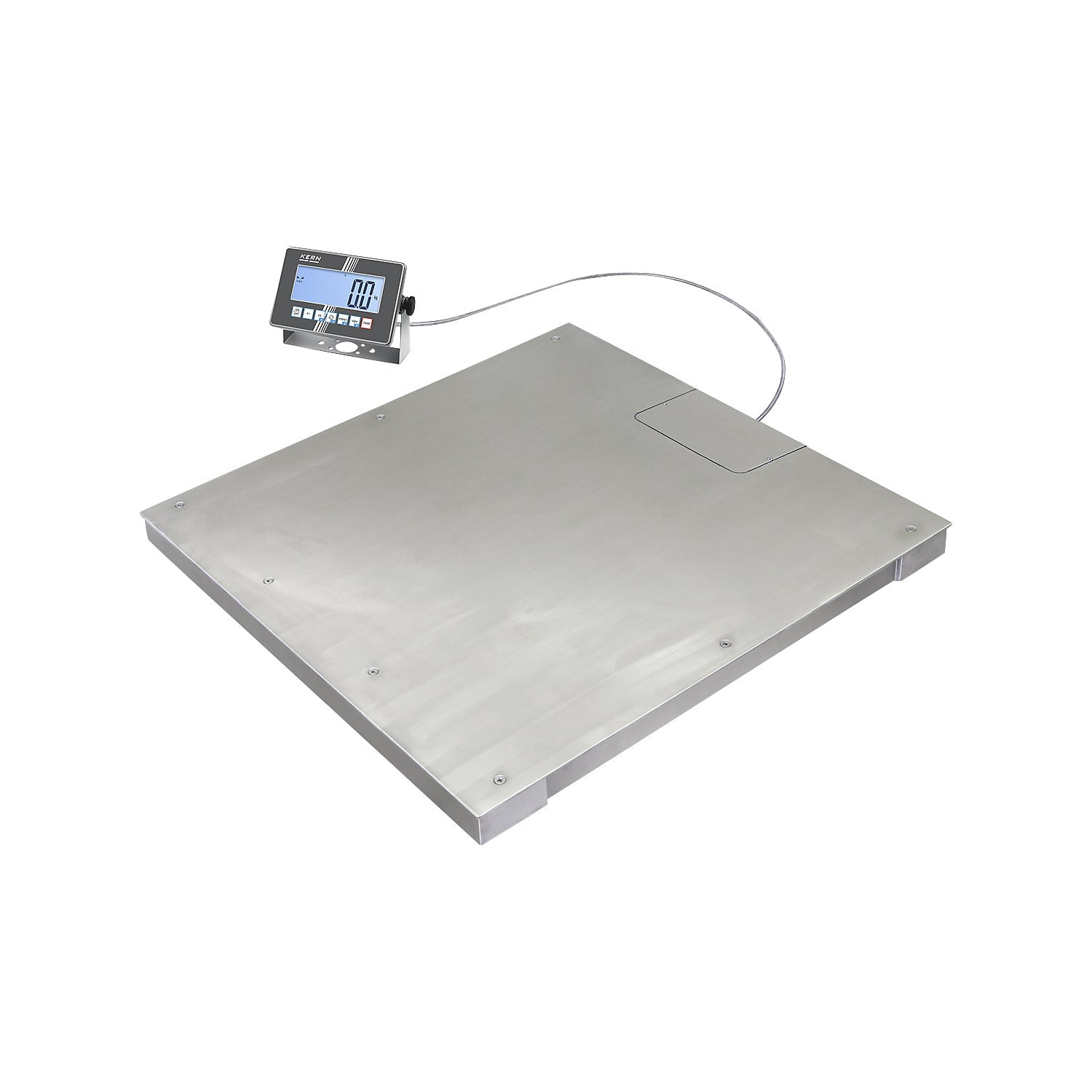

IoT-Line floor scale BXC, max. weighing range 1500 kg, scale division 500 g, W 1500 mm.

Estimated delivery: 34 days

IoT-Line floor scale BXC, max. weighing range 1500 kg, scale division 500 g, W 1500 mm

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 500 g
• Weighing platform dimensions = 1500x1250 mm
• Material of weighing platform = stainless steel
• Material = stainless steel
• Calibration value = 500 g
• Height = 85 mm
• Width = 1500 mm
• Depth = 1250 mm
• Figures height = 48 mm
• Lowest item weight for item counting = 500 g
• Function = pre-tare function, totals memory function, function for averaging under variable weighing conditions, counting function, hold function, manual tare function (multiple times)
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 205 kg
• Weight = 150 kg
• IoT connectivity with Bluetooth, Wi-Fi and Ethernet
• Four hermetically welded stainless steel weighing cells
• Dust and splash protected (IP68)
• Weighing platform made of powder-coated steel with chequer plate
• Weighing plate with stainless steel screws, easy to remove
• Table foot with wall bracket for evaluation unit as standard
• The IoT-Line BXC floor scale stands for intelligent weighing technology at the highest level
• It combines the proven precision of an industrial platform scale with the possibilities of modern IoT networking
• This makes it the future-oriented solution for companies that want to digitalise their weighing processes, capture data in real-time and make their operational workflows more efficient
• Thanks to its integrated IoT interfaces, it is optimally suited for use in Industry 4.0 environments
• Weight data can be transmitted in real-time via Bluetooth, WLAN or Ethernet
• This allows the scale to be effortlessly integrated into digital production systems, ERP software or quality management solutions
• This connectivity enables full traceability, automated data acquisition and transparent process monitoring
• With a readability from 0.5 kg, the BXC floor scale offers high accuracy and reliability for a wide range of applications - from goods inwards and production control to dispatch logistics
• The robust weighing platform, made of powder-coated steel with a non-slip chequer plate surface, is designed for continuous daily use in industrial environments
• The weighing plate is screwed from above with stainless steel screws, making it easy to remove
• The desk stand, including a wall bracket for the evaluation unit, is included as standard
• Four hermetically sealed stainless steel load cells ensure maximum stability and durability, while IP68 dust and splash water protection guarantees reliable operation even under demanding conditions
• The modern display and evaluation unit impresses with intuitive operation, large digits and clear menu navigation
• It can be flexibly mounted on the wall, on a desk or on a tripod
• Numerous additional functions such as piece counting, percentage determination, tolerance control and summation support users with precise and efficient weighing tasks
• The IoT-Line BXC floor scale offers easy maintenance: access to the junction box is from above, which simplifies servicing and calibration
• The scale can be operated via mains power or optionally via battery, making it suitable for mobile applications
• With its combination of robustness, precision and digital intelligence, it is a future-proof solution for modern industrial companies
• It helps to automate processes, optimise data streams and increase efficiency along the entire value chain
• This makes it far more than a classic industrial scale - it is an integral part of the networked IoT production world and actively supports companies on their path to digital transformation.
