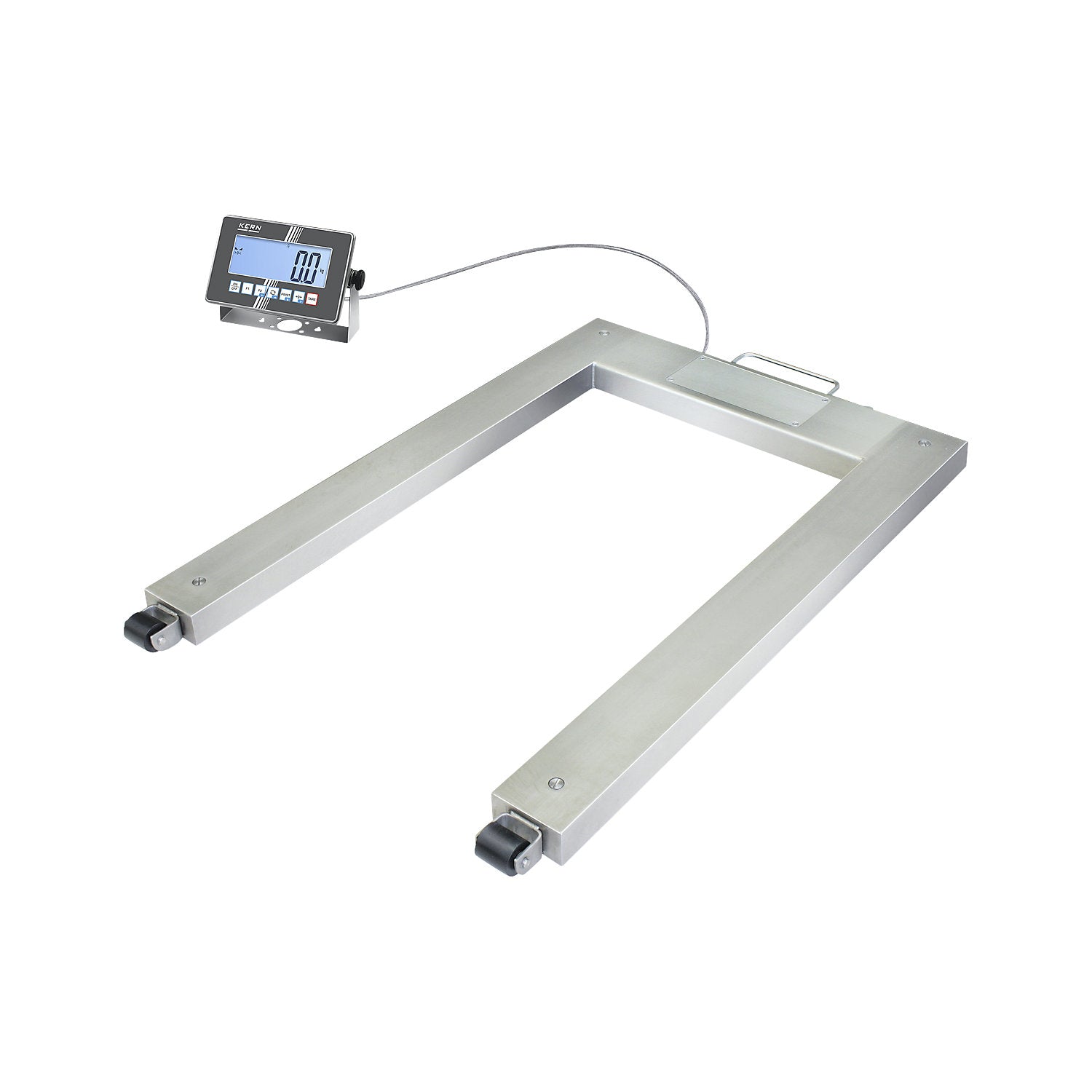

IoT-Line UXC pallet scale, max. weighing range 600 kg, scale division 200 g.

Estimated delivery: 34 days

IoT-Line UXC pallet scale, max. weighing range 600 kg, scale division 200 g

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 200 g

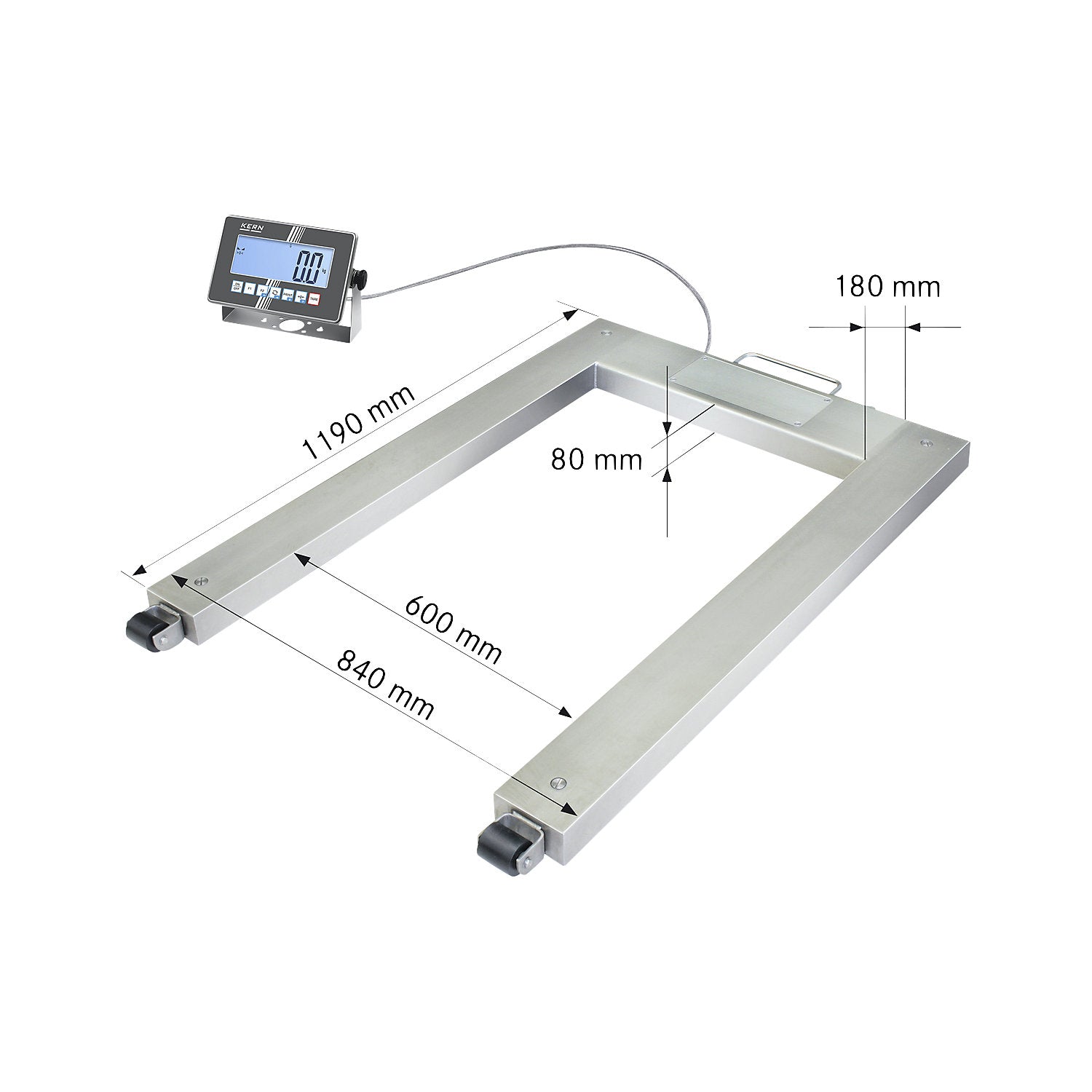

• Weighing platform dimensions = 1190x840 mm
• Material of weighing platform = stainless steel
• Material = stainless steel
• Calibration value = 200 g
• Height = 80 mm
• Width = 1361 mm
• Depth = 840 mm
• Figures height = 48 mm
• Lowest item weight for item counting = 200 g
• Function = pre-tare function, totals memory function, function for averaging under variable weighing conditions, counting function, hold function, manual tare function (multiple times)
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 90 kg
• Weight = 55 kg
• Thanks to rechargeable battery operation and a compact, lightweight design, it is suitable for use at several locations
• Suitable for stringent hygienic requirements in the food industry
• Load capacity: stainless steel, 4 silicone-coated alloyed steel weighing cells, IP67
• Evaluation unit: stainless steel, dust and splash water protection IP68
• Wall bracket for wall mounting the evaluation unit as standard
• The IoT-Line UXC pallet scale is a highly precise and robust industrial scale, which was specially developed for the fast and efficient weighing of pallets, roll containers, and goods units
• It combines precise weight detection, robust construction, and modern IoT connectivity, making it the perfect solution for companies that want to digitalise their logistics and production processes
• With a weighing range of up to 1,500 kg and a readability from 0.2 kg, the UXC pallet scale reliably delivers exact measurement results
• The stable steel platform with a non-slip chequer plate surface ensures safe handling and durability, even with intensive industrial use
• Highly precise IP68 load cells ensure constant accuracy, even under demanding environmental conditions such as humidity, dust, or temperature fluctuations
• As part of the innovative IoT-Line, the industrial scale features modern connectivity options: weight data can be transmitted in real-time via Bluetooth, WLAN, or Ethernet to ERP, MES, or warehouse management systems
• This enables automatic data acquisition, process optimisation, and complete traceability, making the workflow more efficient and error-free
• The scale is equipped with a clear LCD display and intuitive menu navigation, which can be flexibly mounted on the wall, on the desk, or on a stand
• Numerous additional functions such as piece counting, summation, percentage weighing, tolerance control, and checkweighing increase versatility in daily operation and save valuable time
• The flat design of the UXC pallet scale facilitates loading with pallet trucks or roll containers and reduces manual effort
• The scale can be used portably, thanks to battery operation and wireless data transmission
• Access to the junction box from above facilitates maintenance, calibration, and service
• With the IoT-Line UXC pallet scale, companies receive a modern, networked weighing system that combines precision, safety, and efficiency in one device
• It supports digital transformation in production, warehousing, and shipping and is a future-proof investment for companies that rely on Industry 4.0 weighing processes.
