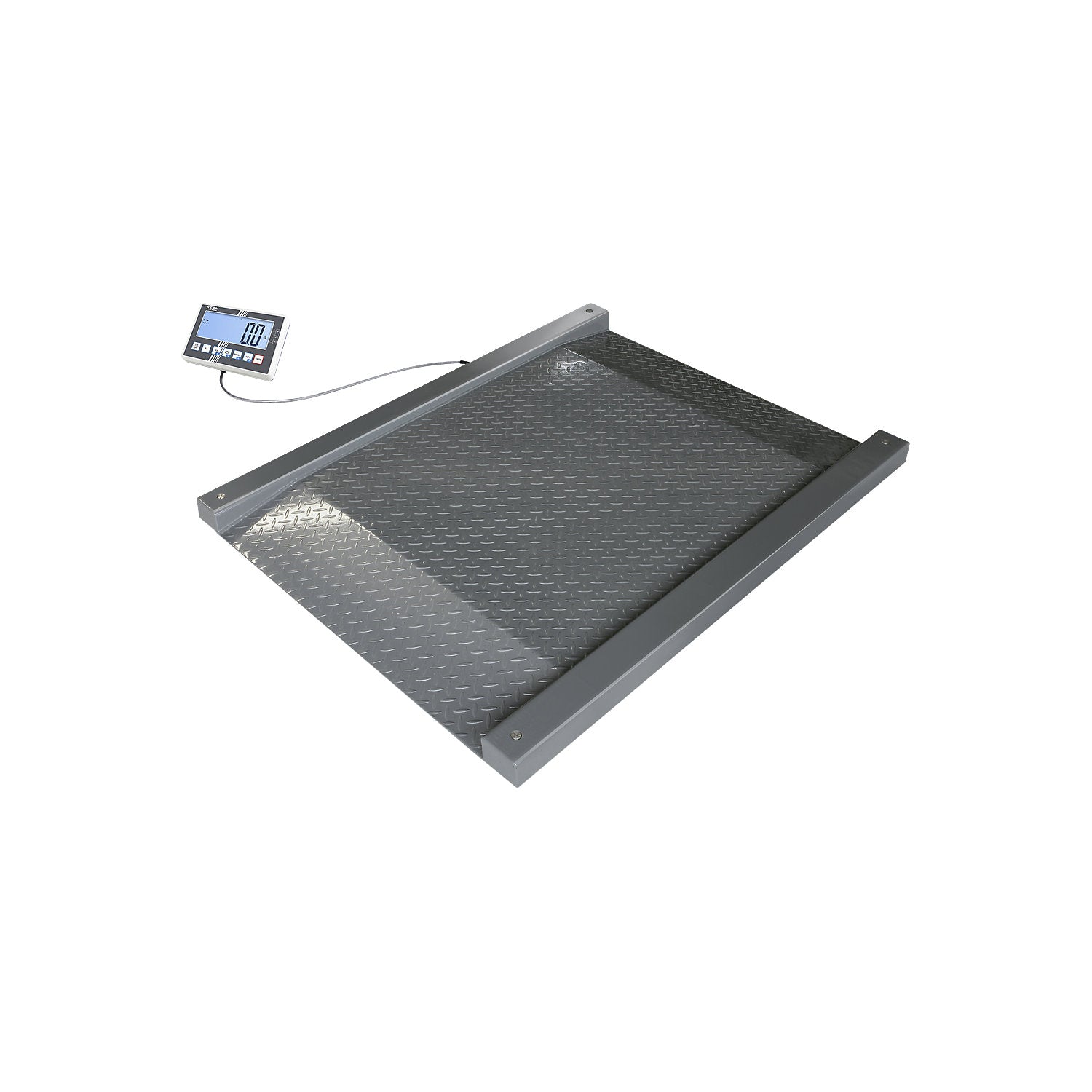

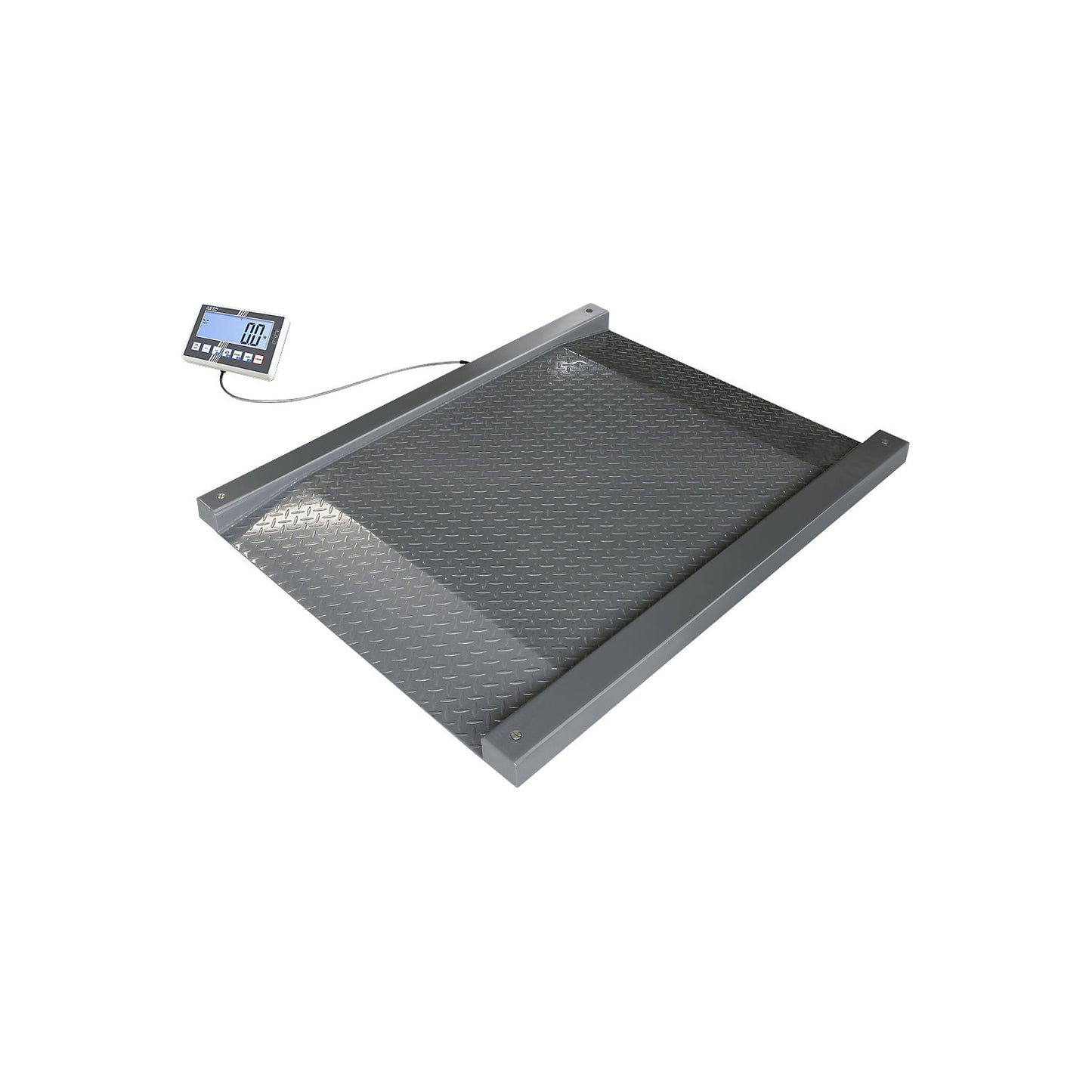

IoT-Line drive-through scale NFC, steel, weighing range up to 600 kg, 1000 x 1000 mm.

Estimated delivery: 34 days

IoT-Line drive-through scale NFC, steel, weighing range up to 600 kg, 1000 x 1000 mm

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 200 g
• Weighing platform dimensions = 1000x1000 mm
• Material of weighing platform = steel, powder coated
• Material = steel
• Calibration value = 200 g
• Height = 95 mm
• Width = 1600 mm
• Depth = 1220 mm
• Figures height = 48 mm
• Lowest item weight for item counting = 200 g
• Function = pre-tare, total, averaged under variable weighing conditions, count, data hold, tare
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 195 kg
• Weight = 130 kg
• Real-time data transfer using Wi-Fi, Bluetooth, Ethernet
• Compatible with ERP, MES and storage systems
• Low-profile design with loading ramps on both sides
• Ergonomic work by effortless driving over
• Four high-precision weighing cells with IP68-ingress protection
• Robust industrial quality with ribbed sheet steel
• The IoT-Line drive-through scale NFC combines maximum precision, robust industrial quality and state-of-the-art IoT technology in one scale - ideal for businesses that want to digitalise their weighing processes and integrate them into Industry 4.0 structures
• As part of the IoT-Line, it is a networkable industrial scale with user-friendly operation, specifically designed for the fast and safe weighing of pallets, roll containers and platform trolleys, and impresses with its flat design and ramps on both sides
• As part of the IoT-Line, the NFC drive-through scale offers advanced connectivity and data integration
• Weight data can be transmitted in real-time via Bluetooth, WLAN or Ethernet to ERP, MES or warehouse systems
• This enables automated data acquisition, transparent process monitoring and seamless integration into digital production and logistics chains
• The weighing platform consists of non-slip steel chequer plate and is equipped with 4 silicone-coated steel load cells
• This stable construction ensures safe operation and is durable even in harsh environments
• Four high-precision load cells with IP68 ingress protection guarantee exact measurement results even under demanding conditions - such as dust, moisture or temperature fluctuations
• The modern evaluation unit with a large LCD display and clear menu navigation ensures easy operation and fast results
• It can be flexibly mounted on the wall, on the desk or on a tripod
• In addition, numerous functions are available, including piece counting, summing, tolerance checking, percentage weighing and checkweighing, which make the daily work process more efficient
• A protective cover is supplied complete, which optimally protects the device against external influences
• The flat design and integrated ramps allow effortless access with pallet trucks or platform trolleys
• This eliminates the need to lift heavy loads, making the workflow more ergonomic and time-saving
• As a drive-through scale, it is ideal for the fast weighing of, for example, wire mesh box trucks, laundry trolleys, pallet trucks, roll containers or waste bins
• With its modular design, easy maintenance and IoT functionality, the KERN NFC drive-through scale is the perfect solution for companies that value digital process integration, efficiency and precision
• It is optimally suited for applications in warehousing and logistics, production, goods inwards / goods outwards and quality assurance.
