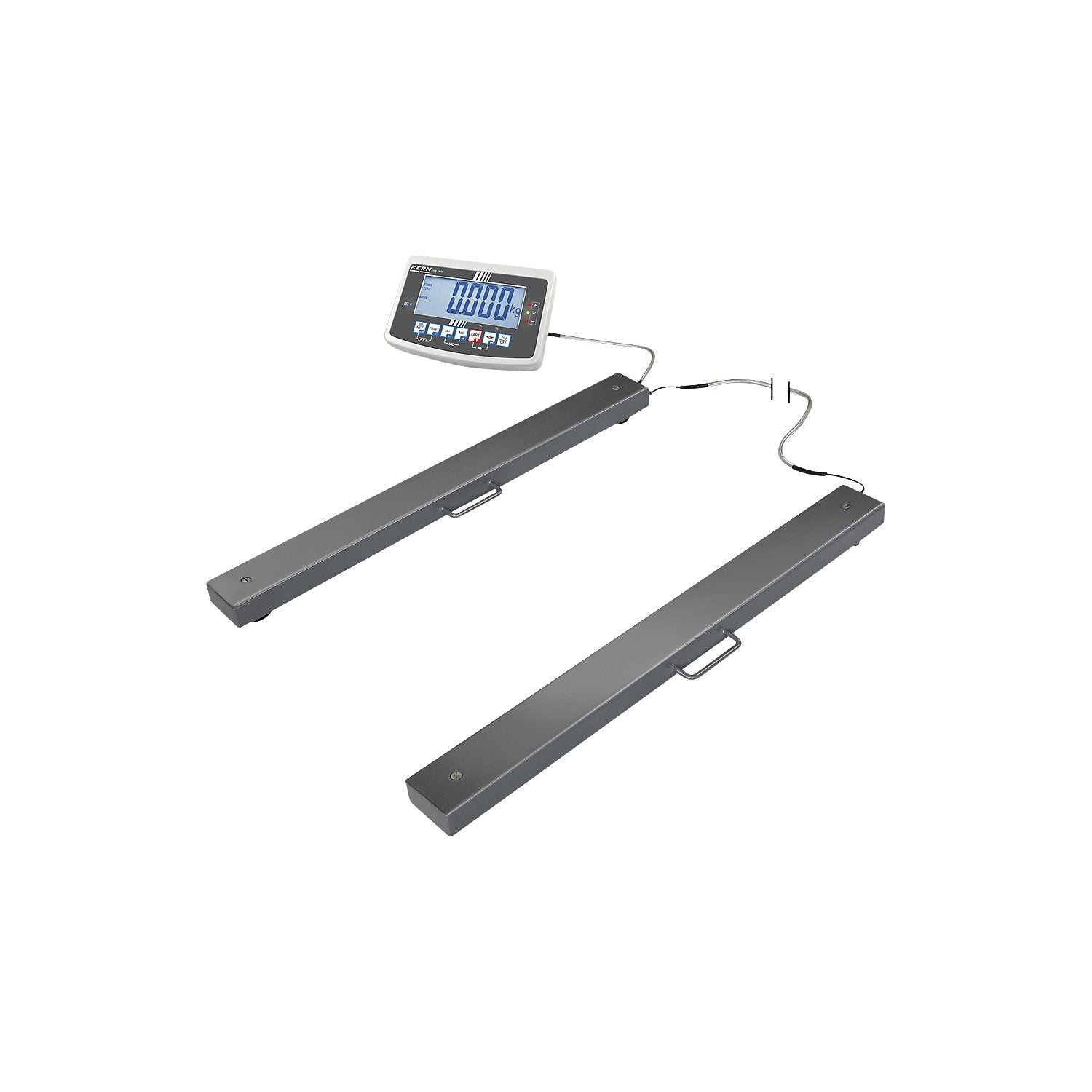

UFA weighing beam, steel, weighing range up to 600 kg, 800 x 120 mm.

Estimated delivery: 34 days

UFA weighing beam, steel, weighing range up to 600 kg, 800 x 120 mm

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 200 g
• Weighing platform dimensions = 800x120 mm
• Material of weighing platform = steel, painted
• Material = steel
• Height = 83 mm
• Width = 870 mm
• Depth = 170 mm
• Figures height = 52 mm
• Function = total, averaged under variable weighing conditions, count, tare
• Interfaces = RS-232
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 51 kg
• Weight = 36 kg
• Flexible for large or long goods due to freely positionable beams
• Easy integration into digital systems via Bluetooth, Wi-Fi, cable
• Robust steel construction with IP68-protected components
• Precise weighing thanks to integrated high-performance weighing cells
• Sturdy handles for transporting weighing bars
• Protective cover supplied complete
• The UFA weighing beam offers maximum flexibility, precision, and mobility in industrial weighing technology
• It is the ideal solution for companies that want to weigh large or bulky goods without being dependent on a fixed platform scale
• Thanks to its modular design and IoT-enabled technology, the weighing beam can be perfectly integrated into modern, digital operational processes
• The flexible solution is particularly suitable for large, voluminous or long weighing goods, as the weighing beams are freely positionable
• An occupational safety cover is supplied complete, as is a table stand with a wall bracket for the evaluation unit
• The sturdy handles facilitate the transport of the weighing beams, and weight values and counting parts can be conveniently recorded via the summing function
• The robust steel beams with integrated high-performance load cells enable precise weighing of loads with a readability from 0.5 kg

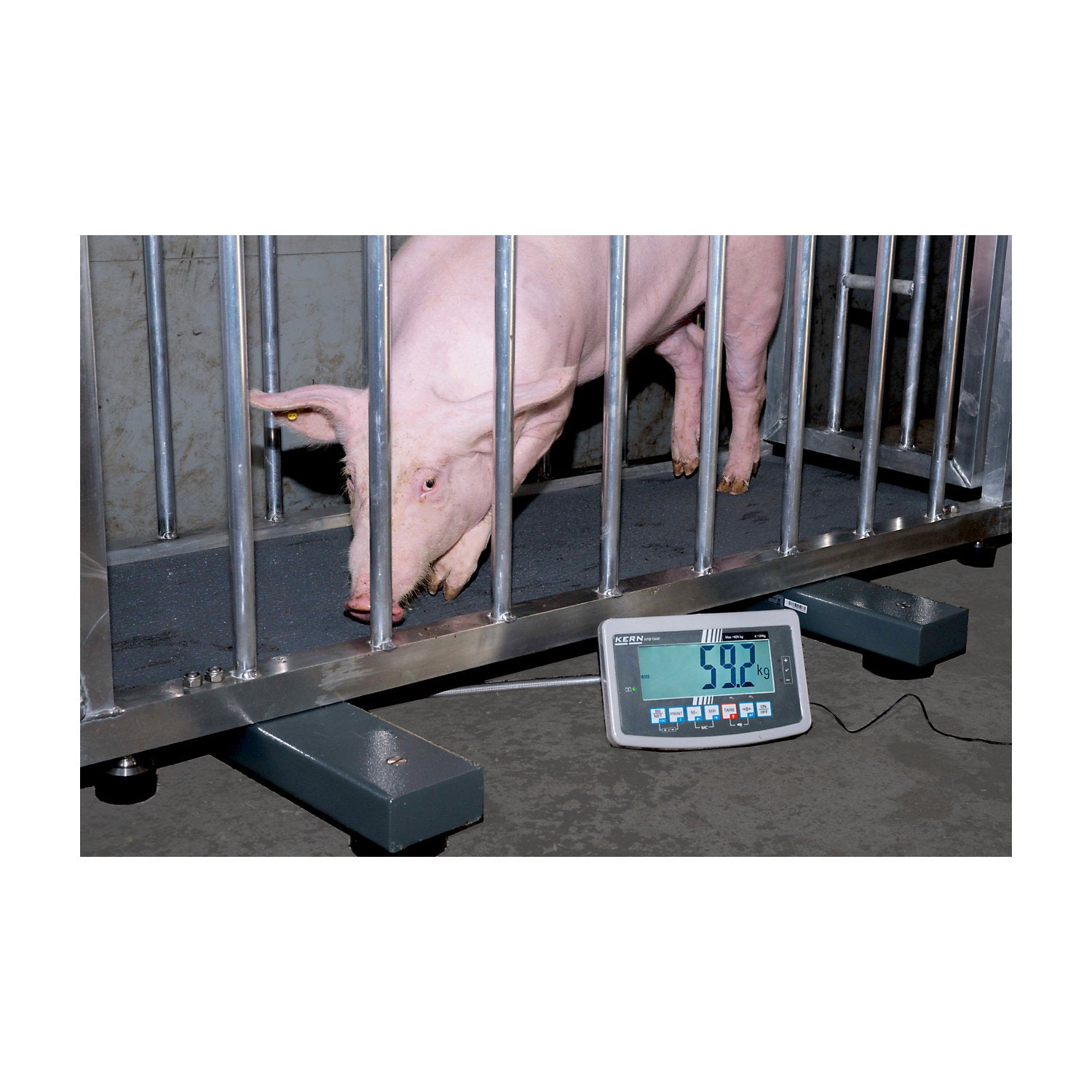

• Thanks to the IP68-protected load cells, the beams are protected against dust and splash water and are therefore ideally suited for use in warehousing, production, agriculture, and logistics
• A major advantage of the UFA weighing beam lies in its flexibility: the distance between the two beams is variably adjustable, so that objects of different sizes, pallets, containers or machines can be weighed precisely
• In addition, it is equipped with carrying handles and wheels, which enables quick relocation and mobile use
• The digital display unit with a large LCD display ensures a clear, easily readable display of the measurement results
• Via Bluetooth, WLAN or wired interfaces, the weight data can be transferred directly to ERP, MES or warehouse management systems
• This allows the UFA series to support integration into Industry 4.0 processes and enables automated data acquisition without media discontinuities
• With additional functions such as piece counting, summing, percentage weighing, tolerance checking, and checkweighing, it is versatile and suitable for goods receipt, dispatch, order picking, and quality assurance
• The low-maintenance design, robust components, and simple operation make the weighing beam a durable and economical solution for any industrial operation.
