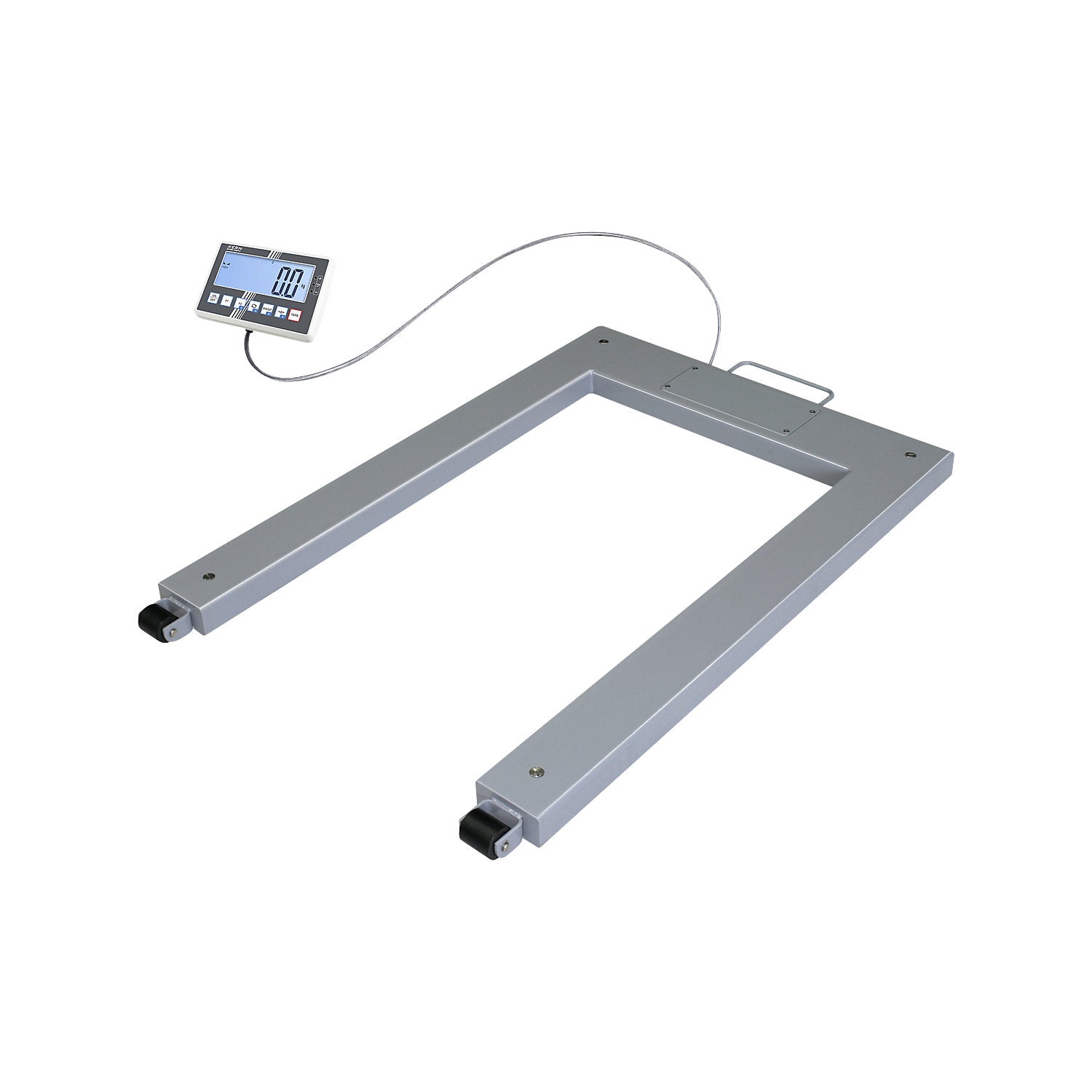

IoT-Line UFC pallet scale, steel, weighing range up to 1500 kg, 1190 x 840 mm.

Estimated delivery: 34 days

IoT-Line UFC pallet scale, steel, weighing range up to 1500 kg, 1190 x 840 mm

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 500 g

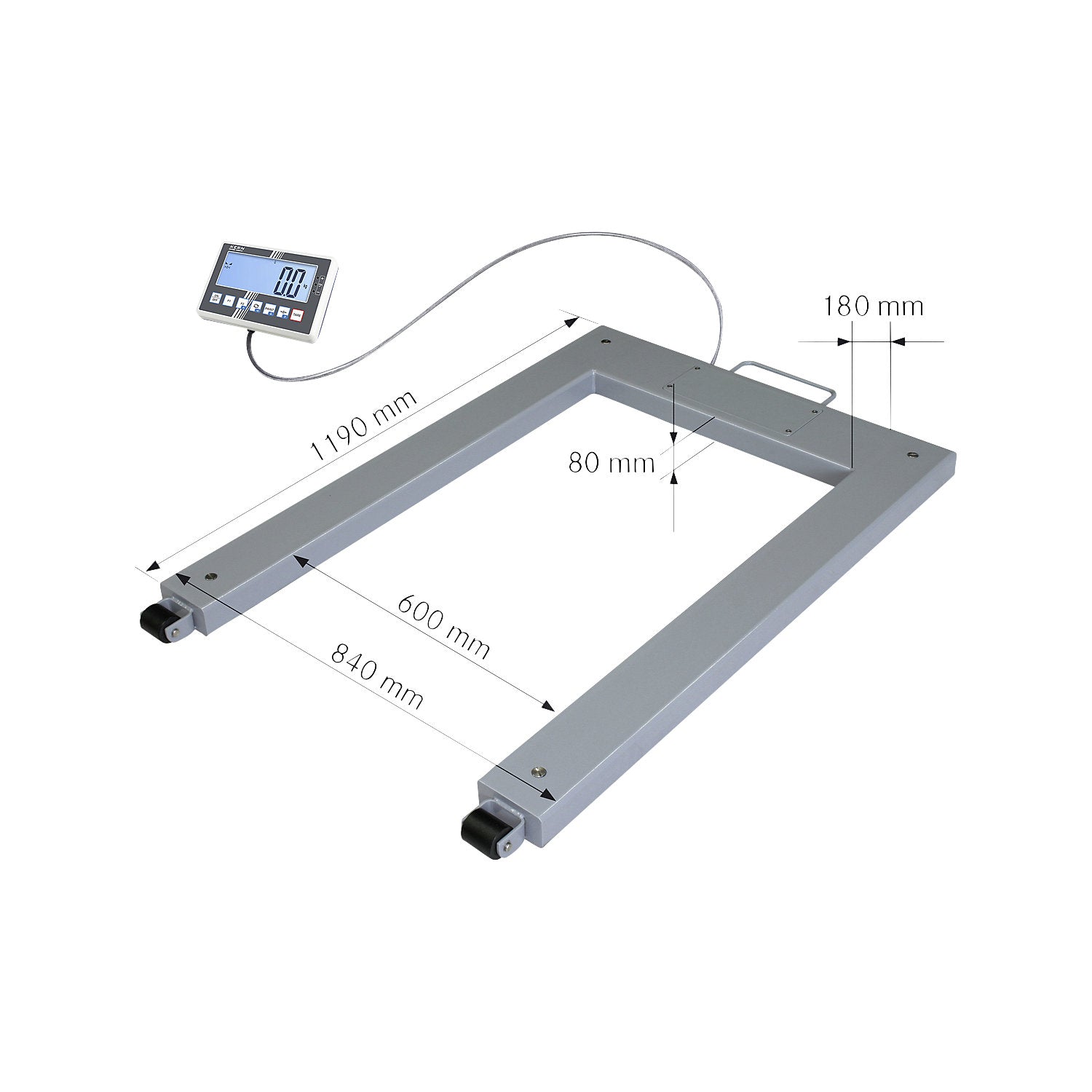

• Weighing platform dimensions = 1190x840 mm
• Material of weighing platform = steel, powder coated
• Material = steel
• Calibration value = 500 g
• Height = 80 mm
• Width = 1361 mm
• Depth = 840 mm
• Figures height = 48 mm
• Lowest item weight for item counting = 500 g
• Function = pre-tare, total, averaged under variable weighing conditions, count, data hold, tare
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 90 kg
• Weight = 55 kg
• IoT-Line: connectable scales using Bluetooth, Wi-Fi or Ethernet
• Load capacity: alloy steel, powder-coated, 4 load cells, silicone-coated, IP67
• Protective cover supplied complete
• Adding up weight values and countable parts
• Two castors for convenient transport of the scales
• The IoT-Line pallet scale UFC represents state-of-the-art weighing technology of industrial quality - developed for companies that value digital efficiency, precise results, and networked processes
• This smart drive-through scale combines robustness with innovative IoT technology, making it the perfect solution for use in production, logistics, and quality assurance
• Thanks to its flat design with ramps on both sides, the UFC allows for comfortable driving on with pallet trucks, roll containers, or platform trolleys
• This makes it ideal for the quick weighing of pallets and goods units, without additional lifting effort
• With a readability from 0.2 kg, it delivers exact measurement results while offering high load capacity
• The massive steel construction with a non-slip ribbed sheet steel platform guarantees safe handling and durability, even with intensive industrial use
• Four high-precision load cells with IP68 ingress protection ensure reliable measurements even under harsh environmental conditions - such as humidity, dust, or temperature fluctuations
• As part of the IoT-Line, the pallet scale impresses with its digital networking and data integration
• Via Bluetooth, WLAN, or Ethernet, weight data can be transferred directly into ERP, MES, or merchandise management systems
• This smart connectivity enables automatic data acquisition, reduces manual entries, and increases efficiency throughout the entire production and logistics process
• The evaluation unit with a large, high-contrast LCD display offers clear user guidance and flexible mounting options - whether on the wall, on a desk, or on a stand
• Through integrated functions such as piece counting, summation, percentage weighing, checkweighing, and tolerance control, the UFC supports a wide variety of applications in everyday industrial use
• With a standard Real Time Clock: It allows weighing results to be logged with precise time information
• Even after a power interruption, the scale can continue to operate with the correct time
• With the IoT-Line pallet scale UFC, companies receive a future-proof solution for digital weighing in Industry 4.0
• It combines precision, connectivity, and durability in a system that seamlessly integrates into smart production and logistics environments.
