UID pallet scale, steel, weighing range up to 1500 kg, 1195 x 840 mm.

Estimated delivery: 34 days

UID pallet scale, steel, weighing range up to 1500 kg, 1195 x 840 mm

• Supplied = assembled
• Min. weighing range = 0 kg
• Scale division = 500 g

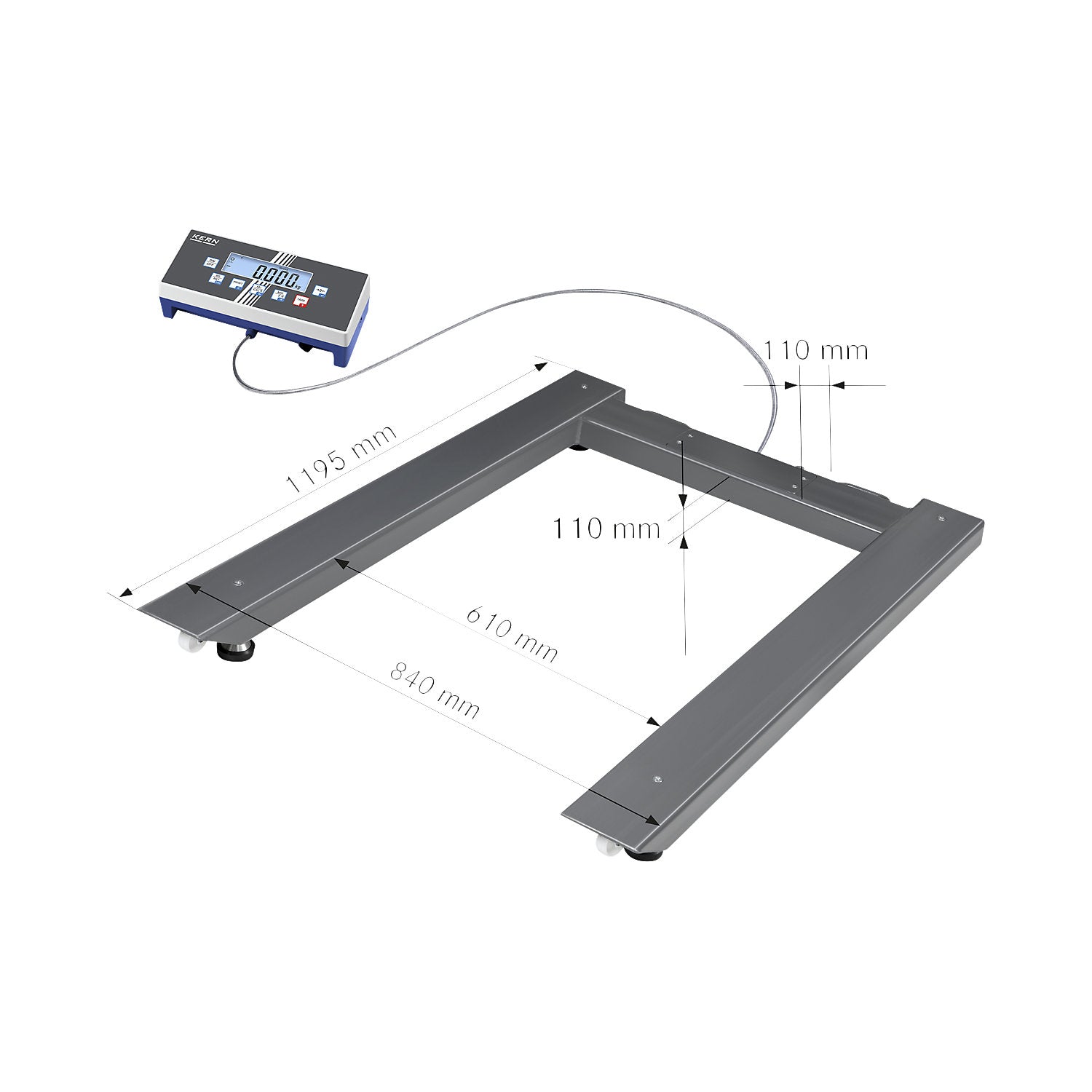

• Weighing platform dimensions = 1195x840 mm
• Material of weighing platform = steel, powder coated
• Material = steel
• Calibration value = 500 g
• Height = 110 mm
• Width = 1190 mm
• Depth = 840 mm
• Figures height = 25 mm
• Function = averaged under variable weighing conditions, count, data hold, tare
• Interfaces = RS-232
• Power supply = multiple power supply unit
• Colour = grey
• Product type = floor scales
• Customs tariff number = 84238220
• Country of origin = CHN
• Gross weight = 73 kg
• Weight = 44 kg
• Versatile data interfaces for digital integration
• Transport castors and handle for easy movement and storage
• Four high-precision weighing cells with ingress protection IP67
• U-shape enables direct access with pallet trucks
• Sturdy steel construction for continuous industrial load
• Protective cover supplied complete

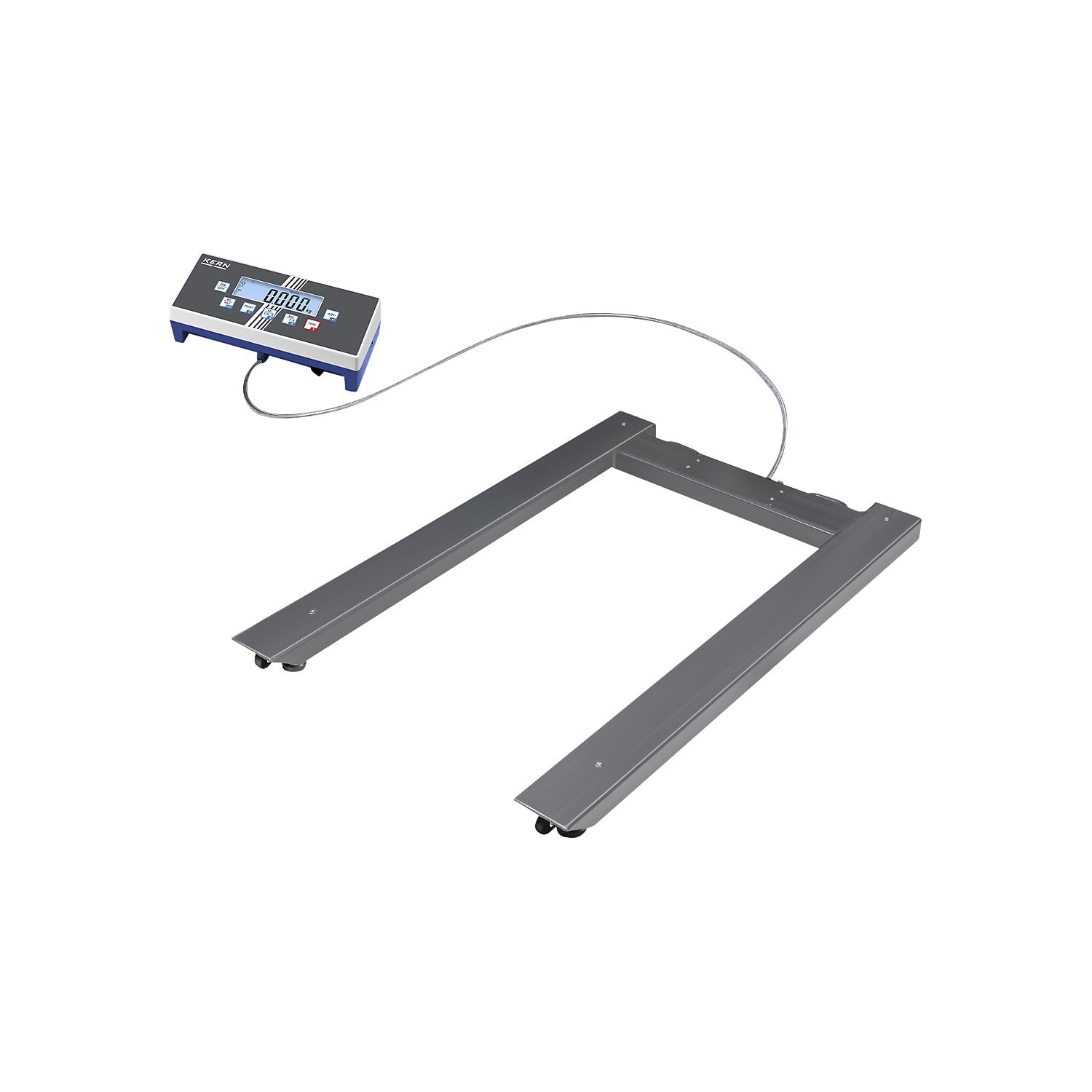

• The UID pallet scale is a compact, robust, and precise industrial scale, specifically developed for weighing pallets, roll containers, and large-volume goods
• It combines maximum measuring accuracy with a practical design and is therefore the perfect solution for daily use in warehouses, production, dispatch, and logistics
• With a readability of 0.5 kg, the pallet scale offers exact weighing results even with heavy loads
• Its solid steel construction ensures maximum stability and durability in continuous industrial use
• Four high-precision load cells with IP67 ingress protection guarantee reliable results - even in the presence of dust, moisture, or temperature fluctuations
• The load receptor is made of powder-coated steel with four load cells made of alloyed, silicone-coated steel (IP67)
• A protective cover is supplied complete
• The scale also features a variety of data interfaces
• The characteristic U-shape of the pallet scale allows direct access with a pallet truck, which significantly speeds up loading and weighing processes
• This saves time, reduces physical strain, and ensures a smooth workflow in goods inwards or dispatch areas
• With transport rollers and handles, the scale is also easy to move and flexibly deployable - ideal for changing locations
• The digital evaluation unit with a large LCD display and clear menu navigation allows for easy operation and quick reading of weighing results
• Thanks to functions such as piece counting, totalisation, percentage weighing, checkweighing, and tolerance checking, it can be versatilely integrated into production and control processes
• Via optional interfaces such as RS-232, Bluetooth or WLAN, it can be easily integrated into digital data systems and ERP solutions, making it optimally prepared for the requirements of Industry 4.0
• With the pallet scale, companies receive a reliable, precise, and ergonomic pallet scale that combines maximum efficiency and accuracy with modern technology
• It is the ideal solution for anyone looking for a powerful and durable scale for professional industrial use.
