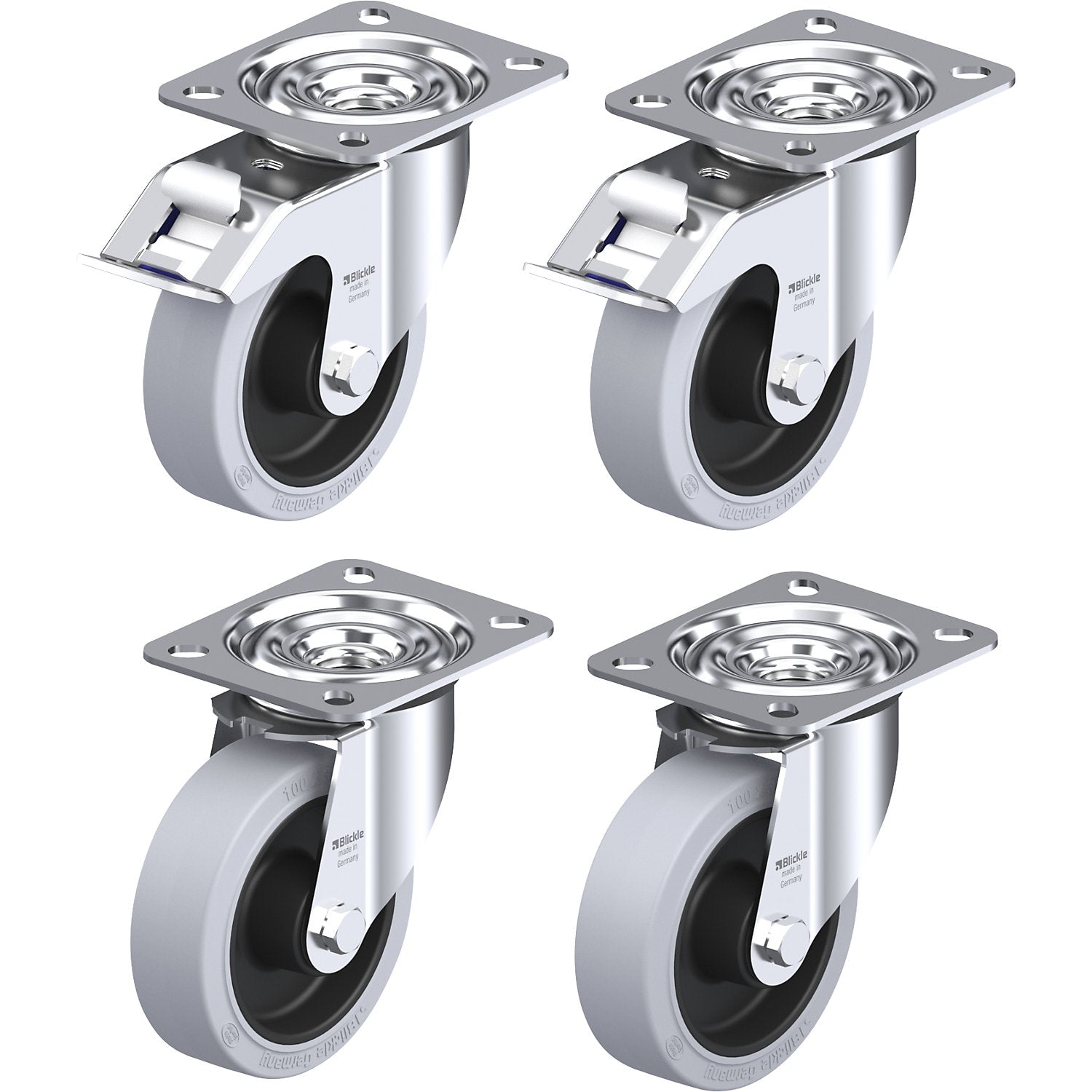

LE-POEV 100R-SG castor set, max. load 150 kg, wheel Ø 100 mm.

Estimated delivery: 34 days

LE-POEV 100R-SG castor set, max. load 150 kg, wheel Ø 100 mm

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = elastic solid rubber
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = sheet steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 32 mm
• Overall height = 125 mm
• Wheel bearing = roller bearing
• Temperature resistance = -25 °C to +80 °C
• Swivel castor offset = 36 mm
• Screw hole diameter = 9 mm
• Model = light duty castors
• Fixed castor plate dimensions = 100x85 mm
• Swivel castor plate dimensions = 100x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 65 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 5.64 kg
• Weight = 2.64 kg
• Blickle EasyRoll elastic solid rubber tyres
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LE-POEV 100R-SG: The housing consists of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The double ball bearing in the swivel head with swivel head seal has minimal swivel head play, a smooth running action and a long service life due to the special dynamic Blickle riveting
• The tread consists of grey, high-quality elastic solid rubber Blickle EasyRoll in smooth-running quality with a hardness of 65 Shore A and leaves no abrasion marks on the base
• The wheel body is made of black and break-resistant polyamide 6
• Furthermore, the swivel castor is characterised by a high chemical resistance against many aggressive media, but not against oils
• The temperature resistance ranges from -25 °C to +80 °C, and also up to +100 °C for short periods
• There is a reduced load capacity at temperatures above +35 °C.
