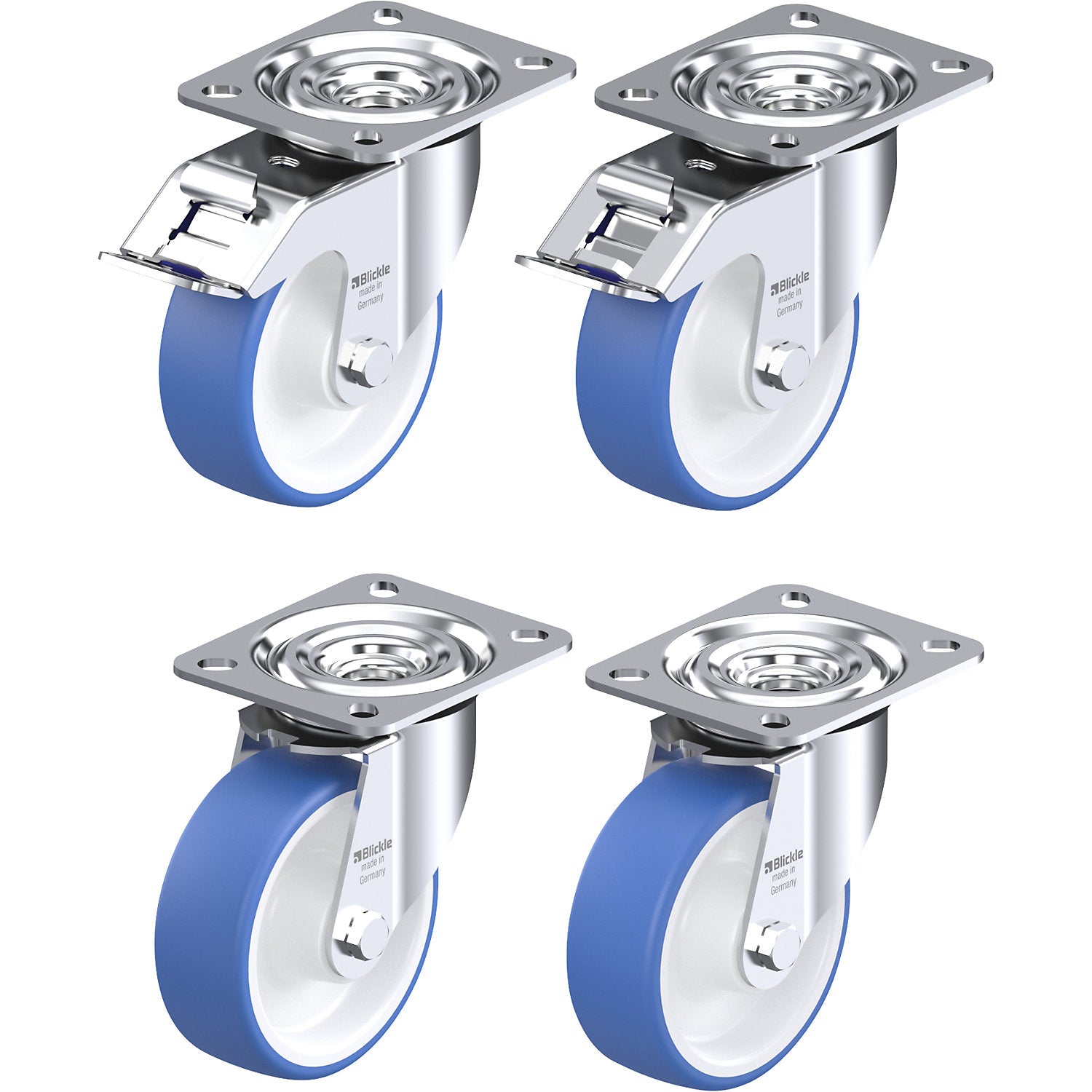

L-POTHS 100R castor set, max. load 200 kg, wheel Ø 100 mm.

Estimated delivery: 34 days

L-POTHS 100R castor set, max. load 200 kg, wheel Ø 100 mm

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = thermoplastic polyurethane (TPU)
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = sheet steel
• Max. load at 4 km/h = 200 kg
• Wheel width = 35 mm
• Overall height = 125 mm
• Wheel bearing = roller bearing
• Temperature resistance = -25 °C to +70 °C
• Swivel castor offset = 36 mm
• Screw hole diameter = 9 mm
• Model = light duty castors
• Fixed castor plate dimensions = 100x85 mm
• Swivel castor plate dimensions = 100x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 80 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 5.92 kg
• Weight = 2.92 kg
• Tread made of high-quality thermoplastic polyurethane (TPU)
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set L-POTHS 100R: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting
• The blue tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and has a hardness of 80 Shore A
• The wheel body is made of break-resistant, high-quality polyamide 6 in natural white
• Furthermore, the swivel castor is characterised by a very high chemical resistance against many aggressive media
• The temperature resistance ranges from -25 °C to +70 °C, and temporarily up to +90 °C
• There is a reduced load capacity at temperatures above +35 °C.
