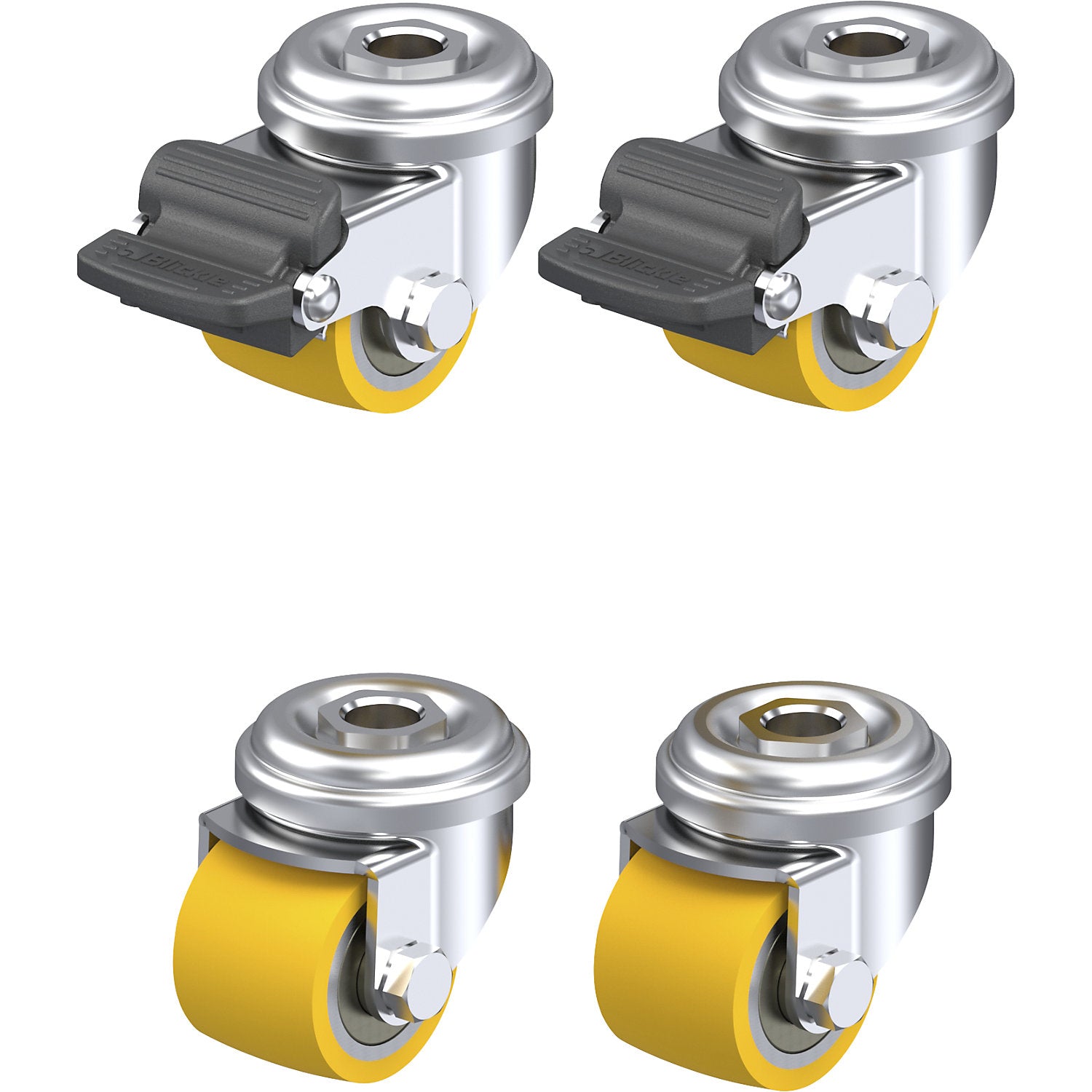

LRA-VSTH 35K castor set, max. load 100 kg, wheel Ø 35 mm.

Estimated delivery: 34 days

LRA-VSTH 35K castor set, max. load 100 kg, wheel Ø 35 mm

• Supplied = assembled
• Wheel diameter = 35 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = polyurethane (PU) - elastic
• Material of rim = steel
• Type of mounting = with bolt hole
• Housing material = sheet steel
• Max. load at 4 km/h = 100 kg
• Wheel width = 27 mm
• Overall height = 50 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 15 mm
• Model = light duty castors
• Bolt hole diameter = 11 mm
• Plate diameter = 43 mm
• Housing surface = zinc plated
• Shore hardness = 92 Shore A
• Customs tariff number = 83022000
• Country of origin = DEU
• Gross weight = 3.83 kg
• Weight = 0.83 kg
• Blickle Extrathane® polyurethane tread
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LRA-VSTH 35K: The housing is made of galvanised sheet steel, is blue passivated and Cr6-free
• The dual ball bearing in the swivel head with a swivel head seal has minimal swivel head play, smooth operation and a long service life due to the special dynamic Blickle® riveting
• The yellow tread is made from high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and has a hardness of 92 Shore A
• The wheel body is made of steel
• In addition, the swivel castor features very high chemical resistance against many aggressive media
• The temperature resistance ranges from -20 °C to +70 °C, and temporarily up to +90 °C
• There is a reduced load capacity at temperatures above +40 °C.
