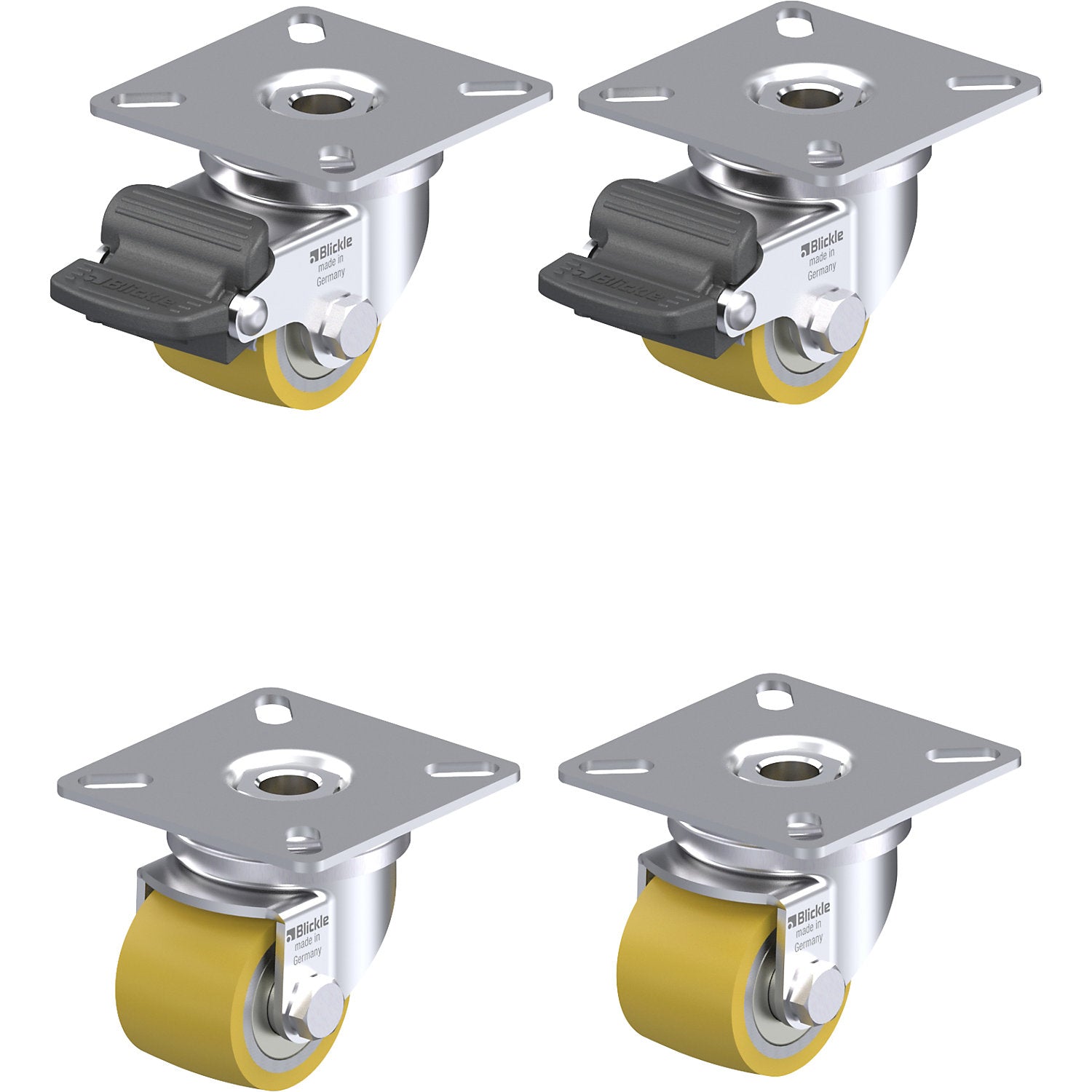

LPA-VSTH 35K castor set, max. load 100 kg, wheel Ø 35 mm.

Estimated delivery: 34 days

LPA-VSTH 35K castor set, max. load 100 kg, wheel Ø 35 mm

• Supplied = assembled
• Wheel diameter = 35 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = polyurethane (PU) - elastic
• Material of rim = steel
• Type of mounting = with top plate
• Housing material = sheet steel
• Max. load at 4 km/h = 100 kg
• Wheel width = 27 mm
• Overall height = 52 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 15 mm
• Screw hole diameter = 6.2 mm
• Model = light duty castors
• Fixed castor plate dimensions = 60x60 mm
• Swivel castor plate dimensions = 60x60 mm
• Screw hole spacing = 38x38 / 48x48 mm
• Housing surface = zinc plated
• Shore hardness = 92 Shore A
• Customs tariff number = 83022000
• Country of origin = DEU
• Gross weight = 4.02 kg
• Weight = 1.02 kg
• Blickle Extrathane® polyurethane tread
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LPA-VSTH 35K: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The double ball bearing in the live ring with a live ring seal has minimal live ring play, smooth operation and a long service life due to the special dynamic Blickle riveting
• The yellow tread is made of high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and exhibits a hardness of 92 Shore A
• The wheel body is made of steel
• Furthermore, the swivel castor features very high chemical resistance against many aggressive media
• The temperature resistance ranges from -20 °C to +70 °C, and also briefly up to +90 °C
• There is a reduced load capacity at temperatures above +40 °C.
