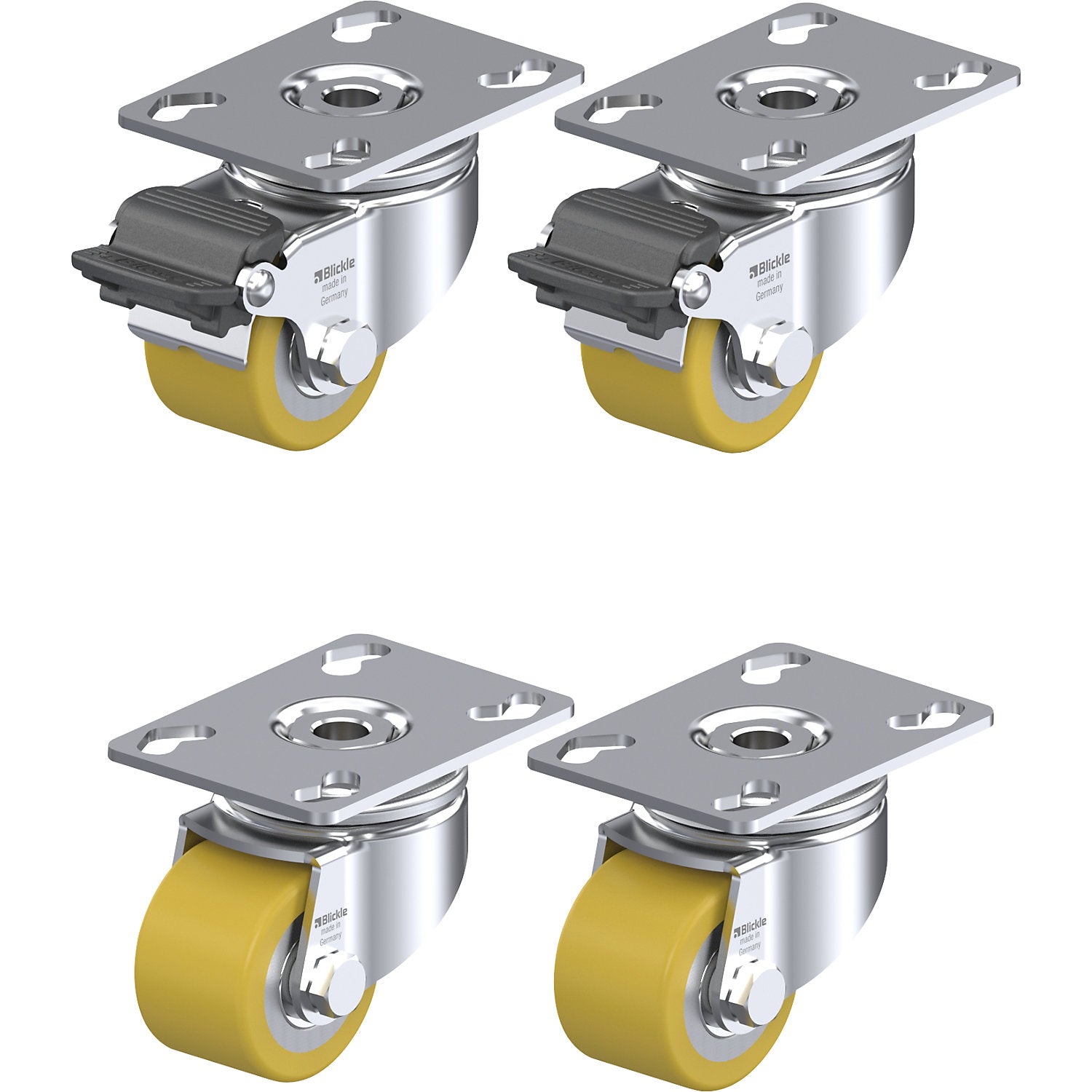

LKPA-VSTH 50K castor set, max. load 150 kg, wheel Ø 50 mm.

Estimated delivery: 34 days

LKPA-VSTH 50K castor set, max. load 150 kg, wheel Ø 50 mm

• Supplied = assembled
• Wheel diameter = 50 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = polyurethane (PU) - elastic
• Material of rim = steel
• Type of mounting = with top plate
• Housing material = sheet steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 33 mm
• Overall height = 73 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 29 mm
• Screw hole diameter = 8.5 mm
• Model = light duty castors
• Fixed castor plate dimensions = 90x66 mm
• Swivel castor plate dimensions = 90x66 mm
• Screw hole spacing = 75x45 / 61x51 mm
• Housing surface = zinc plated
• Shore hardness = 92 Shore A
• Customs tariff number = 83022000
• Country of origin = DEU
• Gross weight = 5.56 kg
• Weight = 2.56 kg
• Blickle Extrathane® polyurethane tread
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LKPA-VSTH 50K: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The double ball bearing in the swivel head with swivel head seal features minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting
• The yellow tread is made of high-quality polyurethane elastomer Blickle Extrathane®, is non-marking, non-staining and has a hardness of 92 Shore A
• The wheel centre is made of steel
• Moreover, the swivel castor features very high chemical resistance against many aggressive media
• The temperature resistance ranges from -20 °C to +70 °C, and temporarily up to +90 °C
• There is a reduced load capacity at temperatures above +40 °C.
