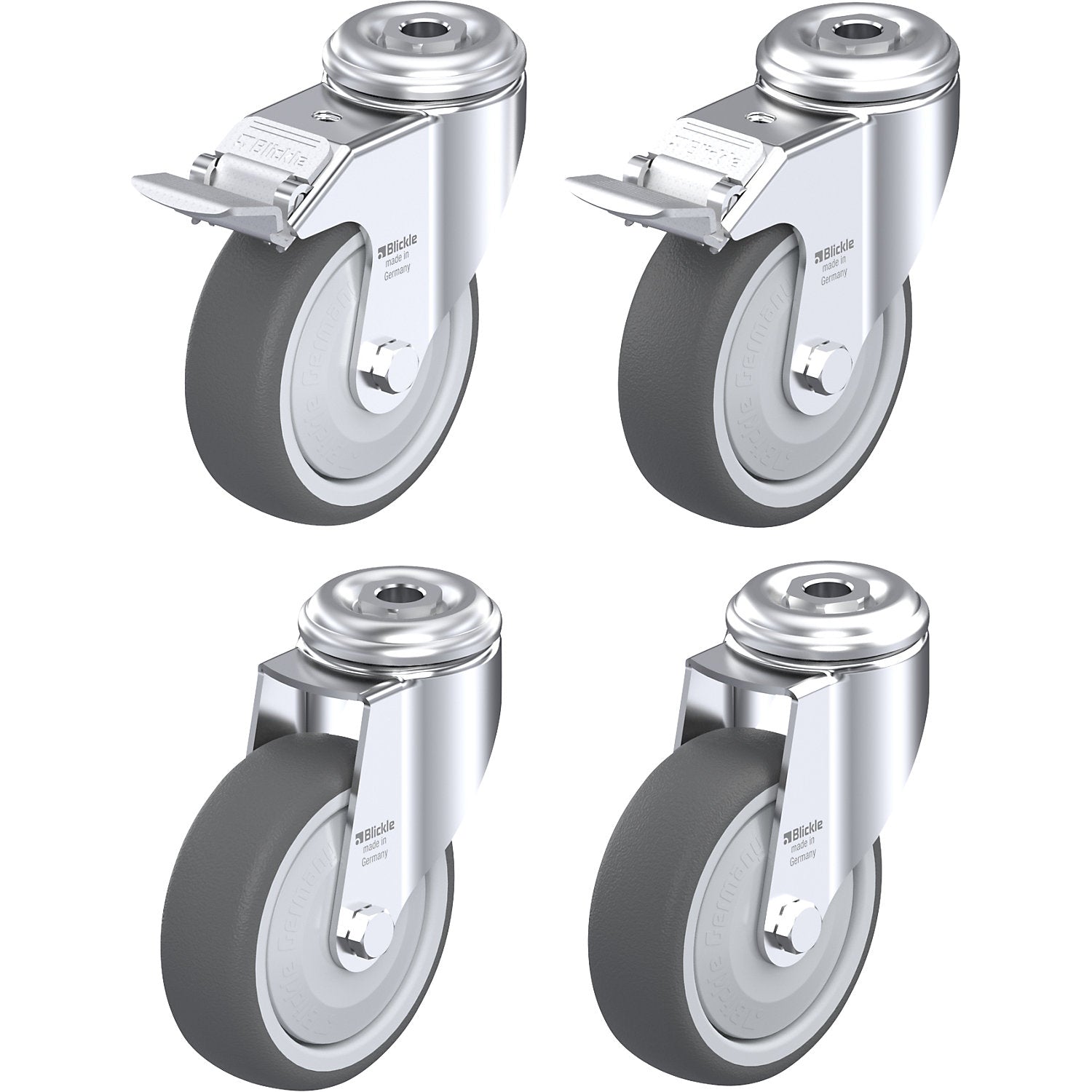

LKRA-PATH 101KF castor set, max. load 120 kg, wheel Ø 100 mm.

Estimated delivery: 34 days

LKRA-PATH 101KF castor set, max. load 120 kg, wheel Ø 100 mm

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = thermoplastic polyurethane (TPU)
• Material of rim = nylon
• Type of mounting = with bolt hole
• Housing material = sheet steel
• Max. load at 4 km/h = 120 kg
• Wheel width = 32 mm
• Overall height = 133 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 40 mm
• Model = light duty castors
• Bolt hole diameter = 13 mm
• Plate diameter = 57 mm
• Housing surface = zinc plated
• Shore hardness = 94 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 5.37 kg
• Weight = 2.37 kg
• Tread made of high-quality thermoplastic polyurethane (TPU)
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LKRA-PATH 101KF: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The dual ball bearing in the live ring with live ring seal has minimal live ring play, smooth running and a long service life due to the special dynamic Blickle riveting
• The dark grey tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and exhibits a hardness of 94 Shore A
• The wheel body is made of break-resistant, high-quality polyamide 6 in silver grey
• Furthermore, the swivel castor is characterised by a plastic thread guard and a very high chemical resistance to many aggressive media
• The temperature resistance ranges from -20 °C to +70 °C, and temporarily up to +90 °C
• There is a reduced load capacity at temperatures above +35 °C.
