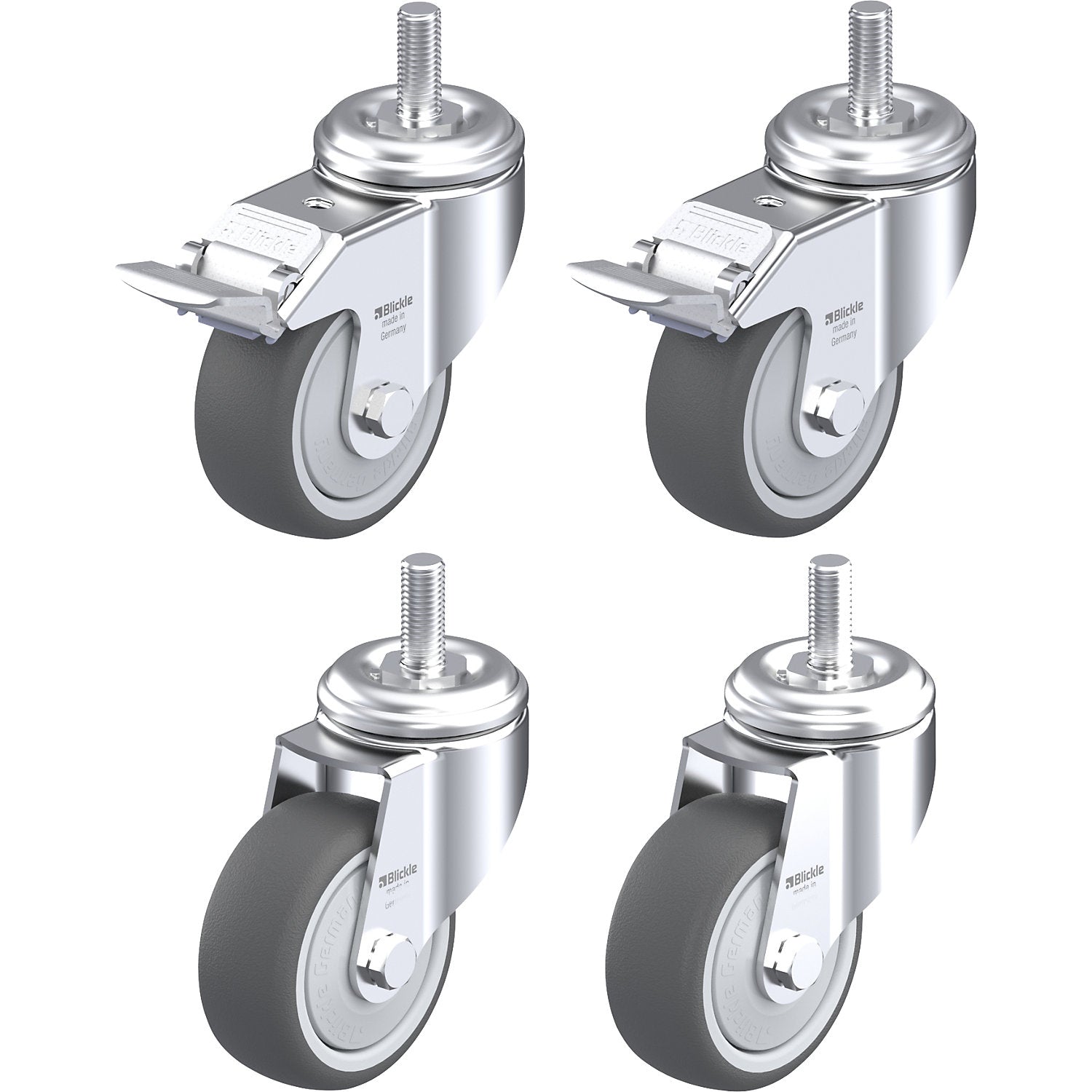

LKRA-PATH 80KF-GS12 castor set, max. load 120 kg, wheel Ø 80 mm.

Estimated delivery: 34 days

LKRA-PATH 80KF-GS12 castor set, max. load 120 kg, wheel Ø 80 mm

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor with wheel stop, fixed castor
• Wheel material = thermoplastic polyurethane (TPU)
• Material of rim = nylon
• Type of mounting = with threaded pin
• Housing material = sheet steel
• Max. load at 4 km/h = 120 kg
• Wheel width = 32 mm
• Overall height = 108 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 40 mm
• Model = light duty castors
• Threaded pin dimensions = M12x30 mm
• Housing surface = zinc plated
• Shore hardness = 94 Shore A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 5.16 kg
• Weight = 2.16 kg
• Tread made of high-quality thermoplastic polyurethane (TPU)
• Leaves no signs of wear on the base
• High chemical resistance to many aggressive media
• Castor set LKRA-PATH 80KF-GS12: The housing consists of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free
• The double ball bearing in the swivel head with swivel head seal has minimal swivel head play, smooth running and a long service life due to the special dynamic Blickle riveting
• The dark grey tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and has a hardness of 94 Shore A
• The wheel centre consists of break-resistant, high-quality polyamide 6 in silver grey
• In addition, the swivel castor is characterised by a plastic thread guard and very high chemical resistance against many aggressive media
• The temperature resistance ranges from -20 °C to +70 °C, and temporarily up to +90 °C
• There is a reduced load capacity at temperatures above +35 °C.
