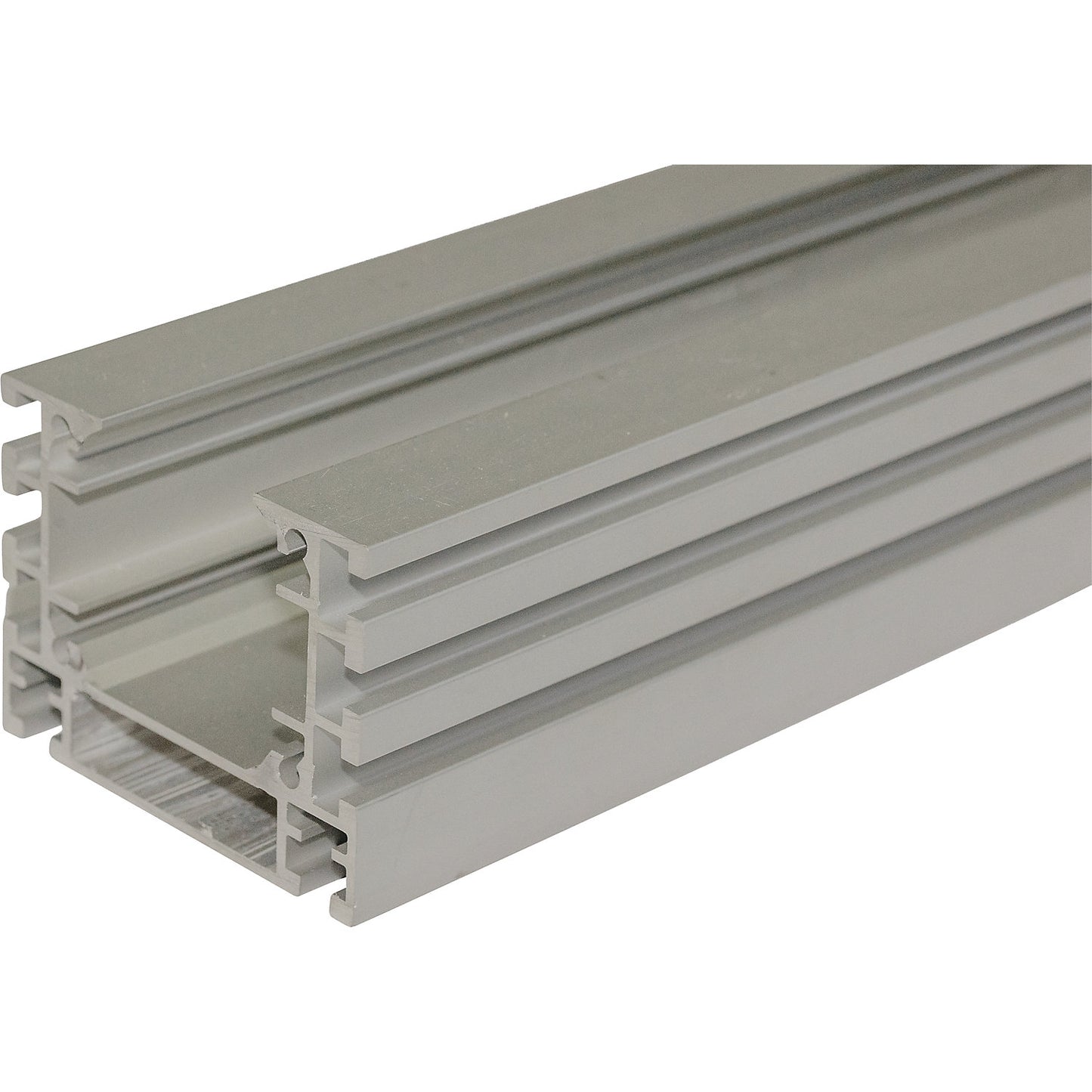

Straight segment suspension track, track width 125 mm, overall height 96 mm, length 1 m.

Estimated delivery: 56 days

Straight segment suspension track, track width 125 mm, overall height 96 mm, length 1 m

• Track width = 125 mm
• Length = 1 m
• Overall height = 96 mm
• Width = 125 mm
• Max. load = 20 kg
• Material = aluminium
• Frame colour = silver
• Product type = conveyor systems
• Customs tariff number = 76109090
• Country of origin = DEU
• Gross weight = 27.2 kg
• Weight = 7.2 kg
• Sustainability = Made of recycled material
• Freely definable 3D track design with modular construction
• Transport of goods across different levels
• Easy to install, extend and convert
• Effortlessly overcomes large distances and height differences
• Integration in the tightest areas and around obstacles

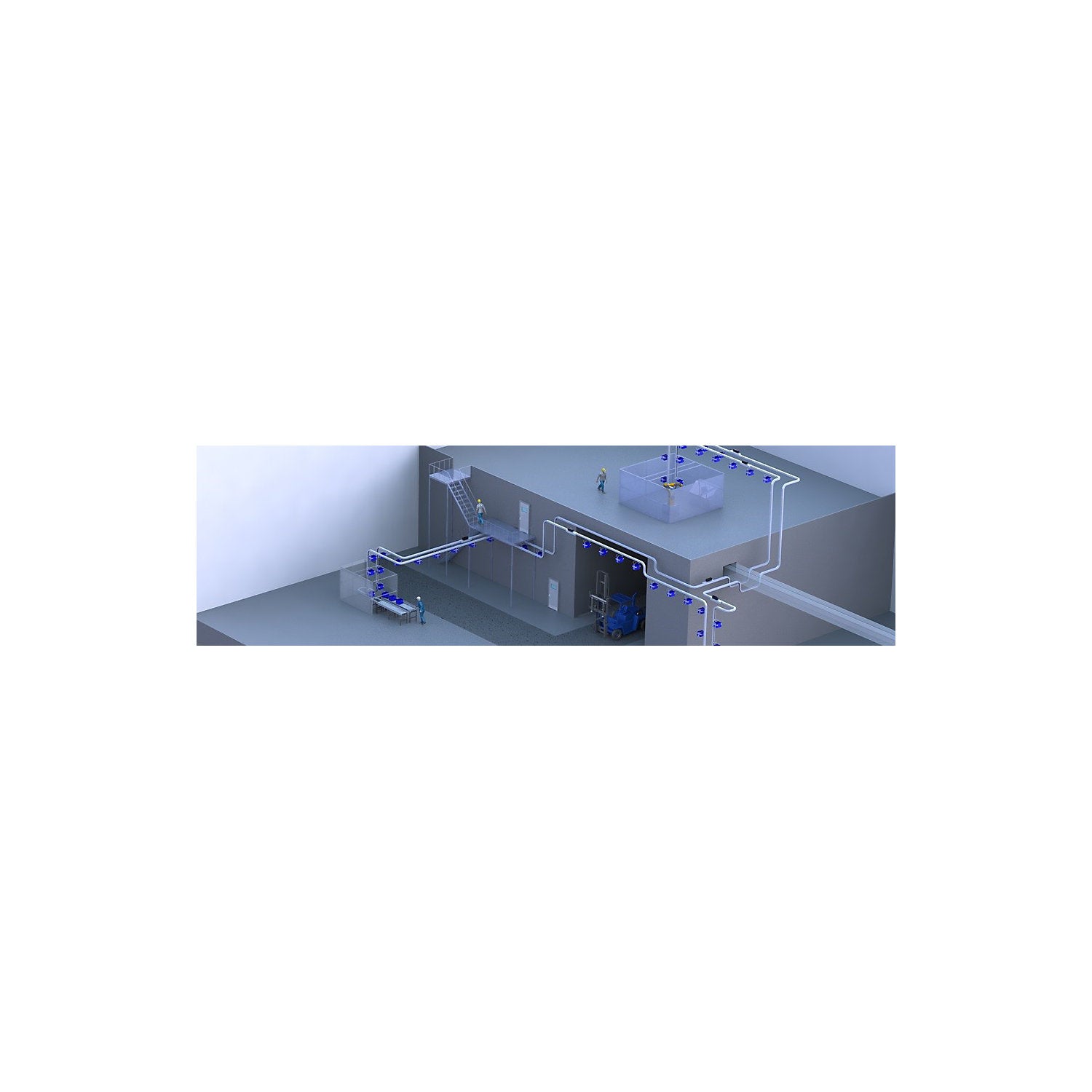

• The modular overhead conveyor Quickmove enables the decoupled transport of goods across different levels and offers a nearly freely definable route design in 3D space
• This creates a powerful material flow that can be individually adapted to spatial structures and operational processes

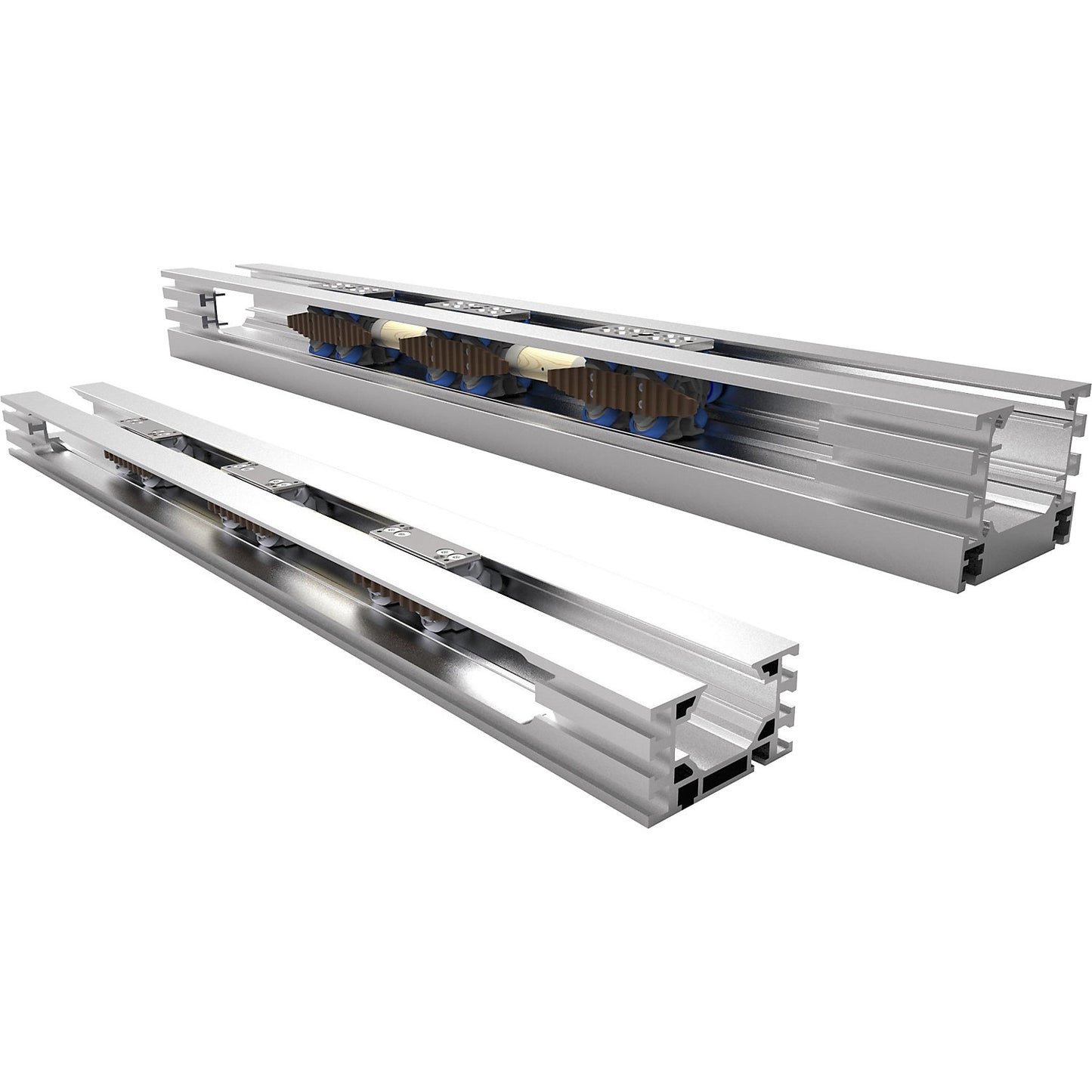

• This model is an overhead conveyor straight segment
• Complementary curve segments are available to implement individual route layouts
• The conveyor system impresses with a modular design that can be quickly adapted to new structures
• Routes can run horizontally, vertically, diagonally or curved, mapping almost any spatial requirement
• Thanks to the possibility of combining it with existing conveyor technology, the system grows with increasing demands
• Multiple trains move independently of each other, creating an efficient, low-noise material flow
• In addition, the overhead conveyor allows the installation of switches to integrate branch lines and flexible storage locations
• Loading and unloading stations as well as the route length are almost unlimited, meaning even complex layouts remain realisable
• At the same time, paths remain clear as the conveyor technology bypasses obstacles
• For construction, profiles with a maximum free span of 3.5 m are used
• Beyond this length, a support or additional reinforcement is required
• The profiles are made of aluminium T6060 and are securely connected to each other via butt and longitudinal connector sets
• Complementary curve segments are available: an arc with a 200 mm run-out on each side, consisting of two pre-assembled half-shells
• The conveyor system with 3D routing is suitable for companies with limited space, changing production processes or high demands on reliable transport across different levels
• The Quickmove overhead conveyor resolves bottlenecks, shortens routes and increases efficiency in areas where traditional floor transport reaches its limits
• Further accessories available
• Please contact our customer service for planning and installation of a complete system.
