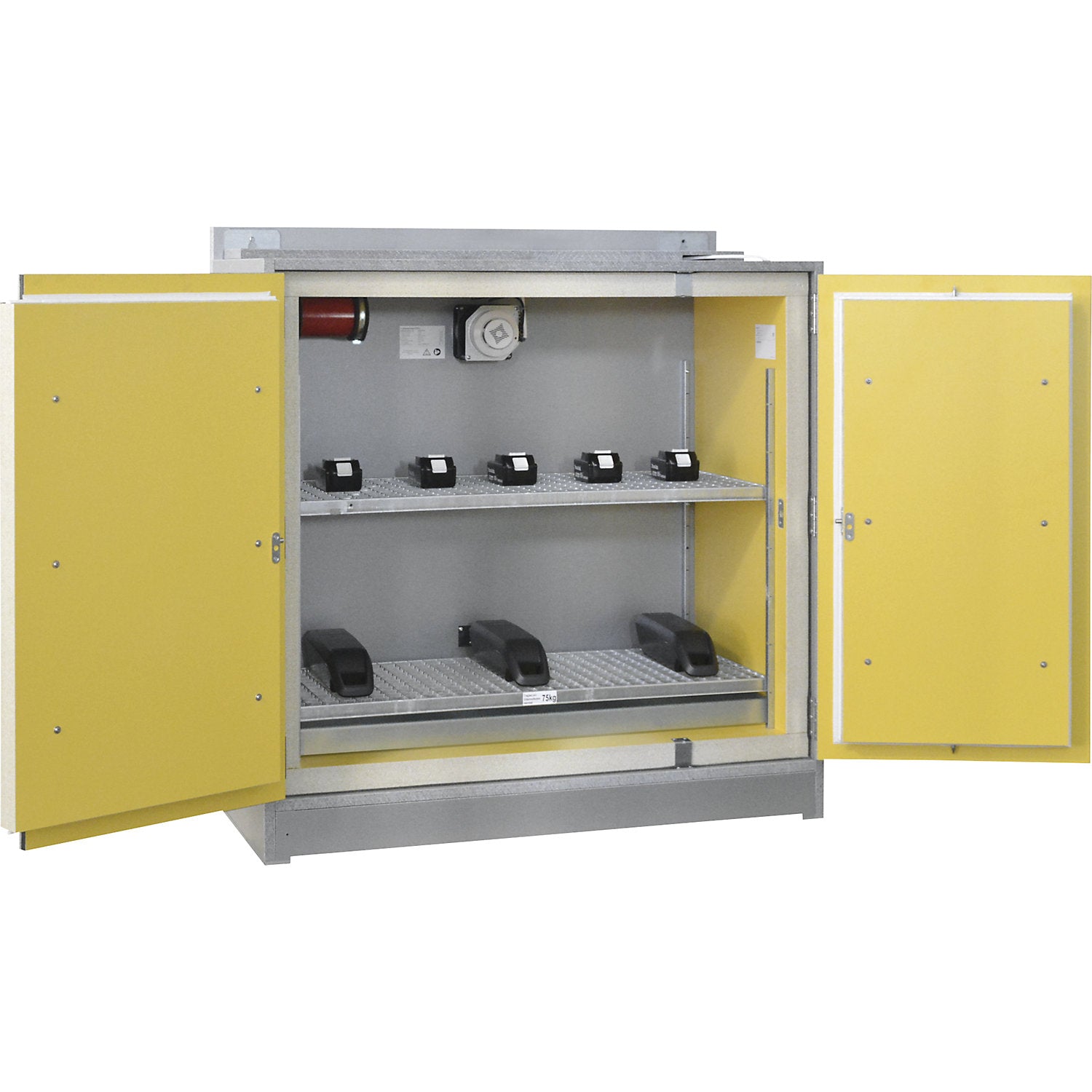

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet, with fire suppression system, HxW 1222 x 1148 mm.

Estimated delivery: 39 days

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet, with fire suppression system, HxW 1222 x 1148 mm

• Supplied = assembled
• Height = 1222 mm
• Transfer height = 1600 mm
• Width = 1148 mm
• Depth = 591 mm
• Mains voltage = 230 V
• Internal height = 904 mm
• Internal width = 1004 mm
• Internal depth = 440 mm
• Fire resistance = 90 minutes
• Internal fittings = with fire suppression system
• Material = gypsum fibreboards, sheet steel
• Number of shelves = 2 pcs
• Body colour = brushed aluminium
• Door colour = traffic yellow RAL 1023
• Lock type = security, dual bit lock with 2 keys
• Door type = hinged door
• For media = lithium-ion batteries/rechargeable batteries
• Product type = battery storage safety cabinets
• Customs tariff number = 94038900
• Country of origin = DEU
• Gross weight = 397.3 kg
• Weight = 370 kg
• For the safe and passive storage of several lithium ion batteries
• Fire resistant up to 90 min. from inside and outside (EI 90), type-tested in accordance with DIN EN 1363-1:2012-10
• Integrated ventilation system with smoke detector and fan
• All-round fire protection seals that automatically foam up in the event of fire
• Smooth-running hinged doors, opening angle 180°, not self-closing
• Fire-resistant cable inlets at the top and bottom

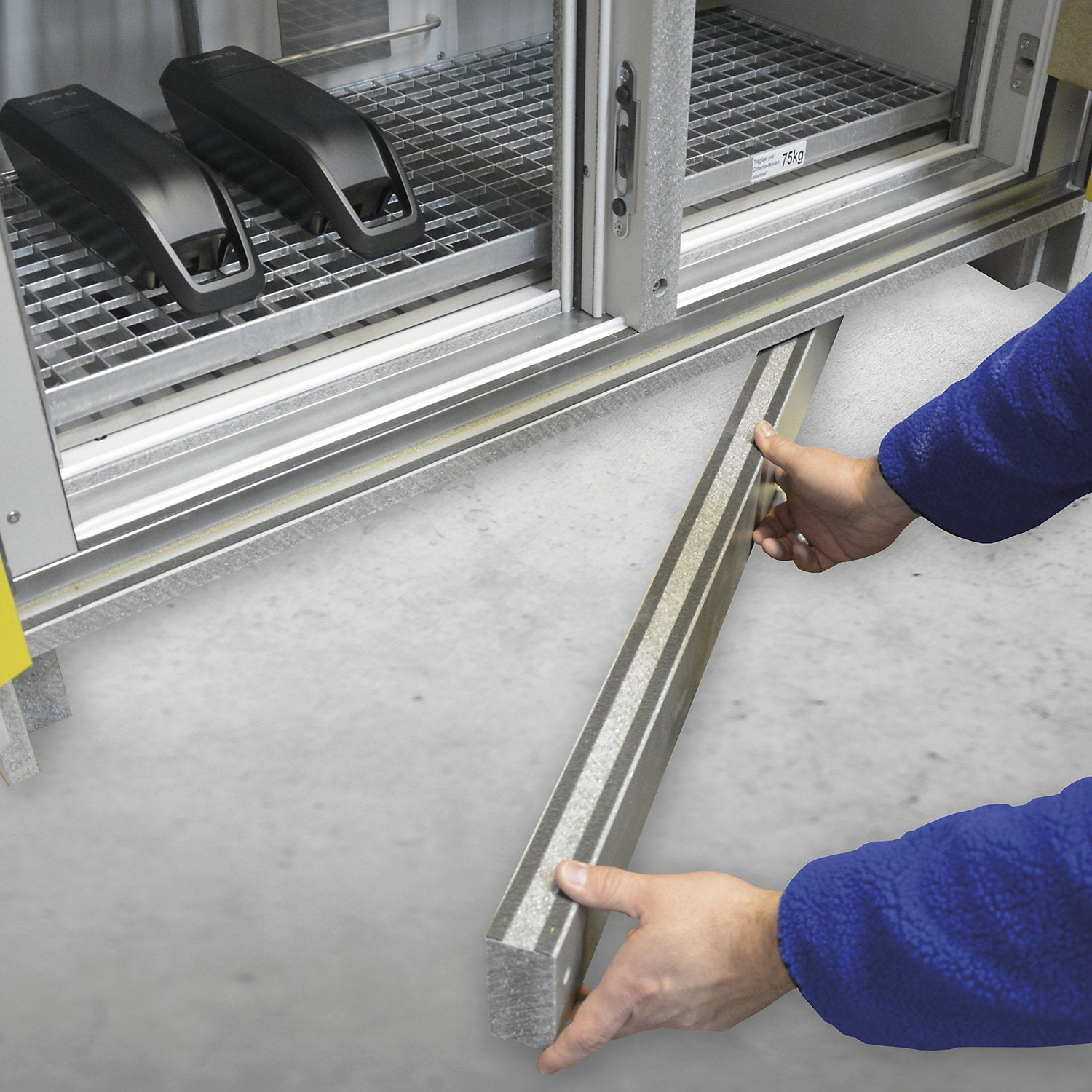

• Forklift-accessible plinth, height 100 mm with removable plinth cover
• The LaCont LI-ION Basic Charge EI 90 battery storage cabinet is the ideal entry-level model for the passive storage of lithium-ion batteries, with a main focus on fire protection
• The robust overall construction, tested by the Material Testing Institute (MPA) Dresden, has a fire resistance of 90 minutes from inside and outside (EI90) according to DIN EN 1363-1
• Thanks to circumferential, self-foaming fire protection seals in case of fire, the LaCont LI-ION Basic protects against fires inside the cabinet, whereby the emission of smoke and toxic fumes is minimised
• The aim here is to gain time for the evacuation of people in the vicinity and the initiation of extinguishing measures by the fire brigade
• Further standard equipment includes an integrated ventilation system with smoke detector and fan (for power supply cut-off), height-adjustable grid shelf storage levels with a load capacity of 75 kg each (with evenly distributed load), a plinth with a cover that can be driven under for easy transport, as well as fire-resistant cable glands for customer-side installation of fire detectors or potential-free contacts
• Construction made of non-combustible building material (Class A2-s1, d0 according to DIN EN 13501-1) including coating (body aluminium coloured / doors RAL 1023 - traffic yellow), galvanised sheet steel sump, 17 litres collection volume

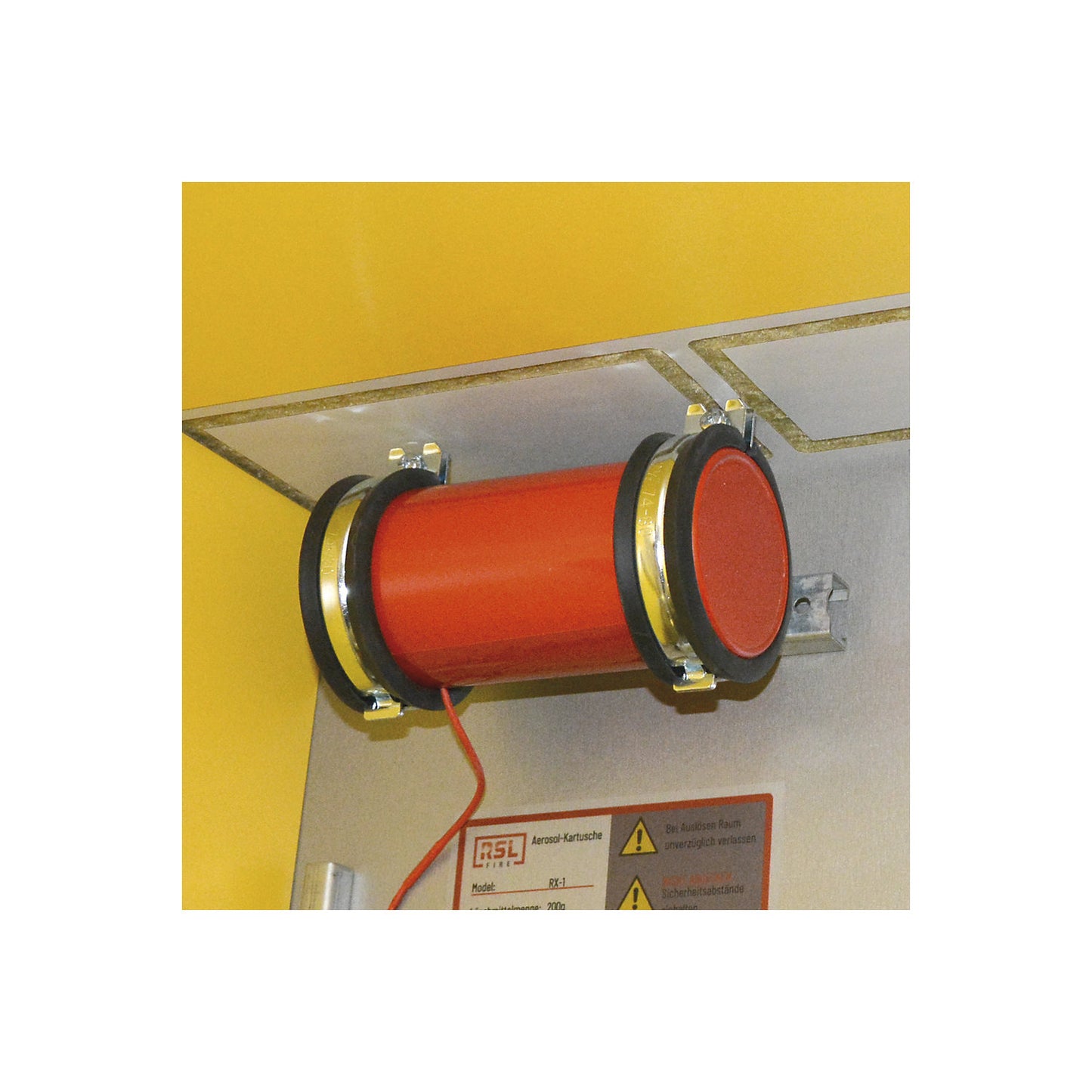

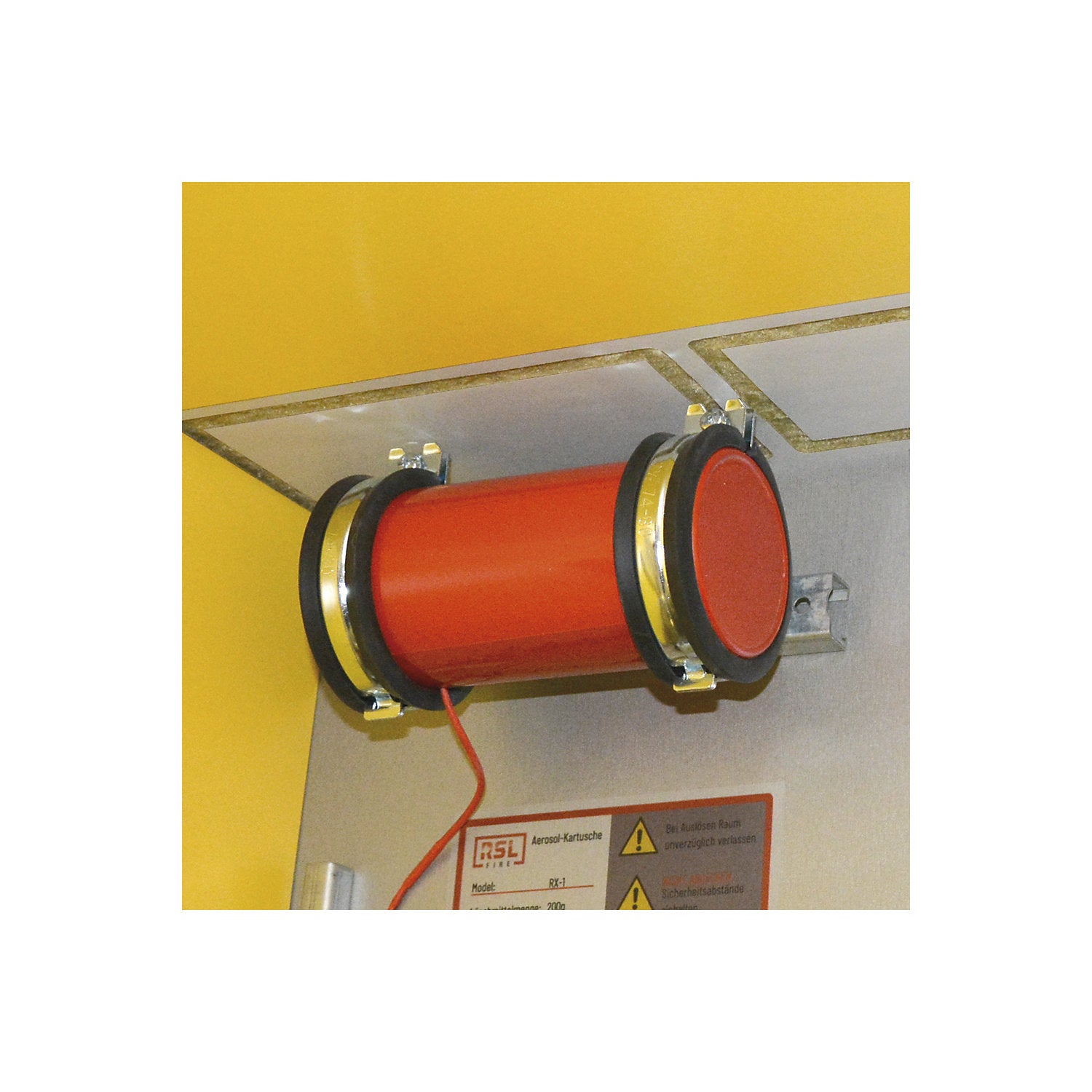

• Functionality when equipped with a fire suppression system (aerosol extinguishing generator), with power-independent activation in case of fire or impermissible temperature increase from 180 °C: By activating the solid contained in the extinguishing generator, an aerosol of solid and gaseous particles is created
• These spread throughout the cabinet in milliseconds, displacing oxygen, diluting flammable gases and thereby starting the extinguishing process
• Thus, the aerosol intervenes in the chemical chain reaction of the fire process, among other things, by displacing oxygen, and interrupts it
• If the fire suppression system is not activated, the maintenance-free service life is 10 years
• NOTE: the safety storage cabinets must be serviced once a year
• LaCont recommends contacting your liability insurance company, the fire brigade or an expert before putting a cabinet into service
• A risk assessment and a comprehensive fire protection concept are mandatory!
