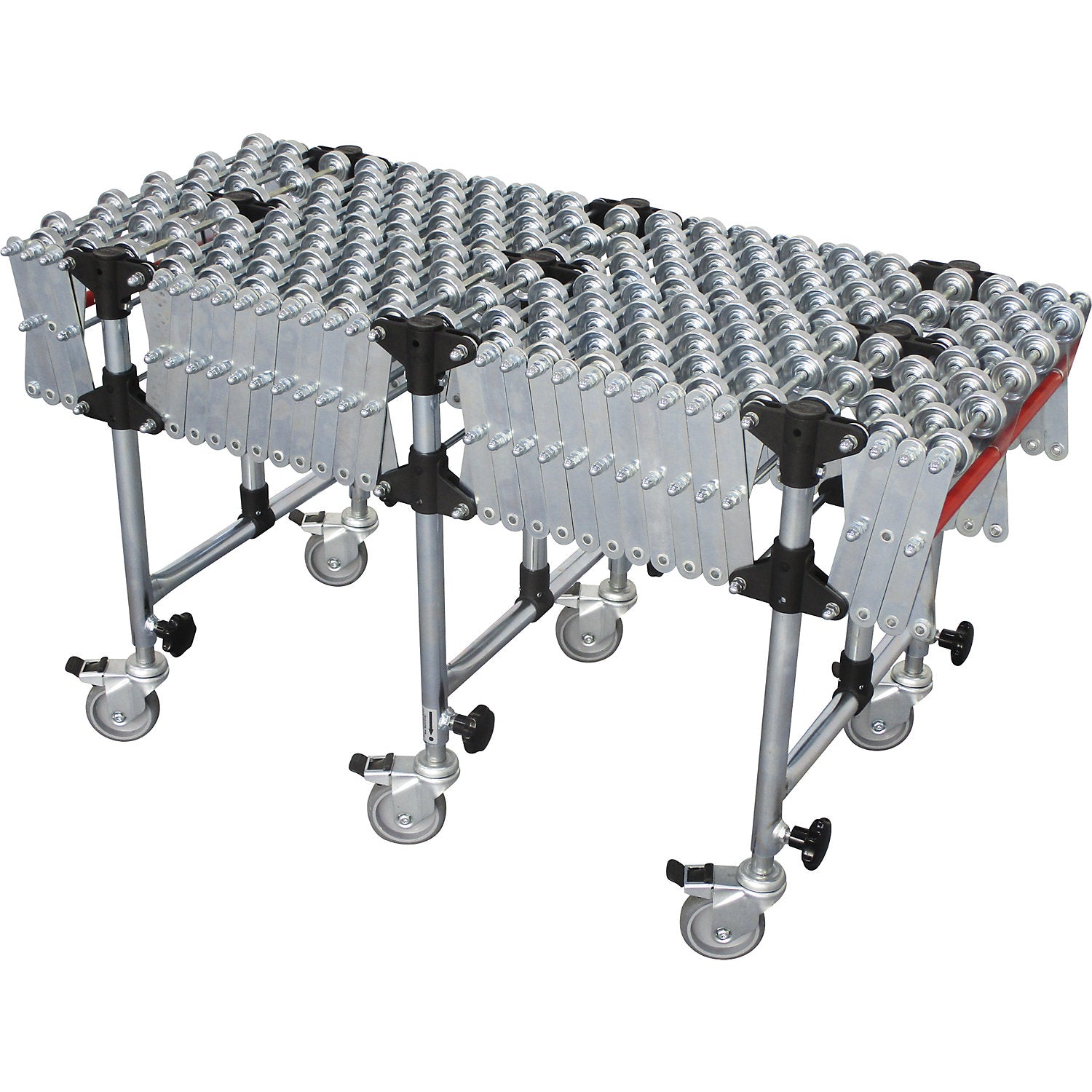

Flexible skate wheel conveyor, track length 1700 - 6300 mm (extendable), track width 600 mm, steel skate wheels.

Estimated delivery: 41 days

Flexible skate wheel conveyor, track length 1700 - 6300 mm (extendable), track width 600 mm, steel skate wheels

• Supplied = assembled
• Number of support feet = 4 pcs
• Track width = 600 mm
• Track length = 1700 - 6300 mm
• Width of goods conveyed = 200 - 900 mm
• Max. load /spacing between support feet = 100 kg
• Roller material = steel
• Skate wheels per axle = 6 pcs
• Fittings = centre section
• Colour = silver, blue
• Product type = flexible conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 137.42 kg
• Weight = 137 kg
• Sustainability = CO 2 footprint calculated
• Optimises material flow in the workshop and suitable for mobile use
• Space saving storage when collapsed
• Durable, bright zinc plated model
• The GURA flexible skate wheel conveyors can be used in all areas of load transport in the workshop
• Especially when a permanently installed system is not welcome, then this mobile version can be used
• They allow your own logistics structures to be optimally modified and extended to suit requirements

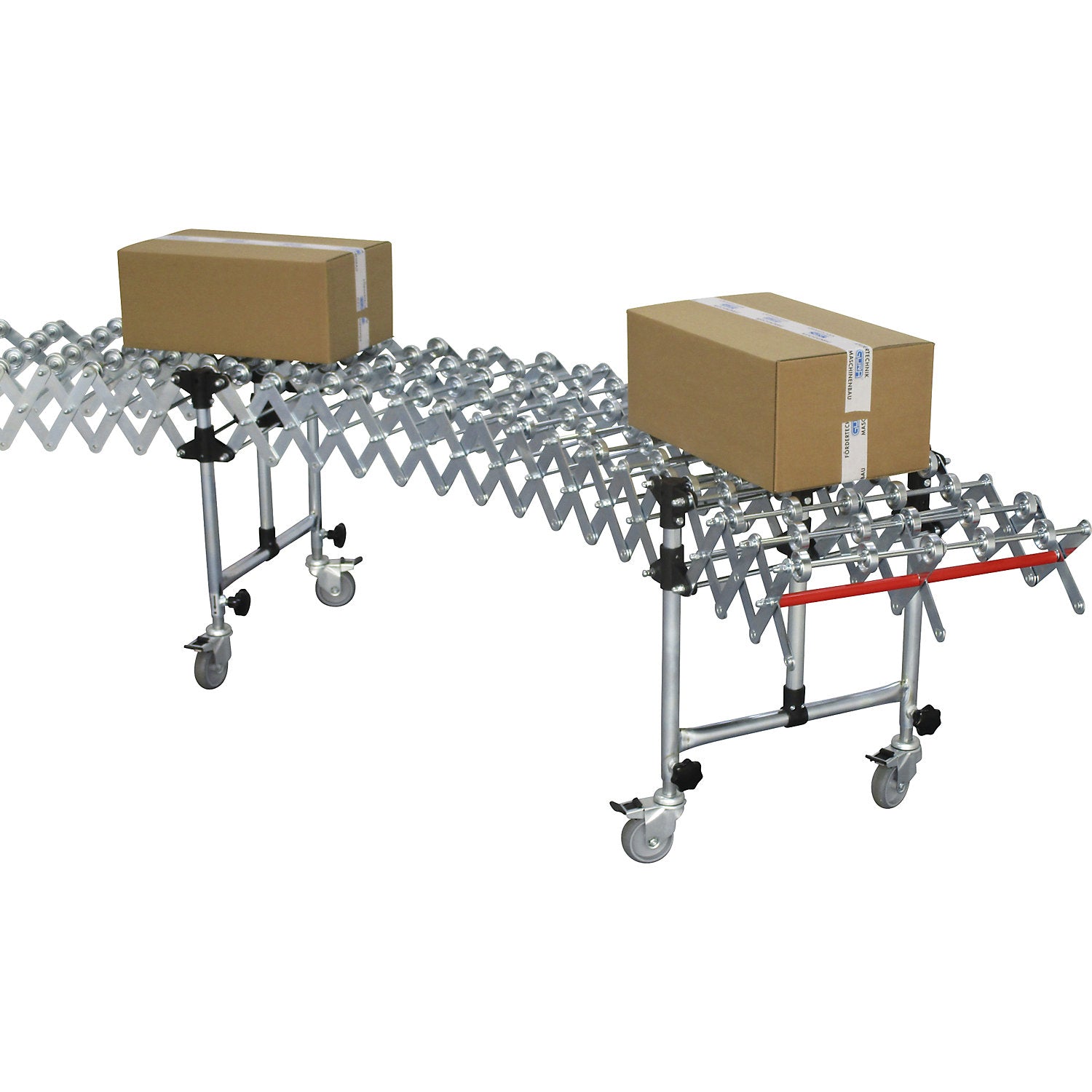

• The tracks are individual length and height adjustable, while curves of up to 180° can be formed at the same time
• The flat metal concertina is riveted and zinc plated, there are plastic handles on both conveyor ends for pulling apart and pushing together
• Other features: - Upper track edge is height adjustable from 720 - 1150 mm. - For transporting goods 440 - 700 mm. - Axle spacing 150 mm when track is fully extended. - Skate wheels (Ø 48 mm) with ball bearings on 8 mm axles, with spacing sleeves in between
• Other dimensions and electric drive available on request.
