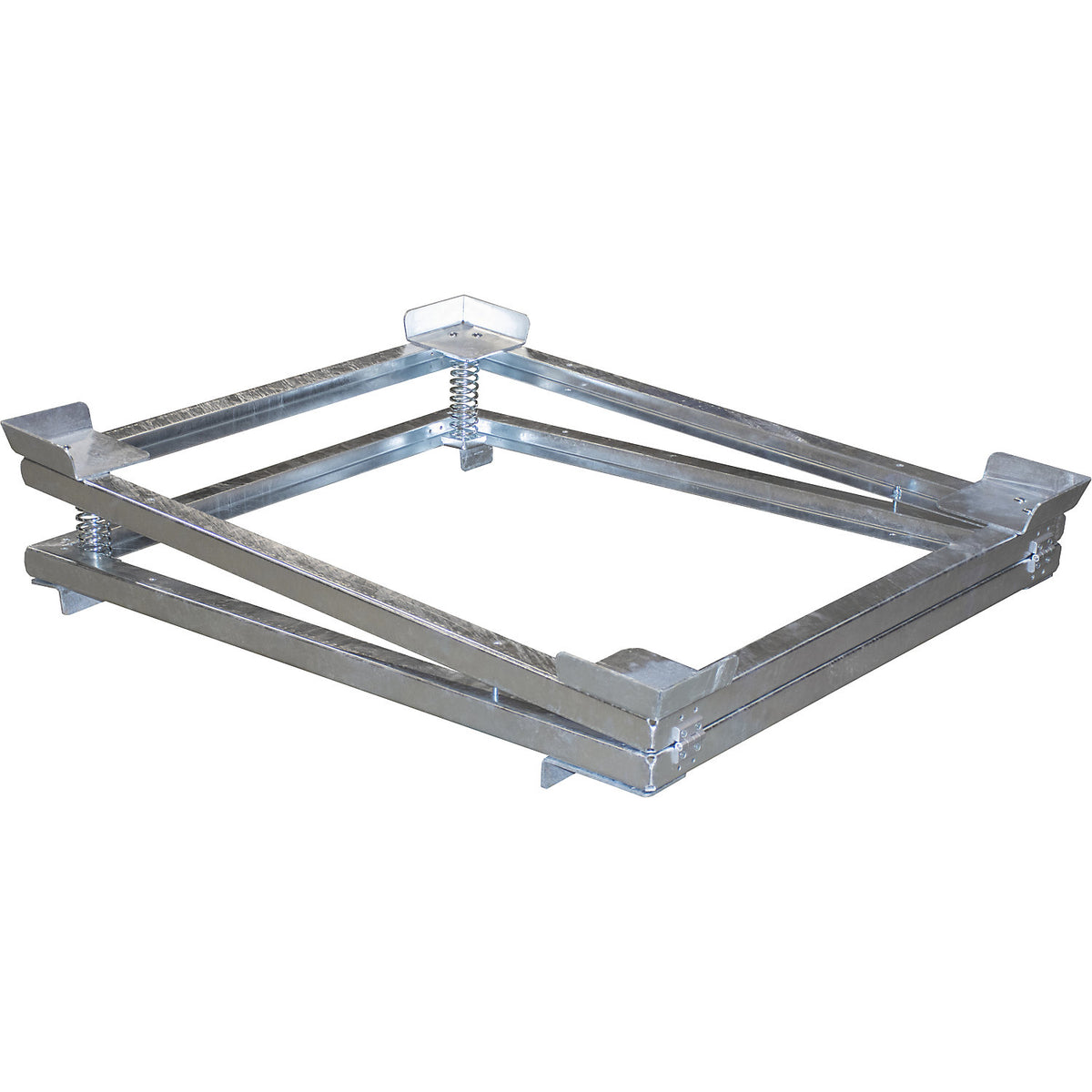

IBC residue drainer for pallet racking, LxWxH 1280 x 1080 x 265 mm, hot dip galvanised.

Estimated delivery: 51 days

IBC residue drainer for pallet racking, LxWxH 1280 x 1080 x 265 mm, hot dip galvanised

• Supplied = assembled
• Colour = zinc plated
• Material = steel, hot galvanised
• Length = 1280 mm
• Width = 1080 mm
• Height = 265 mm
• For container size = 1000 l
• Max. load = 1500 kg
• Product type = IBC residue drainers
• Customs tariff number = 73269098
• Country of origin = DEU
• Gross weight = 43 kg
• Weight = 43 kg
• Sustainability = Recyclable
• Suitable for 1000-litre IBCs for locking in pallet racking
• For maximum container emptying
• Spring mechanism for automatic tilting
• Tilting frame with securing corners
• Hot dip galvanised steel construction - robust and durable

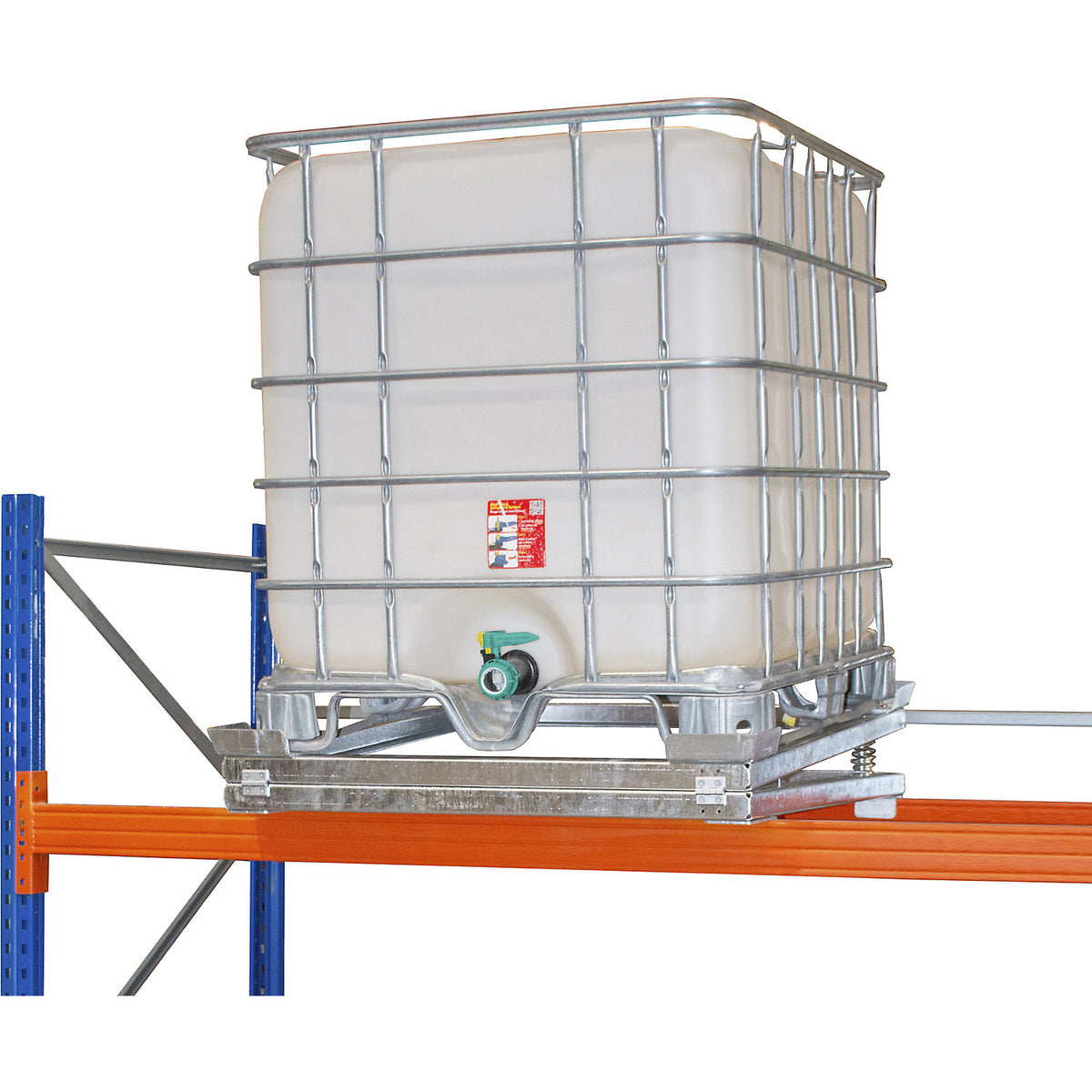

• IBC residual emptier for pallet racking - automatic tilting for a greater yield of contents The IBC residual emptier for pallet racking supports the complete emptying of 1000-litre containers
• An integrated spring mechanism automatically tilts the IBC forward depending on the fill level and guides remaining liquid to the outlet
• The hot dip galvanised steel construction makes the dispensing device robust and resilient
• It is designed for continuous use in warehouses, production and dispensing areas
• The galvanisation protects the dispensing system from corrosion and contributes to a long service life under demanding operating conditions
• During emptying, the tilt automatically adjusts to the falling fill level
• The less contents there are in the container, the more the spring mechanism raises the rear section
• The maximum lifting is 95 mm
• During emptying, the frame reaches a height of 265 mm at the rear
• This allows residual quantities to flow better towards the outlet without having to manually lift or reposition the IBC
• The sturdy tilting frame is equipped with safety corners
• They support controlled positioning of the 1000-litre IBC on the dispensing device
• Bolted brackets serve to lock it securely in the pallet racking
• In this way, the dispensing system can be reliably integrated into existing warehouse and dispensing processes
• Better residual emptying reduces avoidable material losses and simplifies the subsequent container change
• At the same time, the effort required to painstakingly remove residual quantities from the IBC is reduced
• This is economically highly relevant, especially for frequent dispensing operations and high-value liquids
• The IBC residual emptier is suitable for businesses that store and empty 1000-litre IBCs directly in the pallet racking
• Typical areas of application are production, chemical storage, food processing and industrial dispensing stations.
