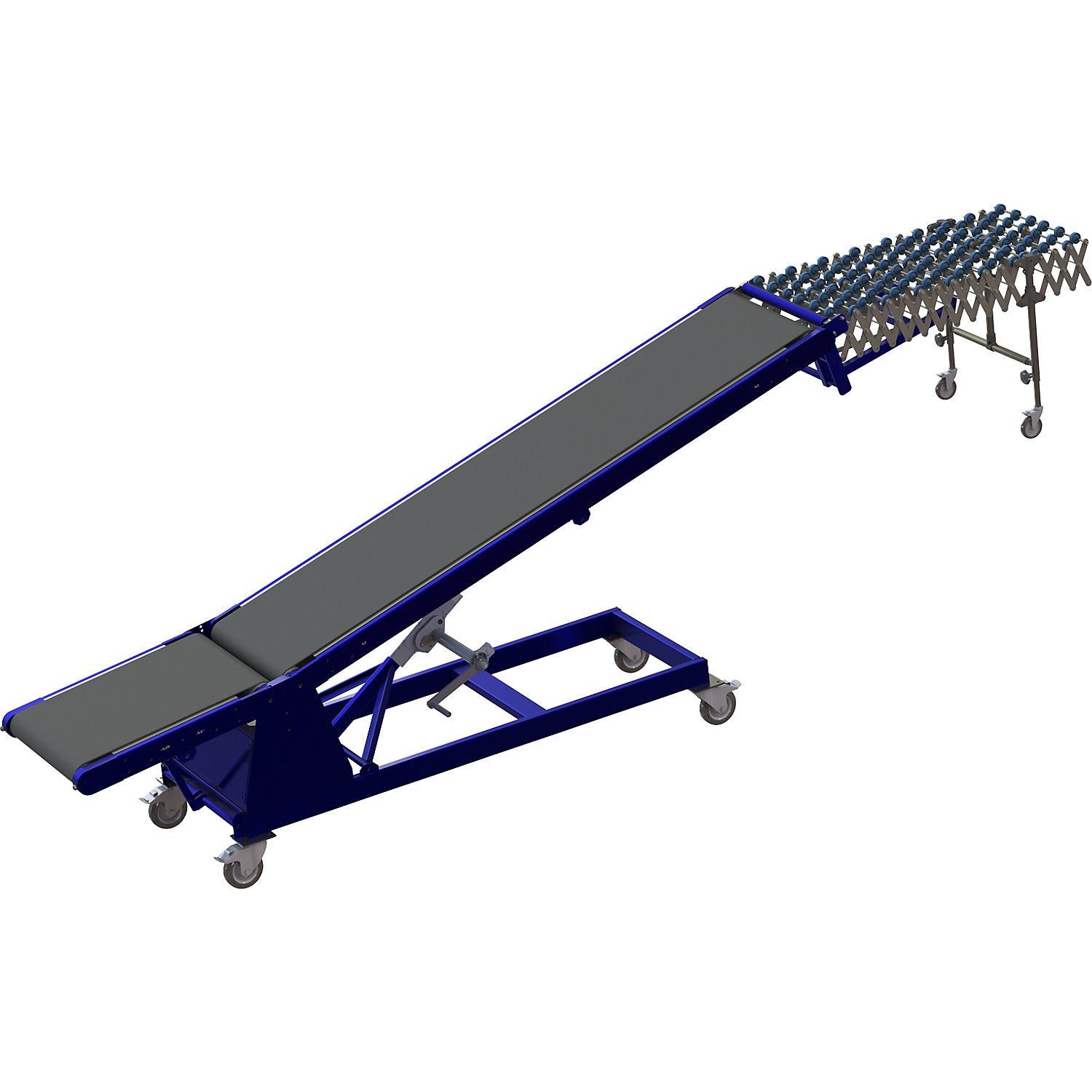

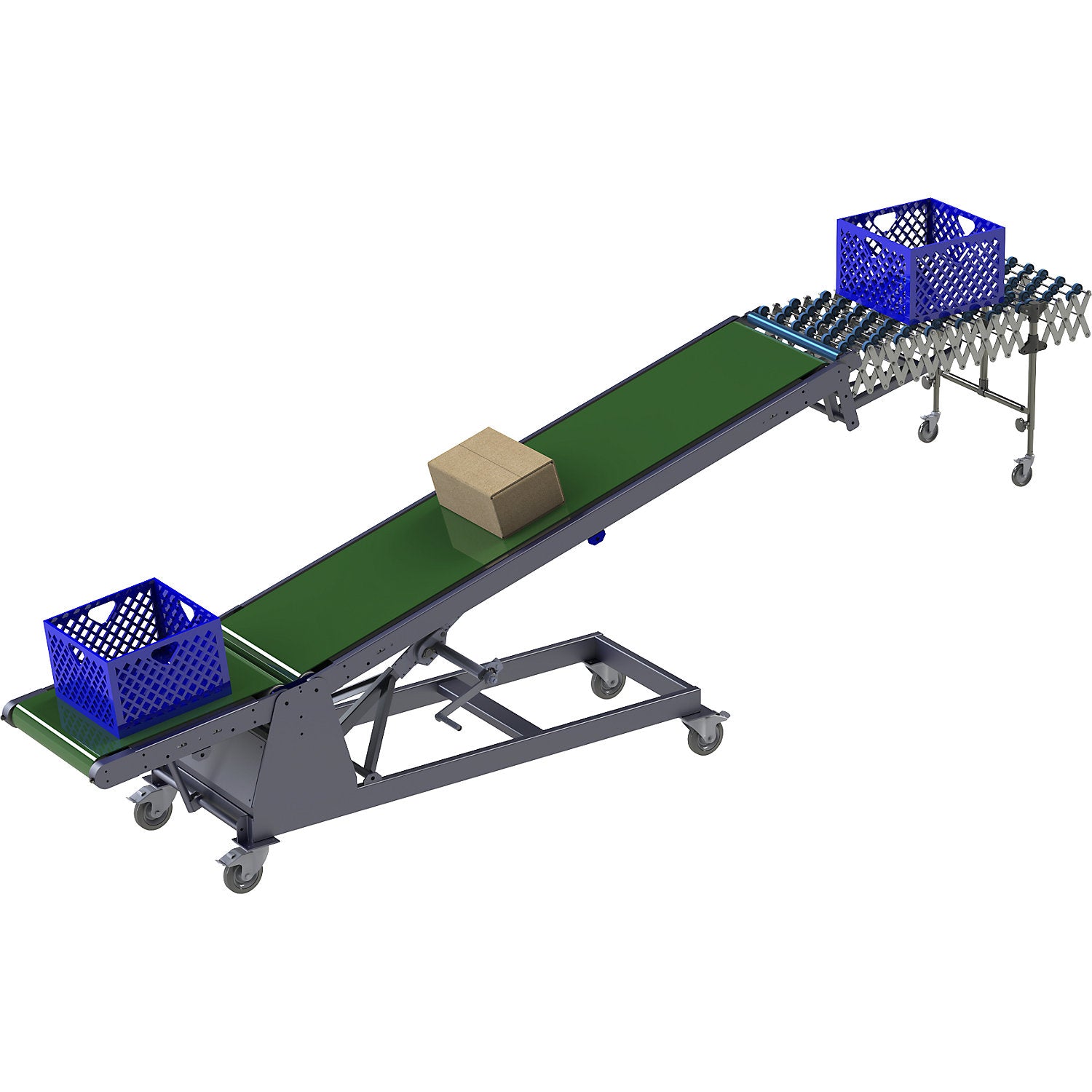

Loading and unloading conveyor, load capacity 30 kg/m, track length 4200 - 6200 mm, W 600 mm.

Estimated delivery: 61 days

Loading and unloading conveyor, load capacity 30 kg/m, track length 4200 - 6200 mm, W 600 mm

• Supplied = assembled
• Belt width = 500 mm
• Height adjustment range = 500 - 2250 mm
• Width = 600 mm
• Track length = 4200 - 6200 mm
• Material = steel, PVC
• Frame colour = blue
• Axle spacing = 2500 mm
• Length of goods conveyed = > 200 mm
• Max. load = 30 kg
• Product type = belt conveyors
• Customs tariff number = 84283300
• Country of origin = DEU
• Gross weight = 448 kg
• Weight = 425 kg
• Dolly with steering wheels Ø 160 mm with brakes
• Inclined conveyor adjustable by rack and pinion winch with safety crank
• Autonomous control
• The series 39000 loading and unloading conveyor was developed for the economical handling of general cargo
• Any height differences of lorry loading beds or other means of transport can be compensated for very quickly and continuously on the belt conveyor
• This applies to both the infeed and the discharge side
• The standard feeder belt enables the problem-free transfer of the conveyed goods onto the inclined conveyor
• The main belt is adjusted using a rack and pinion winch with a safety crank, whereby the attached scissor conveyor follows the set angle of inclination accordingly
• Hydraulic operation is possible on request
• A universal scissor roller conveyor, which is flexible in length and curve capability, enables the correct positioning of the conveyed goods on the loading platform
• The length of the scissor conveyor is adjusted according to the fill level
• On request, the loading and unloading conveyor can be manufactured ex-works to be reversible and switchable at both ends of the belt
• The entire belt conveyor can be used universally and flexibly thanks to its rubber-tyred castors with brakes
• The loading and unloading conveyor has a load capacity of 30 kg/m.
