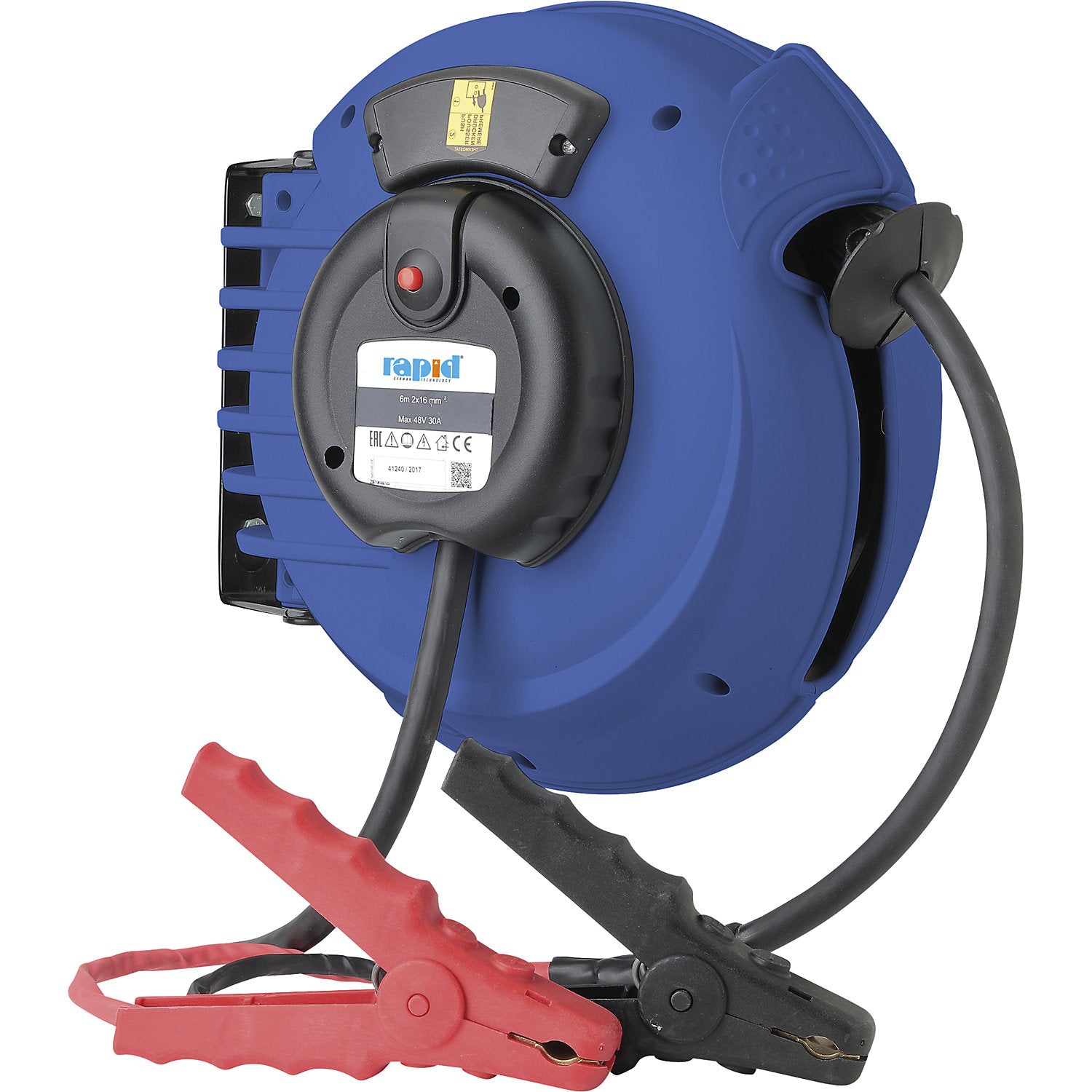

Cable reel with battery clamps, battery charge, cable length 600 mm.

Estimated delivery: 41 days

Cable reel with battery clamps, battery charge, cable length 600 mm

• Supplied = assembled
• Area of application = for battery charging
• Model = without SCS® duplex brake
• Nominal hose diameter = 16 mm² inch
• Hose length = 6 m
• Housing material = polyurethane
• External connection = 2x Batterieklemme inch
• Width = 190 mm
• Colour = blue
• Cable length = 600 mm
• Protection type = IP20
• Cable type = H05W-F2G 16 mm²
• Height = 315 mm
• Product type = cable reels
• Customs tariff number = 85444290
• Country of origin = ITA
• Gross weight = 6.1 kg
• Weight = 5.4 kg. 6 m cable including charging clamps for battery charging
• Charging terminals can be replaced by individual connecting devices
• Cables always tidy and protected - tripping hazards are avoided
• The automatic cable reel enables a convenient connection to battery chargers and thus simplifies the battery charging process
• Unnecessary tripping hazards in the workshop are avoided - the cable is always protected and tidily stored
• When using conventional batteries, the supplied battery clamps can easily be replaced with your own connection devices
• The cable drum has an IP20 protection rating and is fully insulated
• An integrated automatic spring mechanism as well as a slip ring ensure reliable and smooth operation
• The reel is supplied with a 6 m long H05VV-F 2G 16 mm² cable (30 A, 48 V), equipped with battery clamps for up to 230 V
• The swivelling mounting bracket allows for a flexible and ergonomic installation.
