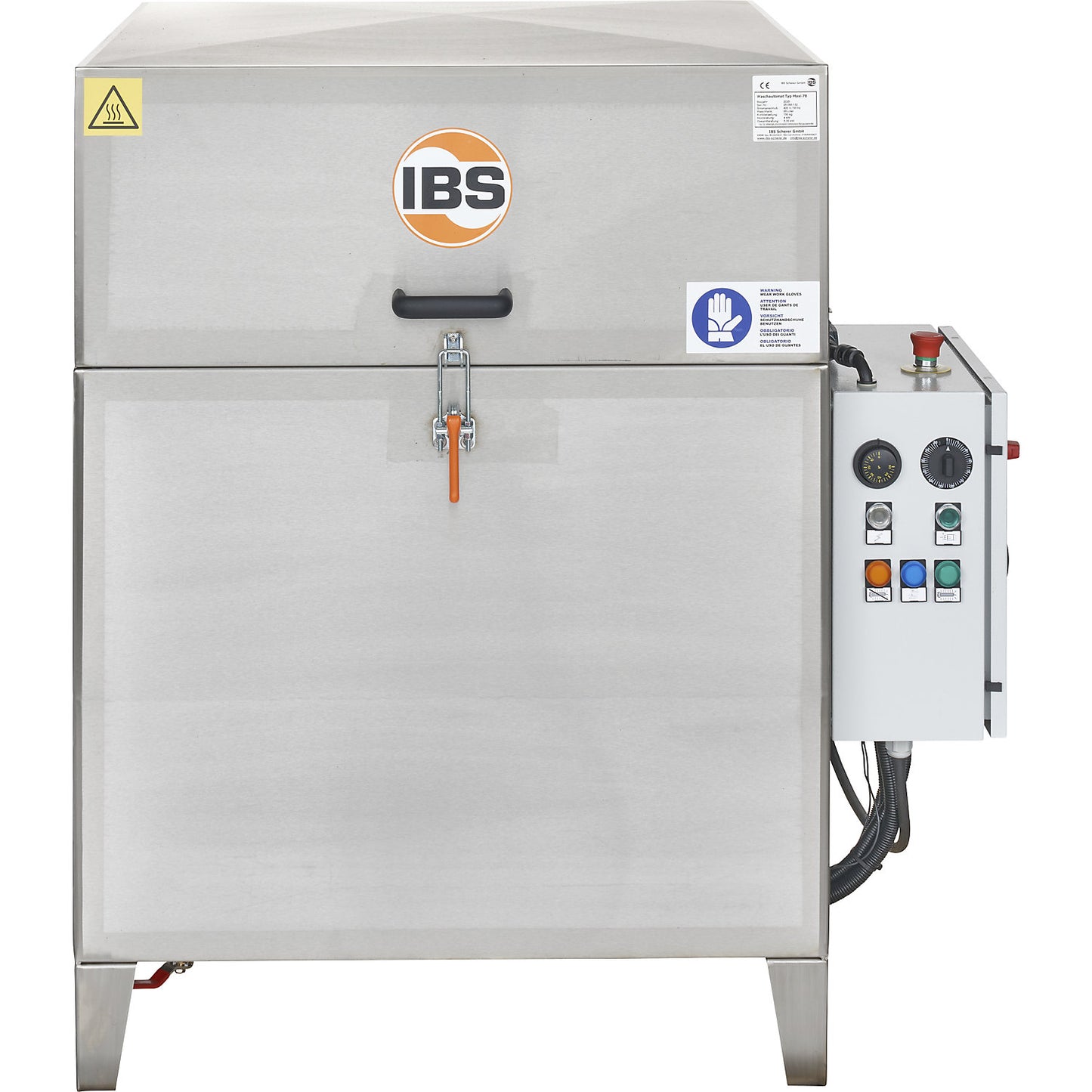

Parts cleaner type Maxi 78, load capacity 150 kg, work surface WxD 780 x 780 mm.

Estimated delivery: 51 days

Parts cleaner type Maxi 78, load capacity 150 kg, work surface WxD 780 x 780 mm

• Supplied = assembled
• Working height = 0.5 m
• Worktop width = 780 mm
• Worktop depth = 780 mm
• Max. load = 150 kg
• Scope of delivery = device only
• Material = stainless steel
• Design of pump = stainless steel hand pump
• Product type = parts washers
• Customs tariff number = 84798100
• Country of origin = ITA
• Gross weight = 98 kg
• Weight = 90 kg
• Sustainability = Recyclable
• Heated stainless steel version for fully automatic parts cleaning using the spray process. 1 vertically arranged pump. 3 nozzle pipes made of stainless steel for three-dimensional cleaning
• Removes oil and grease in no time at all
• Ring gear drive via a separate motor
• High spray pressure
• The Maxi 78 heatable washing machine, made of robust stainless steel, is used for parts cleaning in production, manufacturing and maintenance
• Oil and grease contamination, e.g. on bolts, sleeves, and ball bearings, is removed in a very short time using an aqueous cleaning agent

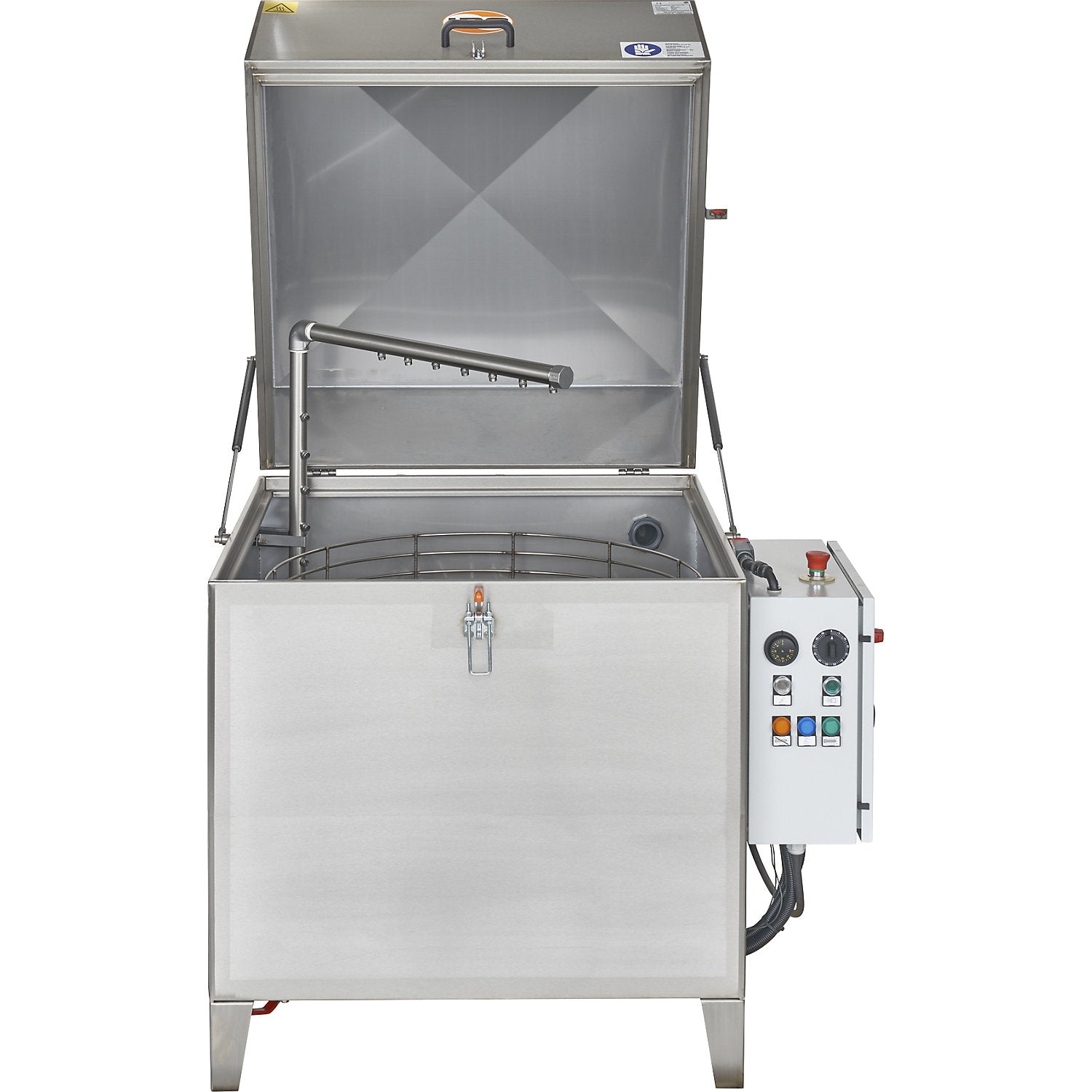

• The soiled items are placed in the rotating washing basket and the lid is closed
• After setting the desired washing temperature and time, the machine is switched on and the cleaning solution in the tank is heated
• The motor-driven basket rotates at a constant speed around its own axis inside the closed machine
• It is driven by a gear rim via a separate motor
• A suction filter in front of the pump sump protects the pump from contamination
• A vertically arranged pump unit draws the cleaning solution from the washing tank and pumps it at high pressure through three stainless steel nozzle pipes with overlapping flat-jet nozzles onto the items to be cleaned, which are sprayed intensively from all sides with the hot cleaning solution
• After the cleaning process is finished, the machine switches off automatically
• The machine features a stainless steel sieve plate with a filter basket above the washing tank, as well as a vapour exhaust, and is protected against low water levels
• An additional small parts cleaning basket made of stainless steel (Ø 170 mm) extends the range of applications.
