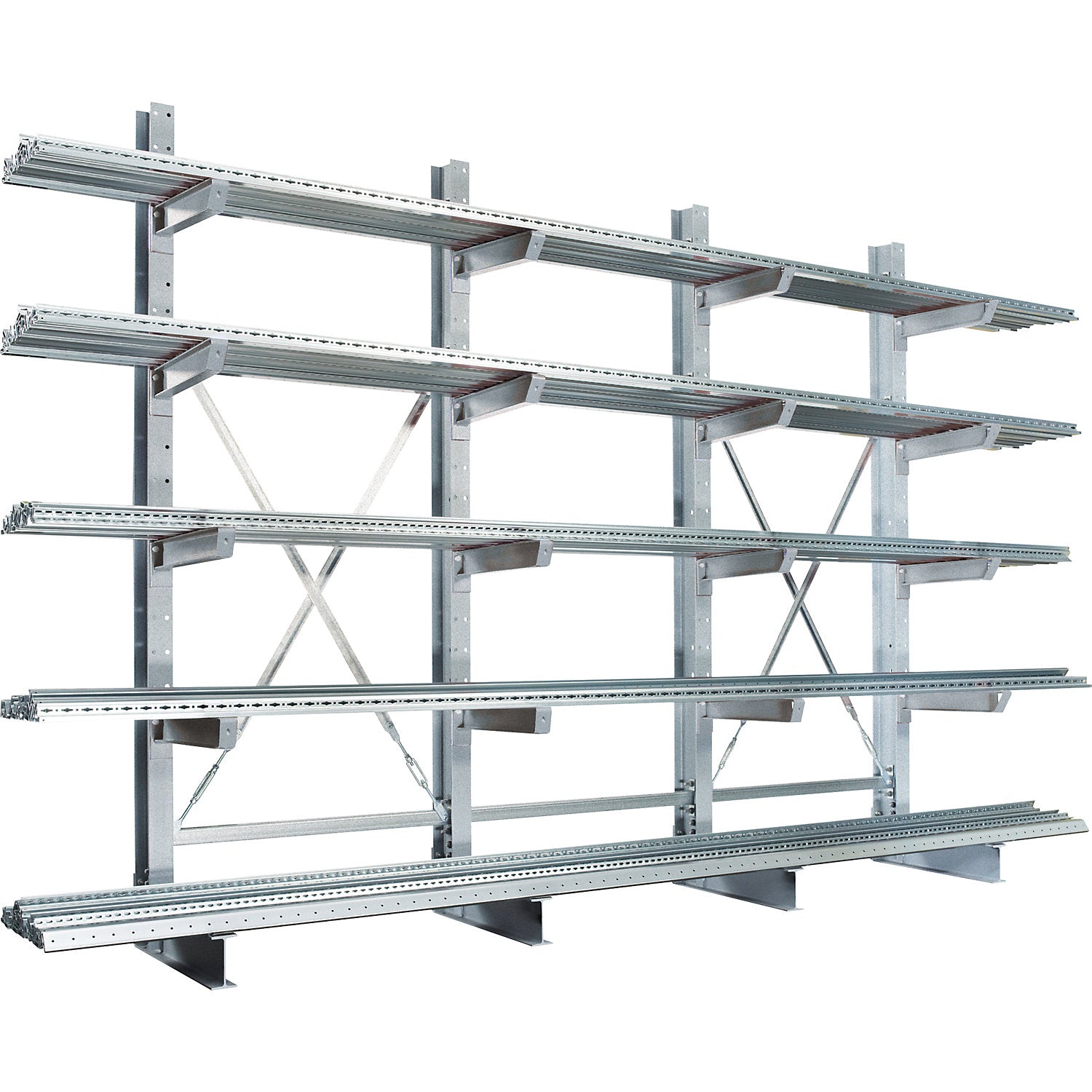

Cantilever racking unit, single-sided, hot dip galvanised, HxWxD 4550 x 4500 x 750 mm.

Estimated delivery: 71 days

Cantilever racking unit, single-sided, hot dip galvanised, HxWxD 4550 x 4500 x 750 mm

• Supplied = flat pack
• Shelf unit type = complete shelf unit
• Height = 4550 mm
• Distance between uprights = 1500 mm
• Cantilever arm length = 750 mm
• Shelf unit length = 4500 mm
• Effective depth = 750 mm
• Depth of upright profile = 240 mm
• Max. cantilever arm load = 750 kg
• Max. load = 12000 kg
• Number of storage levels incl. foot = 7 pcs
• Number of uprights = 4 pcs
• Material = steel
• Colour = hot dip galvanised
• Design of cantilever shelving = single sided
• Product type = complete cantilever racking units
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 861.5 kg
• Weight = 807 kg
• Outdoor installation thanks to hot-dip galvanised surface coating
• Very stable rails made of IPE profiles
• For bulky, long and heavy stored goods
• Can be operated with a forklift
• Cantilever load capacity: 750 kg

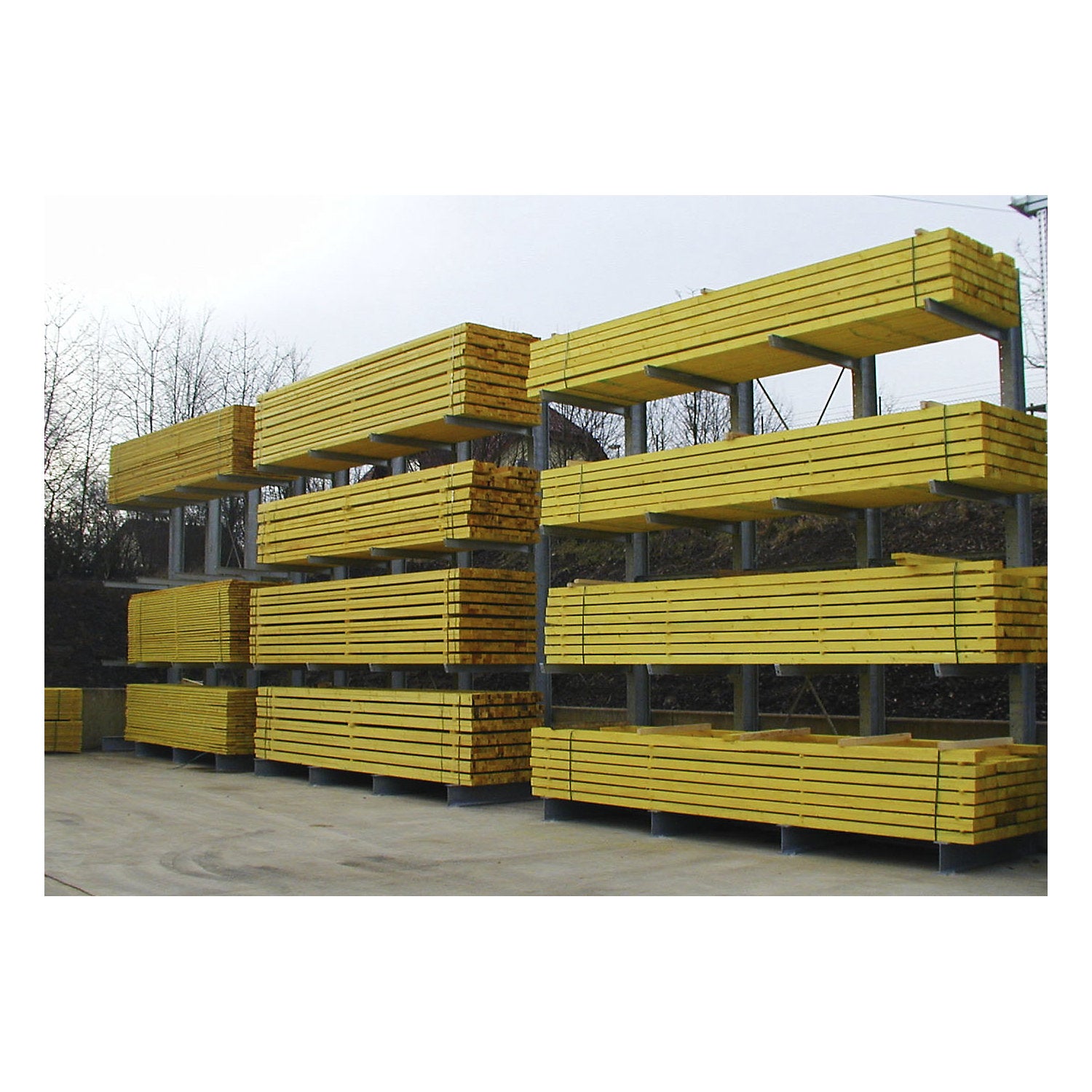

• Designed for outdoor use - the robust, single-sided cantilever racking unit
• Thanks to the hot-dip galvanised surface coating, the weatherproof racking can be set up outdoors to utilise a larger storage area and simplify storage processes
• The uprights made of IPE profiles are very stable and the cantilever arms each have a load capacity of 750 kg
• The cantilever racking unit can be operated using an industrial truck to facilitate the storage and transport of bulky, long and heavy stored goods
• The calculation for the cantilever racking unit is carried out in accordance with: DIN EN 1991-1-3 snow loads, DIN EN 1991-1-4 wind loads, DIN EN 1993-1-1 design of steel structures and DIN EN 1090 - execution of steel structures
• The annual inspection in accordance with EN 15635 must be carried out by a qualified inspector.
