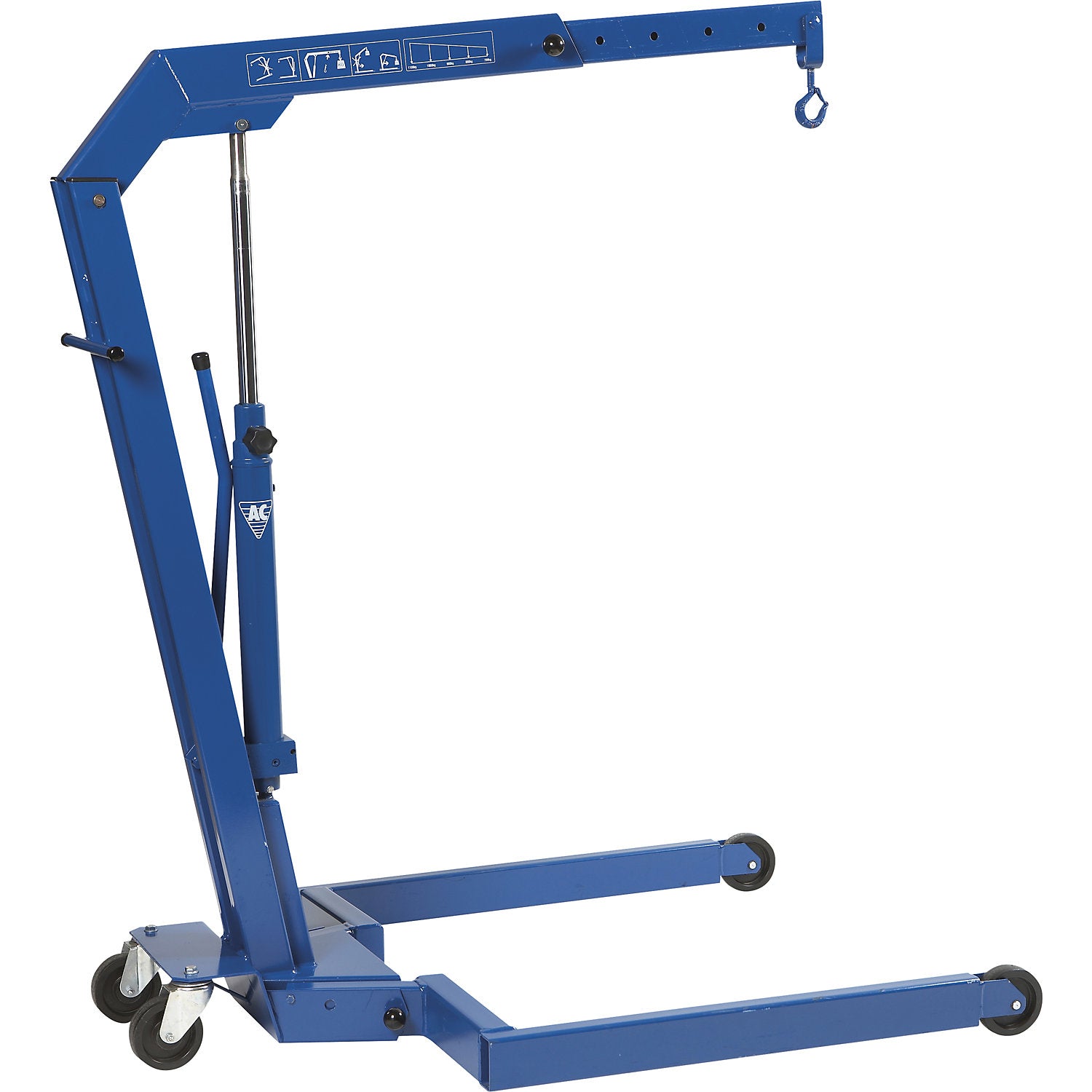

Hydraulic workshop crane, parallel wheeled base, max. load 550 kg.

Estimated delivery: 46 days

Hydraulic workshop crane, parallel wheeled base, max. load 550 kg

• Supplied = partially assembled
• Max. load = 550 kg
• Max. load (at jib length mm) = 550 (955 mm) kg, 500 (1060 mm) kg, 450 (1165 mm) kg, 400 (1270 mm) kg, 350 (1375 mm) kg
• Colour = gentian blue RAL 5010
• Width = 1100 mm
• Height = 1520 mm
• Length = 1420 mm
• Lifting height max. cantilever arm extended = 2340 mm
• Hydraulic pump = single action
• Max. crane arm length = 1375 mm
• Min. crane arm length = 955 mm
• Wheel type = nylon
• Wheel bearing = ball bearing
• Design of crane = parallel chassis
• Chassis height = 125 mm
• Lifting height max. cantilever arm retracted = 2020 mm
• Finish = powder coated
• Max. hook height with max. crane arm angle = 2340 mm
• Weight = 79 kg
• Material = steel
• Product type = workshop cranes with parallel chassis
• Customs tariff number = 84251900
• Country of origin = DNK
• Gross weight = 93 kg
• Weight = 79 kg
• Can be assembled and disassembled
• Compactly collapsible, minimal space requirement
• High max. load up to the outer jib position
• Safety valve against overload
• Rotating hook, flexible positioning of the load
• Splayed wheeled base dolly for high stability under heavy loads
• Parallel wheeled base for confined work areas
• The hydraulic workshop crane can be quickly assembled and disassembled and allows for space-saving storage
• As a mobile crane, it can be folded compactly after use and requires very little storage space in the workshop
• The workshop crane offers a high max. load, even in the final position of the jib
• This allows even heavy components to be lifted safely and positioned precisely
• A hard-chromed cylinder and pump piston ensure long, robust use in daily operation
• An integrated safety valve provides reliable protection against overload and increases operational safety
• The swivelling rear wheels allow for good handling, even under full load
• Additionally, a rotating hook allows for movement in all directions and makes work easier
• The directly controlled release ensures controlled and safe lowering
• The nylon wheels ensure quiet running and protect the workshop floor
• Two versions are available for selection
• The splayed wheeled base is suitable for applications where particularly high stability is required, such as when lifting heavy or unevenly distributed loads
• Thanks to its wider base, this model offers additional stability
• The parallel wheeled base is designed for tight space constraints
• It allows the workshop crane to be used in narrow areas, for example between machines or shelves
• This means it remains flexible to use even in confined working environments
• The mobile workshop crane is suitable for workshops and production facilities

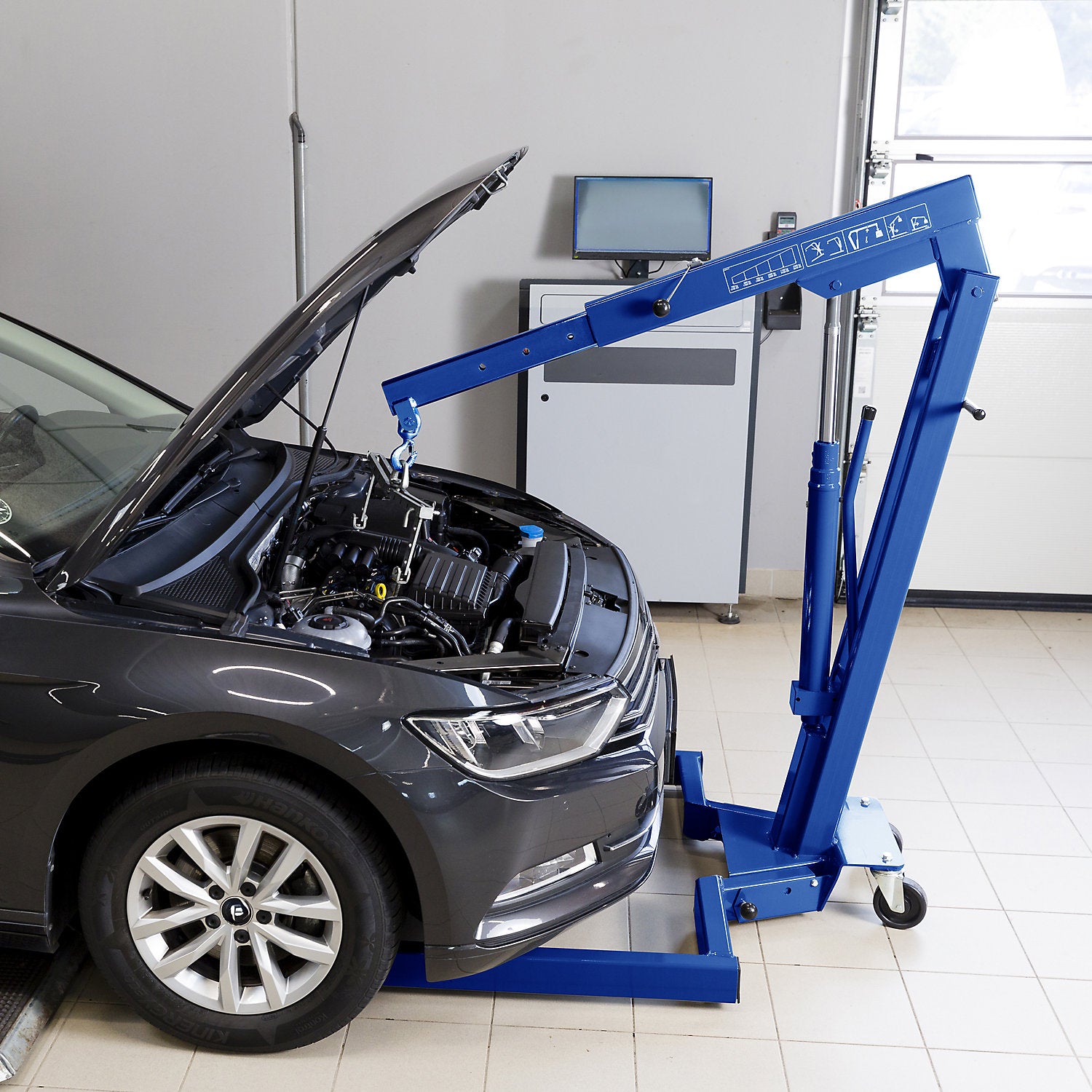

• It assists in lifting engines, machines or heavy components
• Tight spaces and limited storage areas are not an obstacle
• The hydraulic workshop crane makes handling heavy loads easier and reduces physical effort in daily work.
