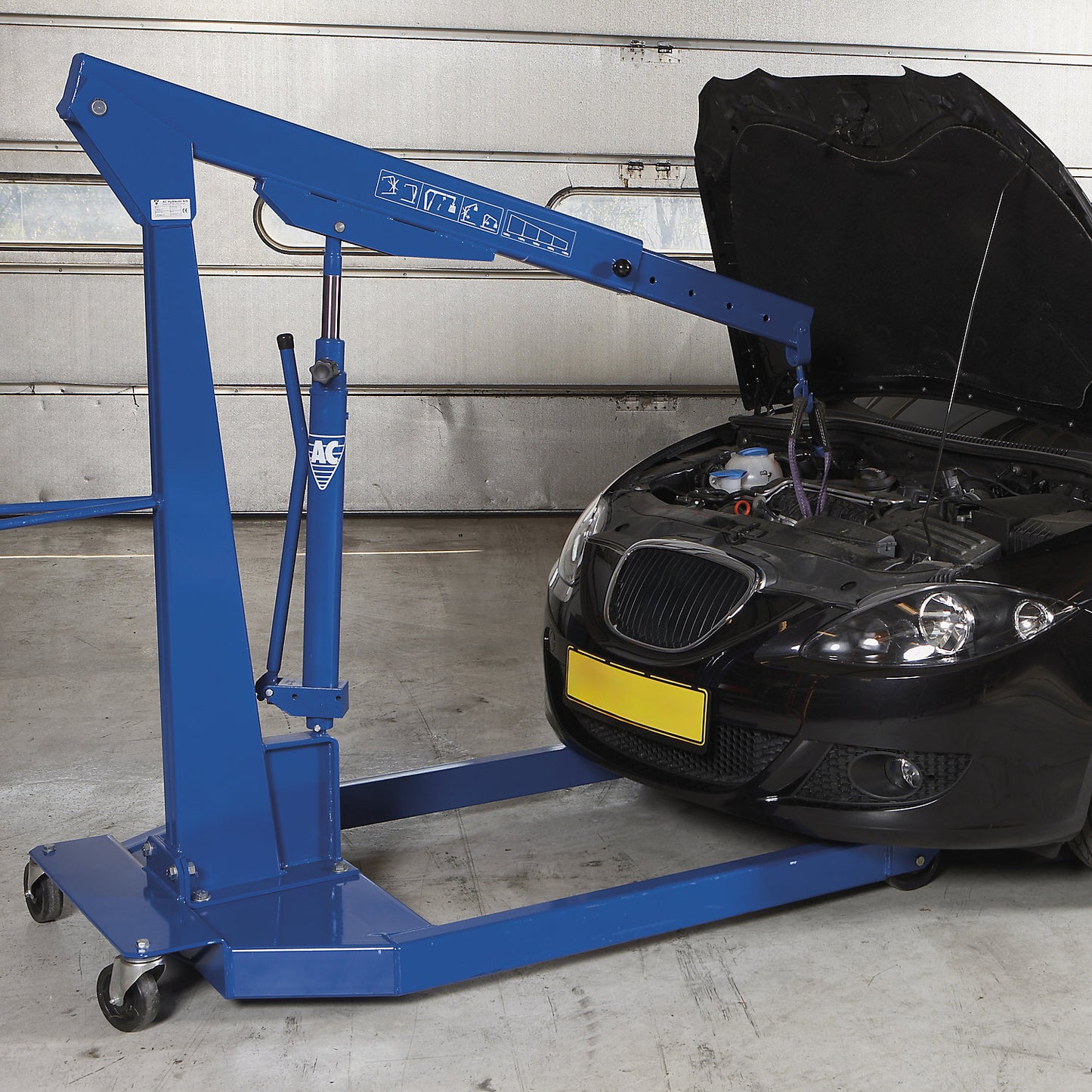

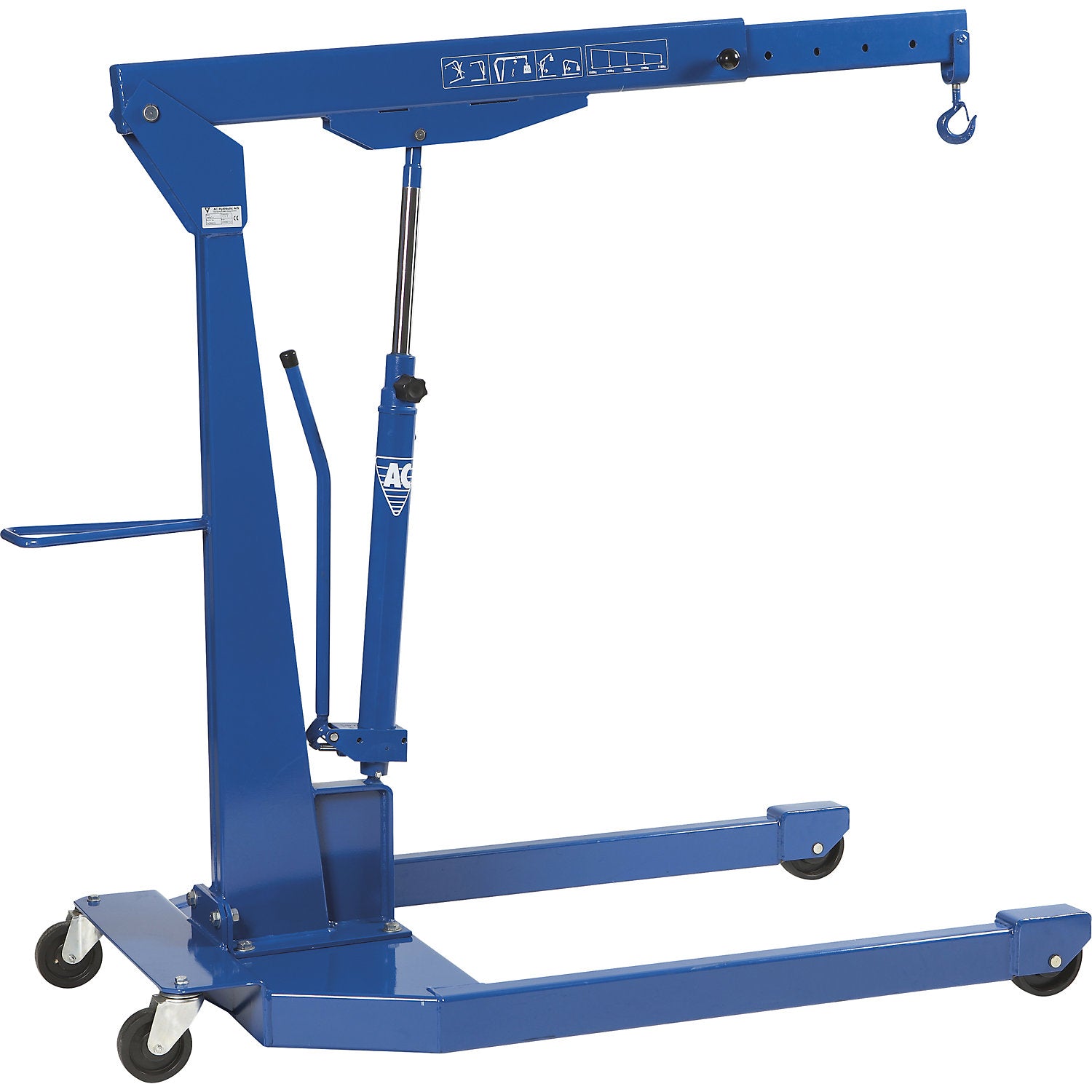

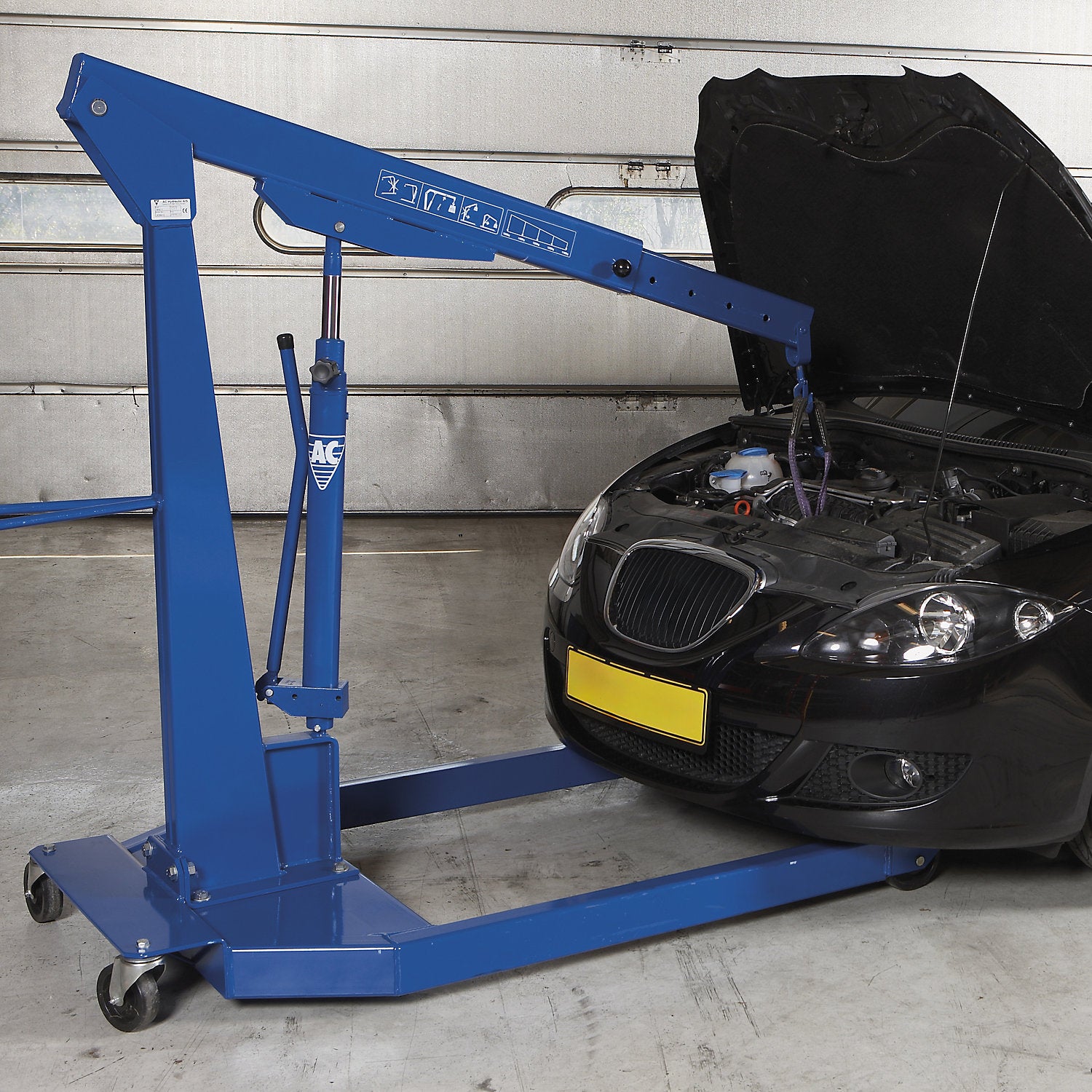

Hydraulic workshop crane, for workshops and industry, max. load 2000 kg.

Estimated delivery: 46 days

Hydraulic workshop crane, for workshops and industry, max. load 2000 kg

• Supplied = partially assembled
• Max. load = 2000 kg
• Max. load (at jib length mm) = 2000 (1210 mm) kg, 1900 (1315 mm) kg, 1800 (1420 mm) kg, 1700 (1525 mm) kg, 1600 (1630 mm) kg
• Colour = gentian blue RAL 5010
• Width = 1020 mm
• Height = 1850 mm
• Length = 1750 mm
• Lifting height max. cantilever arm extended = 2630 mm
• Hydraulic pump = single action

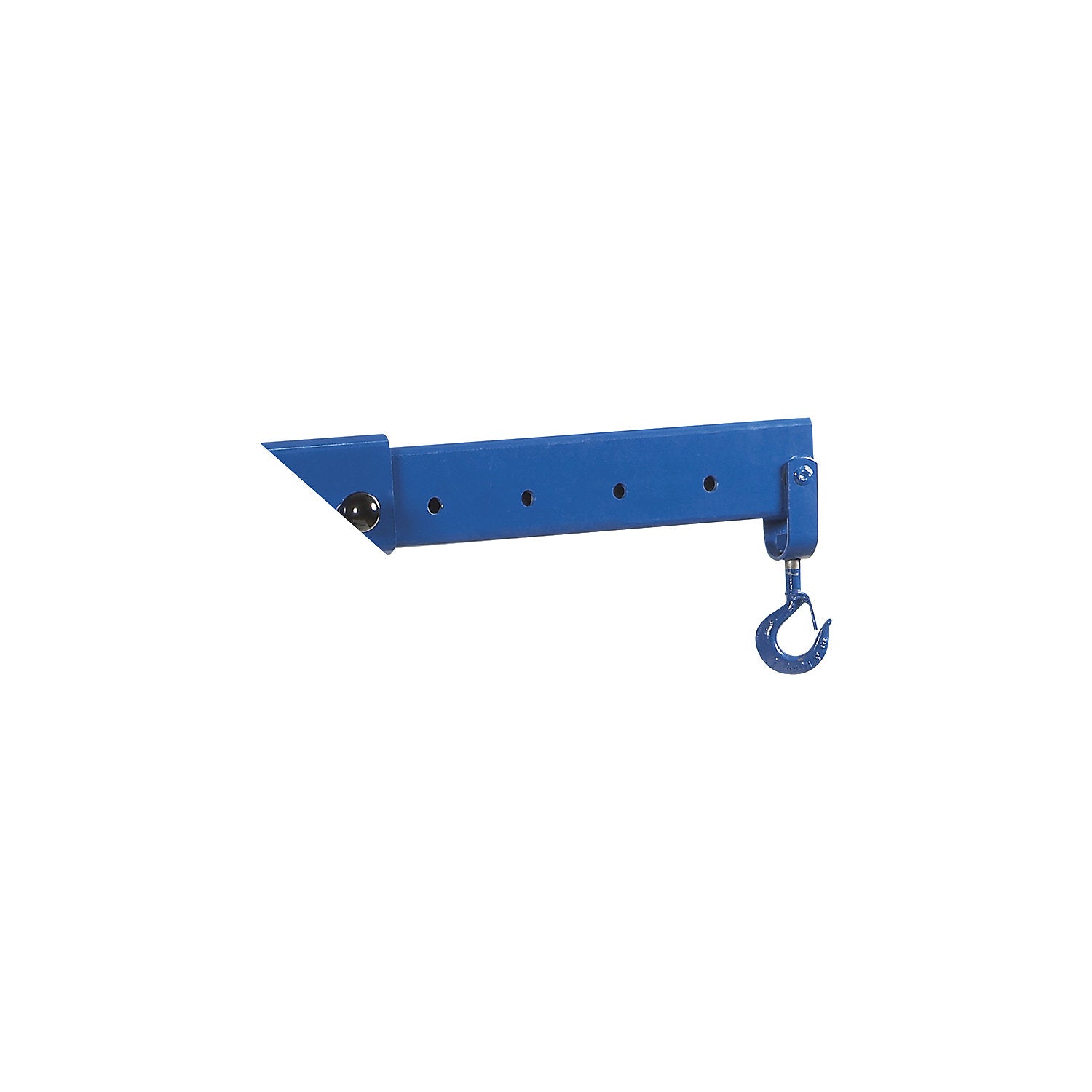

• Max. crane arm length = 1630 mm
• Min. crane arm length = 1210 mm
• Wheel type = nylon
• Wheel bearing = ball bearing
• Design of crane = parallel chassis
• Chassis height = 160 mm
• Lifting height max. cantilever arm retracted = 2340 mm
• Finish = powder coated
• Max. hook height with max. crane arm angle = 2630 mm
• Weight = 250 kg
• Material = steel
• Product type = workshop cranes with parallel chassis
• Customs tariff number = 84251900
• Country of origin = DNK
• Gross weight = 276 kg
• Weight = 250 kg
• High max. load up to the outer jib position. 360-degree rotatable pump unit for convenient operation
• Directly controlled trigger for safety when lowering
• Safety valve against overload
• Rotating hook for flexible positioning of the load
• Hard chrome-plated cylinder and pump piston
• The hydraulic workshop crane from AC Hydraulic impresses with its high max. load, even at the outermost jib position
• The robust construction and precise control enable reliable work even during demanding lifting operations in workshops and industry
• The mobile crane is equipped with a hard-chrome plated cylinder and pump piston
• This ensures uniform power transmission and supports a long service life
• The 360-degree rotating pump unit allows for comfortable operation from various working positions
• An integrated safety valve protects against overload and increases safety during daily operation
• The directly controlled release mechanism allows for the controlled and sensitive lowering of heavy loads
• The parallel wheeled base ensures stability during the entire lifting process
• At the same time, the inner frame width offers sufficient space to move around pallets without any problems
• Swivelling rear wheels made of nylon ensure precise and quiet handling, even at full load
• The 360-degree rotating hook supports flexible working and makes it easier to position components, engines or machines
• This allows the mobile crane to be efficiently integrated into existing workflows
• The hydraulic workshop crane is suitable for workshops, industry and maintenance areas
• The workshop crane makes it easier to lift engines, machines and heavy components
• The lifting device reduces physical strain and supports ergonomic work processes
• Tight spaces, heavy weights and frequent load changes can be managed safely and with control.
