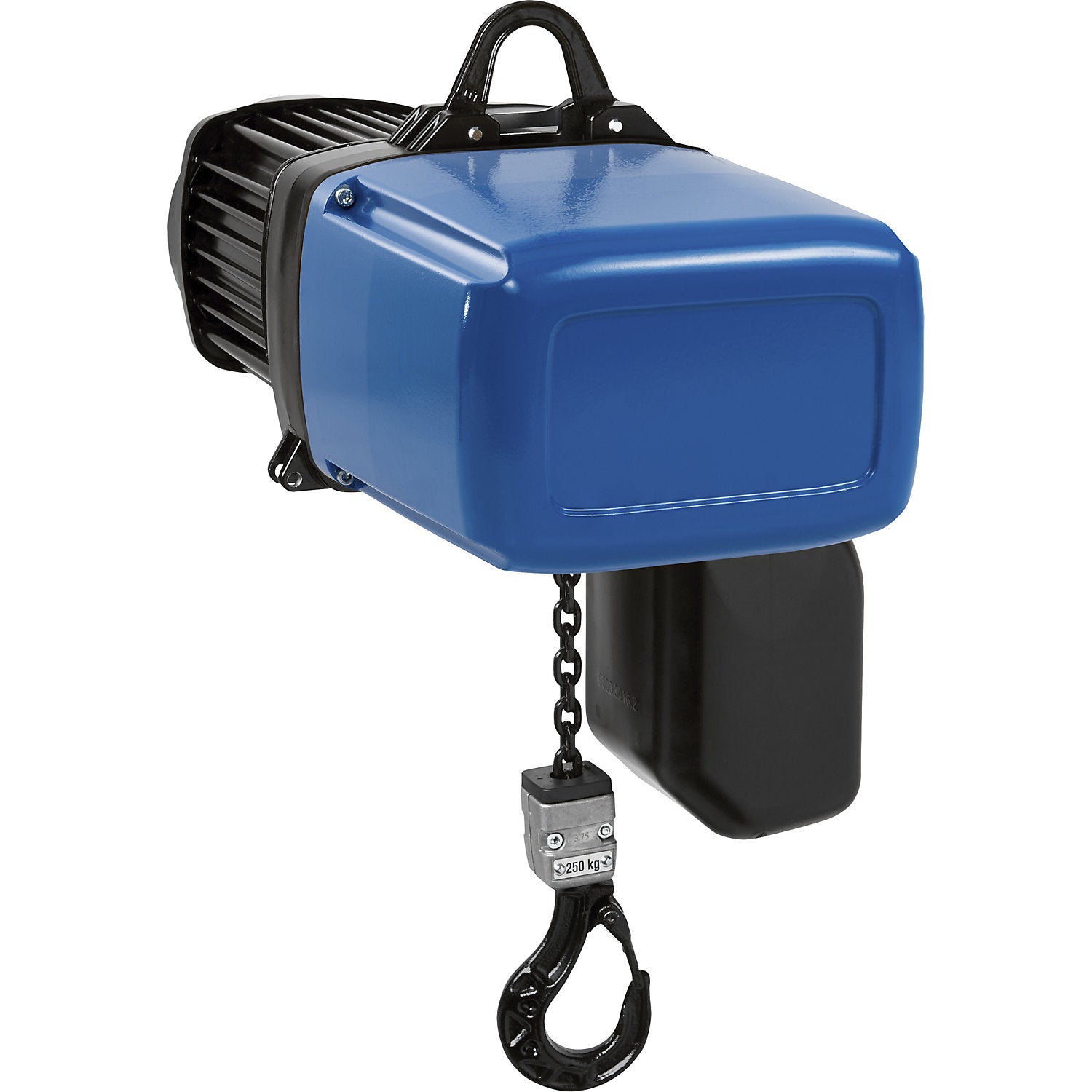

PEH electric chain hoist, with hook suspension, max. load 1600 kg, 1 leg.

Estimated delivery: 46 days

PEH electric chain hoist, with hook suspension, max. load 1600 kg, 1 leg

• Supplied = assembled
• Max. load = 1600 kg
• FEM group = 2 m
• Design of chain hoist = with hook suspension
• Number of strands = 1 pcs
• Colour = blue, black
• Operating voltage = 400 V/50 - 60 Hz/3 phase
• Protection class = IP65
• Overall height = 870 mm
• Lifting height = 3000 mm
• Lift speed = 8 / 2 m/min
• Power = 3,7 / 0,93 kW
• Material = steel
• Product type = electric chain hoists
• Customs tariff number = 84251100
• Country of origin = CHE
• Gross weight = 109 kg
• Weight = 94 kg
• Ready for immediate use thanks to pre-assembled wiring
• High load capacity due to manganese-phosphated profiled steel chain
• Dust- and water-jet protected to IP65
• Ergonomic control switch with external strain relief
• Easy to service due to modular design
• The PEH electric chain hoist impresses with its resistant profile steel chain and robust construction
• Thanks to the completely ready-to-use wiring with control switch, 1,8 m control length and 5 m mains cable with CEE plug, the chain hoist is immediately ready for operation and suitable for lifting heavy loads in industry, warehouses and workshops
• The modularly designed electric chain hoist features a robust contactor control without sensitive electronics
• Housing and cover made of die-cast aluminium ensure high stability combined with a low weight
• The high smooth running enables controlled and precise lifting of loads even with frequent duty cycles
• The dry-running slip clutch, the permanently lubricated gearbox and the low-wear DC spring-applied brake ensure reliable operation even under heavy use
• With ingress protection IP65, the chain hoist is protected against dust and strong water jets and is therefore also suitable for outdoor use
• Particularly noteworthy is the case-hardened and manganese-phosphated profile steel chain
• It offers an increased load capacity compared to conventional round steel chains and is characterised by improved emergency running properties as well as being durable
• The 8-compartment chain safety supports a safe lifting process even under demanding conditions
• In addition, the polygon connection facilitates maintenance and repair work, which can reduce downtimes
• The special design of the shaft-hub connections also enables a faster exchange of components and supports economical service processes
• The PEH electric chain hoist is suitable for industry, trade, workshops, storage areas as well as plant and mechanical engineering
• Wherever heavy loads have to be moved regularly, this chain hoist ensures safe and precise lifting processes
• The ergonomic control supports comfortable and fatigue-free working during repetitive lifting tasks
• The robust control switch is designed for continuous use and is controlled via a safe 42-V low voltage
• Pushbuttons arranged in parallel facilitate operation, while the integrated strain relief additionally protects the control cable.
